Toyota Lexus GS Series

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3324A0 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

14 part groups · 3 illustrations

Illustrations

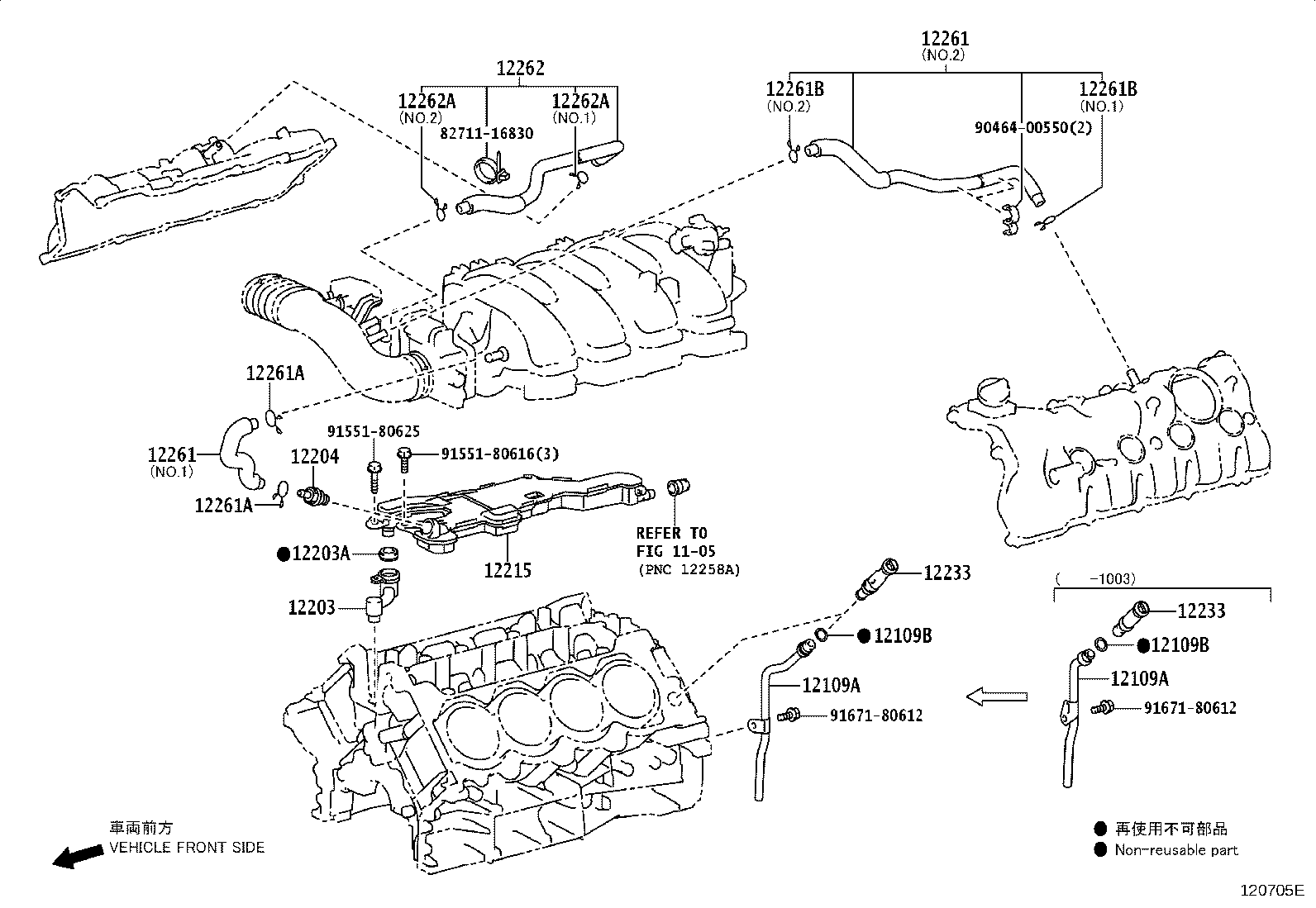

Figure 120296D 120296D 2005-01 → — Figure 120409B 120409B 2005-01 → 2007-09 Figure 120705E 120705E 2007-09 → —

Part groups

PNCDescription
12109A Pipe Sub-assy, Oil Drain
12109B Ring, O(FOR OIL DRAIN PIPE)
12203 Pipe Sub-assy, Ventilation
12203A Gasket(FOR VENTILATION PIPE)
12204 Valve Sub-assy, Ventilation
12215 Separator, Case
12233 Connector, Ventilation NO.1
12235 Cap, Ventilation
12254 Cover, Ventilation Valve
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
