Toyota Lexus GS Series

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3324A0 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

24 part groups · 4 illustrations

Illustrations

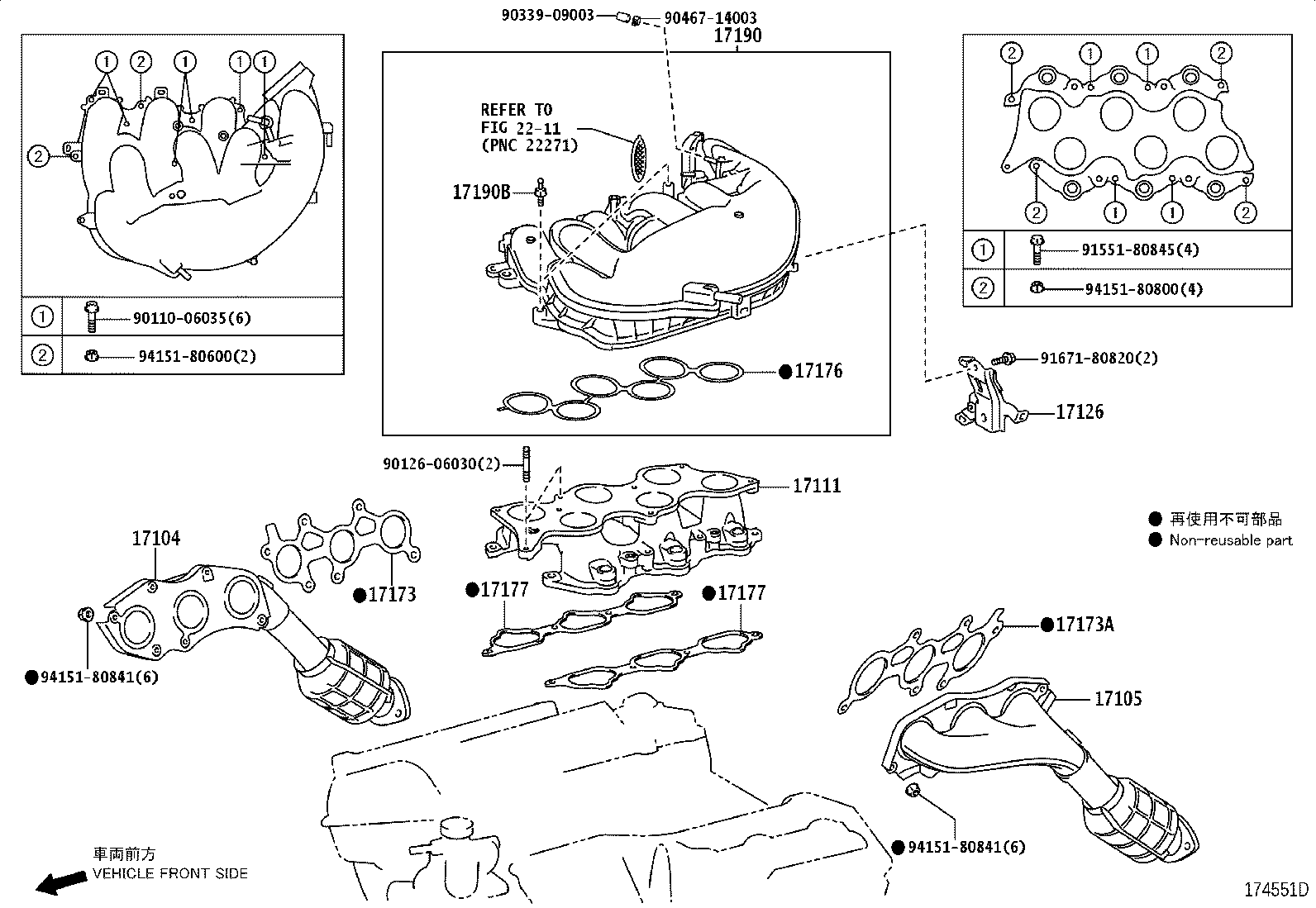

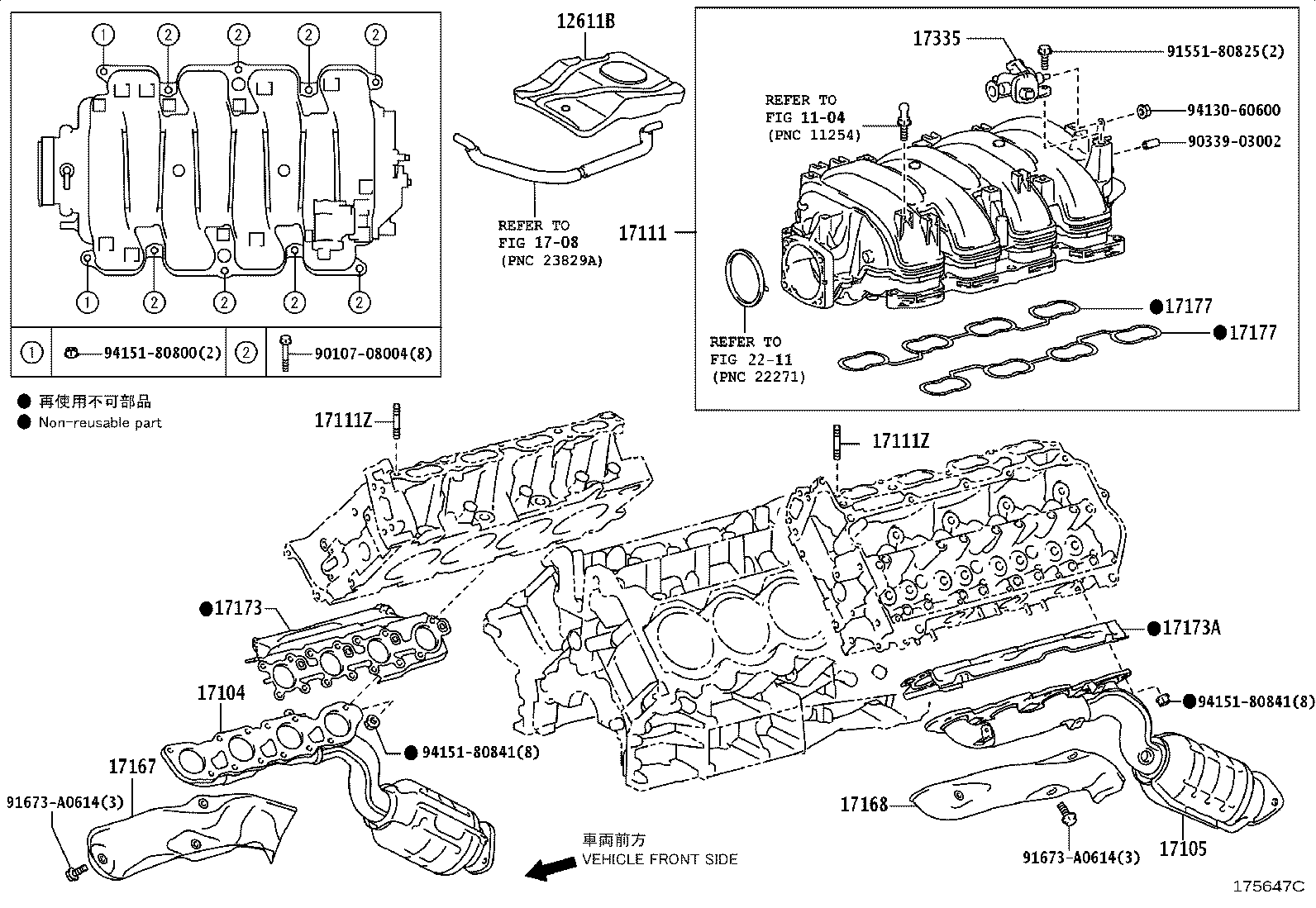

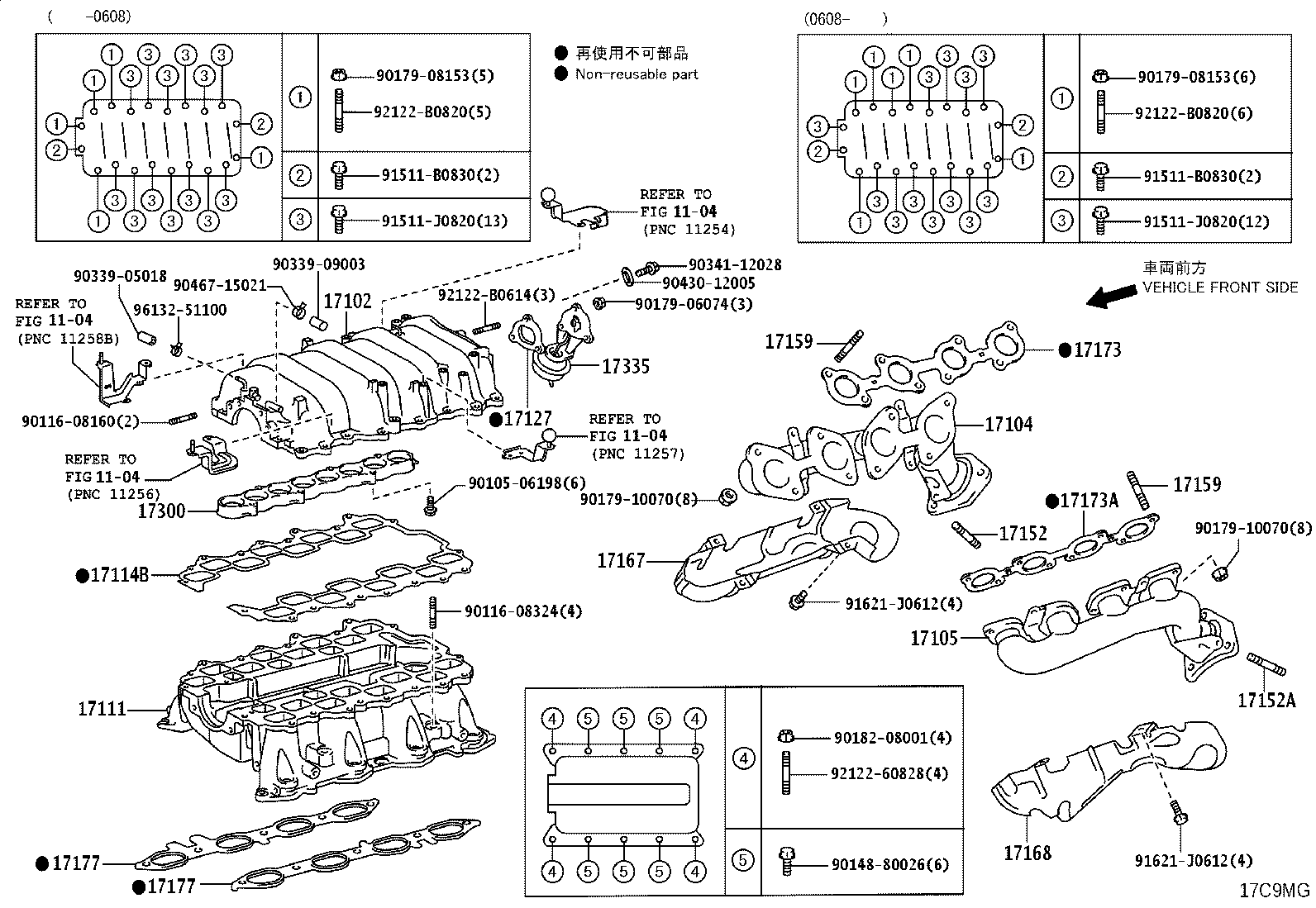

Figure 174866C 174866C 2005-01 → 2006-07 Figure 174551D 174551D 2006-07 → — Figure 17C9MG 17C9MG 2005-01 → 2007-09 Figure 175647C 175647C 2007-09 → —

Part groups

PNCDescription
12611B Cover, Engine, NO.1
17102 Manifold Sub-assy, Intake, Upper
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17114B Gasket, Intake Flange
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17127 Gasket, Surge Tank Cover
17138B Stay, Intake Manifold
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17190 Tank Assy, Intake Air Surge
17190B Bracket, Intake Air Surge Tank, NO.2
17300 Valve Assy, Intake Air Control
17335 Actuator, Intake Air Control Valve
