Toyota Lexus GS Series

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3324A0 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 4 illustrations

Illustrations

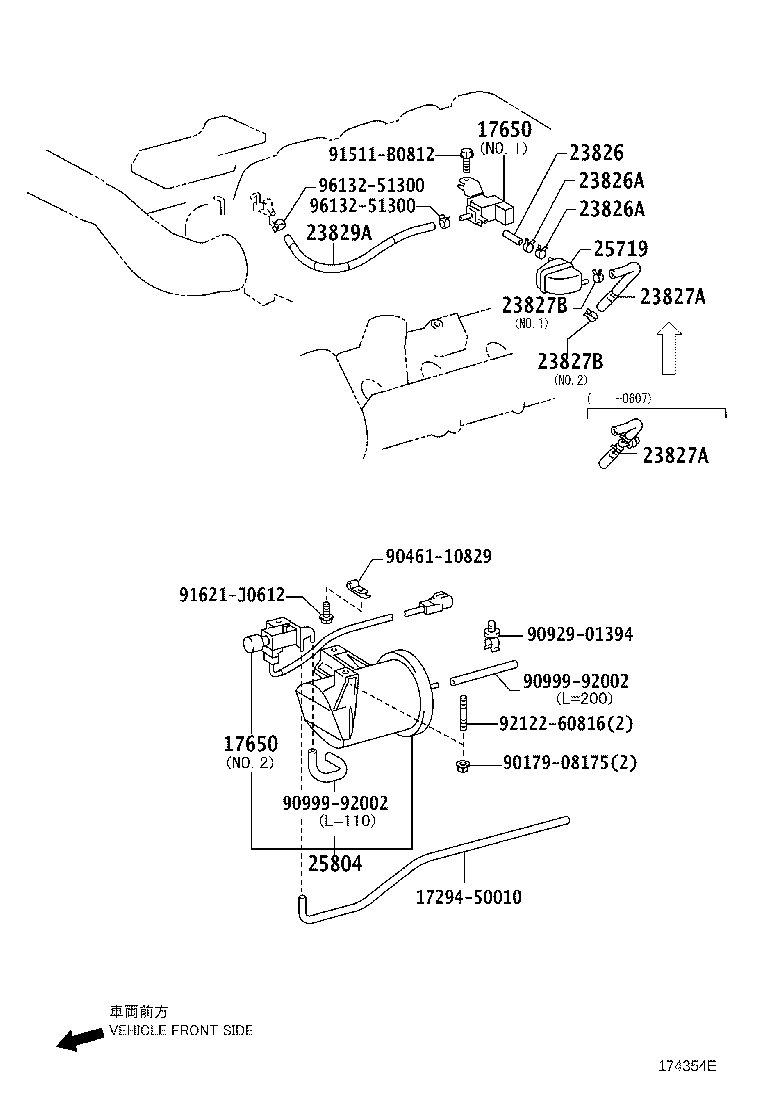

Figure 175702A 175702A 2005-01 → 2006-07 Figure 175700A 175700A 2006-07 → — Figure 174354E 174354E 2005-01 → 2007-09 Figure 175645C 175645C 2007-09 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
21989A Insulator, Plate
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827E Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
25719 Tank, Vacuum Surge
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
