Toyota Lexus GS Series

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3324A0 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

4 part groups · 4 illustrations

Illustrations

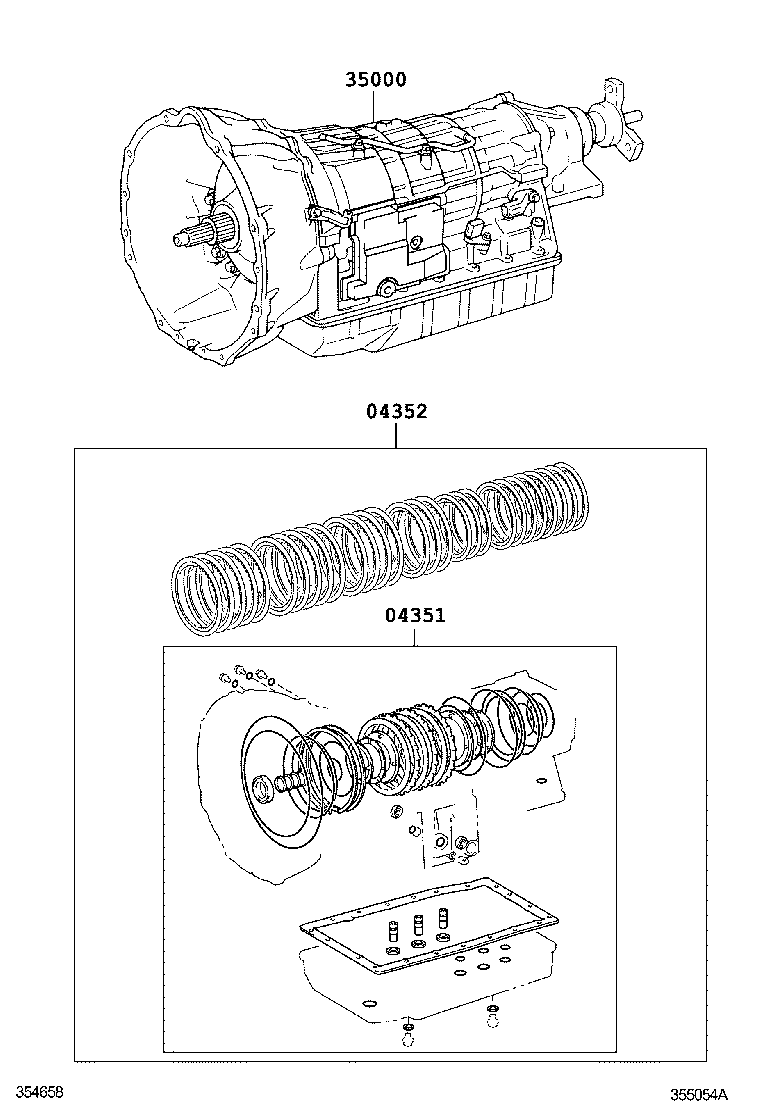

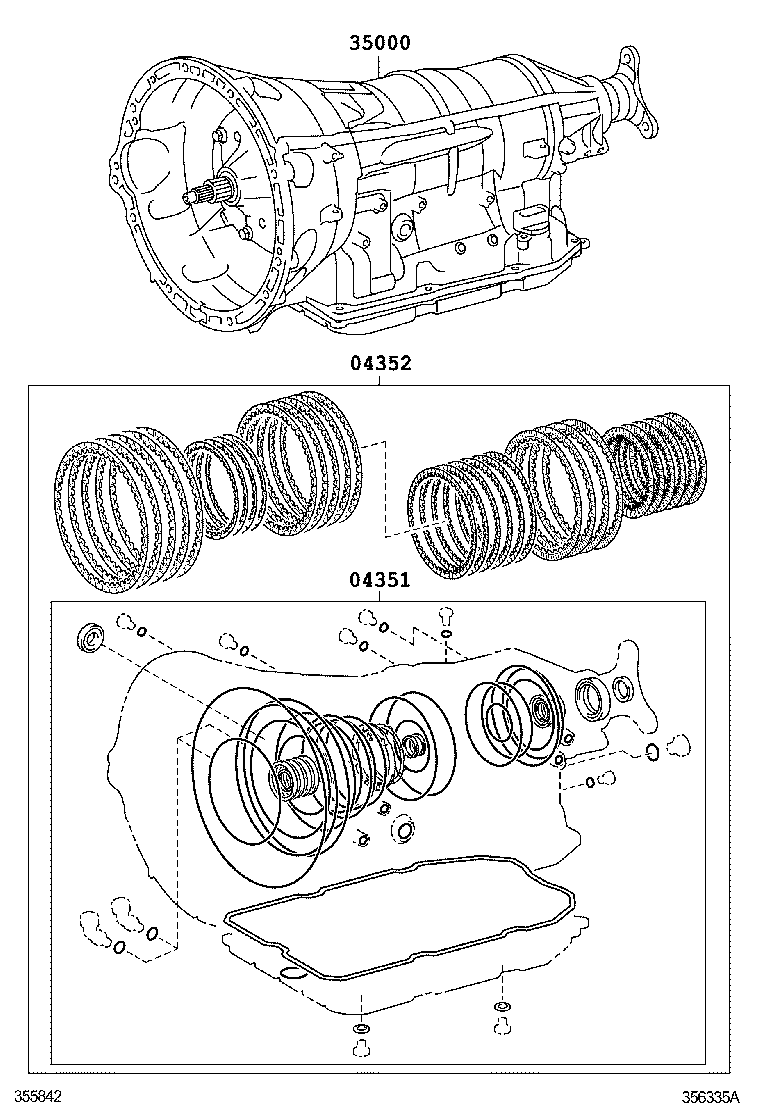

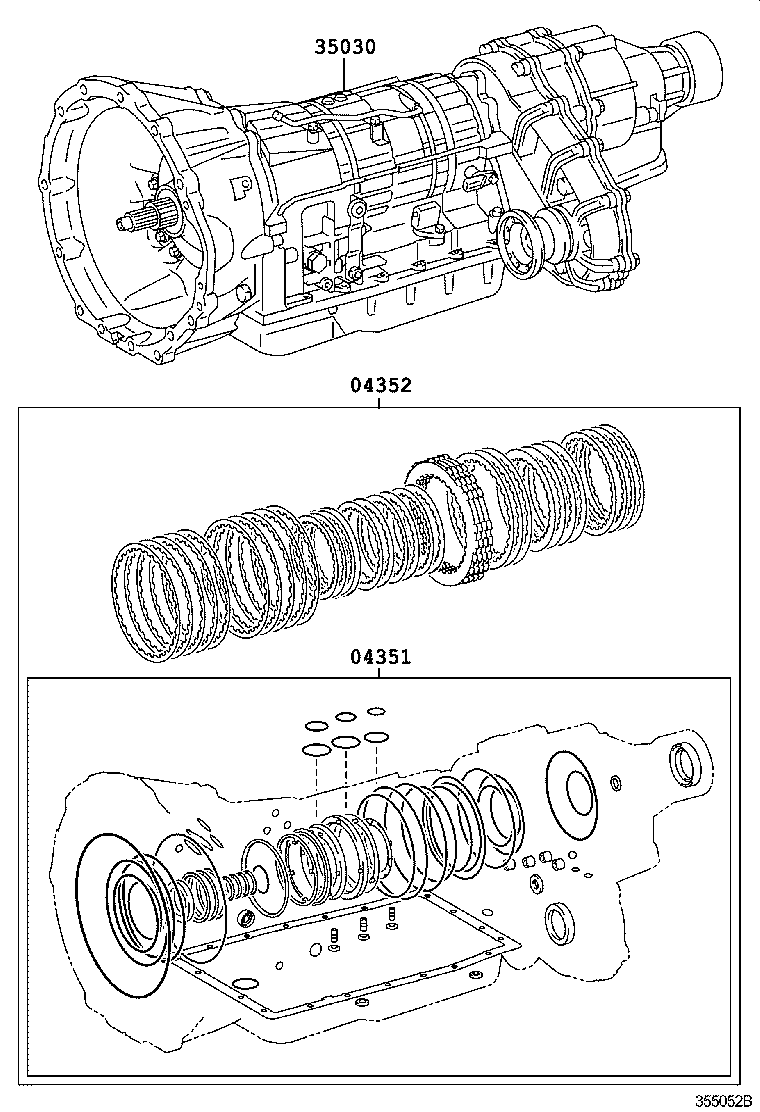

Figure 355053A 355053A 2005-01 → 2006-07 Figure 355054A 355054A 2005-01 → — Figure 355052B 355052B 2005-01 → — Figure 356335A 356335A 2007-09 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
04352 Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
35030 Transmission Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
