Toyota Lexus GS Series

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3324A0 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

25 part groups · 3 illustrations

Illustrations

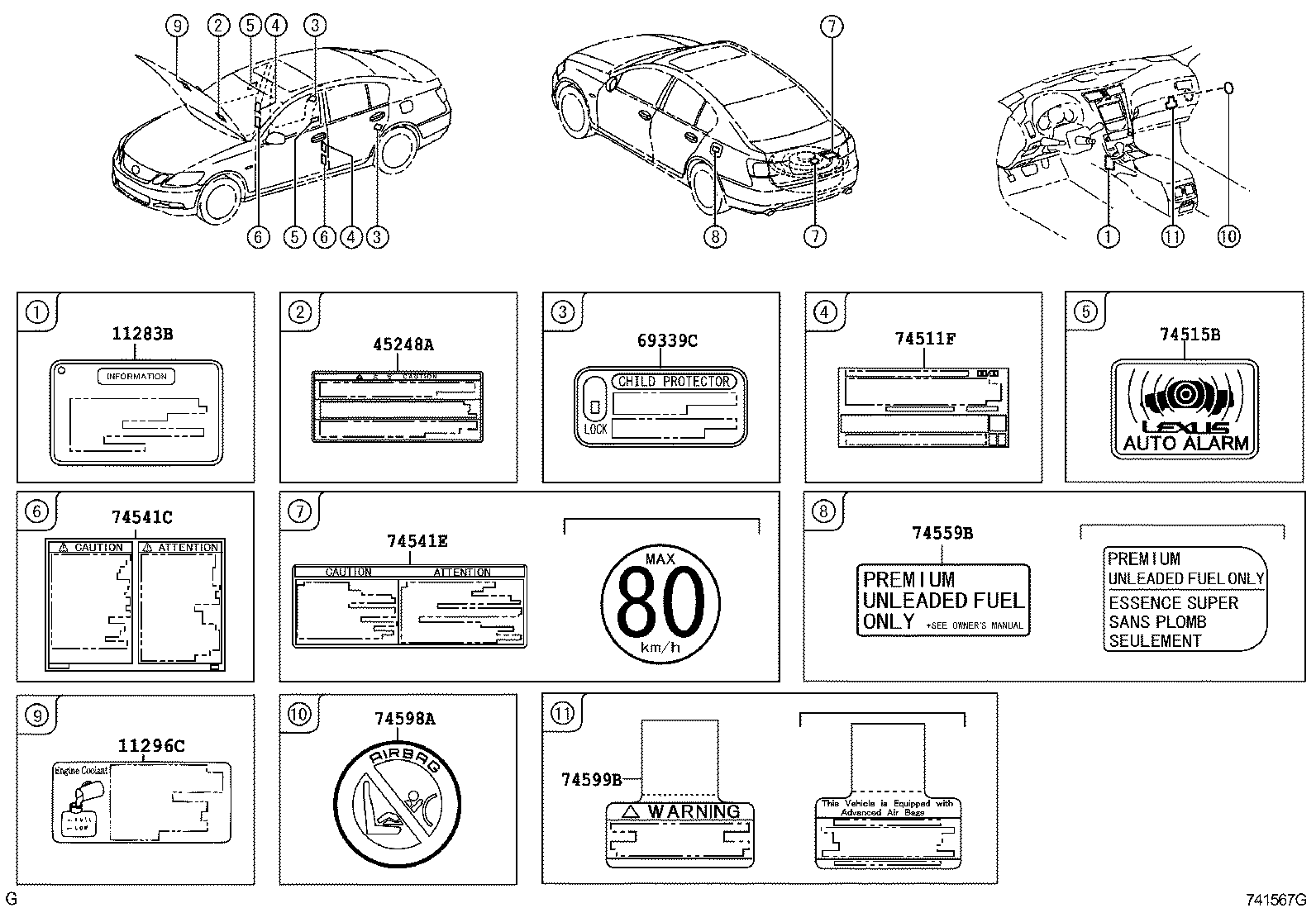

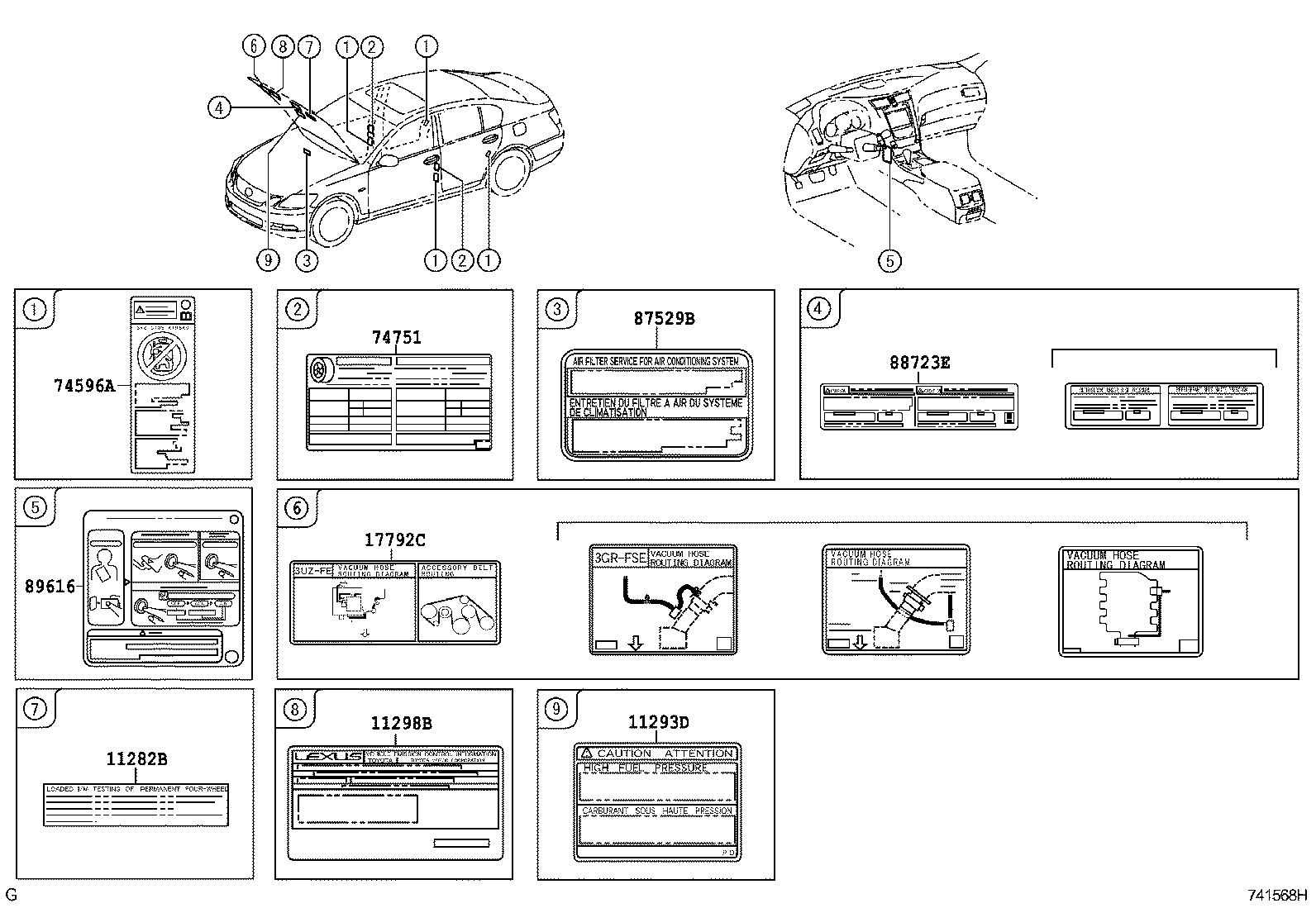

Figure 745910A 745910A 2005-01 → — Figure 741567G 741567G 2005-01 → — Figure 741568H 741568H 2005-01 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11283B Label, Leak Detection Pump Information
11285F Label, Coolant System Caution
11289B Label, Spark Plug Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
45248A Label, Steering Actuator Caution
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74541C Plate, Runflat Tire Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
