Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

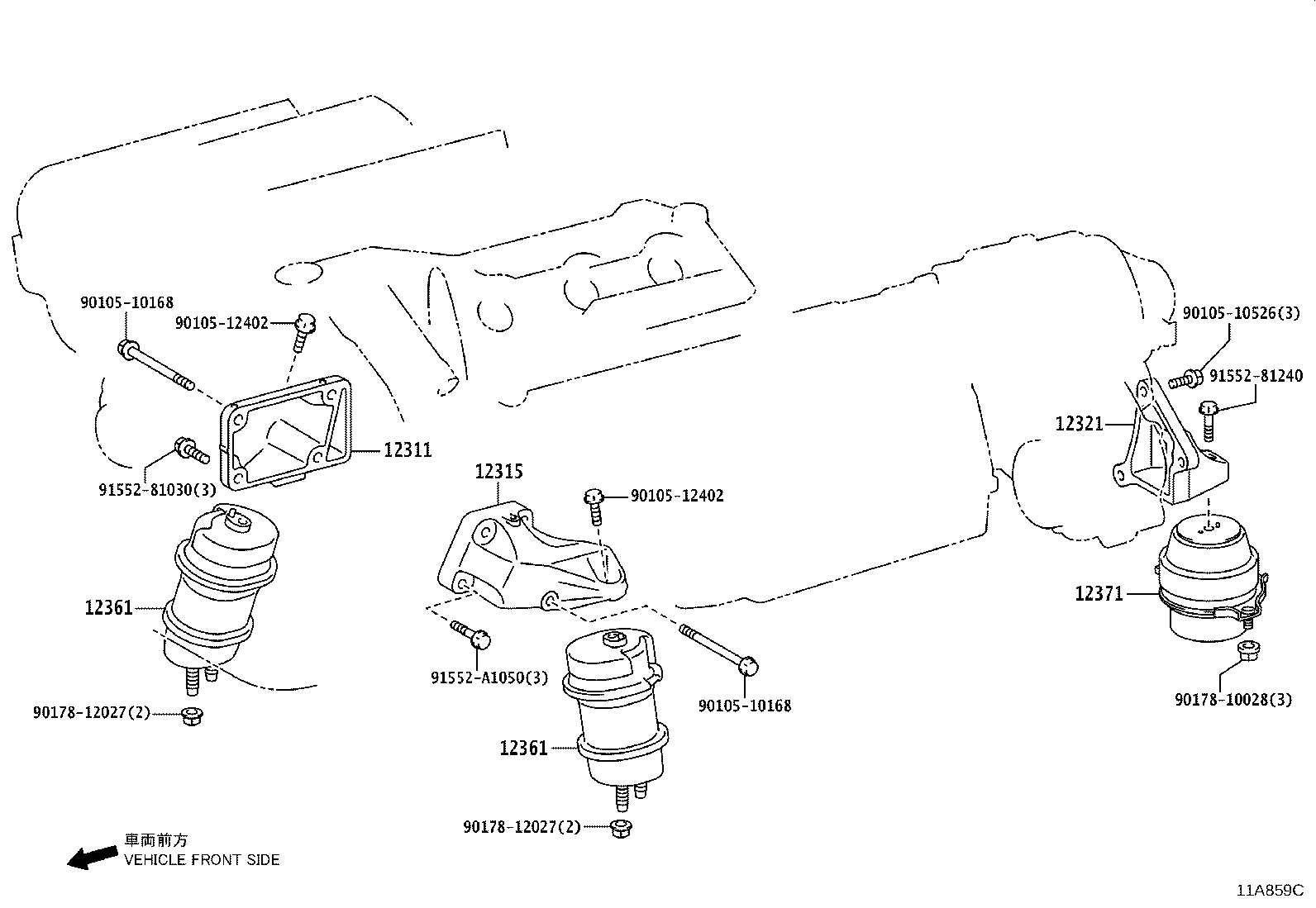

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311 — Bracket, Engine Mounting, Front NO.1 RH | ||||
| 12311-31040 |
Bracket, Engine Mounting, Front NO.1 RH
2011-12 → 2015-10
ended
|
2GRFSE GRL10 8FC;2GRFXE,4GRFSE GRL11,GWL10 | — | |
| 12311-31040 |
Bracket, Engine Mounting, Front NO.1 RH
2011-12 → 2013-09
ended
|
2GRFSE GRL10 | — | |
| 12311-31050 |
Bracket, Engine Mounting, Front NO.1 RH
2011-12 → 2015-10
ended
|
2GRFSE GRL15 | — | |
| 12311-31040 |
Bracket, Engine Mounting, Front NO.1 RH
2015-10 → 2020-07
ended
|
2GR# GRL12,GWL10 | — | |
| 12311-31050 |
Bracket, Engine Mounting, Front NO.1 RH
2015-10 → 2020-07
ended
|
2GRFKS GRL16 | — | |
| 12311-36130 |
Bracket, Engine Mounting, Front NO.1 RH
2015-10 → 2019-08
ended
|
8ARFTS ARL10 | — | |
| 12315 — Bracket, Engine Mounting, Front NO.1 LH | ||||
| 12302-31010 |
Bracket, Engine Mounting, Front NO.1 LH
2011-12 → 2013-09
ended
|
2GRFSE GRL10 | — | |
| 12302-31010 |
Bracket, Engine Mounting, Front NO.1 LH
2011-12 → 2015-10
ended
|
2GRFSE GRL10 8FC;2GRFXE,4GRFSE GRL11,GWL10 | — | |
| 12302-31020 |
Bracket, Engine Mounting, Front NO.1 LH
2011-12 → 2015-10
ended
|
2GRFSE GRL15 | — | |
| 12302-31010 |
Bracket, Engine Mounting, Front NO.1 LH
2015-10 → 2018-09
ended
|
2GRFXE GWL10 | — | |
| 12315-31170 |
Bracket, Engine Mounting, Front NO.1 LH
2015-10 → 2020-07
ended
|
2GRFKS GRL12 | — | |
| 12315-31180 |
Bracket, Engine Mounting, Front NO.1 LH
2015-10 → 2020-07
ended
|
2GRFKS GRL16 | — | |
| 12315-36040 |
Bracket, Engine Mounting, Front NO.1 LH
2015-10 → 2019-08
ended
|
8ARFTS ARL10 | — | |
| 12321 — Bracket, Engine Mounting, Rear, NO.1 | ||||
| 12321-31040 |
Bracket, Engine Mounting, Rear, NO.1
2011-12 → 2015-10
ended
|
2GRFSE GRL15 | — | |
| 12321-31150 |
Bracket, Engine Mounting, Rear, NO.1
2013-09 → 2015-10
ended
|
2GRFSE GRL10 | — | |
| 12321-31040 |
Bracket, Engine Mounting, Rear, NO.1
2015-10 → 2020-05
ended
|
2GRFKS GRL16 | — | |
| 12321-31150 |
Bracket, Engine Mounting, Rear, NO.1
2015-10 → 2020-07
ended
|
2GRFKS GRL12 | — | |
| 12321-31150 |
Bracket, Engine Mounting, Rear, NO.1
2015-10 → 2019-08
ended
|
8ARFTS ARL10 | — | |
| 12321-31270 |
Bracket, Engine Mounting, Rear, NO.1
2020-06 → 2020-07
ended
|
2GRFKS GRL16 | — | |
| 12361 — Insulator, Engine Mounting, Front | ||||
| 12361-31310 |
Insulator, Engine Mounting, Front
2011-12 → 2013-09
ended
|
2GRFSE GRL10 | — | |
| 12361-31310 |
Insulator, Engine Mounting, Front
2011-12 → 2015-10
ended
|
2GRFSE GRL10 8FC;2GRFXE,4GRFSE GRL11,GWL10 | — | |
| 12361-31320 |
Insulator, Engine Mounting, Front
2011-12 → 2015-10
ended
|
2GRFSE GRL15 | — | |
| 12361-31320 |
Insulator, Engine Mounting, Front
2015-10 → 2017-05
ended
|
2GRFKS GRL16 | — | |
| 12361-31321 |
Insulator, Engine Mounting, Front
2017-06 → 2020-07
ended
|
2GRFKS GRL16 | — | |
| 12361-31430 |
Insulator, Engine Mounting, Front
2015-10 → 2020-07
ended
|
2GR# GRL12,GWL10 | — | |
| 12361-36220 |
Insulator, Engine Mounting, Front
2015-10 → 2019-08
ended
|
8ARFTS ARL10 | — | |
| 12371 — Insulator, Engine Mounting, Rear NO.1 | ||||
| 12371-31270 |
Insulator, Engine Mounting, Rear NO.1
2011-12 → 2015-10
ended
|
2GRFSE,4GRFSE GRL10,11 | — | |
| 12371-31280 |
Insulator, Engine Mounting, Rear NO.1
2012-03 → 2015-10
ended
|
2GRFXE GWL10 | — | |
| 12371-31290 |
Insulator, Engine Mounting, Rear NO.1
2011-12 → 2015-08
ended
|
2GRFSE GRL15 | — | |
| 12371-31291 |
Insulator, Engine Mounting, Rear NO.1
2015-09 → 2015-10
ended
|
2GRFSE GRL15 | — | |
| 12371-31270 |
Insulator, Engine Mounting, Rear NO.1
2015-10 → 2019-08
ended
|
8ARFTS ARL10 | — | |
| 12371-31270 |
Insulator, Engine Mounting, Rear NO.1
2015-10 → 2020-04
ended
|
2GRFKS GRL12 | — | |
| 12371-31280 |
Insulator, Engine Mounting, Rear NO.1
2015-10 → 2018-09
ended
|
2GRFXE GWL10 | — | |
| 12371-31291 |
Insulator, Engine Mounting, Rear NO.1
2015-10 → 2020-07
ended
|
2GRFKS GRL16 | — | |
| 12371-36280 |
Insulator, Engine Mounting, Rear NO.1
2020-05 → 2020-07
ended
|
2GRFKS GRL12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
