Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

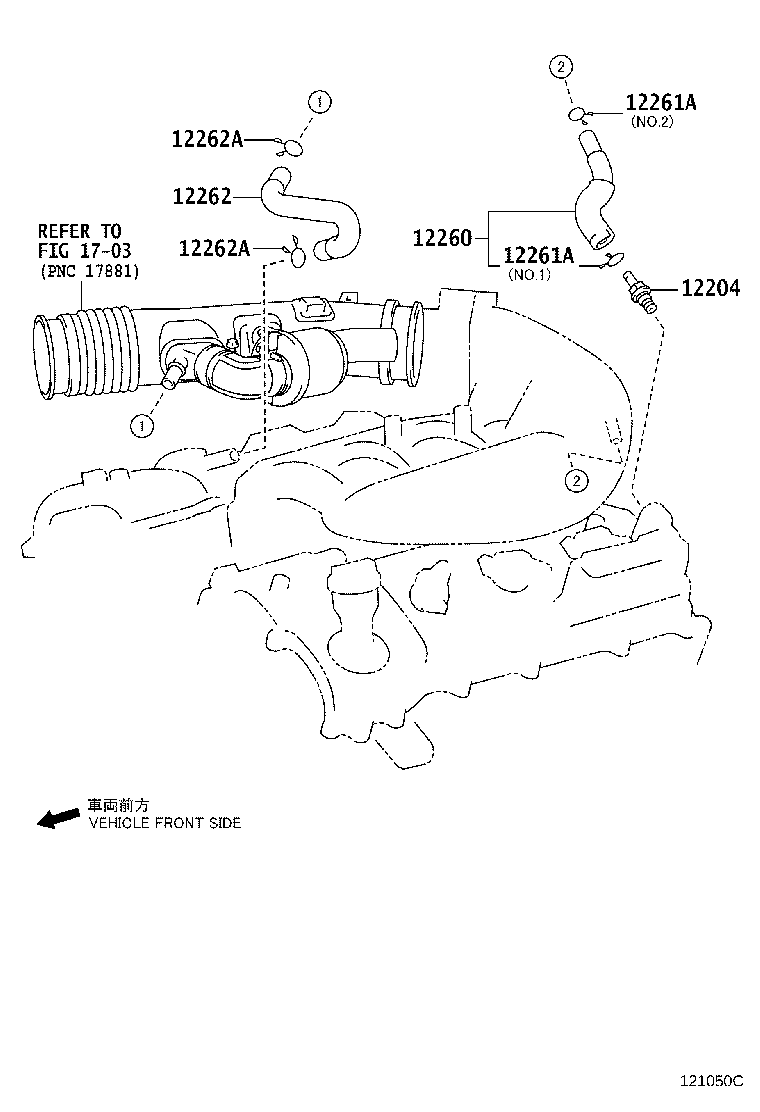

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-31050 |
Valve Sub-assy, Ventilation
2011-12 → 2015-10
ended
|
2GRFSE GRL15;2GRFSE GRL10 8FC | — | |
| 12204-31050 |
Valve Sub-assy, Ventilation
2011-12 → 2013-09
ended
|
2GRFSE GRL10 | — | |
| 12204-31130 |
Valve Sub-assy, Ventilation
2012-01 → 2015-10
ended
|
4GRFSE GRL11 | — | |
| 12204-31140 |
Valve Sub-assy, Ventilation
2012-03 → 2015-10
ended
|
2GRFXE GWL10 | — | |
| 12204-31140 |
Valve Sub-assy, Ventilation
2015-10 → 2018-09
ended
|
2GRFXE GWL10 | — | |
| 12204-31150 |
Valve Sub-assy, Ventilation
2015-10 → 2020-07
ended
|
2GRFKS GRL1# | — | |
| 12204-36050 |
Valve Sub-assy, Ventilation
2015-10 → 2019-08
ended
|
8ARFTS ARL10 | — | |
| 12260 — Hose Assy, Ventilation | ||||
| 12260-31090 |
Hose Assy, Ventilation
2015-10 → 2020-07
ended
|
2GRFKS GRL1# | — | |
| 12261A — Clip OR Clamp(FOR VENTILATION HOSE) | ||||
| 90467-14017 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2011-12 → 2013-09
ended
|
2GRFSE GRL10 | — | |
| 90467-14017 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2011-12 → 2015-10
ended
|
2GRFSE GRL10 8FC;2GRFSE,4GRFSE GRL11,15 | — | |
| 90467-14017 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2012-03 → 2015-10
ended
|
2GRFXE GWL10 | — | |
| 90467-15120 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2012-03 → 2015-10
ended
|
2GRFXE GWL10 | — | |
| 90467-14017 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2015-10 → 2020-07
ended
|
2GR# GRL1#,GWL10 | — | |
| 90467-15120 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2015-10 → 2020-07
ended
|
2GR# GRL1#,GWL10 | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-31150 |
Hose, Ventilation, NO.2
2011-12 → 2013-09
ended
|
2GRFSE GRL10 | — | |
| 12262-31150 |
Hose, Ventilation, NO.2
2011-12 → 2015-10
ended
|
2GRFSE GRL10 8FC;2GR#,4GRFSE GRL11,15,GWL10 | — | |
| 12262-31150 |
Hose, Ventilation, NO.2
2015-10 → 2020-07
ended
|
2GR# GRL1#,GWL10 | — | |
| 12262-36090 |
Hose, Ventilation, NO.2
2015-10 → 2019-08
ended
|
8ARFTS ARL10 | — | |
| 12262A — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2011-12 → 2013-09
ended
|
2GRFSE GRL10 | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2011-12 → 2015-10
ended
|
2GRFSE GRL10 8FC;2GR#,4GRFSE GRL11,15,GWL10 | — | |
| 90466-16004 |
Clip(FOR VENTILATION HOSE NO.2)
2015-10 → 2019-08
ended
|
8ARFTS ARL10 | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2015-10 → 2020-07
ended
|
2GR# GRL1#,GWL10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
