Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

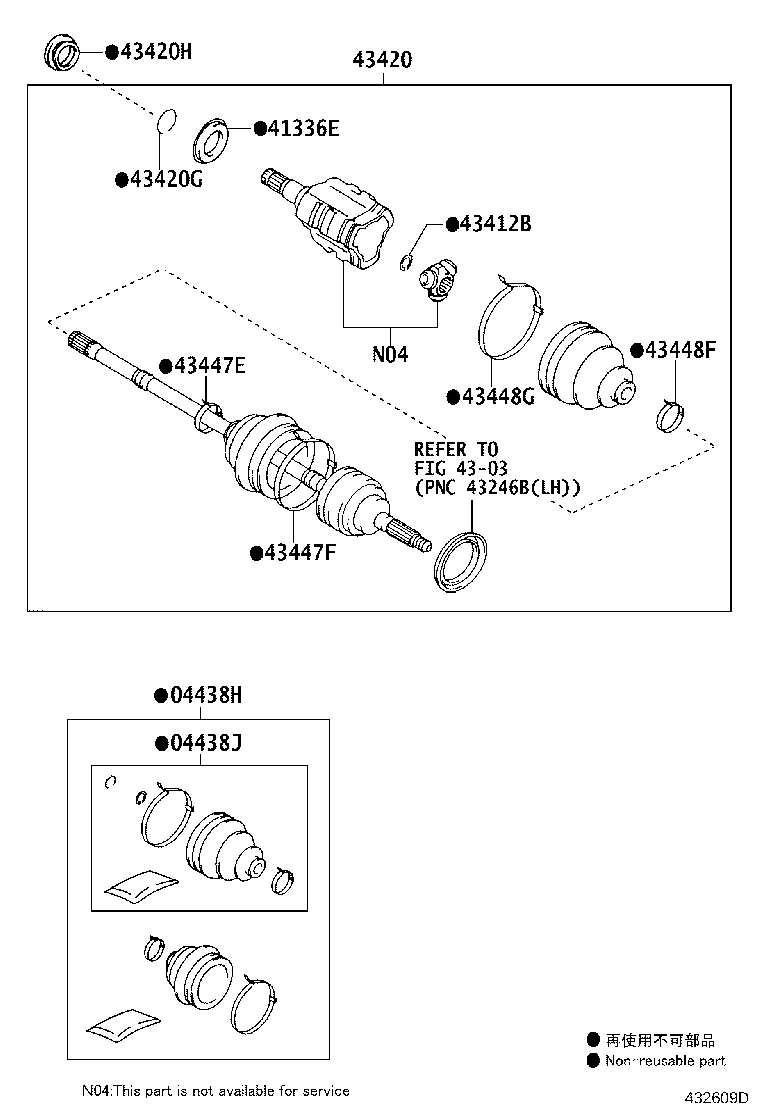

Exploded illustration 432609D 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (2 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (2 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (2 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (2 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (2 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (2 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (2 parts) 4303 — not listed in this catalogue
432609D · 11 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-30090 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2011-12 → 2015-10 ended
GRL15 —
04427-30090 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-10 → 2020-07 ended
GRL16 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-30130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2011-12 → 2015-10 ended
GRL15 —
04437-30130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-10 → 2020-07 ended
GRL16 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-32010 Cover, Front Drive Shaft Dust, LH
2011-12 → 2015-10 ended
GRL15 —
41336-32010 Cover, Front Drive Shaft Dust, LH
2015-10 → 2020-07 ended
GRL16 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-20065 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2011-12 → 2015-10 ended
GRL15 —
90520-20065 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2015-10 → 2020-07 ended
GRL16 —
43420 — Shaft Assy, Front Drive, LH
43420-30030 Shaft Assy, Front Drive, LH
2011-12 → 2015-10 ended
GRL15 —
43420-30030 Shaft Assy, Front Drive, LH
2015-10 → 2020-07 ended
GRL16 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2011-12 → 2015-10 ended
GRL15 —
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2015-10 → 2020-07 ended
GRL16 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-35030 Oil Seal, Front Drive Shaft, LH
2011-12 → 2015-10 ended
GRL15 —
90311-35030 Oil Seal, Front Drive Shaft, LH
2015-10 → 2020-07 ended
GRL16 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-22030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2011-12 → 2015-10 ended
GRL15 —
42345-22030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2015-10 → 2020-07 ended
GRL16 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-22040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2011-12 → 2015-10 ended
GRL15 —
42345-22040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2015-10 → 2020-07 ended
GRL16 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-30100 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2011-12 → 2015-10 ended
GRL15 —
42345-30100 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2020-07 ended
GRL16 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-30090 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2011-12 → 2015-10 ended
GRL15 —
42345-30090 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2020-07 ended
GRL16 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
