Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

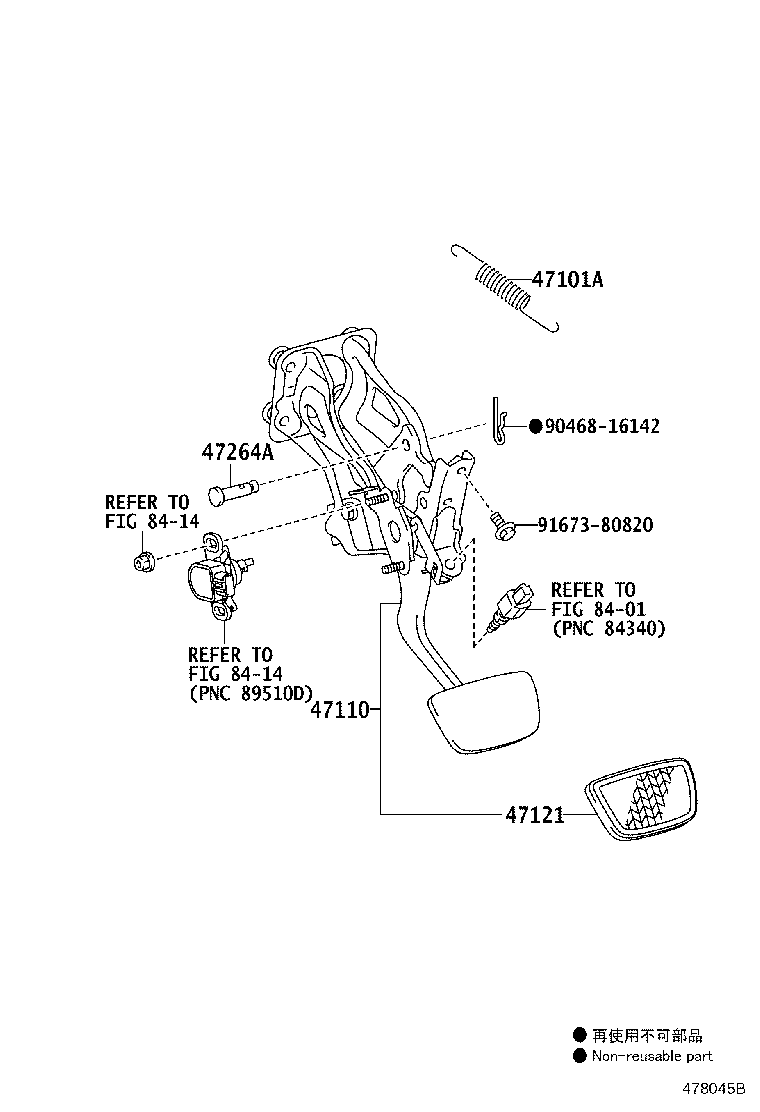

| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-12045 |
Spring(FOR BRAKE PEDAL RETURN)
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 90507-13009 |
Spring(FOR BRAKE PEDAL RETURN)
2011-12 → 2015-10
ended
|
GRL11,15;GRL10 8FC | — | |
| 90507-13009 |
Spring(FOR BRAKE PEDAL RETURN)
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 90507-12045 |
Spring(FOR BRAKE PEDAL RETURN)
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 90507-13009 |
Spring(FOR BRAKE PEDAL RETURN)
2015-10 → 2020-07
ended
|
ARL10,GRL1# | — | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-30520 |
Support Assy, Brake Pedal
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 47110-30520 |
Support Assy, Brake Pedal
2011-12 → 2015-10
ended
|
GRL11;GRL10 8FC | — | |
| 47110-30530 note |
Support Assy, Brake Pedal
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 47110-30530 note |
Support Assy, Brake Pedal
2011-12 → 2015-10
ended
|
GRL11;GRL10 8FC | — | |
| 47110-30530 note |
Support Assy, Brake Pedal
2014-10 → 2015-10
ended
|
GRL10 | — | |
| 47110-30540 |
Support Assy, Brake Pedal
2011-12 → 2015-10
ended
|
GRL15 | — | |
| 47110-30550 note |
Support Assy, Brake Pedal
2011-12 → 2015-10
ended
|
GRL15 | — | |
| 47110-30550 note |
Support Assy, Brake Pedal
2014-10 → 2015-10
ended
|
GRL15 | — | |
| 47110-30580 |
Support Assy, Brake Pedal
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 47110-30590 note |
Support Assy, Brake Pedal
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 47110-24140 |
Support Assy, Brake Pedal
2015-10 → 2020-07
ended
|
ARL10,GRL12 | — | |
| 47110-24160 |
Support Assy, Brake Pedal
2015-10 → 2020-07
ended
|
GRL16 | — | |
| 47110-24200 note |
Support Assy, Brake Pedal
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 47110-24200 note |
Support Assy, Brake Pedal
2015-10 → 2020-07
ended
|
ARL10,GRL12 | — | |
| 47110-24210 note |
Support Assy, Brake Pedal
2015-10 → 2020-07
ended
|
GRL16 | — | |
| 47110-24210 note |
Support Assy, Brake Pedal
2020-06 → 2020-07
ended
|
GRL16 | — | |
| 47110-24220 note |
Support Assy, Brake Pedal
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 47110-30500 |
Support Assy, Brake Pedal
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-30080 |
Pad, Brake Pedal
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 47121-30080 |
Pad, Brake Pedal
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 47121-30090 note |
Pad, Brake Pedal
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 47121-30090 note |
Pad, Brake Pedal
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 47121-30090 note |
Pad, Brake Pedal
2014-10 → 2015-10
ended
|
GRL10,15 | — | |
| 47121-11010 note |
Pad, Brake Pedal
2019-02 → 2019-09
ended
|
ARL10,GRL1# | — | |
| 47121-24010 note |
Pad, Brake Pedal
2015-10 → 2019-01
ended
|
ARL10,GRL1# | — | |
| 47121-24010 note |
Pad, Brake Pedal
2015-10 → 2020-07
ended
|
GWL10 | — | |
| 47121-24010 note |
Pad, Brake Pedal
2019-09 → 2020-07
ended
|
GRL1# | — | |
| 47121-24010 note |
Pad, Brake Pedal
2020-06 → 2020-07
ended
|
GRL1# | — | |
| 47121-30080 |
Pad, Brake Pedal
2015-10 → 2019-01
ended
|
ARL10,GRL1# | — | |
| 47121-30080 |
Pad, Brake Pedal
2015-10 → 2020-07
ended
|
GWL10 | — | |
| 47121-30080 |
Pad, Brake Pedal
2019-09 → 2020-07
ended
|
GRL1# | — | |
| 47121-48010 |
Pad, Brake Pedal
2019-02 → 2019-09
ended
|
ARL10,GRL1# | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90249-06180 |
Pin(FOR PUSH ROD)
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 90249-06180 |
Pin(FOR PUSH ROD)
2011-12 → 2015-10
ended
|
GRL11,15;GRL10 8FC | — | |
| 90249-10199 |
Pin(FOR PUSH ROD)
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 90249-06180 |
Pin(FOR PUSH ROD)
2015-10 → 2020-07
ended
|
ARL10,GRL1# | — | |
| 90249-10199 |
Pin(FOR PUSH ROD)
2015-10 → 2018-09
ended
|
GWL10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
