Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

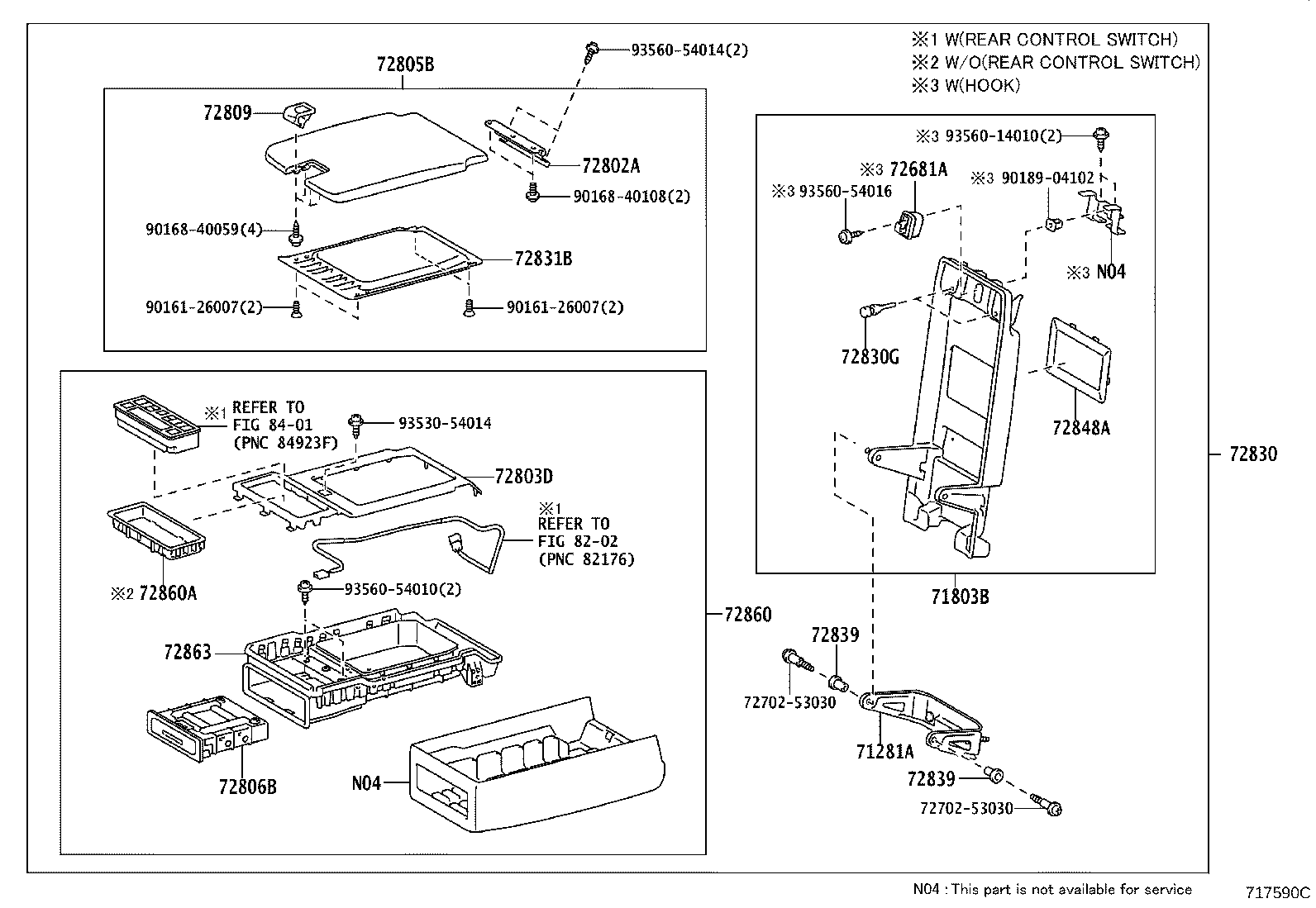

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71281A — Hinge, Rear Seat Center Armrest | ||||
| 71281-30080 |
Hinge, Rear Seat Center Armrest
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 71281-30080 |
Hinge, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 71281-30080 |
Hinge, Rear Seat Center Armrest
2015-10 → —
|
ARL10,GRL1#,GWL10 | — | |
| 71803B — Board Sub-assy, Rear Seat Armrest Hole | ||||
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2012-01 → 2015-10
ended
|
GRL11 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2011-12 → 2015-10
ended
|
GRL10,15 | — | |
| 71803-30370-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 71803-30370-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2011-12 → 2014-09
ended
|
GRL10 | — | |
| 71803-30370-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 71803-30370-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 71803-30380-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 71803-30390-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 71803-30390-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 71803-30390-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 71803-30390-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → —
|
ARL10,GRL16 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2016-09 → 2020-07
ended
|
GRL16 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2016-09 → 2020-07
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2020-07
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2020-07
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2019-09
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2019-09
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 71803-30360-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 71803-30380-C0 note |
Board Sub-assy, Rear Seat Armrest Hole
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72681A — Hook, Rear Seat | ||||
| 74605-53010-C0 note |
Hook, Rear Seat
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2011-12 → 2014-09
ended
|
GRL15;GRL10 8FC | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2011-12 → 2014-09
ended
|
GRL10 8FC | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2011-12 → 2014-09
ended
|
GRL15;GRL10 8FC | — | |
| 74605-53010-C0 note |
Hook, Rear Seat
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72802A — Hinge Sub-assy, Armrest Console | ||||
| 72802-30041 |
Hinge Sub-assy, Armrest Console
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72802-30041 |
Hinge Sub-assy, Armrest Console
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 72802-30041 |
Hinge Sub-assy, Armrest Console
2015-10 → —
|
ARL10,GRL1#,GWL10 | — | |
| 72803D — Panel Sub-assy, Rear Seat Center Armrest | ||||
| 72803-30230 |
Panel Sub-assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72803-30230 |
Panel Sub-assy, Rear Seat Center Armrest
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 72803-30230 |
Panel Sub-assy, Rear Seat Center Armrest
2015-10 → —
|
ARL10,GRL1#,GWL10 | — | |
| 72805B — Door Sub-assy, Rear Seat Center Armrest | ||||
| 72805-30530-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL1#,GWL10 | — | |
| 72805-30530-B3 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL1#,GWL10 | — | |
| 72805-30530-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL15 | — | |
| 72805-30530-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 6FC;GRL11,GWL10 | — | |
| 72805-30530-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72805-30530-C4 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL15 | — | |
| 72805-30530-C4 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72805-30530-C5 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL1#,GWL10 | — | |
| 72805-30530-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72805-30530-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL15 | — | |
| 72805-30530-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 6FC;GRL11,GWL10 | — | |
| 72805-30530-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72805-30530-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72805-30530-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL11,15,GWL10 | — | |
| 72805-30530-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72805-30530-E2 note |
Door Sub-assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72805-30530-E2 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL11 | — | |
| 72805-30530-E2 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 6FC;GRL15,GWL10 | — | |
| 72805-30530-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15,GWL10 | — | |
| 72805-30530-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL1#,GWL10 | — | |
| 72805-30530-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL1#,GWL10 | — | |
| 72805-30550-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 72805-30550-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 72805-30550-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 | — | |
| 72805-30550-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72805-30550-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 | — | |
| 72805-30550-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 72805-30550-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 72805-30550-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72805-30550-E0 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-E0 note |
Door Sub-assy, Rear Seat Center Armrest
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-E0 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 | — | |
| 72805-30550-E0 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 72805-30550-E0 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 72805-30550-E0 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-E0 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-E0 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72805-30550-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72805-30550-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72805-30550-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72805-30550-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72805-30550-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72805-30550-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 | — | |
| 72805-30550-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 72805-30550-F1 note |
Door Sub-assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72805-30550-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72805-30610-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72805-30610-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72805-30610-B3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30610-B3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → —
|
ARL10,GRL12 | — | |
| 72805-30610-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72805-30610-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72805-30610-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30610-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → —
|
ARL10,GRL12 | — | |
| 72805-30610-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72805-30610-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72805-30610-F3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → —
|
ARL10,GRL12 | — | |
| 72805-30610-F3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16,GWL10 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72805-30670-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16,GWL10 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72805-30670-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16,GWL10 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72805-30670-D0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16,GWL10 | — | |
| 72805-30670-F0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72805-30671-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-B2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16,GWL10 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-06
ended
|
GRL12 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16,GWL10 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-C2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL16 | — | |
| 72805-30671-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL16 | — | |
| 72805-30671-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-C3 note |
Door Sub-assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30671-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72805-30671-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30671-D1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30671-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72805-30671-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16,GWL10 | — | |
| 72805-30671-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30671-F2 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72805-30680-B0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30680-E1 note |
Door Sub-assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-B1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-C1 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72805-30681-E3 note |
Door Sub-assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72806B — Holder Sub-assy, Rear Seat Center Armrest Cup | ||||
| 72806-30120-B0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2011-12 → 2015-10
ended
|
GRL1#,GWL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2014-09 → 2015-10
ended
|
GRL15 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2011-12 → 2015-10
ended
|
GRL10 6FC;GRL11,GWL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2011-12 → 2015-10
ended
|
GRL15 | — | |
| 72806-30120-D0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2011-12 → 2015-10
ended
|
GRL10 6FC;GRL11,GWL10 | — | |
| 72806-30120-D0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2011-12 → 2015-10
ended
|
GRL15 | — | |
| 72806-30120-D0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-D0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-D0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-E0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2011-12 → 2015-10
ended
|
GRL10 6FC;GRL15,GWL10 | — | |
| 72806-30120-E0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-E0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-E0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-E0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72806-30120-E0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2011-12 → 2013-09
ended
|
GRL11 | — | |
| 72806-30120-F0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2011-12 → 2015-10
ended
|
GRL1#,GWL10 | — | |
| 72806-30120-B2 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → —
|
ARL10,GRL1#,GWL10 | — | |
| 72806-30120-B2 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72806-30120-B2 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2020-07
ended
|
GRL16,GWL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → 2019-09
ended
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → 2019-09
ended
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → 2019-08
ended
|
ARL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → 2019-08
ended
|
ARL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → 2019-08
ended
|
ARL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → —
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → —
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → —
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → —
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → —
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → —
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → —
|
GRL12 | — | |
| 72806-30120-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72806-30120-C5 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → 2020-07
ended
|
GRL16 | — | |
| 72806-30120-C5 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-10 → —
|
ARL10,GRL12 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2020-07
ended
|
GRL12 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2020-07
ended
|
GRL12 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2020-07
ended
|
GRL16,GWL10 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-09 → 2020-07
ended
|
GRL12 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2019-09
ended
|
GRL12 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-09 → 2019-08
ended
|
ARL10 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2019-08
ended
|
ARL10 | — | |
| 72806-30120-D1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2019-08
ended
|
ARL10 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → 2019-09
ended
|
GRL12 | — | |
| 72806-30120-E1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72806-30120-F0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-10 → —
|
ARL10,GRL1#,GWL10 | — | |
| 72806-30120-F0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72806-30120-F0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72809 — Lock Sub-assy, Center Armrest | ||||
| 72809-30031 |
Lock Sub-assy, Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72809-30031 |
Lock Sub-assy, Center Armrest
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 72809-30031 |
Lock Sub-assy, Center Armrest
2015-10 → —
|
ARL10,GRL1#,GWL10 | — | |
| 72830 — Armrest Assy, Rear Seat, Center | ||||
| 72830-30E60-B1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72830-30E60-C1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72830-30E60-E1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72830-30E60-F1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72830-30G10-B3 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-10
ended
|
GRL1# | — | |
| 72830-30G10-B4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL1# | — | |
| 72830-30G10-B5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL1# | — | |
| 72830-30G10-C4 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-10
ended
|
GRL1# | — | |
| 72830-30G10-C5 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL1# | — | |
| 72830-30G10-C7 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL15 | — | |
| 72830-30G10-C7 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72830-30G10-C8 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL1# | — | |
| 72830-30G10-D2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10 | — | |
| 72830-30G10-D2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10 | — | |
| 72830-30G10-D2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10 | — | |
| 72830-30G10-D2 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-10
ended
|
GRL1# 6FC | — | |
| 72830-30G10-D3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G10-D3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G10-D3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G10-D3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL11,15 | — | |
| 72830-30G10-D4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72830-30G10-D4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL11,15 | — | |
| 72830-30G10-E3 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10 | — | |
| 72830-30G10-E3 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-10
ended
|
GRL10,15 6FC | — | |
| 72830-30G10-E4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G10-E4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G10-E4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G10-E4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL15 | — | |
| 72830-30G10-E5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G10-F2 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-10
ended
|
GRL1# | — | |
| 72830-30G10-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL1# | — | |
| 72830-30G10-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL1# | — | |
| 72830-30G30-B2 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72830-30G30-B2 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72830-30G30-C3 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72830-30G30-C3 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72830-30G30-E1 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72830-30G30-E1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72830-30G30-F2 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72830-30G30-F2 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72830-30G31-B2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10,15 | — | |
| 72830-30G31-B3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10,15 | — | |
| 72830-30G31-C3 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10,15 | — | |
| 72830-30G31-C4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10,15 | — | |
| 72830-30G31-E1 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10,15 | — | |
| 72830-30G31-E2 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10,15 | — | |
| 72830-30G31-F2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10,15 | — | |
| 72830-30G31-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10,15 | — | |
| 72830-30G32-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G32-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G32-E3 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G32-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G50-B3 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G50-B4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G50-B5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G50-C4 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G50-C5 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G50-C7 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G50-D2 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G50-D3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G50-D4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G50-E3 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G50-E4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G50-E5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G50-F2 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G50-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G50-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G70-B2 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G70-B2 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G70-C3 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G70-C3 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G70-E1 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G70-E1 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G70-F2 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G70-F2 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G71-B2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G71-B2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G71-B3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G71-B3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G71-C3 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G71-C3 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G71-C4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G71-C4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G71-E1 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G71-E1 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G71-E2 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G71-E2 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G71-F2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G71-F2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G71-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G71-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G72-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G72-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G80-B2 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72830-30G80-B2 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72830-30G80-C3 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72830-30G80-C3 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72830-30G80-E1 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72830-30G80-E1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72830-30G80-F2 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72830-30G80-F2 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72830-30G81-B2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10,15 | — | |
| 72830-30G81-B2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10 | — | |
| 72830-30G81-B3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G81-B3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10,15 | — | |
| 72830-30G81-C3 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10 | — | |
| 72830-30G81-C3 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10,15 | — | |
| 72830-30G81-C4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G81-C4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10,15 | — | |
| 72830-30G81-E1 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10 | — | |
| 72830-30G81-E1 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10,15 | — | |
| 72830-30G81-E2 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10,15 | — | |
| 72830-30G81-E2 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G81-F2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10 | — | |
| 72830-30G81-F2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GRL10,15 | — | |
| 72830-30G81-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10 | — | |
| 72830-30G81-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GRL10,15 | — | |
| 72830-30G82-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G82-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72830-30G82-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72830-30G82-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G82-E3 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72830-30G82-E3 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G82-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72830-30G82-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72830-30G90-B2 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G90-B2 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G90-C3 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G90-C3 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G90-E1 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G90-E1 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G90-F2 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G90-F2 note |
Armrest Assy, Rear Seat, Center
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72830-30G91-B2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G91-B2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G91-B3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G91-B3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G91-C3 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G91-C3 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G91-C4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G91-C4 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G91-E1 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G91-E1 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G91-E2 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G91-E2 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G91-F2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G91-F2 note |
Armrest Assy, Rear Seat, Center
2013-09 → 2013-10
ended
|
GWL10 | — | |
| 72830-30G91-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G91-F3 note |
Armrest Assy, Rear Seat, Center
2013-10 → 2014-09
ended
|
GWL10 | — | |
| 72830-30G92-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-B4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-C5 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30G92-F4 note |
Armrest Assy, Rear Seat, Center
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72830-30J60-B1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72830-30J60-C1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72830-30J60-E1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72830-30J60-F1 note |
Armrest Assy, Rear Seat, Center
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72830-30J80-B1 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2012-09
ended
|
GWL10 | — | |
| 72830-30J80-C1 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2012-09
ended
|
GWL10 | — | |
| 72830-30J80-E1 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2012-09
ended
|
GWL10 | — | |
| 72830-30J80-F1 note |
Armrest Assy, Rear Seat, Center
2012-03 → 2012-09
ended
|
GWL10 | — | |
| 72830-30G33-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30G33-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30G33-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30G33-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30G33-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30G33-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30G34-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30G34-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G34-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G34-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30G34-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G34-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G34-E6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G34-E6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G34-E6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30G73-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G73-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G73-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G73-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G73-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G73-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G73-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G73-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G73-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G74-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G74-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G74-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G74-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G74-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G74-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G74-E6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G74-E6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G74-E6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G83-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30G83-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30G83-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30G83-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30G83-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30G83-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30G84-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G84-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G84-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30G84-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G84-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G84-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30G84-E5 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G84-E5 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30G84-E5 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30G93-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G93-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G93-B5 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G93-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G93-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G93-C6 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G93-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G93-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G93-E4 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30G94-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G94-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G94-B6 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G94-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G94-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G94-C7 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G94-E5 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G94-E5 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30G94-E5 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30K60-B2 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72830-30K60-B2 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72830-30K60-B3 note |
Armrest Assy, Rear Seat, Center
2017-09 → —
|
ARL10,GRL12 | — | |
| 72830-30K60-B3 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30K60-C3 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72830-30K60-C3 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72830-30K60-C4 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30K60-C4 note |
Armrest Assy, Rear Seat, Center
2017-09 → —
|
ARL10,GRL12 | — | |
| 72830-30K60-F3 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72830-30K60-F3 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72830-30K60-F4 note |
Armrest Assy, Rear Seat, Center
2017-09 → —
|
ARL10,GRL12 | — | |
| 72830-30K60-F4 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-C0 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-D0 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72830-30L60-F0 note |
Armrest Assy, Rear Seat, Center
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72830-30L61-B2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-B2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-B2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L61-B2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-06
ended
|
GRL12 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L61-C2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72830-30L61-C3 note |
Armrest Assy, Rear Seat, Center
2020-06 → 2020-07
ended
|
GRL16 | — | |
| 72830-30L61-C3 note |
Armrest Assy, Rear Seat, Center
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-C3 note |
Armrest Assy, Rear Seat, Center
2020-06 → 2020-07
ended
|
GRL16 | — | |
| 72830-30L61-C3 note |
Armrest Assy, Rear Seat, Center
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-D1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L61-D1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L61-D1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72830-30L61-D1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30L61-D1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-F2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72830-30L61-F2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72830-30L61-F2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-F2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-F2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72830-30L61-F2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L61-F2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L61-F2 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72830-30L80-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30L80-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30L80-D0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30L80-F0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30L81-B1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30L81-C1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30L81-D1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30L81-D1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30L81-F1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30M00-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30M00-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30M00-E0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72830-30M01-B1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72830-30M01-C1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72830-30M01-E1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72830-30M10-B0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30M10-C0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30M10-E0 note |
Armrest Assy, Rear Seat, Center
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72830-30M11-B1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30M11-C1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830-30M11-E1 note |
Armrest Assy, Rear Seat, Center
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72830G — Cushion | ||||
| 90541-03022-C1 note |
Cushion
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 90541-03022-C1 note |
Cushion
2012-01 → 2015-10
ended
|
GRL11 | — | |
| 90541-03022-C1 note |
Cushion
2011-12 → 2015-10
ended
|
GRL10,15,GWL10 | — | |
| 90541-03022-C1 note |
Cushion
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 90541-03022-C1 note |
Cushion
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 90541-03022-C1 note |
Cushion
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 90541-03022-C1 note |
Cushion
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 90541-03022-C1 note |
Cushion
2011-12 → 2014-09
ended
|
GRL10,15 | — | |
| 90541-03022-C1 note |
Cushion
2011-12 → 2014-09
ended
|
GRL10 | — | |
| 90541-03022-C1 note |
Cushion
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 90541-03022-C1 note |
Cushion
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 90541-03022-C1 note |
Cushion
2015-10 → —
|
GRL1#,GWL10 | — | |
| 72831B — Plate, Rear Seat Center Armrest, NO.1 | ||||
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2012-01 → 2015-10
ended
|
GRL11 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2011-12 → 2015-10
ended
|
GRL15;GRL10 8FC | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2011-12 → 2015-10
ended
|
GRL15;GRL10 8FC | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2011-12 → 2015-10
ended
|
GRL10,15,GWL10 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2020-07
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → —
|
ARL10,GRL16,GWL10 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2016-09 → 2020-07
ended
|
GRL16 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2016-09 → 2020-07
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2020-07
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2019-09
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2019-09
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72832-30060-C0 note |
Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72839 — Shim, Rear Seat Armrest Hinge | ||||
| 72839-12010 note |
Shim, Rear Seat Armrest Hinge
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72839-12010 |
Shim, Rear Seat Armrest Hinge
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72839-12010 |
Shim, Rear Seat Armrest Hinge
2015-10 → —
|
ARL10,GRL12 | — | |
| 72848A — Cap, Seat Armrest, NO.1 | ||||
| 74223-30050-C0 note |
Cap, Seat Armrest, NO.1
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 74223-30050-C0 note |
Cap, Seat Armrest, NO.1
2012-09 → 2014-09
ended
|
GWL10 | — | |
| 74223-30050-C0 note |
Cap, Seat Armrest, NO.1
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 74223-30050-C0 note |
Cap, Seat Armrest, NO.1
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 74223-30050-C0 note |
Cap, Seat Armrest, NO.1
2012-03 → 2014-09
ended
|
GWL10 | — | |
| 74223-30050-C0 note |
Cap, Seat Armrest, NO.1
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 72860 — Box Assy, Rear Seat Center Armrest | ||||
| 72860-30740-B2 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL1#,GWL10 | — | |
| 72860-30740-B3 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL1#,GWL10 | — | |
| 72860-30740-C3 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL1#,GWL10 | — | |
| 72860-30740-C5 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL15 | — | |
| 72860-30740-C5 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72860-30740-C6 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL1#,GWL10 | — | |
| 72860-30740-D1 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 6FC;GRL11,15,GWL10 | — | |
| 72860-30740-D1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72860-30740-D1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72860-30740-D1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72860-30740-D2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL11,15,GWL10 | — | |
| 72860-30740-D2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72860-30740-E2 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL11 | — | |
| 72860-30740-E2 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72860-30740-E2 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL10 6FC;GRL15,GWL10 | — | |
| 72860-30740-E3 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15,GWL10 | — | |
| 72860-30740-F1 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2014-09
ended
|
GRL1#,GWL10 | — | |
| 72860-30740-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL1#,GWL10 | — | |
| 72860-30790-B1 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30790-B1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72860-30790-B1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72860-30790-B1 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72860-30790-C1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72860-30790-C1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72860-30790-C1 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72860-30790-C1 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30790-E0 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72860-30790-E0 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72860-30790-E0 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72860-30790-E0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30790-F1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72860-30790-F1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72860-30790-F1 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72860-30790-F1 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30791-B1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10,15 | — | |
| 72860-30791-B1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30791-B1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30791-C1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30791-C1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10,15 | — | |
| 72860-30791-C1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30791-E0 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30791-E0 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10,15 | — | |
| 72860-30791-E0 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30791-F1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30791-F1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10,15 | — | |
| 72860-30791-F1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30792-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72860-30792-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72860-30792-E1 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72860-30792-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30792-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72860-30792-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30800-B1 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30800-B1 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72860-30800-B1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72860-30800-B1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72860-30800-C1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72860-30800-C1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72860-30800-C1 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72860-30800-C1 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30800-E0 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72860-30800-E0 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72860-30800-E0 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72860-30800-E0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30800-F1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GWL10 | — | |
| 72860-30800-F1 note |
Box Assy, Rear Seat Center Armrest
2012-09 → 2013-09
ended
|
GRL10,15 | — | |
| 72860-30800-F1 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 72860-30800-F1 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30801-B1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30801-B1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72860-30801-B1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30801-B1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10,15 | — | |
| 72860-30801-C1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30801-C1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10,15 | — | |
| 72860-30801-C1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30801-C1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72860-30801-E0 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30801-E0 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10,15 | — | |
| 72860-30801-E0 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30801-E0 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72860-30801-F1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10,15 | — | |
| 72860-30801-F1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30801-F1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GRL10 | — | |
| 72860-30801-F1 note |
Box Assy, Rear Seat Center Armrest
2013-09 → 2014-09
ended
|
GWL10 | — | |
| 72860-30802-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72860-30802-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-B2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72860-30802-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72860-30802-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-C2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72860-30802-E1 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72860-30802-E1 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72860-30802-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 72860-30802-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 72860-30802-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30802-F2 note |
Box Assy, Rear Seat Center Armrest
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 72860-30860-B0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72860-30860-C0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72860-30860-E0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72860-30860-F0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72860-30870-B0 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2012-09
ended
|
GWL10 | — | |
| 72860-30870-B0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72860-30870-C0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72860-30870-C0 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2012-09
ended
|
GWL10 | — | |
| 72860-30870-E0 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2012-09
ended
|
GWL10 | — | |
| 72860-30870-E0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72860-30870-F0 note |
Box Assy, Rear Seat Center Armrest
2012-03 → 2012-09
ended
|
GWL10 | — | |
| 72860-30870-F0 note |
Box Assy, Rear Seat Center Armrest
2011-12 → 2012-09
ended
|
GRL10,15 | — | |
| 72860-30760-B1 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72860-30760-B1 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72860-30760-B2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → —
|
ARL10,GRL12 | — | |
| 72860-30760-B2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30760-C2 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72860-30760-C2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72860-30760-C3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30760-C3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → —
|
ARL10,GRL12 | — | |
| 72860-30760-F2 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL16 | — | |
| 72860-30760-F2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 72860-30760-F3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30760-F3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → —
|
ARL10,GRL12 | — | |
| 72860-30793-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72860-30793-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30793-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30793-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30793-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30793-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30793-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30793-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30793-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30793-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72860-30793-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30793-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72860-30793-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30793-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30793-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30794-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30794-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30794-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30794-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30794-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30794-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30794-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30794-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30794-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30794-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30794-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30794-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30794-E4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30794-E4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30794-E4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30794-E4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30794-E4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30794-E4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30803-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30803-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30803-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30803-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72860-30803-B3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30803-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30803-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72860-30803-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30803-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30803-C3 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30803-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30803-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30803-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16 | — | |
| 72860-30803-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30803-E2 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30804-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30804-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30804-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30804-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30804-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30804-B4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30804-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30804-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30804-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30804-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30804-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30804-C4 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30804-E3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30804-E3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30804-E3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30804-E3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30804-E3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30804-E3 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16,GWL10 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16,GWL10 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-C0 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16,GWL10 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72860-30A70-D0 note |
Box Assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
ARL10 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2016-08 → 2016-09
ended
|
GRL12 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
ARL10 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2016-08
ended
|
GRL12 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL16,GWL10 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
ARL10 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A70-F0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A71-B2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16,GWL10 | — | |
| 72860-30A71-B2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-B2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-B2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16,GWL10 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-06
ended
|
GRL12 | — | |
| 72860-30A71-C2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72860-30A71-C3 note |
Box Assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-C3 note |
Box Assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL16 | — | |
| 72860-30A71-C3 note |
Box Assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL16 | — | |
| 72860-30A71-C3 note |
Box Assy, Rear Seat Center Armrest
2020-06 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-D1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30A71-D1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30A71-D1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-D1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16 | — | |
| 72860-30A71-D1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-D1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72860-30A71-D1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-F2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL16,GWL10 | — | |
| 72860-30A71-F2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-F2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-F2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-08
ended
|
ARL10 | — | |
| 72860-30A71-F2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72860-30A71-F2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-F2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A71-F2 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2020-07
ended
|
GRL12 | — | |
| 72860-30A80-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30A80-B0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A80-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30A80-C0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A80-E0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GWL10 | — | |
| 72860-30A80-E0 note |
Box Assy, Rear Seat Center Armrest
2015-10 → 2017-09
ended
|
GRL12 | — | |
| 72860-30A81-B1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30A81-B1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72860-30A81-C1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860-30A81-C1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72860-30A81-E1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2019-09
ended
|
GRL12 | — | |
| 72860-30A81-E1 note |
Box Assy, Rear Seat Center Armrest
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 72860A — Box Assy, Rear Seat Center Armrest, NO.2 | ||||
| 72860-30501 |
Box Assy, Rear Seat Center Armrest, NO.2
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72860-30501 |
Box Assy, Rear Seat Center Armrest, NO.2
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 72860-30501 |
Box Assy, Rear Seat Center Armrest, NO.2
2015-10 → —
|
ARL10,GRL1#,GWL10 | — | |
| 72863 — Box, Rear Seat Center Armrest | ||||
| 72863-30120 |
Box, Rear Seat Center Armrest
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 72863-30120 |
Box, Rear Seat Center Armrest
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 72863-30120 |
Box, Rear Seat Center Armrest
2015-10 → —
|
ARL10,GRL1#,GWL10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
