Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

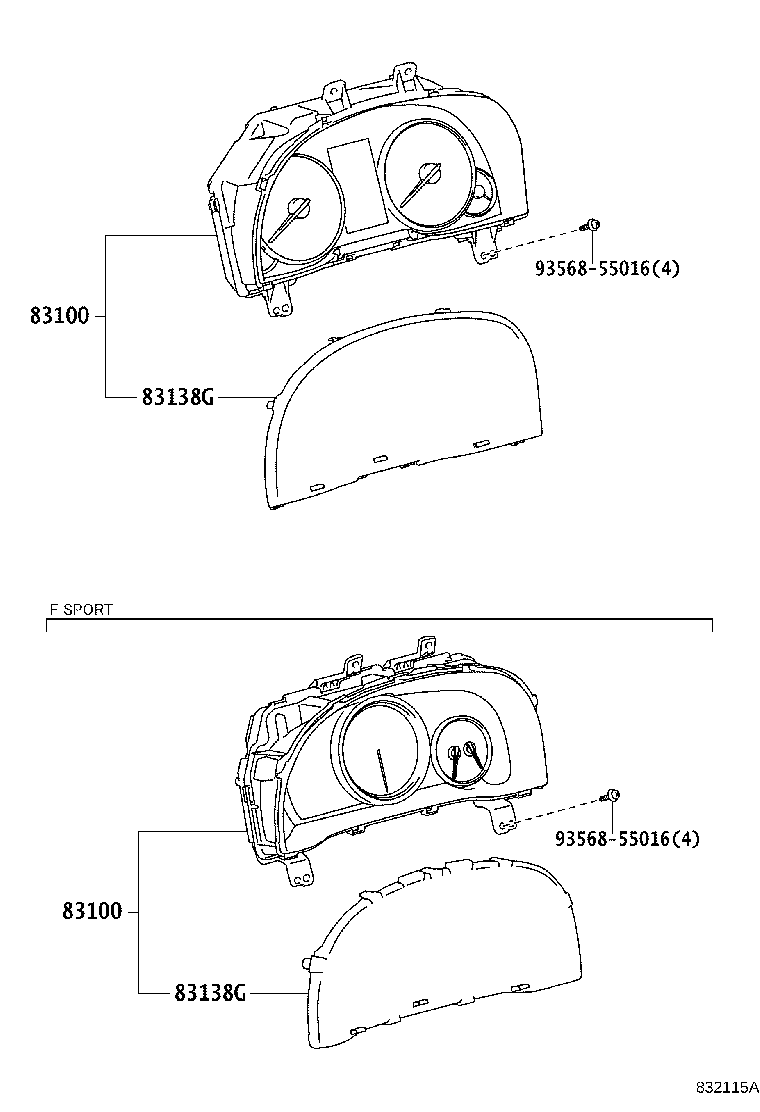

| 83100 — Meter Assy, Combination | ||||
| 83800-30K60 |
Meter Assy, Combination
2011-12 → 2013-09
ended
|
GRL10,15 | — | |
| 83800-30M60 note |
Meter Assy, Combination
2011-12 → 2013-09
ended
|
GRL10,15 | — | |
| 83800-30M60 note |
Meter Assy, Combination
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 83800-30R20 |
Meter Assy, Combination
2013-09 → 2014-02
ended
|
GRL10,15 | — | |
| 83800-30R30 note |
Meter Assy, Combination
2013-09 → 2014-02
ended
|
GRL10,15 | — | |
| 83800-30R40 note |
Meter Assy, Combination
2013-09 → 2014-02
ended
|
GRL10 | — | |
| 83800-30R40 |
Meter Assy, Combination
2013-09 → 2014-02
ended
|
GRL11 | — | |
| 83800-30R80 |
Meter Assy, Combination
2013-09 → 2014-02
ended
|
GWL10 | — | |
| 83800-30R90 note |
Meter Assy, Combination
2013-09 → 2014-02
ended
|
GWL10 | — | |
| 83800-30S00 note |
Meter Assy, Combination
2013-09 → 2014-02
ended
|
GWL10 | — | |
| 83800-3A310 |
Meter Assy, Combination
2012-01 → 2012-08
ended
|
GRL11 | — | |
| 83800-3A310 note |
Meter Assy, Combination
2011-12 → 2012-08
ended
|
GRL10 | — | |
| 83800-3A311 |
Meter Assy, Combination
2012-09 → 2013-09
ended
|
GRL11 | — | |
| 83800-3A311 note |
Meter Assy, Combination
2012-09 → 2013-09
ended
|
GRL10 | — | |
| 83800-3A410 |
Meter Assy, Combination
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 83800-3A420 note |
Meter Assy, Combination
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 83800-3A430 note |
Meter Assy, Combination
2012-03 → 2013-09
ended
|
GWL10 | — | |
| 83800-3A540 |
Meter Assy, Combination
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 83800-3A550 note |
Meter Assy, Combination
2014-09 → 2015-10
ended
|
GRL10,15 | — | |
| 83800-3A560 note |
Meter Assy, Combination
2014-09 → 2015-10
ended
|
GRL10 | — | |
| 83800-3A560 |
Meter Assy, Combination
2014-09 → 2015-10
ended
|
GRL11 | — | |
| 83800-3A600 |
Meter Assy, Combination
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 83800-3A610 note |
Meter Assy, Combination
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 83800-3A620 note |
Meter Assy, Combination
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 83800-3A660 |
Meter Assy, Combination
2014-03 → 2014-09
ended
|
GRL10,15 | — | |
| 83800-3A670 note |
Meter Assy, Combination
2014-03 → 2014-09
ended
|
GRL10,15 | — | |
| 83800-3A680 note |
Meter Assy, Combination
2014-03 → 2014-09
ended
|
GRL10 | — | |
| 83800-3A680 |
Meter Assy, Combination
2014-03 → 2014-09
ended
|
GRL11 | — | |
| 83800-3A720 |
Meter Assy, Combination
2014-03 → 2014-09
ended
|
GWL10 | — | |
| 83800-3A730 note |
Meter Assy, Combination
2014-03 → 2014-09
ended
|
GWL10 | — | |
| 83800-3A740 note |
Meter Assy, Combination
2014-03 → 2014-09
ended
|
GWL10 | — | |
| 83800-3AA00 |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
GRL1# | — | |
| 83800-3AA10 |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
ARL10 | — | |
| 83800-3AA20 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
GRL1# | — | |
| 83800-3AA30 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
ARL10 | — | |
| 83800-3AA40 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
GRL12 | — | |
| 83800-3AA50 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
ARL10 | — | |
| 83800-3AA70 note |
Meter Assy, Combination
2018-09 → 2019-09
ended
|
GRL1# | — | |
| 83800-3AB10 |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
GWL10 | — | |
| 83800-3AB20 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
GWL10 | — | |
| 83800-3AB30 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
GWL10 | — | |
| 83800-3AB70 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
ARL10,GRL1# | — | |
| 83800-3AB80 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
ARL10,GRL12 | — | |
| 83800-3AB80 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
ARL10,GRL1# | — | |
| 83800-3AC00 note |
Meter Assy, Combination
2018-09 → 2019-08
ended
|
ARL10 | — | |
| 83800-3AC30 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
GWL10 | — | |
| 83800-3AC90 note |
Meter Assy, Combination
2018-09 → 2019-09
ended
|
GRL16 | — | |
| 83800-3AD10 note |
Meter Assy, Combination
2018-09 → 2019-09
ended
|
GRL12 | — | |
| 83800-3AD20 note |
Meter Assy, Combination
2015-10 → 2016-09
ended
|
GWL10 | — | |
| 83800-3AD60 note |
Meter Assy, Combination
2018-09 → 2019-08
ended
|
ARL10 | — | |
| 83800-3AE10 note |
Meter Assy, Combination
2018-09 → 2019-05
ended
|
ARL10,GRL1# | — | |
| 83800-3AE11 note |
Meter Assy, Combination
2019-06 → 2019-09
ended
|
ARL10,GRL1# | — | |
| 83800-3AE20 note |
Meter Assy, Combination
2018-09 → 2019-05
ended
|
ARL10,GRL12 | — | |
| 83800-3AE20 note |
Meter Assy, Combination
2018-09 → 2019-05
ended
|
GRL16 | — | |
| 83800-3AE21 note |
Meter Assy, Combination
2019-06 → 2019-09
ended
|
GRL16 | — | |
| 83800-3AE21 note |
Meter Assy, Combination
2019-06 → 2019-09
ended
|
ARL10,GRL12 | — | |
| 83800-3AG40 note |
Meter Assy, Combination
2016-09 → 2017-07
ended
|
ARL10 | — | |
| 83800-3AG41 note |
Meter Assy, Combination
2017-08 → 2017-09
ended
|
ARL10 | — | |
| 83800-3AG70 |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
GWL10 | — | |
| 83800-3AG80 note |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
GWL10 | — | |
| 83800-3AG90 note |
Meter Assy, Combination
2016-09 → 2017-07
ended
|
GWL10 | — | |
| 83800-3AG91 note |
Meter Assy, Combination
2017-08 → 2017-09
ended
|
GWL10 | — | |
| 83800-3AJ30 note |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
ARL10,GRL1# | — | |
| 83800-3AJ40 note |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
ARL10,GRL1# | — | |
| 83800-3AJ40 note |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 83800-3AJ70 note |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
GWL10 | — | |
| 83800-3AJ80 note |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
GWL10 | — | |
| 83800-3AK10 |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
GRL1# | — | |
| 83800-3AK20 |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 83800-3AK30 note |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
GRL1# | — | |
| 83800-3AK40 note |
Meter Assy, Combination
2016-09 → 2017-09
ended
|
ARL10 | — | |
| 83800-3AK50 note |
Meter Assy, Combination
2016-09 → 2017-07
ended
|
GRL12 | — | |
| 83800-3AK51 note |
Meter Assy, Combination
2017-08 → 2017-09
ended
|
GRL12 | — | |
| 83800-3AM00 |
Meter Assy, Combination
2017-09 → 2017-11
ended
|
GRL1# | — | |
| 83800-3AM01 note |
Meter Assy, Combination
2017-12 → 2018-09
ended
|
GRL1# | — | |
| 83800-3AM10 |
Meter Assy, Combination
2017-09 → 2017-11
ended
|
ARL10 | — | |
| 83800-3AM11 note |
Meter Assy, Combination
2017-12 → 2018-09
ended
|
ARL10 | — | |
| 83800-3AM20 note |
Meter Assy, Combination
2017-09 → 2017-11
ended
|
GRL16 | — | |
| 83800-3AM21 note |
Meter Assy, Combination
2017-12 → 2018-09
ended
|
GRL16 | — | |
| 83800-3AM30 note |
Meter Assy, Combination
2017-09 → 2017-11
ended
|
GRL12 | — | |
| 83800-3AM31 note |
Meter Assy, Combination
2017-12 → 2018-09
ended
|
GRL12 | — | |
| 83800-3AM40 note |
Meter Assy, Combination
2017-09 → 2017-11
ended
|
ARL10 | — | |
| 83800-3AM41 note |
Meter Assy, Combination
2017-12 → 2018-09
ended
|
ARL10 | — | |
| 83800-3AM70 |
Meter Assy, Combination
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 83800-3AM80 note |
Meter Assy, Combination
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 83800-3AM90 note |
Meter Assy, Combination
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 83800-3AN50 note |
Meter Assy, Combination
2017-09 → 2017-11
ended
|
ARL10,GRL1# | — | |
| 83800-3AN51 note |
Meter Assy, Combination
2017-12 → 2018-09
ended
|
ARL10,GRL1# | — | |
| 83800-3AN60 note |
Meter Assy, Combination
2017-09 → 2017-11
ended
|
ARL10,GRL12 | — | |
| 83800-3AN60 note |
Meter Assy, Combination
2017-09 → 2017-11
ended
|
GRL16 | — | |
| 83800-3AN61 note |
Meter Assy, Combination
2017-12 → 2018-09
ended
|
GRL16 | — | |
| 83800-3AN61 note |
Meter Assy, Combination
2017-12 → 2018-09
ended
|
ARL10,GRL12 | — | |
| 83800-3AN90 note |
Meter Assy, Combination
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 83800-3AP00 note |
Meter Assy, Combination
2017-09 → 2018-09
ended
|
GWL10 | — | |
| 83800-3AQ00 note |
Meter Assy, Combination
2019-09 → 2020-07
ended
|
GRL1# | — | |
| 83800-3AQ00 note |
Meter Assy, Combination
2020-06 → 2020-07
ended
|
GRL1# | — | |
| 83800-3AQ10 note |
Meter Assy, Combination
2019-09 → 2020-07
ended
|
GRL16 | — | |
| 83800-3AQ30 note |
Meter Assy, Combination
2019-09 → 2020-07
ended
|
GRL1# | — | |
| 83800-3AQ40 note |
Meter Assy, Combination
2019-09 → 2020-07
ended
|
GRL16 | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-30K60 |
Glass, Combination Meter
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 83852-30K60 |
Glass, Combination Meter
2011-12 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 83852-3AA00 |
Glass, Combination Meter
2015-10 → 2020-07
ended
|
ARL10,GRL1#,GWL10 | — | |
| 83852-3AB70 note |
Glass, Combination Meter
2015-10 → 2017-09
ended
|
ARL10,GRL12 | — | |
| 83852-3AB70 note |
Glass, Combination Meter
2015-10 → 2019-09
ended
|
ARL10,GRL12,GWL10 | — | |
| 83852-3AB70 note |
Glass, Combination Meter
2015-10 → 2020-07
ended
|
GRL16 | — | |
| 83852-3AB70 note |
Glass, Combination Meter
2015-10 → 2020-07
ended
|
ARL10,GRL1#,GWL10 | — | |
| 83852-3AB70 note |
Glass, Combination Meter
2020-06 → 2020-07
ended
|
GRL1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
