Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

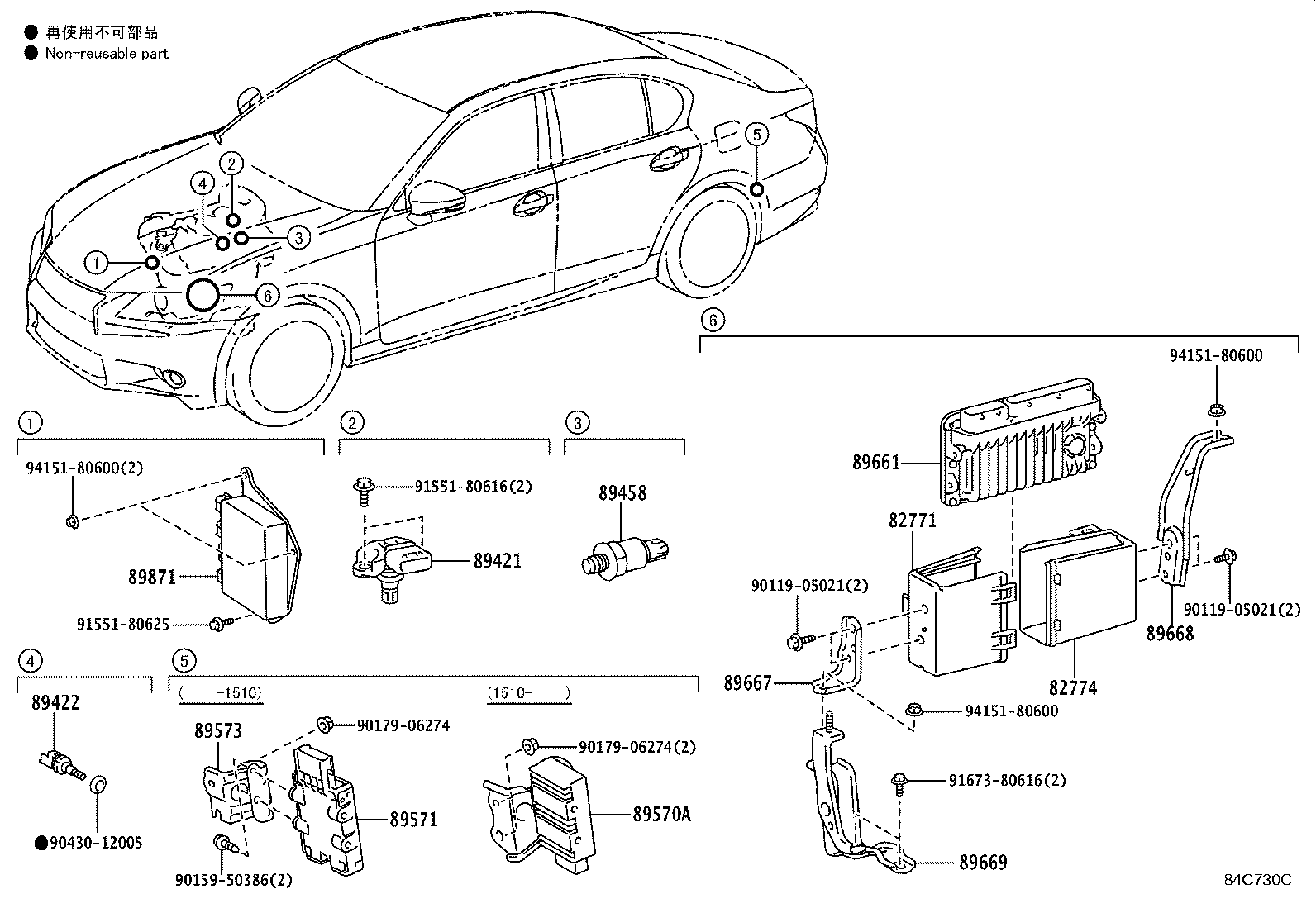

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82771 — Box, Engine Room Ecu | ||||
| 82771-24010 |
Box, Engine Room Ecu
2015-03 → 2015-10
ended
|
GRL10,15 | — | |
| 82771-30060 |
Box, Engine Room Ecu
2011-12 → 2015-10
ended
|
GRL10,11 6FC | — | |
| 82771-30060 |
Box, Engine Room Ecu
2011-12 → 2015-03
ended
|
GRL15;GRL10 8FC | — | |
| 82771-30060 note |
Box, Engine Room Ecu
2015-03 → 2015-10
ended
|
GRL10 | — | |
| 82771-30070 |
Box, Engine Room Ecu
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 82771-30070 |
Box, Engine Room Ecu
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 82771-30080 note |
Box, Engine Room Ecu
2015-10 → 2019-09
ended
|
ARL10,GRL12 | — | |
| 82771-30090 |
Box, Engine Room Ecu
2015-10 → 2020-07
ended
|
ARL10,GRL1# | — | |
| 82774 — Cover, Engine Room Ecu | ||||
| 82774-30060 |
Cover, Engine Room Ecu
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 82774-30060 |
Cover, Engine Room Ecu
2011-12 → 2015-10
ended
|
GRL11,15;GRL10 8FC | — | |
| 82774-30080 |
Cover, Engine Room Ecu
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 82774-30080 |
Cover, Engine Room Ecu
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 82774-30090 |
Cover, Engine Room Ecu
2015-10 → 2020-07
ended
|
ARL10,GRL1# | — | |
| 89421 — Sensor Assy, Vacuum (FOR E.F.I.) | ||||
| 89421-52010 |
Sensor Assy, Vacuum (FOR E.F.I.)
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 89421-47010 |
Sensor Assy, Vacuum (FOR E.F.I.)
2016-05 → 2018-09
ended
|
GWL10 | — | |
| 89421-52010 |
Sensor Assy, Vacuum (FOR E.F.I.)
2015-10 → 2016-04
ended
|
GWL10 | — | |
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2012-01 → 2013-09
ended
|
GRL10 | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2012-01 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2015-10 → 2019-08
ended
|
ARL10,GWL10 | — | |
| 89422-47010 |
Sensor, Water Temperature (FOR E.F.I.)
2015-10 → 2020-07
ended
|
GRL1# | — | |
| 89458 — Sensor, Fuel Pressure | ||||
| 89458-30020 |
Sensor, Fuel Pressure
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 89458-30020 |
Sensor, Fuel Pressure
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 89570A — Computer Assy, Fuel Pump Control | ||||
| 89570-53030 |
Computer Assy, Fuel Pump Control
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 89571 — Computer, Fuel Pump Control | ||||
| 89571-34070 |
Computer, Fuel Pump Control
2012-01 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 89571-34070 |
Computer, Fuel Pump Control
2012-01 → 2013-09
ended
|
GRL10 | — | |
| 89571-58010 |
Computer, Fuel Pump Control
2015-10 → 2020-07
ended
|
ARL10,GRL1# | — | |
| 89573 — Bracket, Fuel Pump Control Computer | ||||
| 89573-30090 |
Bracket, Fuel Pump Control Computer
2012-01 → 2013-09
ended
|
GRL10 | — | |
| 89573-30090 |
Bracket, Fuel Pump Control Computer
2012-01 → 2015-10
ended
|
GRL10 8FC;GRL11,15,GWL10 | — | |
| 89573-53030 |
Bracket, Fuel Pump Control Computer
2015-10 → 2020-07
ended
|
ARL10,GRL1# | — | |
| 89661 — Computer, Engine Control | ||||
| 89661-30T50 |
Computer, Engine Control
2012-03 → 2014-02
ended
|
GWL10 | — | |
| 89661-30T51 |
Computer, Engine Control
2014-03 → 2014-09
ended
|
GWL10 | — | |
| 89661-30U40 |
Computer, Engine Control
2012-01 → 2013-09
ended
|
GRL11 | — | |
| 89661-30U50 |
Computer, Engine Control
2011-12 → 2012-01
ended
|
GRL10 | — | |
| 89661-30U51 |
Computer, Engine Control
2012-02 → 2012-06
ended
|
GRL10 | — | |
| 89661-30U52 |
Computer, Engine Control
2012-07 → 2013-09
ended
|
GRL10 | — | |
| 89661-30U60 |
Computer, Engine Control
2011-12 → 2012-01
ended
|
GRL15 | — | |
| 89661-30U61 |
Computer, Engine Control
2012-02 → 2012-06
ended
|
GRL15 | — | |
| 89661-30U62 |
Computer, Engine Control
2012-07 → 2013-09
ended
|
GRL15 | — | |
| 89661-30V30 note |
Computer, Engine Control
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 89661-30V40 note |
Computer, Engine Control
2011-12 → 2013-09
ended
|
GRL10 | — | |
| 89661-30X30 |
Computer, Engine Control
2013-09 → 2015-10
ended
|
GRL11 | — | |
| 89661-30X40 |
Computer, Engine Control
2013-09 → 2013-11
ended
|
GRL10 | — | |
| 89661-30X41 |
Computer, Engine Control
2013-12 → 2015-10
ended
|
GRL10 | — | |
| 89661-30X50 |
Computer, Engine Control
2013-09 → 2013-11
ended
|
GRL15 | — | |
| 89661-30X51 |
Computer, Engine Control
2013-12 → 2015-10
ended
|
GRL15 | — | |
| 89661-30Y20 note |
Computer, Engine Control
2013-09 → 2015-10
ended
|
GRL10 | — | |
| 89661-30Z40 |
Computer, Engine Control
2014-09 → 2015-10
ended
|
GWL10 | — | |
| 89661-30Q00 |
Computer, Engine Control
2016-09 → 2018-09
ended
|
GWL10 | — | |
| 89661-30Z50 note |
Computer, Engine Control
2018-09 → 2018-11
ended
|
ARL10 | — | |
| 89661-30Z51 note |
Computer, Engine Control
2018-12 → 2019-08
ended
|
ARL10 | — | |
| 89661-30Z60 note |
Computer, Engine Control
2018-09 → 2019-08
ended
|
ARL10 | — | |
| 89661-30Z90 |
Computer, Engine Control
2015-10 → 2015-11
ended
|
ARL10 | — | |
| 89661-30Z91 |
Computer, Engine Control
2015-11 → 2016-04
ended
|
ARL10 | — | |
| 89661-30Z92 |
Computer, Engine Control
2016-05 → 2016-06
ended
|
ARL10 | — | |
| 89661-30Z93 |
Computer, Engine Control
2016-07 → 2016-09
ended
|
ARL10 | — | |
| 89661-3AA20 note |
Computer, Engine Control
2015-10 → 2016-06
ended
|
ARL10 | — | |
| 89661-3AA21 note |
Computer, Engine Control
2016-07 → 2016-09
ended
|
ARL10 | — | |
| 89661-3AA70 |
Computer, Engine Control
2015-10 → 2016-03
ended
|
GWL10 | — | |
| 89661-3AA71 |
Computer, Engine Control
2016-04 → 2016-09
ended
|
GWL10 | — | |
| 89661-3AB10 |
Computer, Engine Control
2015-10 → 2015-11
ended
|
GRL12 | — | |
| 89661-3AB11 |
Computer, Engine Control
2015-12 → 2017-09
ended
|
GRL12 | — | |
| 89661-3AB20 |
Computer, Engine Control
2015-10 → 2015-11
ended
|
GRL16 | — | |
| 89661-3AB21 |
Computer, Engine Control
2015-12 → 2017-09
ended
|
GRL16 | — | |
| 89661-3AE30 |
Computer, Engine Control
2016-09 → 2017-10
ended
|
ARL10 | — | |
| 89661-3AE31 note |
Computer, Engine Control
2017-11 → 2018-02
ended
|
ARL10 | — | |
| 89661-3AE32 note |
Computer, Engine Control
2018-03 → 2018-09
ended
|
ARL10 | — | |
| 89661-3AE60 note |
Computer, Engine Control
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 89661-3AG20 |
Computer, Engine Control
2017-09 → 2018-04
ended
|
GRL12 | — | |
| 89661-3AG21 note |
Computer, Engine Control
2018-05 → 2018-09
ended
|
GRL12 | — | |
| 89661-3AG30 |
Computer, Engine Control
2017-09 → 2018-04
ended
|
GRL16 | — | |
| 89661-3AG31 note |
Computer, Engine Control
2018-05 → 2018-09
ended
|
GRL16 | — | |
| 89661-3AJ10 note |
Computer, Engine Control
2018-09 → 2018-12
ended
|
GRL12 | — | |
| 89661-3AJ11 note |
Computer, Engine Control
2019-01 → 2019-07
ended
|
GRL12 | — | |
| 89661-3AJ12 note |
Computer, Engine Control
2019-08 → 2020-07
ended
|
GRL12 | — | |
| 89661-3AJ20 note |
Computer, Engine Control
2018-09 → 2018-12
ended
|
GRL16 | — | |
| 89661-3AJ21 note |
Computer, Engine Control
2019-01 → 2019-07
ended
|
GRL16 | — | |
| 89661-3AJ22 note |
Computer, Engine Control
2019-08 → 2020-07
ended
|
GRL16 | — | |
| 89667 — Bracket, Engine Control Computer | ||||
| 89667-30300 |
Bracket, Engine Control Computer
2011-12 → 2015-10
ended
|
GRL1# | — | |
| 89667-30310 |
Bracket, Engine Control Computer
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 89667-30310 |
Bracket, Engine Control Computer
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 89667-53040 |
Bracket, Engine Control Computer
2015-10 → 2020-07
ended
|
ARL10,GRL1# | — | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-30250 |
Bracket, Engine Control Computer, NO.2
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 89668-30280 |
Bracket, Engine Control Computer, NO.2
2011-12 → 2015-10
ended
|
GRL1# | — | |
| 89668-30250 |
Bracket, Engine Control Computer, NO.2
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 89668-53040 |
Bracket, Engine Control Computer, NO.2
2015-10 → 2020-07
ended
|
ARL10,GRL1# | — | |
| 89669 — Bracket, Engine Control Computer, NO.3 | ||||
| 89669-30170 |
Bracket, Engine Control Computer, NO.3
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 89669-30170 |
Bracket, Engine Control Computer, NO.3
2015-10 → 2018-09
ended
|
GWL10 | — | |
| 89871 — Driver, Injector | ||||
| 89871-30040 |
Driver, Injector
2012-03 → 2015-10
ended
|
GWL10 | — | |
| 89871-53010 |
Driver, Injector
2012-01 → 2015-10
ended
|
GRL1# | — | |
| 89871-30040 |
Driver, Injector
2015-10 → 2018-09
ended
|
GWL10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
