Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

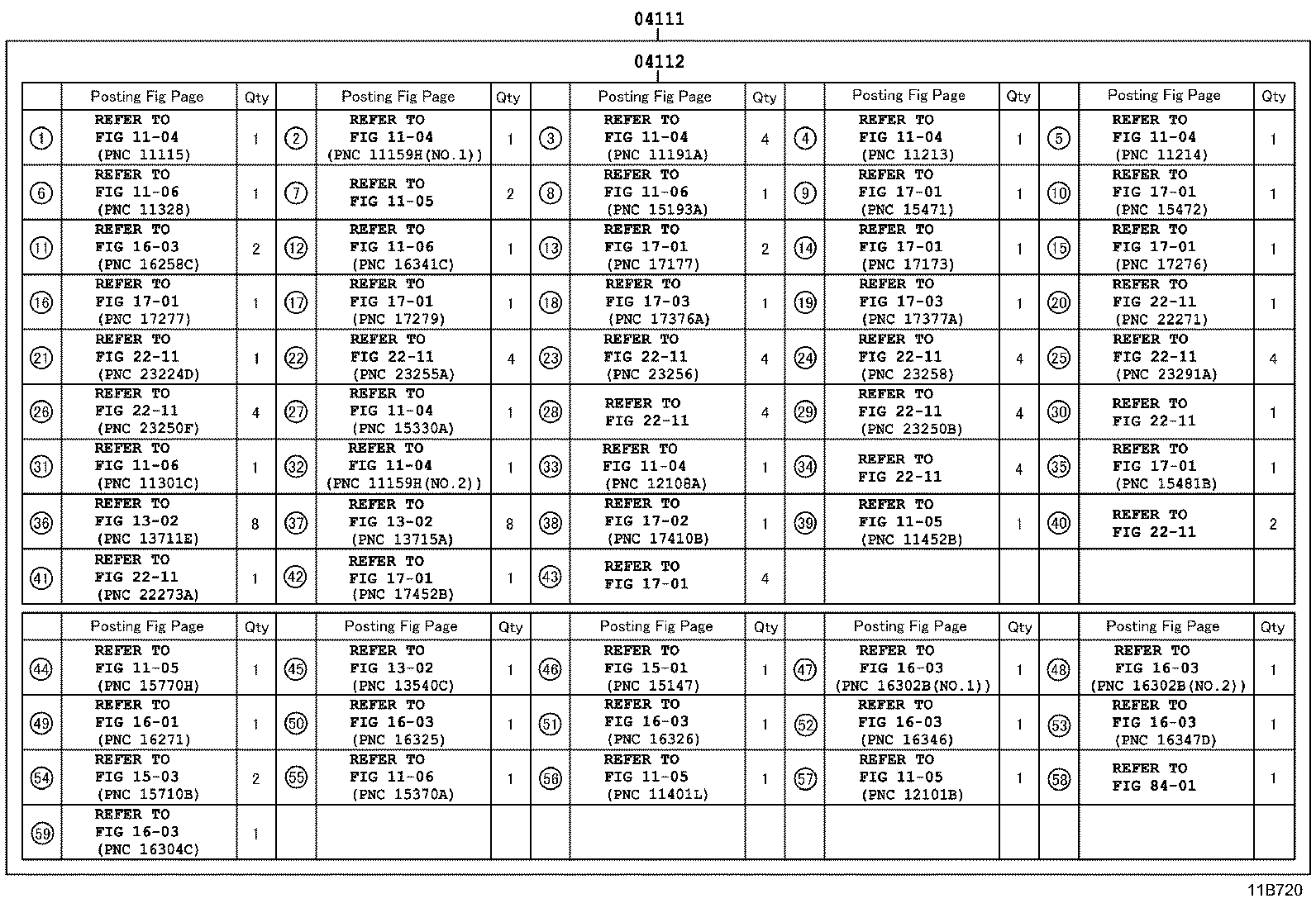

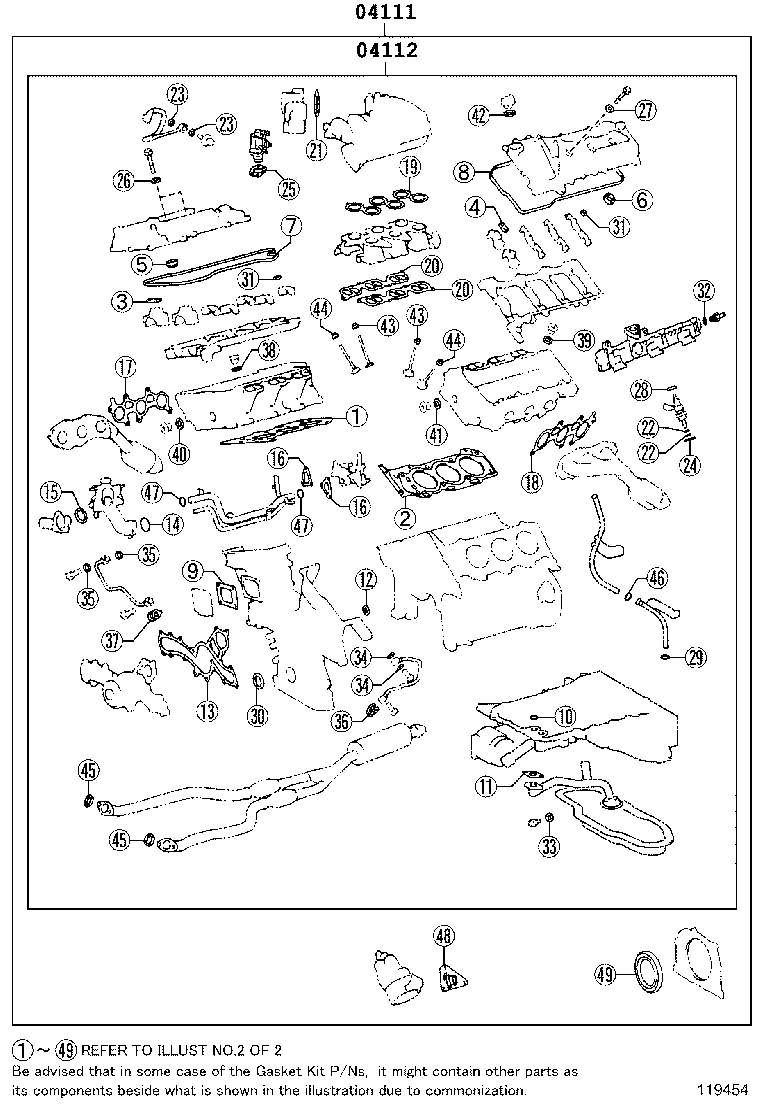

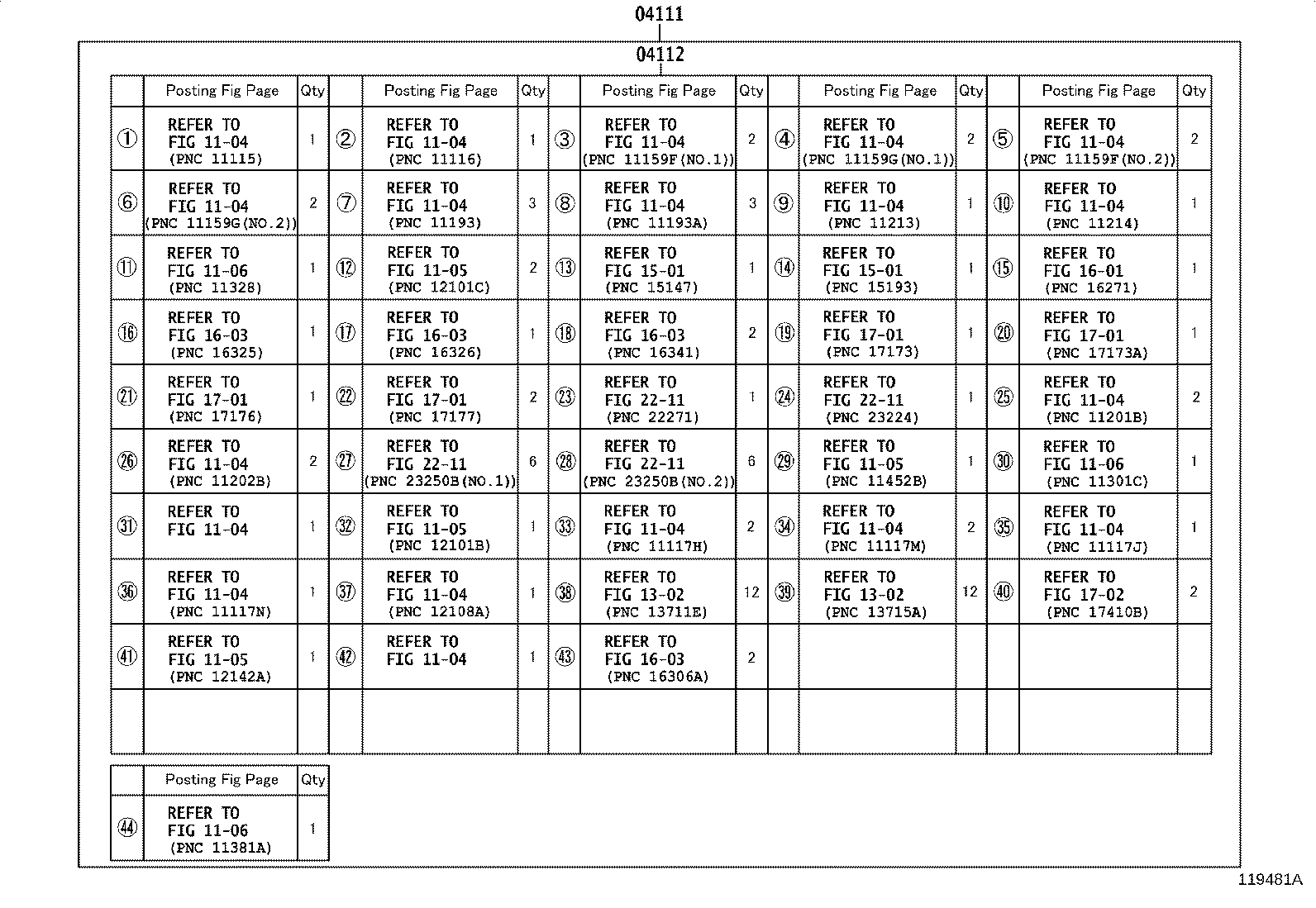

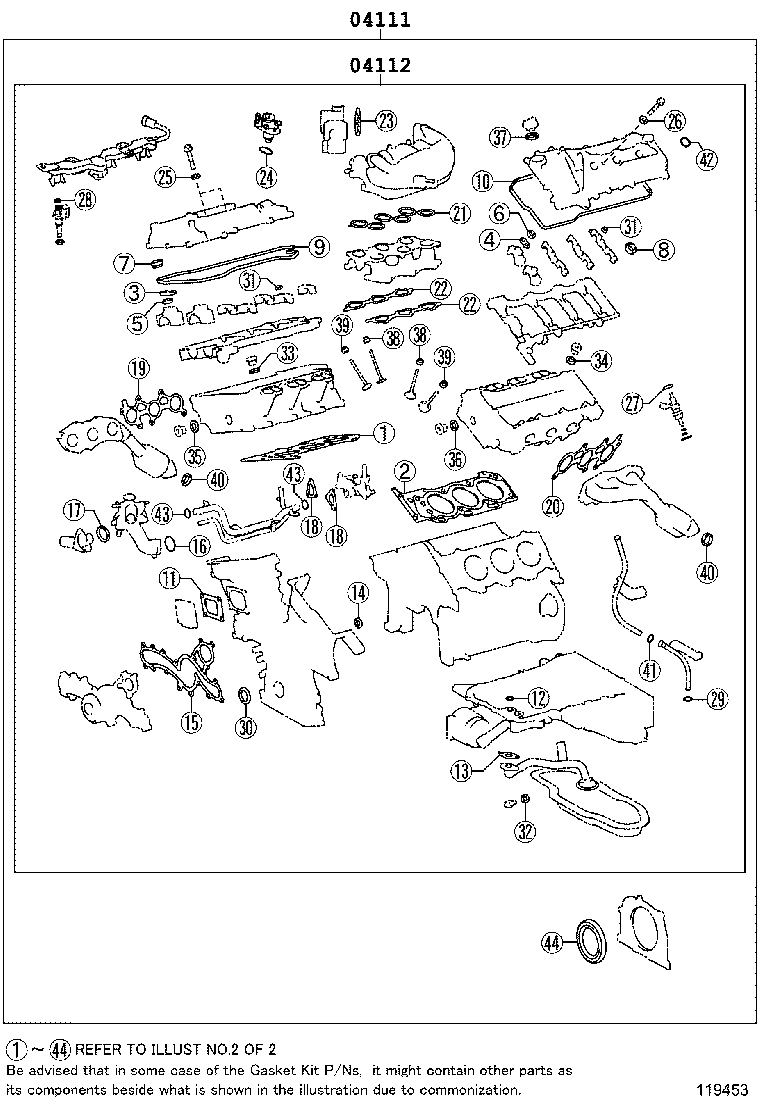

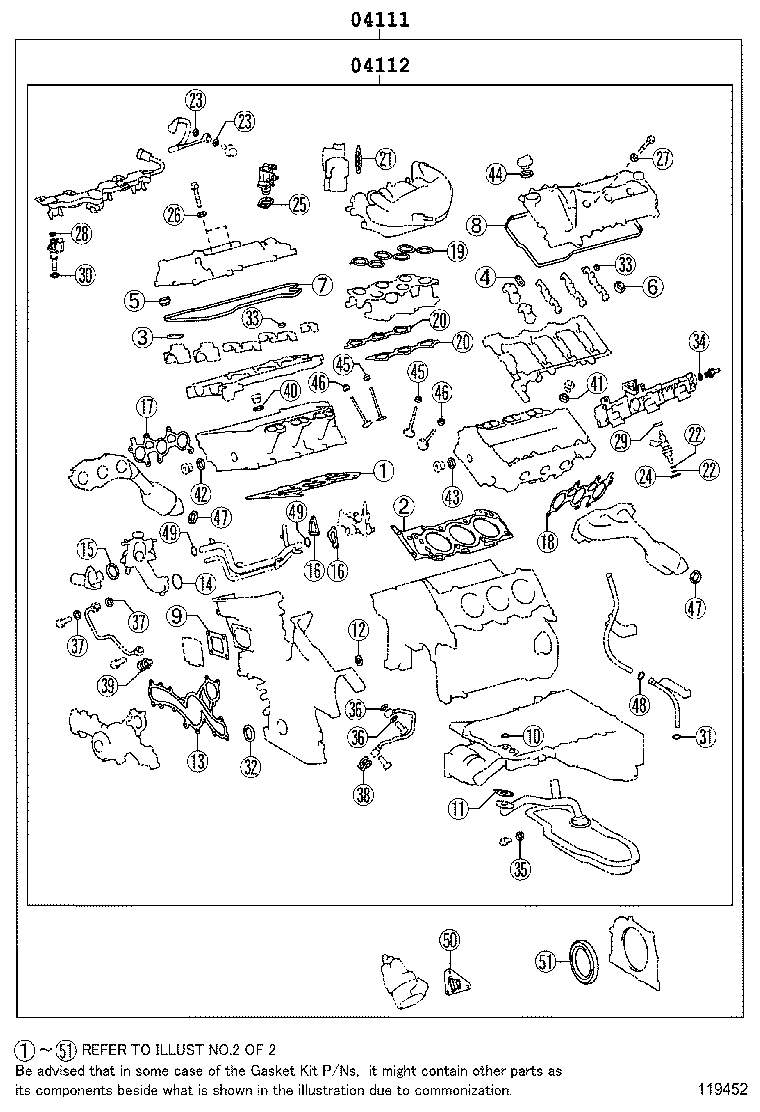

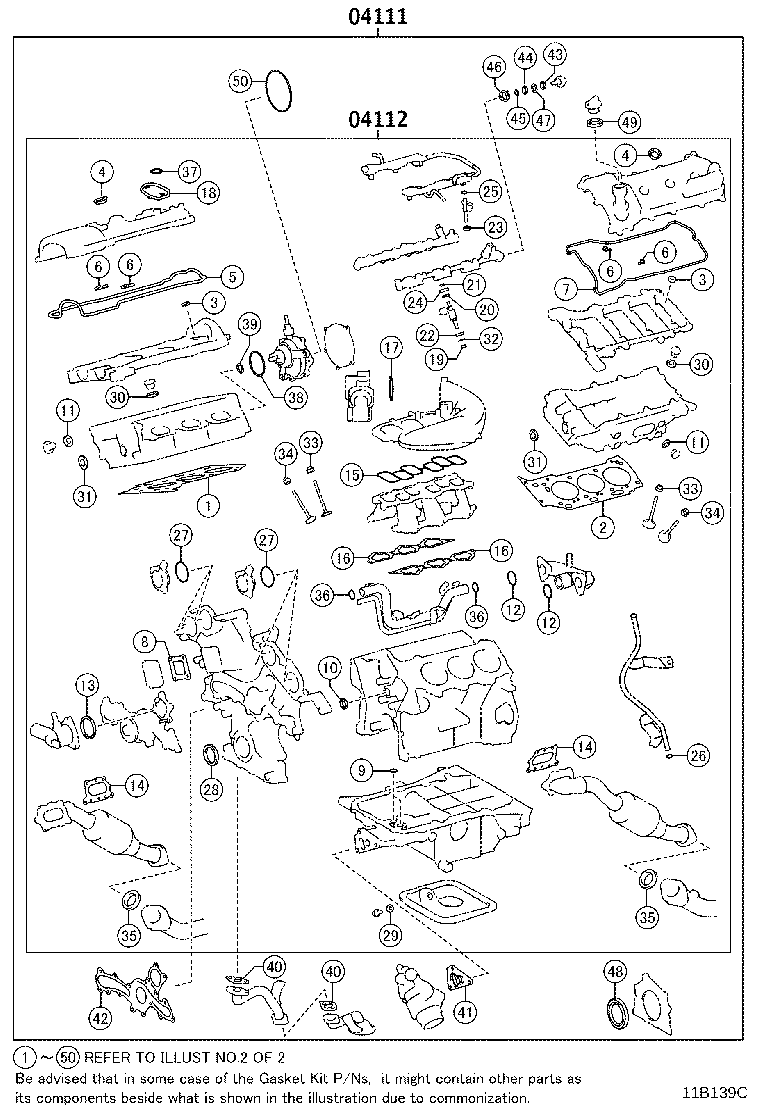

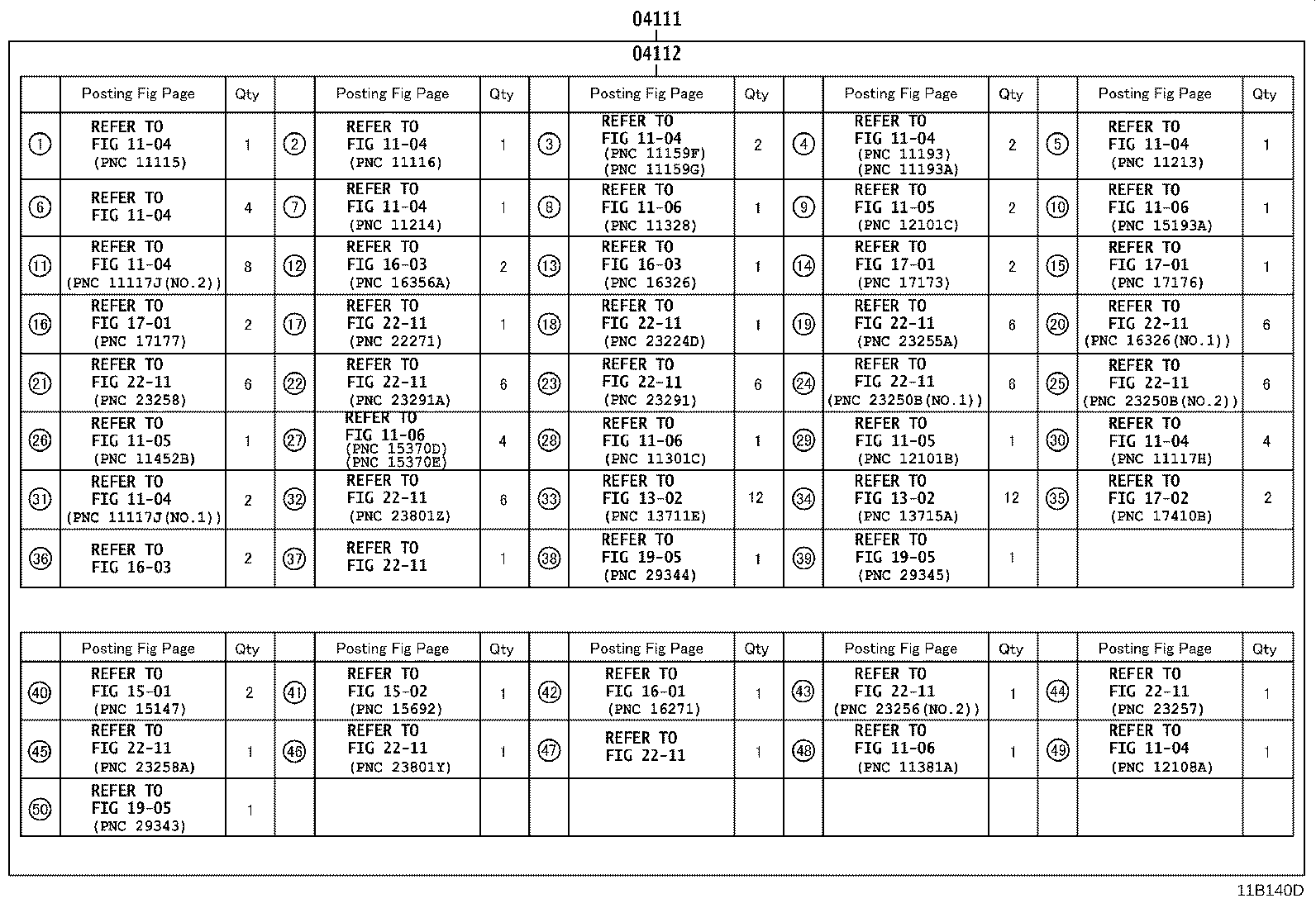

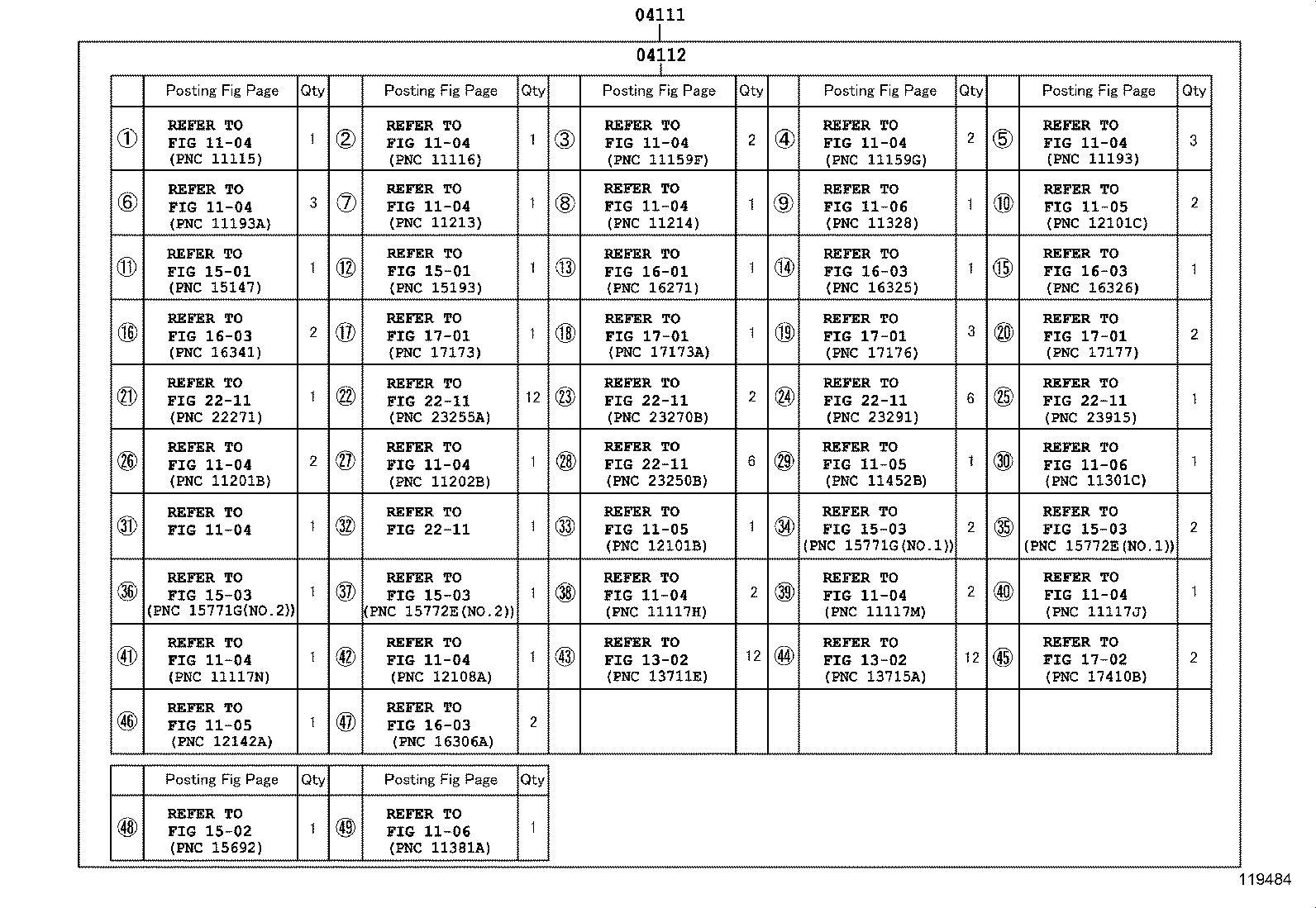

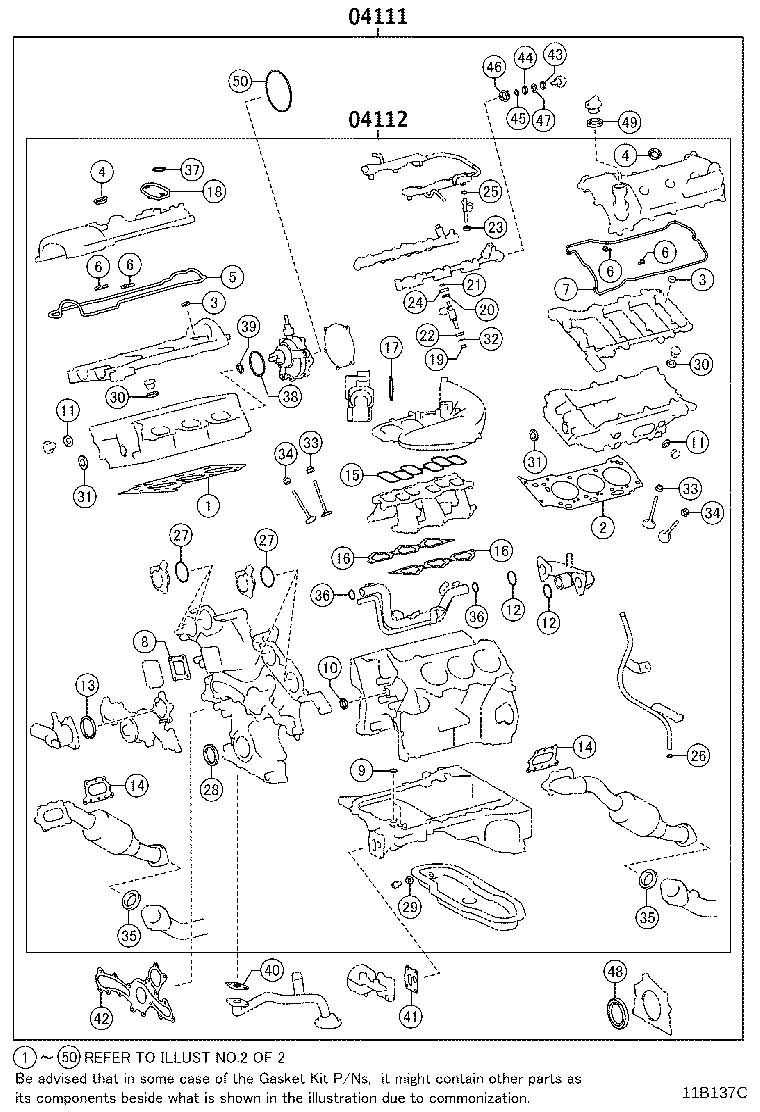

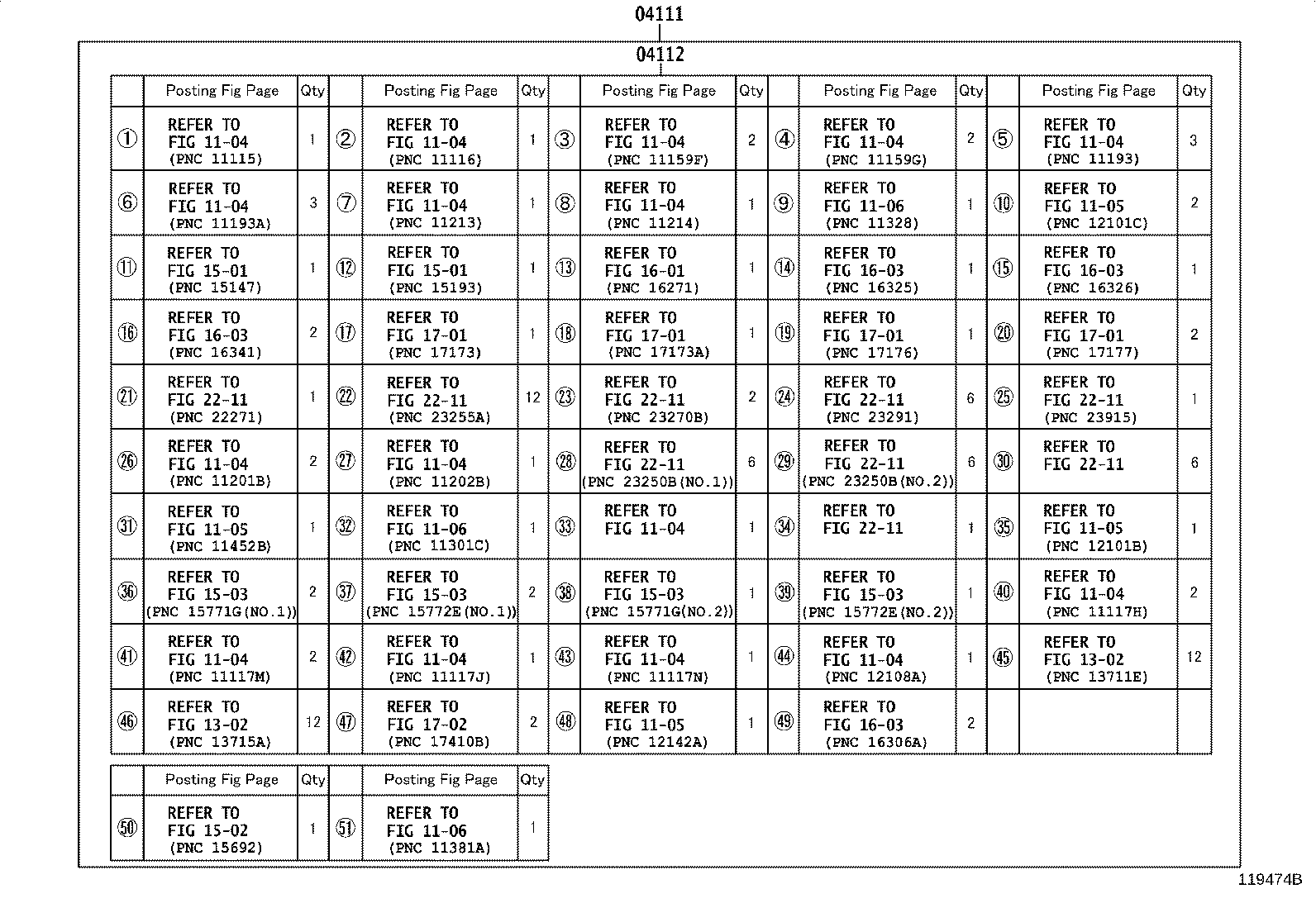

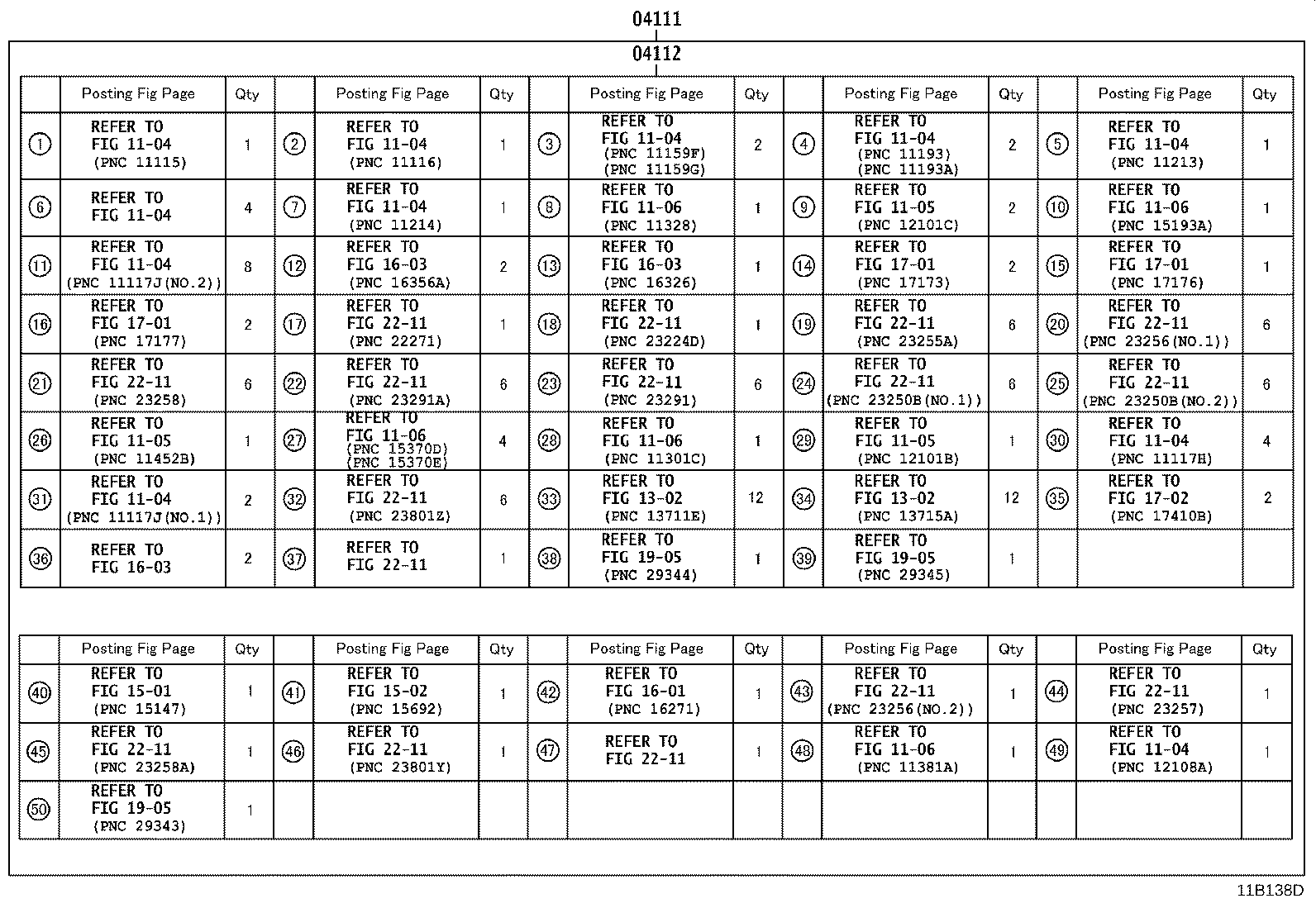

Figure 11B718 11B718 2015-10 → — Figure 11B720 11B720 2015-10 → — Figure 119452 119452 2011-12 → 2015-10 Figure 119474B 119474B 2011-12 → 2015-10 Figure 119454 119454 2012-01 → 2015-10 Figure 119484 119484 2012-01 → 2015-10 Figure 11B137C 11B137C 2015-10 → — Figure 11B138D 11B138D 2015-10 → — Figure 11B139C 11B139C 2015-10 → — Figure 11B140D 11B140D 2015-10 → — Figure 119453 119453 2012-03 → — Figure 119481A 119481A 2012-03 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
