Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

24 part groups · 4 illustrations

Illustrations

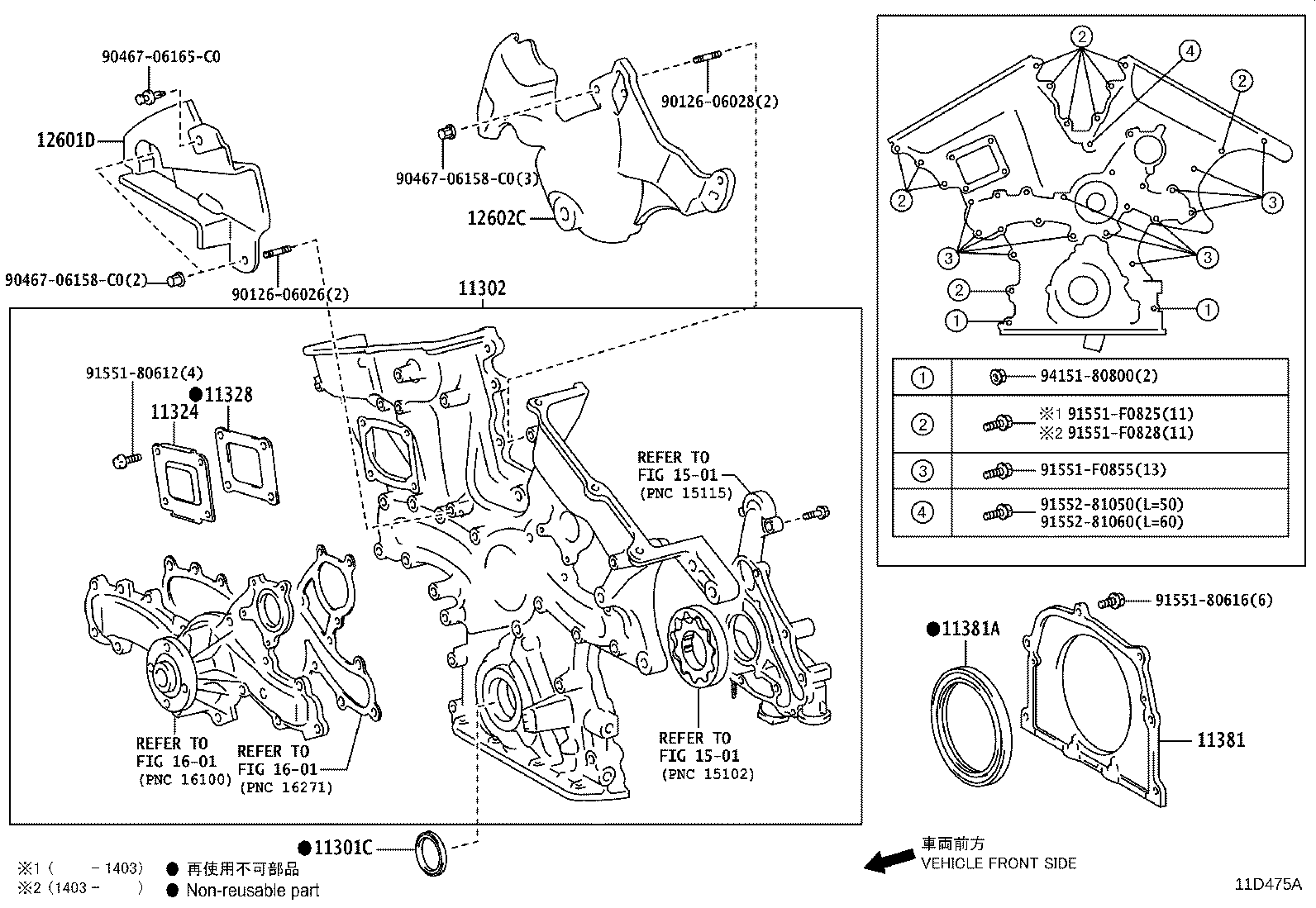

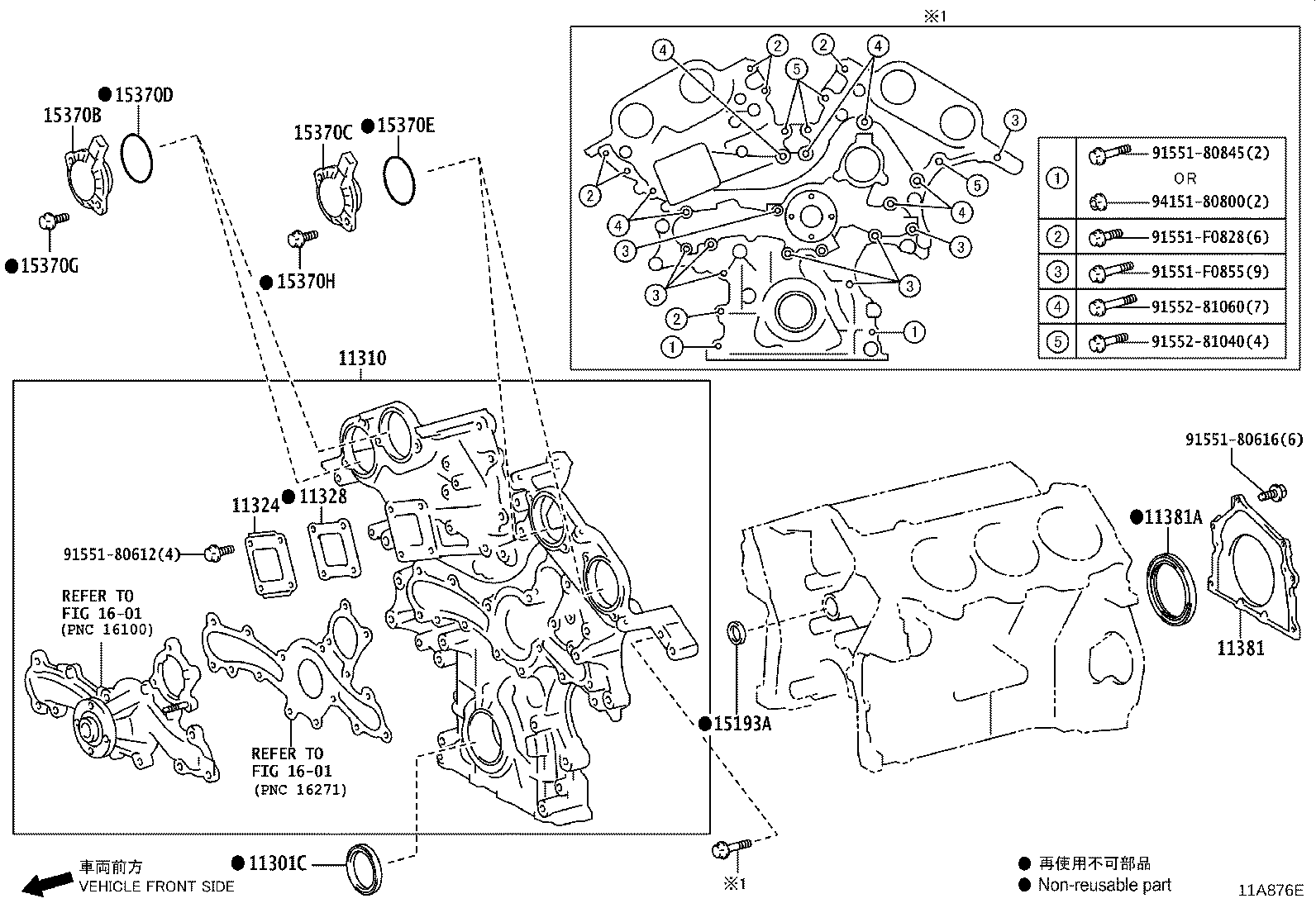

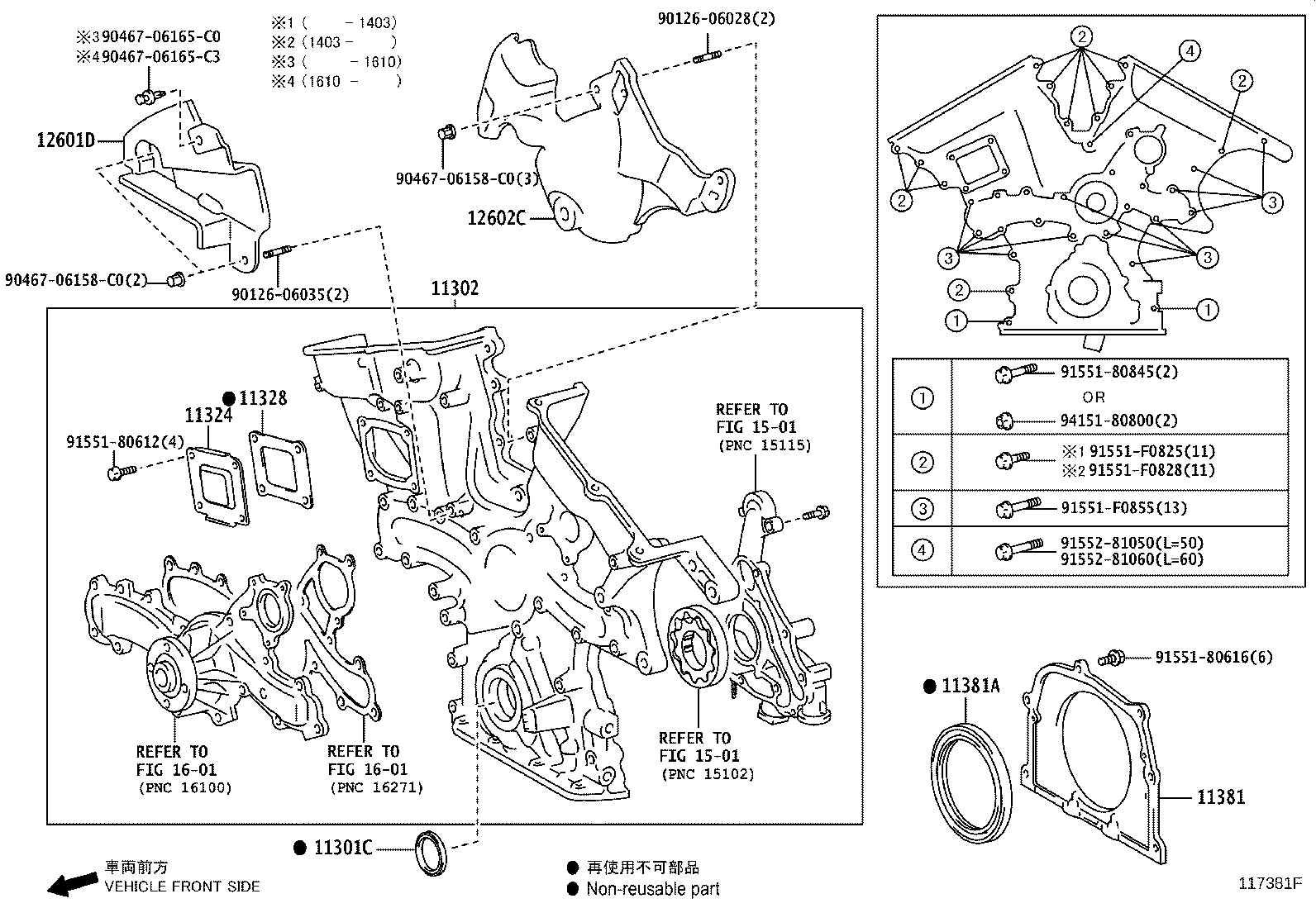

Figure 11A818B 11A818B 2015-10 → — Figure 11D475A 11D475A 2011-12 → — Figure 117381F 117381F 2012-03 → — Figure 11A876E 11A876E 2015-10 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11310 Cover Assy, Timing Chain
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11363 Cover, Flywheel Side
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12601D Cover, Engine, NO.1
12602C Cover, Engine, NO.2
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
15370B Solenoid Assy, Cam Timing Oil Control, RH
15370C Solenoid Assy, Cam Timing Oil Control, LH
15370D Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370E Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
15370G Bolt(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370H Bolt(FOR CAM TIMING OIL CONTROL SOLENOID LH)
16341C Gasket, Water Outlet
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
