Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

10 part groups · 5 illustrations

Illustrations

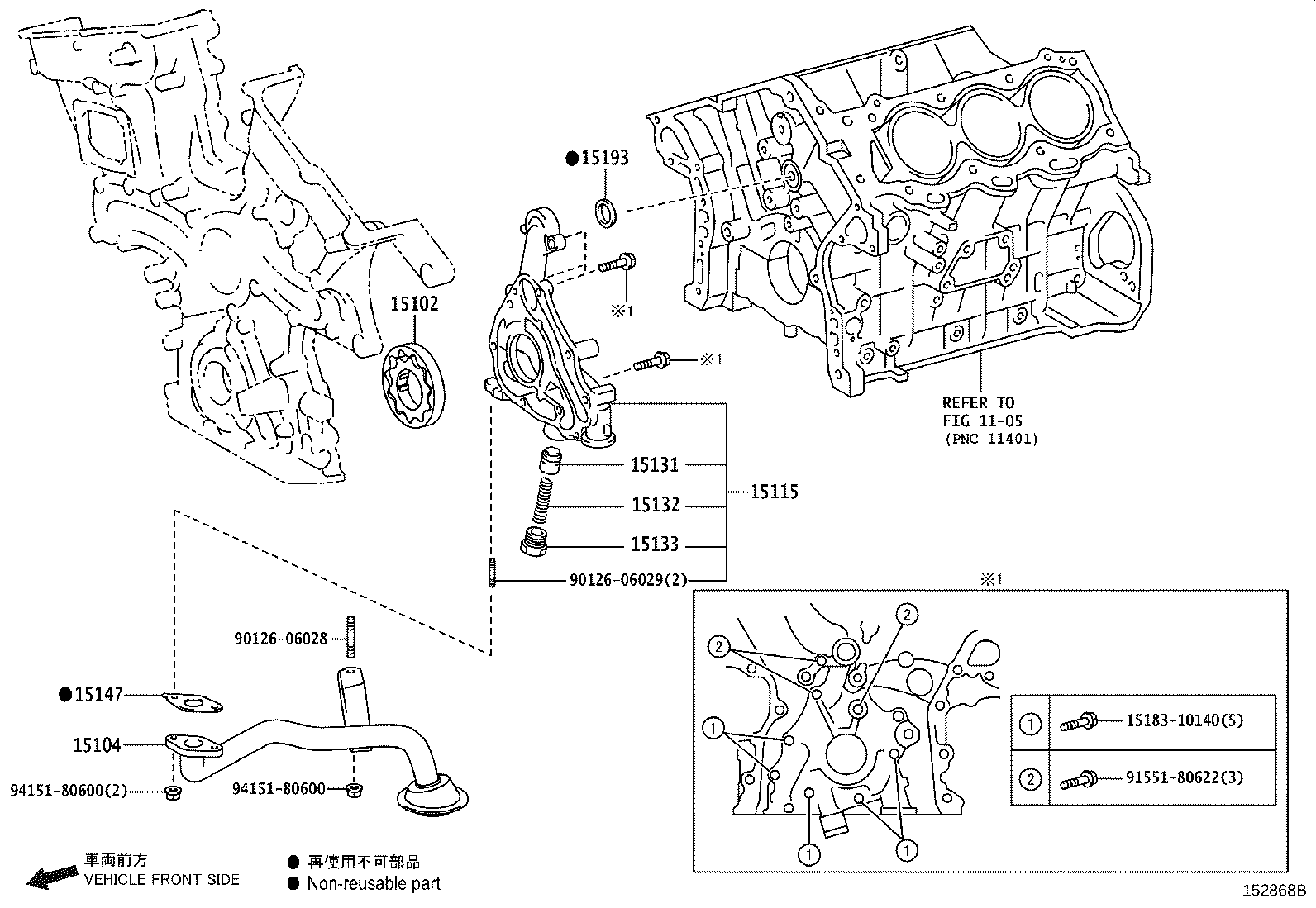

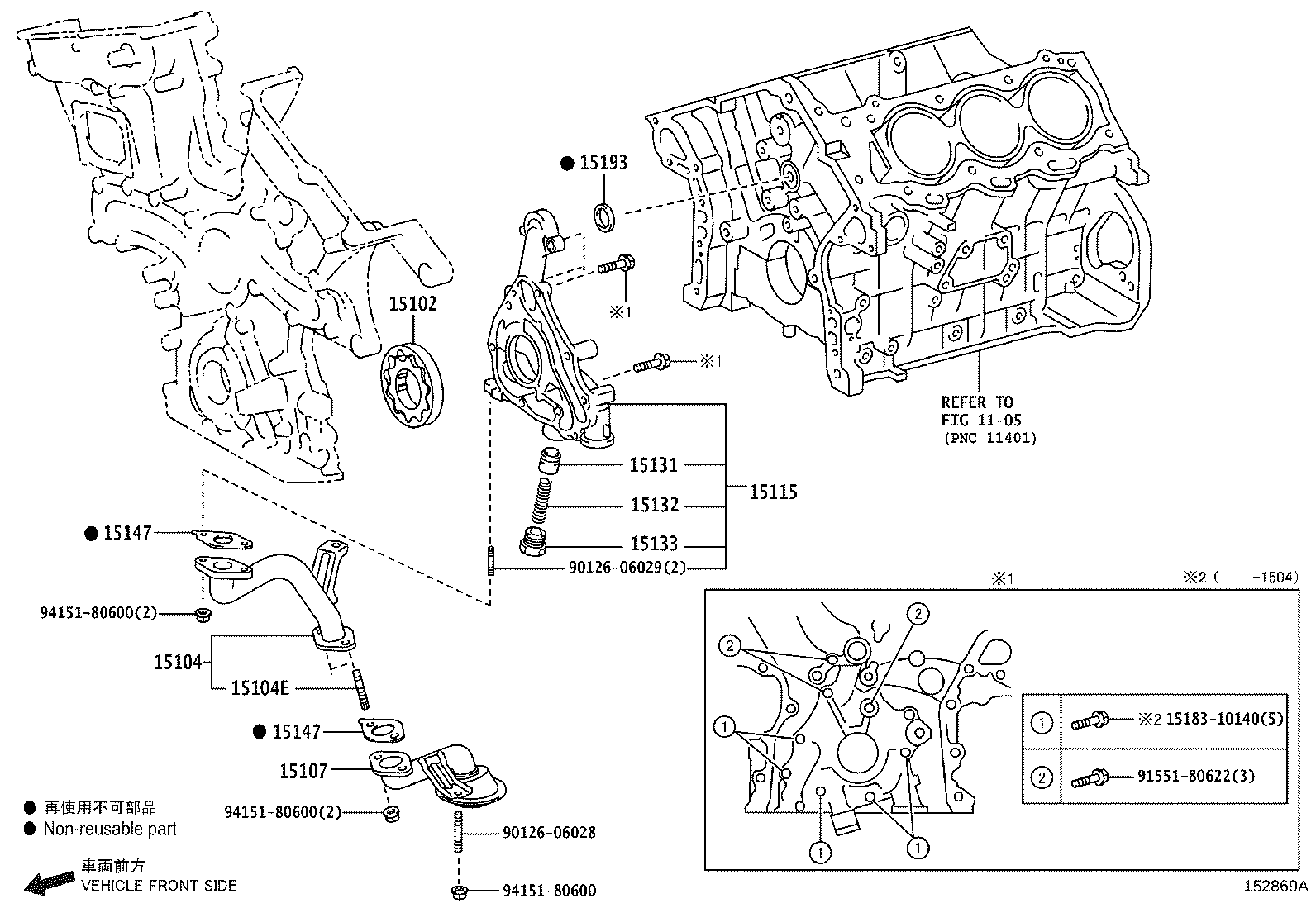

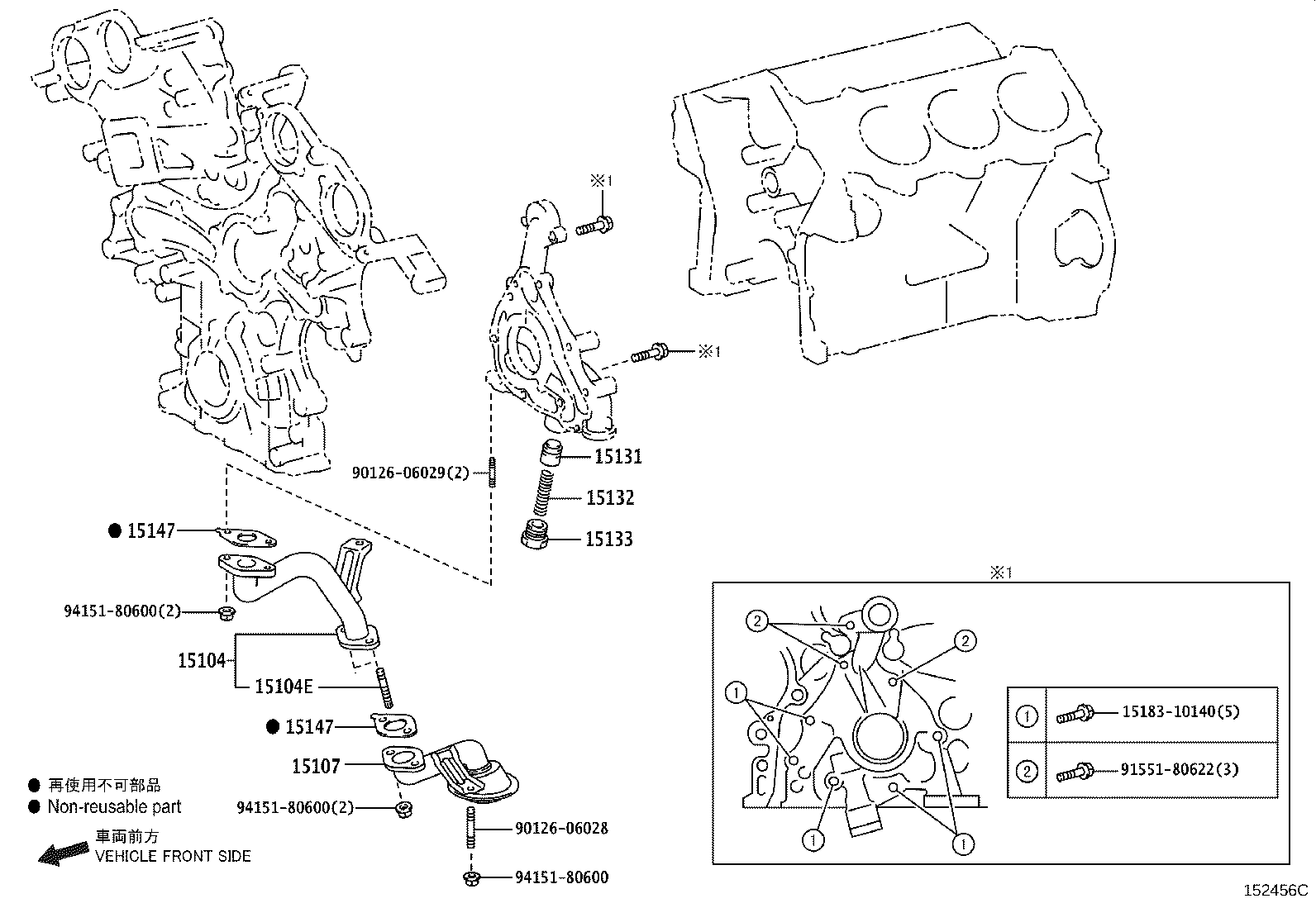

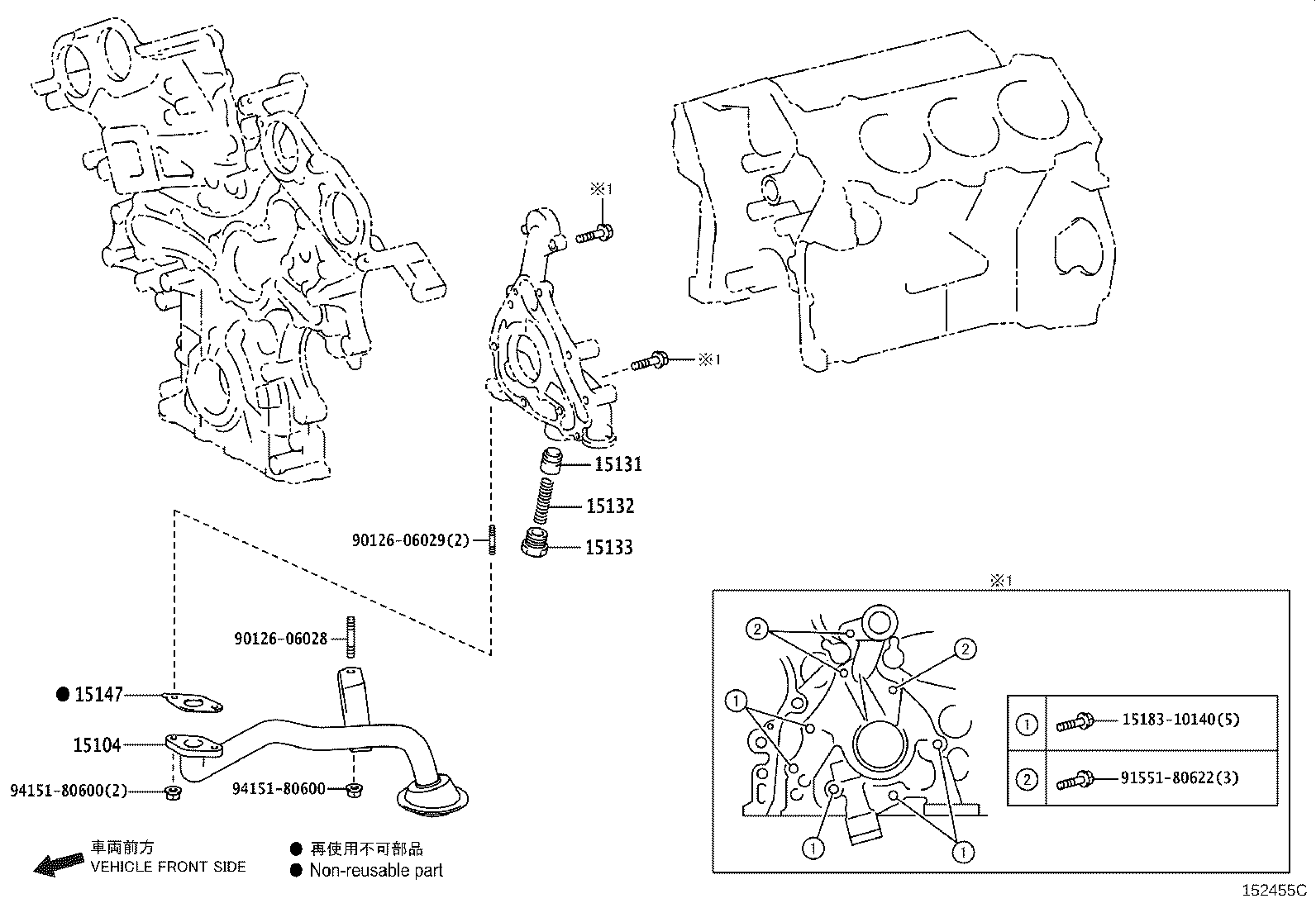

Figure 152099B 152099B 2015-10 → — Figure 152868B 152868B 2011-12 → — Figure 152869A 152869A 2011-12 → — Figure 152455C 152455C 2015-10 → — Figure 152456C 152456C 2015-10 → —

Part groups

PNCDescription
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15107 Pipe Sub-assy, Oil W/Strainer
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15193 Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
