Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

8 part groups · 2 illustrations

Illustrations

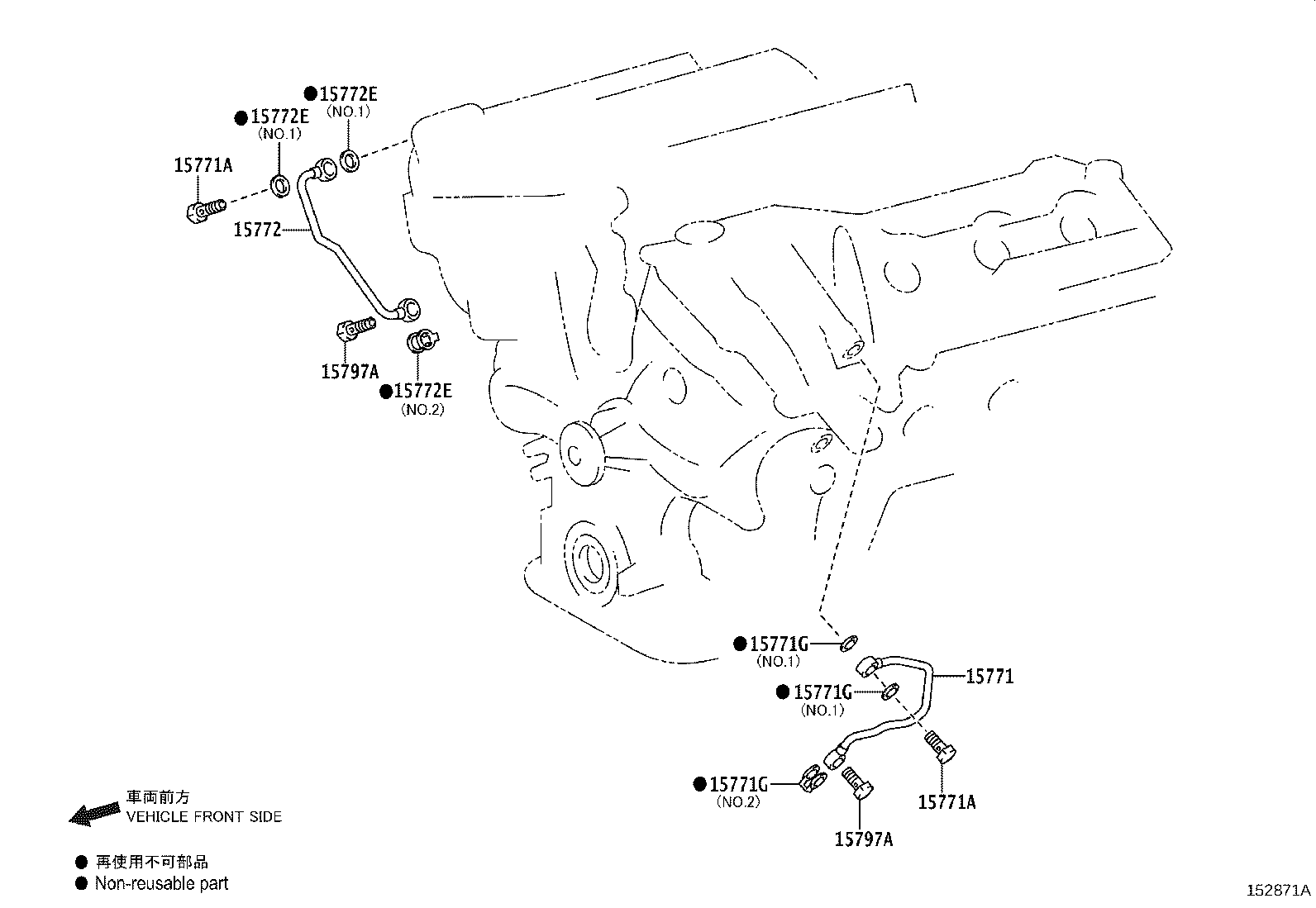

Figure 152444B 152444B 2015-10 → — Figure 152871A 152871A 2011-12 → —

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772E Gasket(FOR OIL PIPE)
15797A Bolt, Oil Check Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
