Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

26 part groups · 5 illustrations

Illustrations

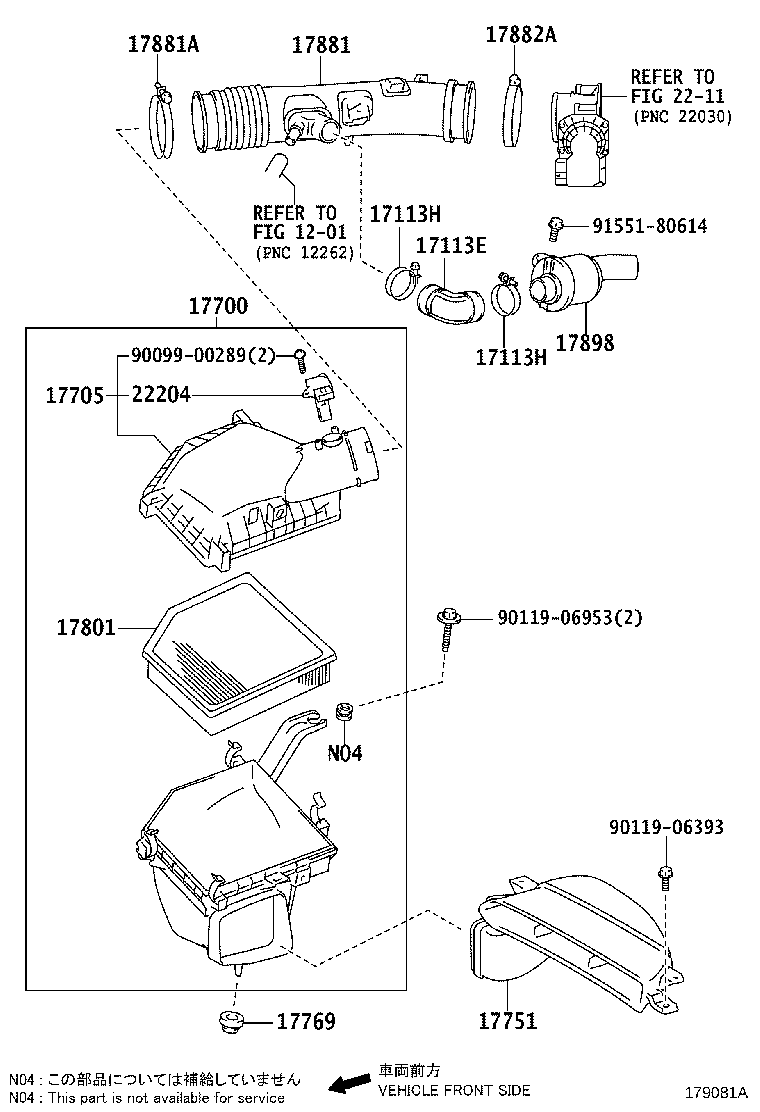

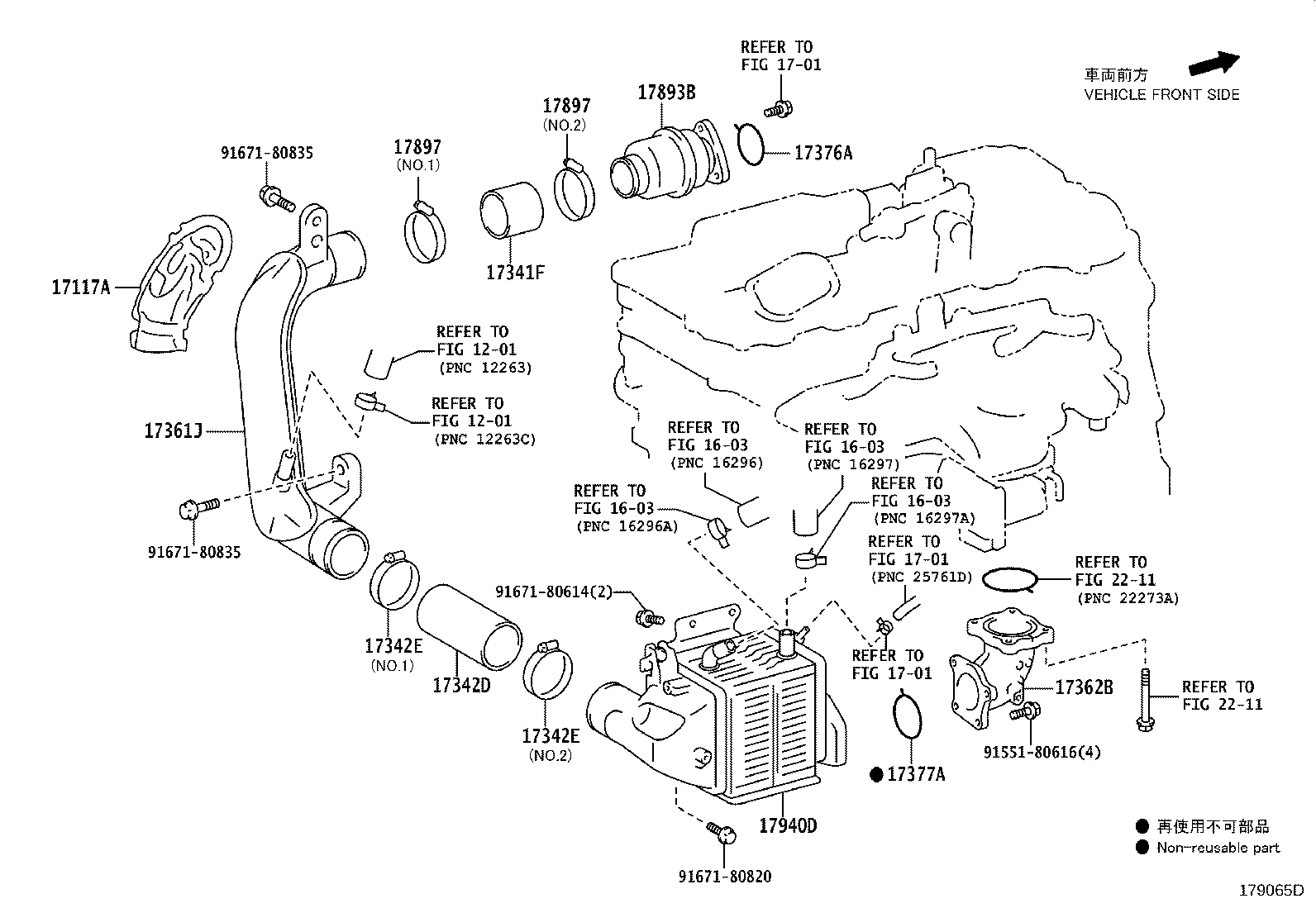

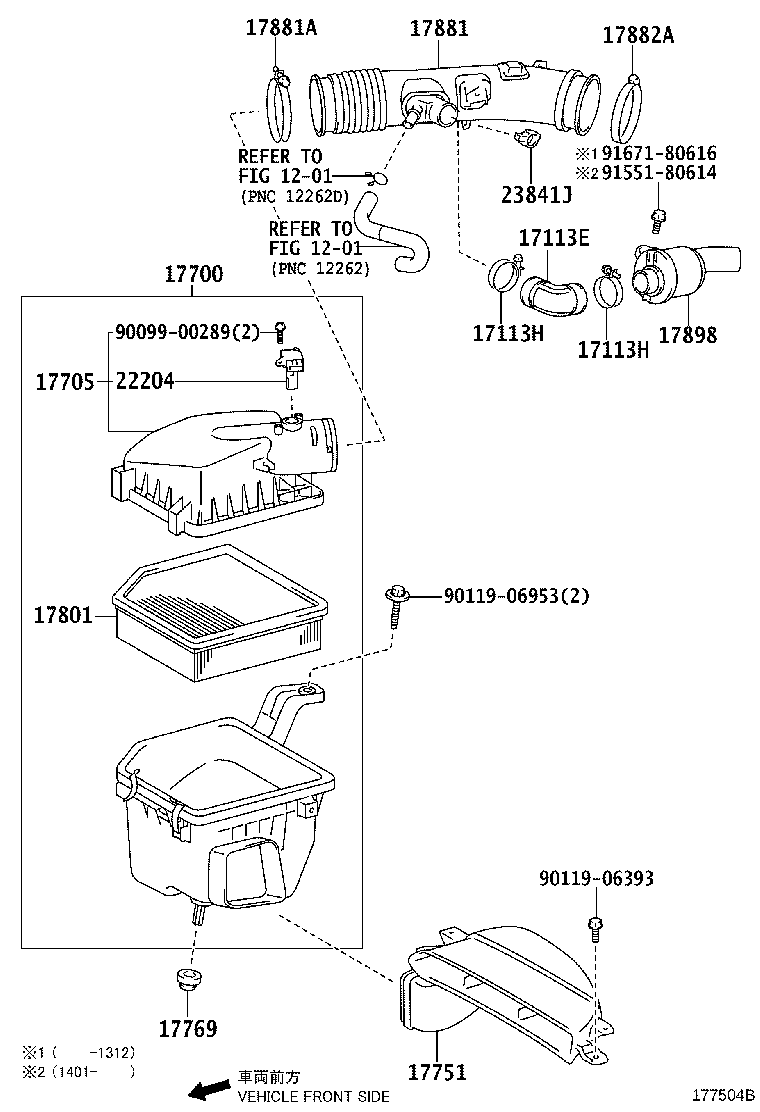

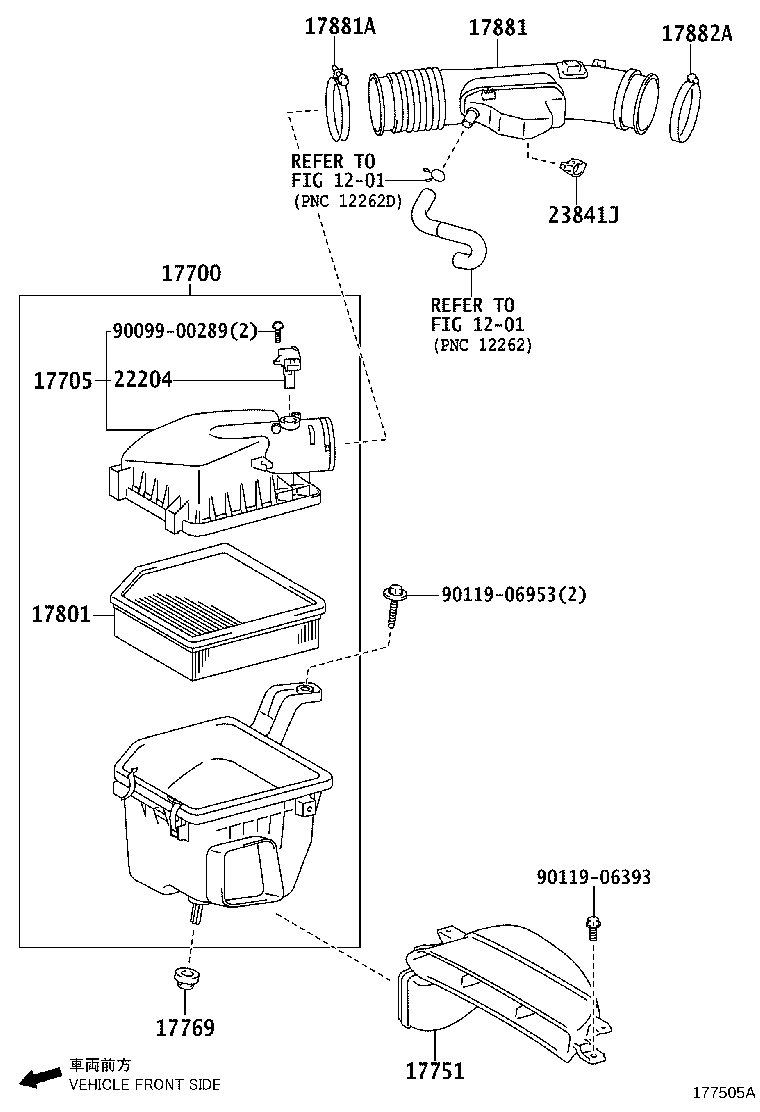

Figure 179066A 179066A 2015-10 → — Figure 179065D 179065D 2015-10 → — Figure 179081A 179081A 2015-10 → — Figure 177504B 177504B 2011-12 → — Figure 177505A 177505A 2012-03 → —

Part groups

PNCDescription
17113E Pipe, Intake, NO.1
17113H Clamp, Intake Pipe
17117A Insulator, Intake Pipe
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17376A Gasket, Air Tube
17377A Gasket, Air Tube, NO.2
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17769 Support, Air Cleaner
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880C Grommet(FOR AIR CLEANER HOSE)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893B Resonator, Intake Air, NO.2
17897 Clamp, Hose(FOR AIR CLEANER)
17898 Creator, Intake Air Sound
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
23841J Clamp, Fuel Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
