Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 2 illustrations

Illustrations

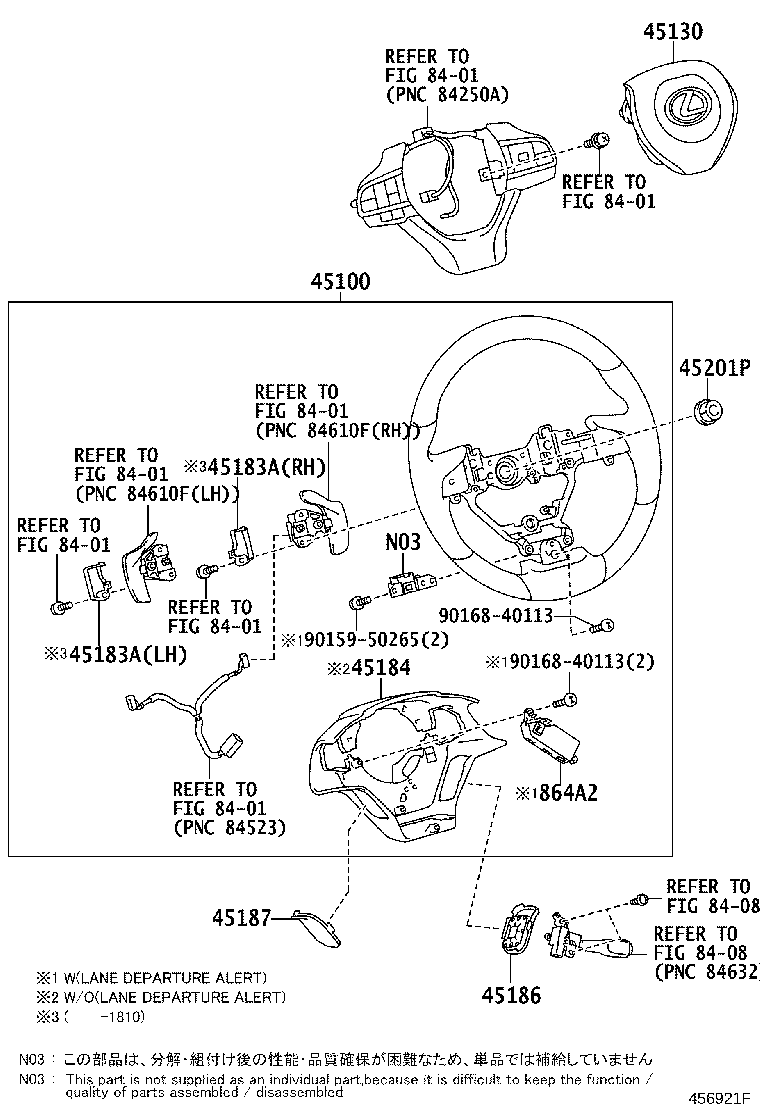

Figure 456039B 456039B 2011-12 → 2015-10 Figure 456921F 456921F 2015-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45183A Cover, Steering Wheel Boss, Lower NO.1
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
55910E Control Assy, Steering Wheel Heater
864A2 Computer, Steering Vibration
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
