Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

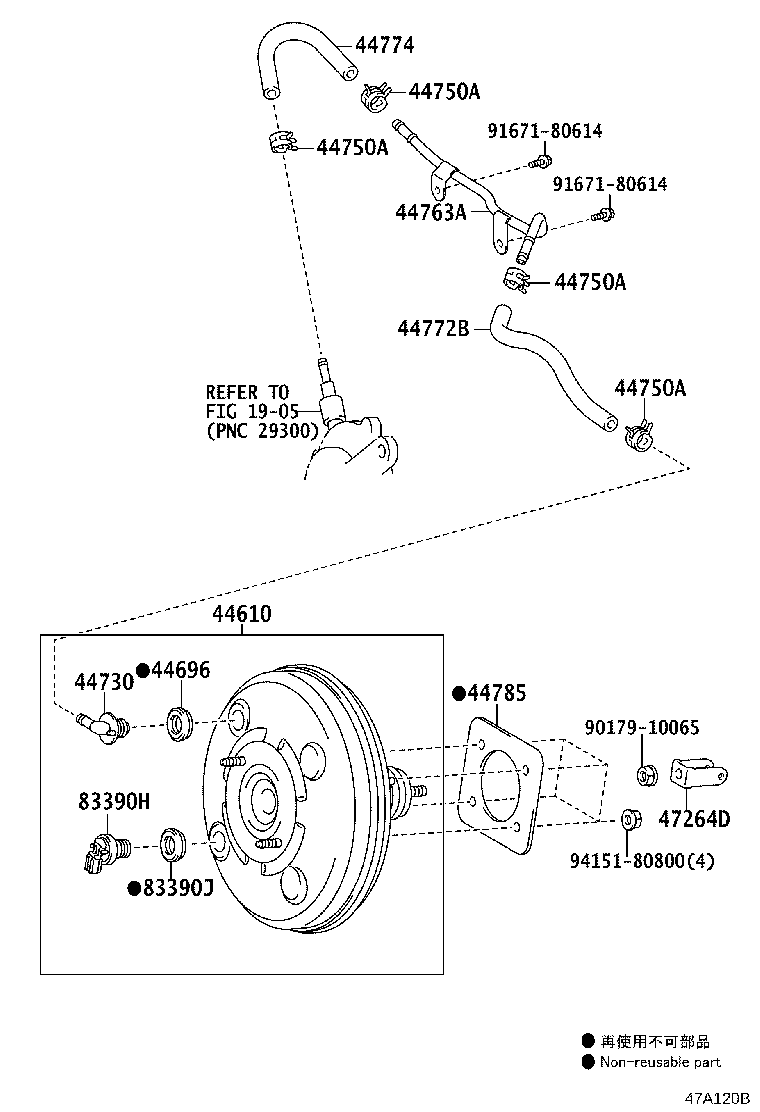

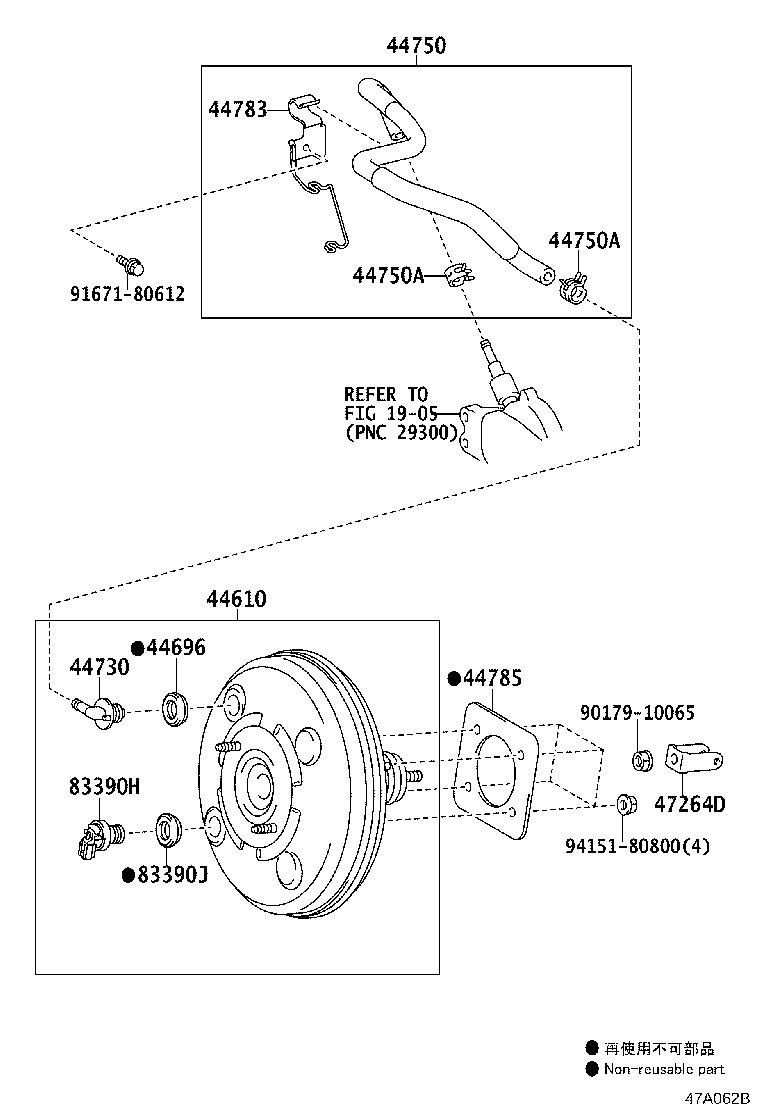

Brake Booster & Vacuum Tube
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44750 | Hose Assy, Vacuum |
| 44750A | Clip(FOR VACUUM HOSE ASSY) |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44774 | Hose, Union TO Connector Tube |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 83390H | Switch Assy, Vacuum Warning |
| 83390J | Grommet, Vacuum Warning Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
