Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

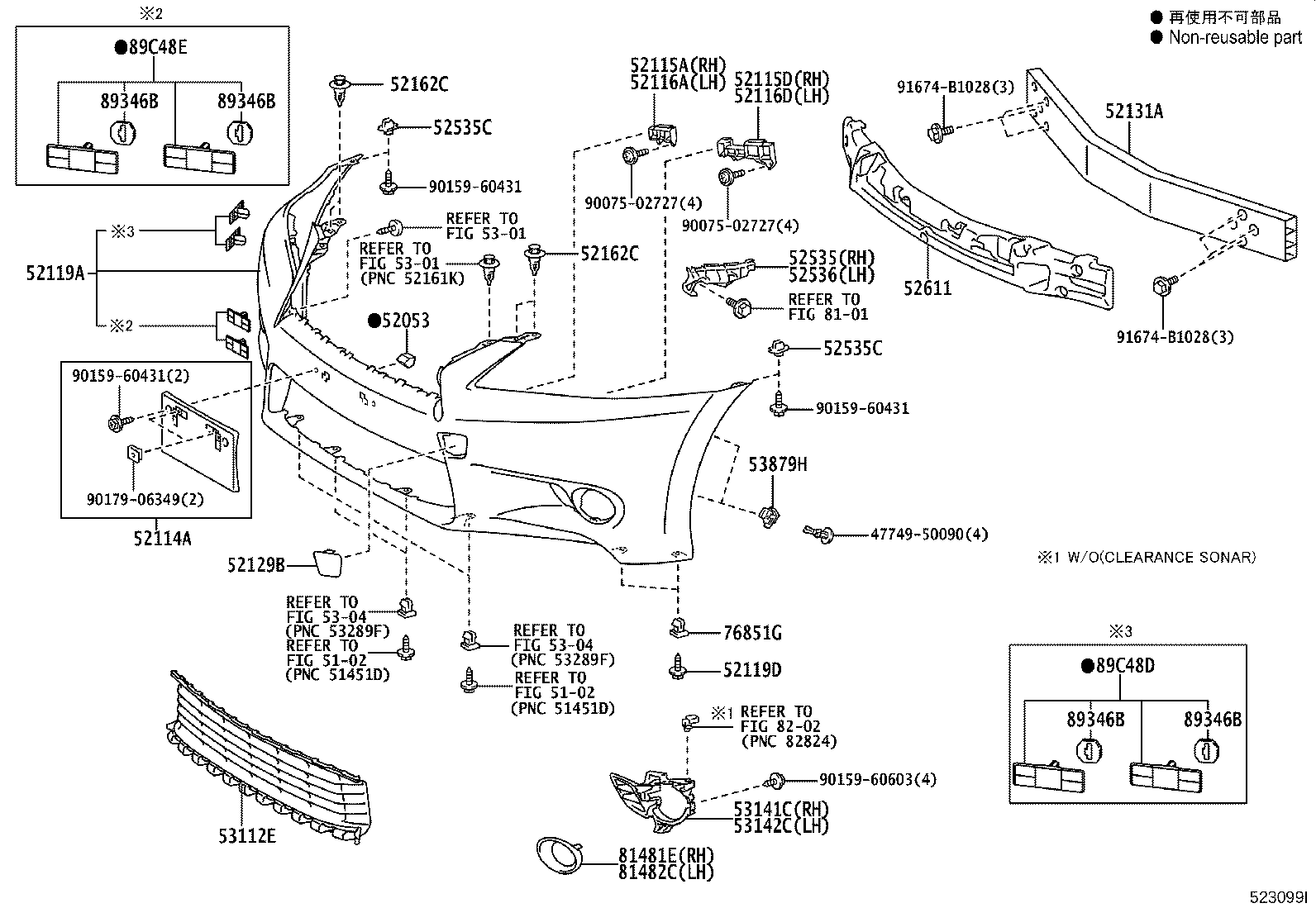

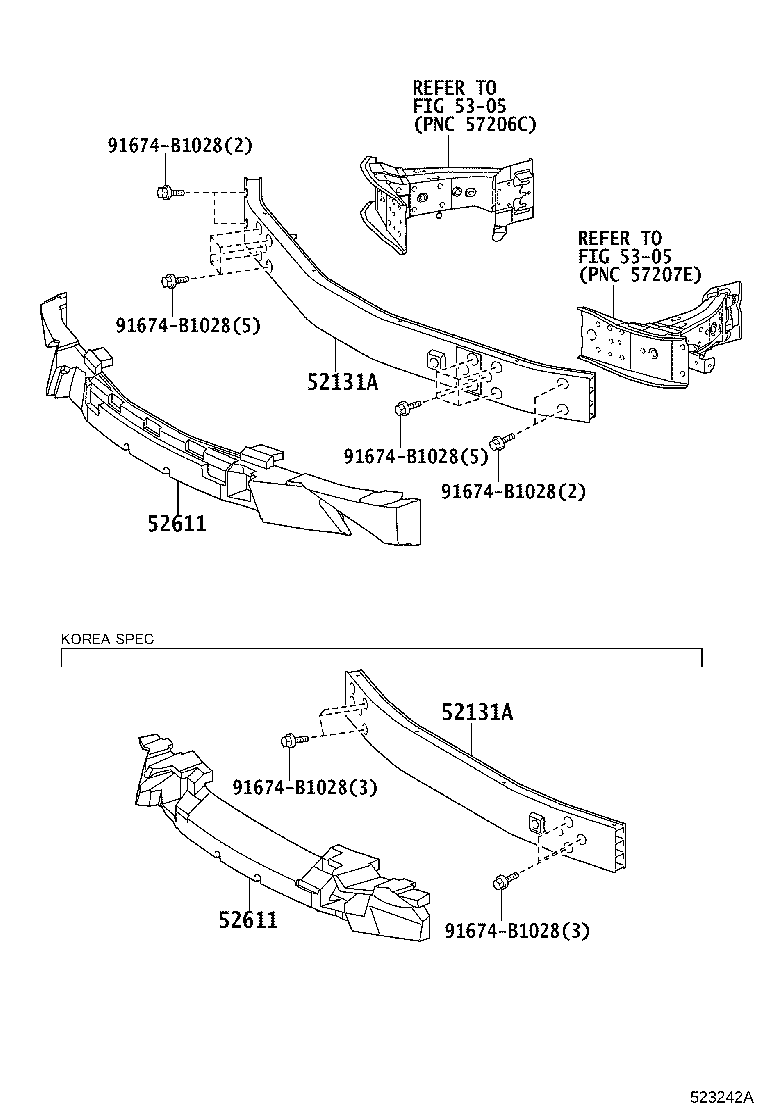

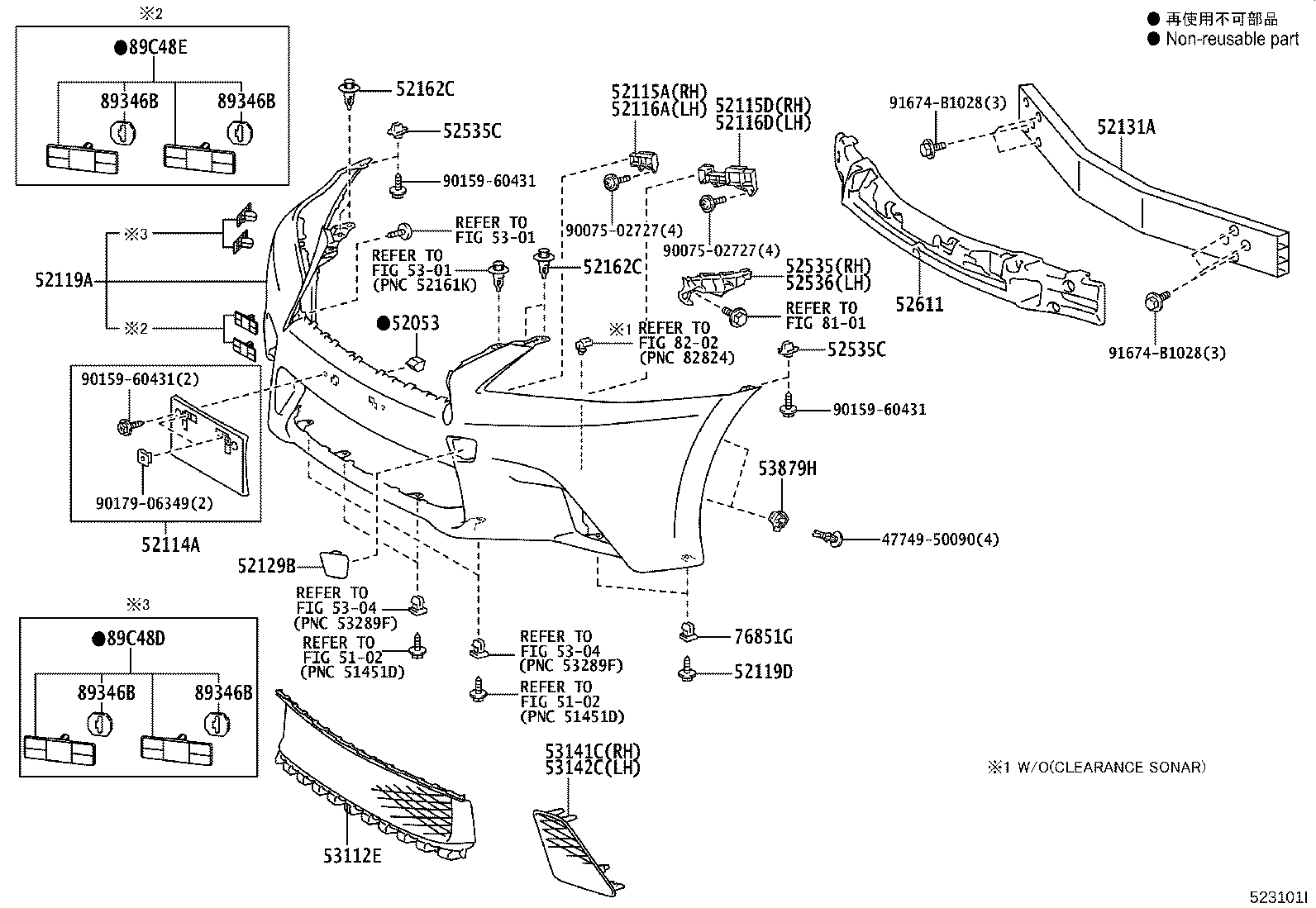

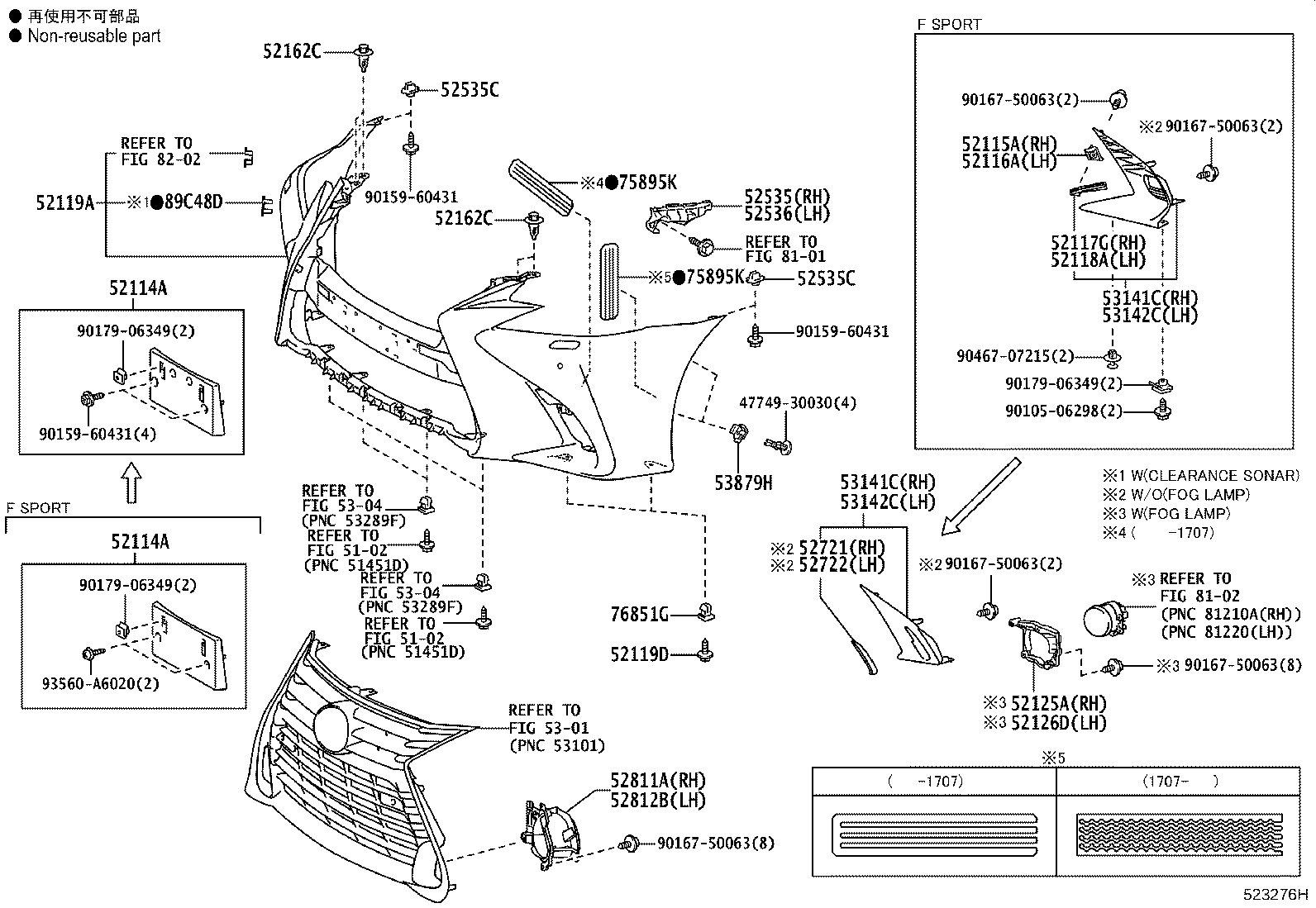

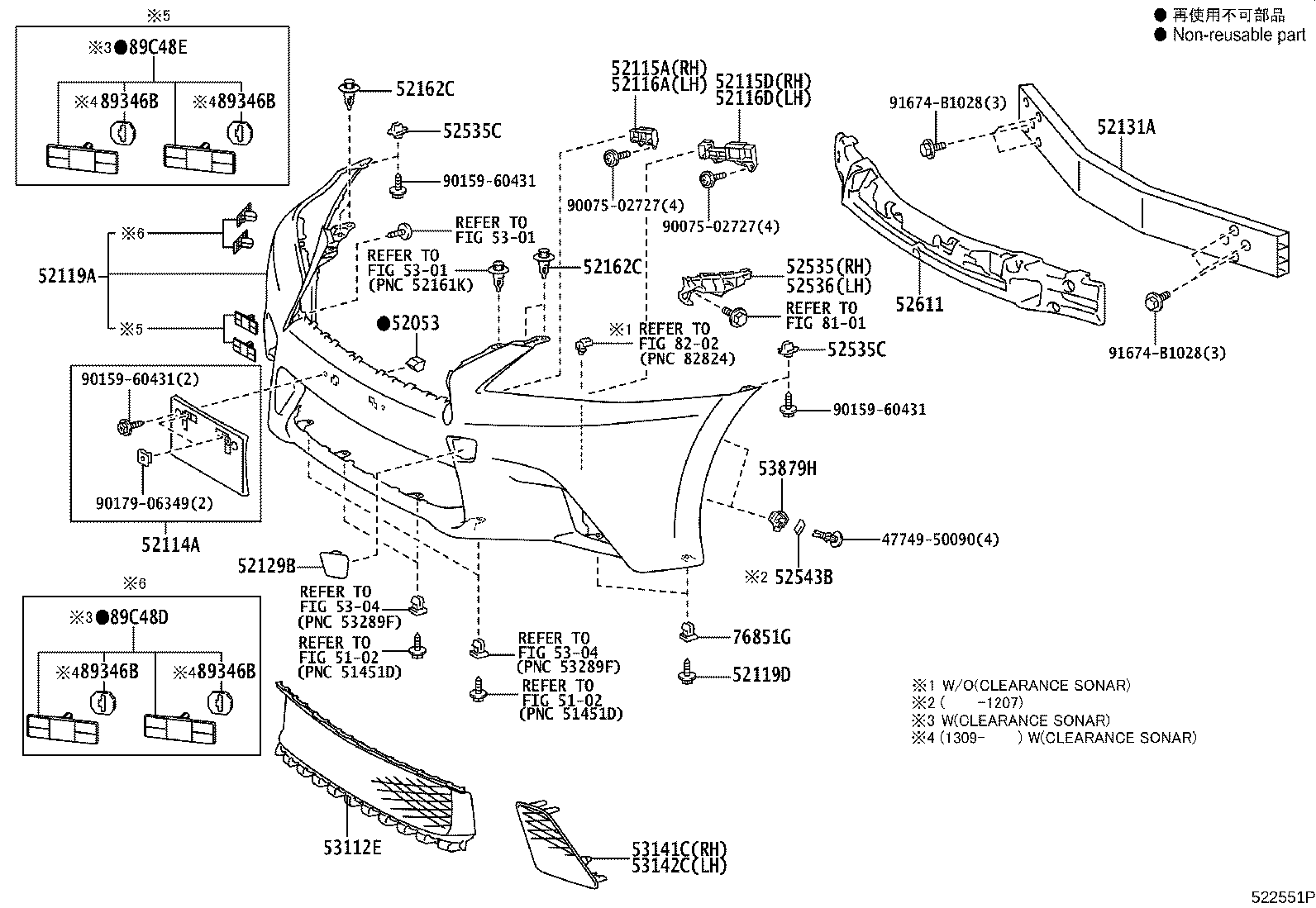

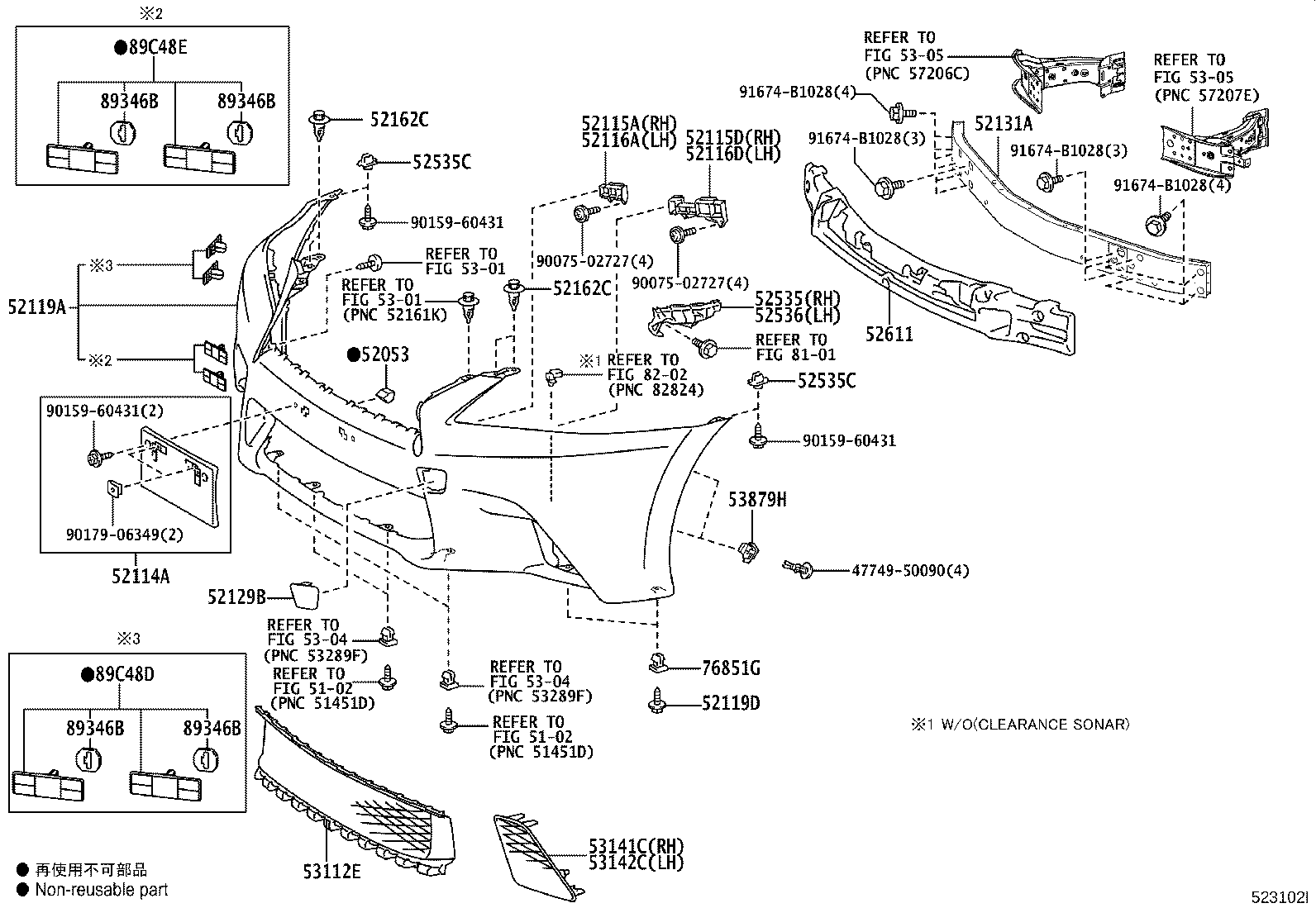

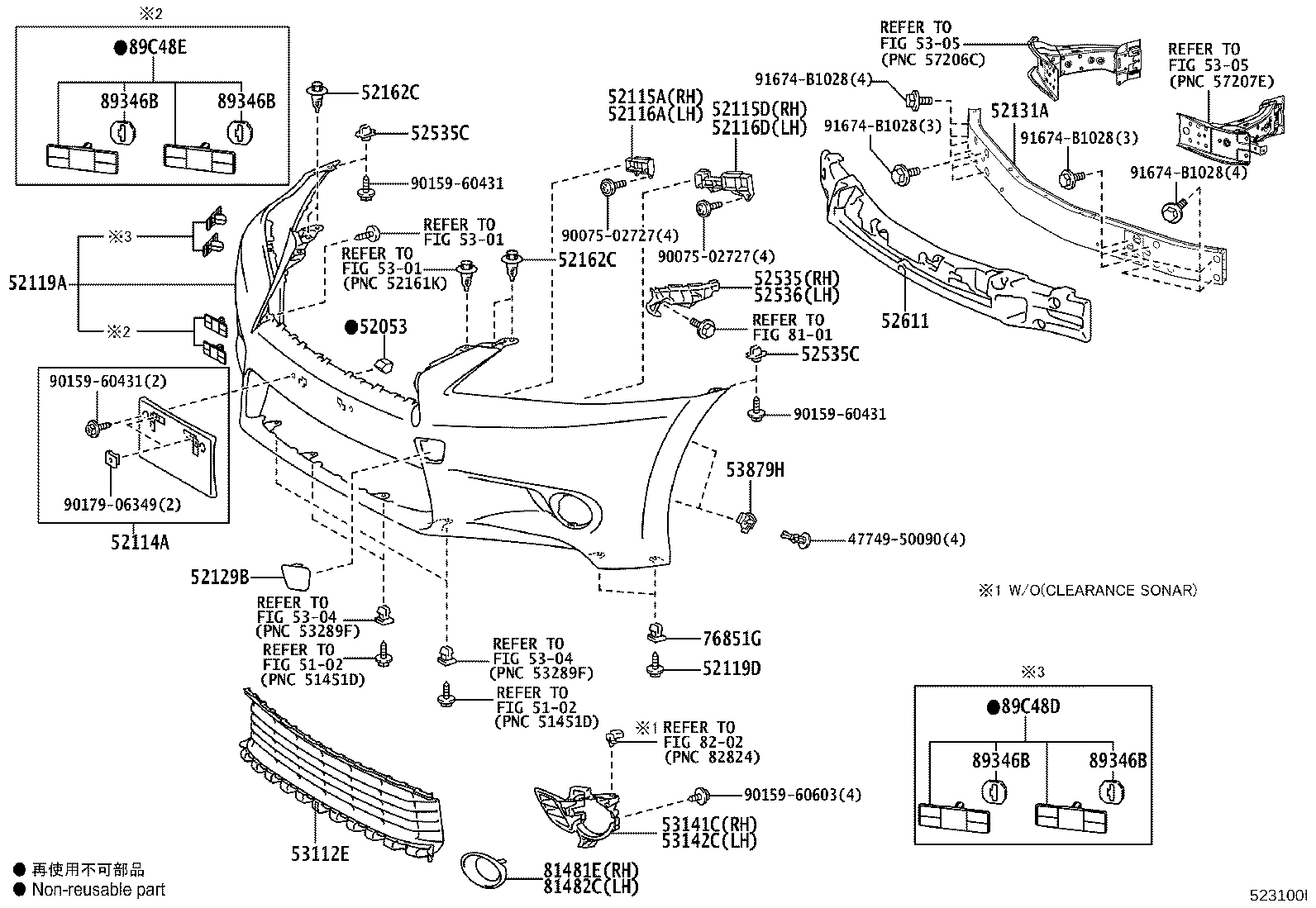

Front Bumper & Bumper Stay
35 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 52053 | Pad Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52115D | Support, Front Bumper Side, NO.2 RH |
| 52116A | Support, Front Bumper Side, LH |
| 52116D | Support, Front Bumper Side, NO.2 LH |
| 52117G | Insert, Front Bumper Extension, NO.2 RH |
| 52118A | Insert, Front Bumper Extension, NO.2 LH |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52162C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535C | Retainer, Front Bumper Side |
| 52536 | Retainer, Front Bumper Side, LH |
| 52543B | Seal, Front Bumper |
| 52611 | Absorber, Front Bumper Energy |
| 52721 | Moulding, Front Bumper Extension, RH |
| 52722 | Moulding, Front Bumper Extension, LH |
| 52811A | Duct, Cool Air Intake, NO.1 |
| 52812B | Duct, Cool Air Intake, NO.2 |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53141C | Garnish, Radiator Grille |
| 53142C | Garnish, Radiator Grille, NO.2 |
| 53879H | Retainer, Front Fender Liner |
| 75895K | Tape, Moulding, NO.1 |
| 76851G | Grommet, Screw, NO.1 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89346B | Adjuster, Ultrasonic Sensor |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
