Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

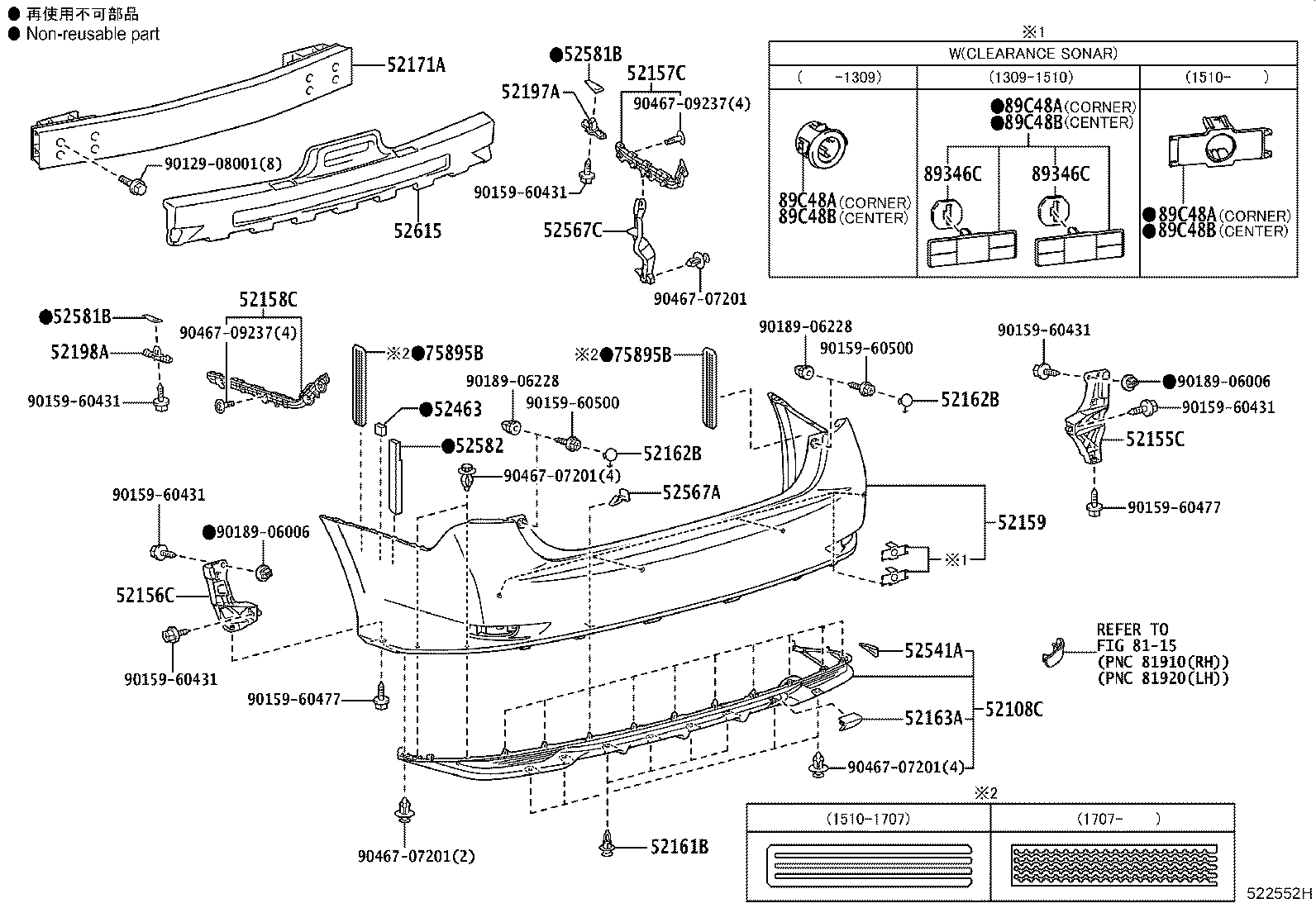

Rear Bumper & Bumper Stay
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52108C | Extension Sub-assy, Rear Bumper, Center |
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52155C | Support, Rear Bumper Side, NO.1 RH |
| 52156C | Support, Rear Bumper Side, NO.1 LH |
| 52157C | Support, Rear Bumper Side, NO.2 RH |
| 52158C | Support, Rear Bumper Side, NO.2 LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162B | Plate, Rear Bumper, NO.1 |
| 52163A | Plate, Rear Bumper, RH |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52198A | Bracket, Rear Bumper Seal, LH |
| 52463 | Pad, Rear Bumper, LH |
| 52541A | Protector, Rear Bumper |
| 52567A | Retainer, Rear Bumper, Lower Side |
| 52567C | Retainer, Rear Bumper Lower Side, RH |
| 52581B | Protector, Rear Bumper |
| 52582 | Protector, Rear Bumper, LH |
| 52615 | Absorber, Rear Bumper Energy |
| 75895B | Tape, Moulding, NO.2 |
| 89346C | Adjuster, Ultrasonic Sensor |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
