Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

16 part groups · 3 illustrations

Illustrations

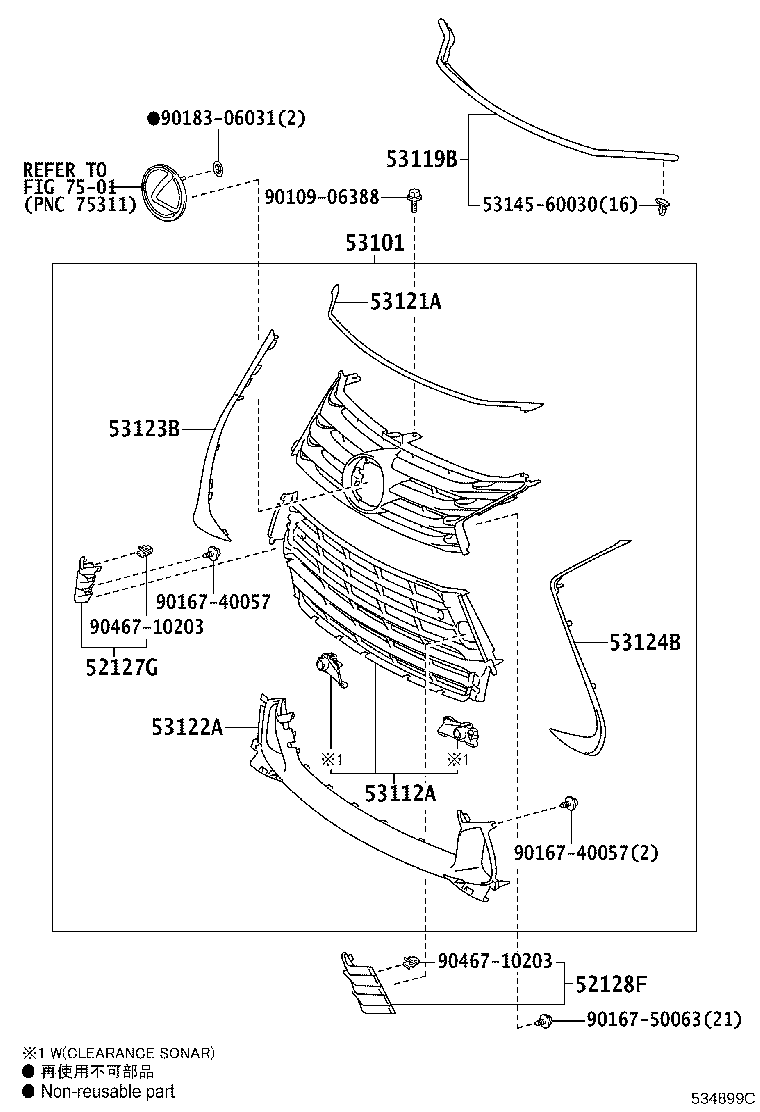

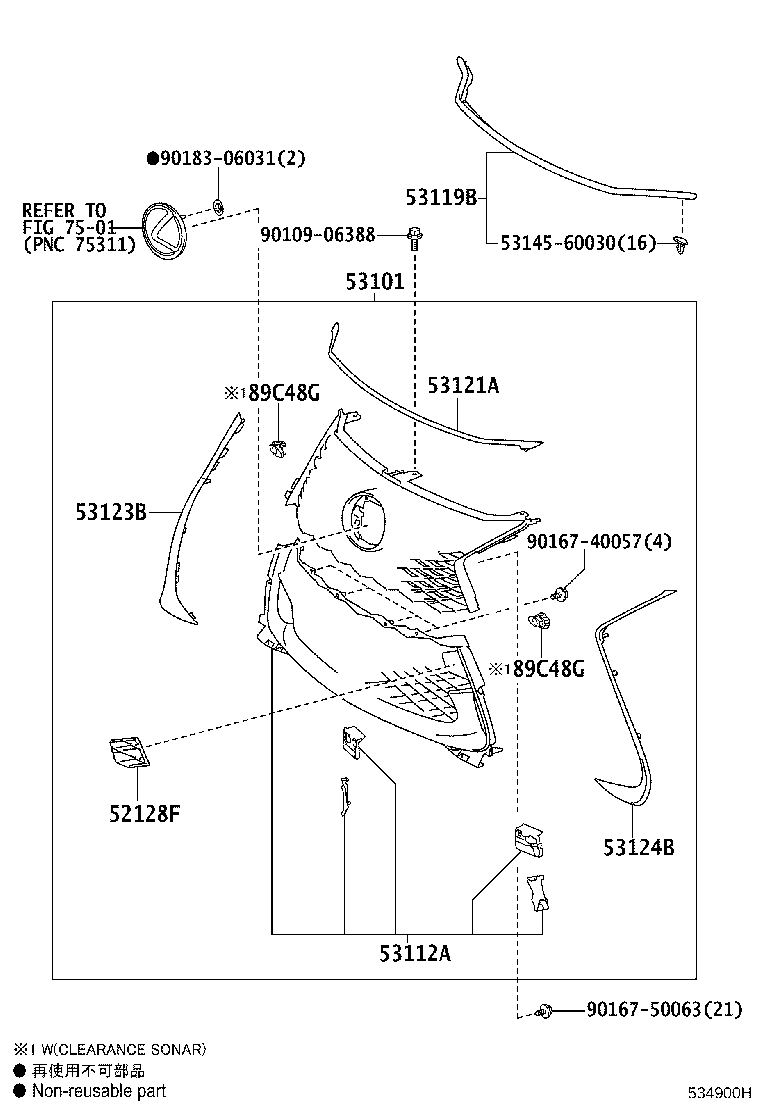

Figure 536230D 536230D 2011-12 → 2015-10 Figure 534900H 534900H 2015-10 → — Figure 534899C 534899C 2015-10 → —

Part groups

PNCDescription
52127G Cover, Front Bumper Hole, RH
52128F Cover, Front Bumper Hole, LH
52161K Piece, Front Bumper
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53112A Grille, Radiator, Lower
53115B Bracket, Radiator Grille
53119B Protector, Radiator Grille
53121A Moulding, Radiator Grille
53122A Moulding, Radiator Grille, Lower
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53145G Clip, Radiator Grille
53149C Protector, Radiator Grille, NO.2
89C48G Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
