Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

7 part groups · 2 illustrations

Illustrations

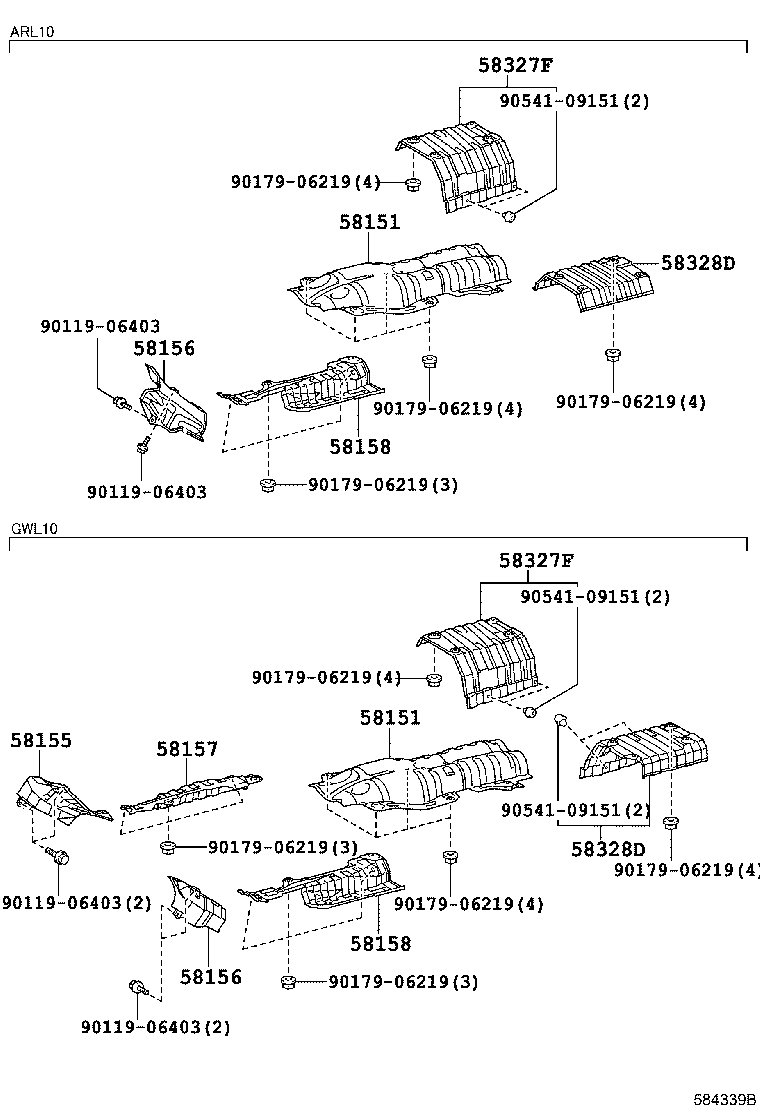

Figure 584341B 584341B 2011-12 → — Figure 584339B 584339B 2012-03 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58155 Insulator, Front Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58157 Insulator, Front Floor Heat, NO.5
58158 Insulator, Front Floor Heat, NO.6
58327F Insulator, Main Muffler Heat, RH
58328D Insulator, Main Muffler Heat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
