Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 3 illustrations

Illustrations

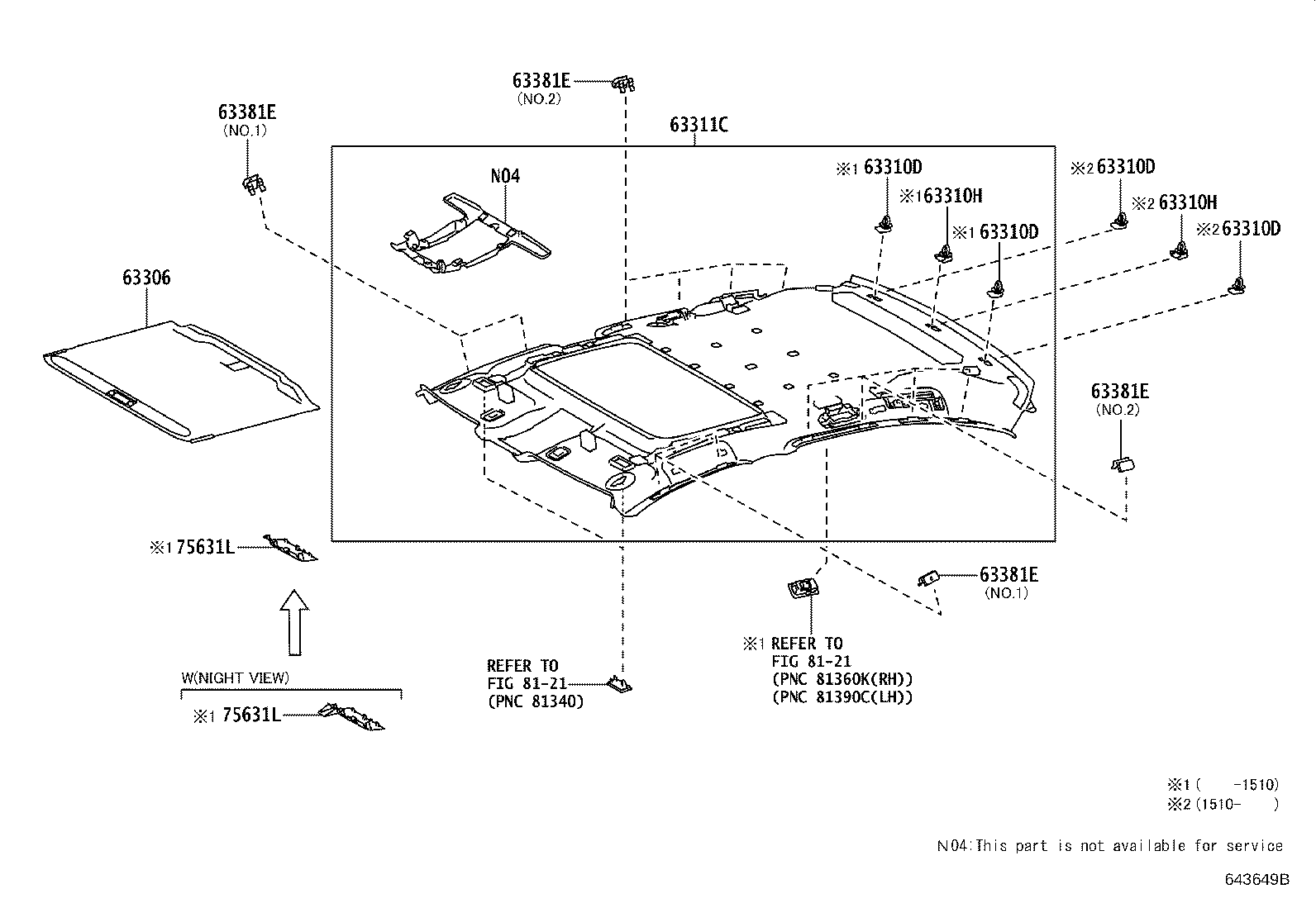

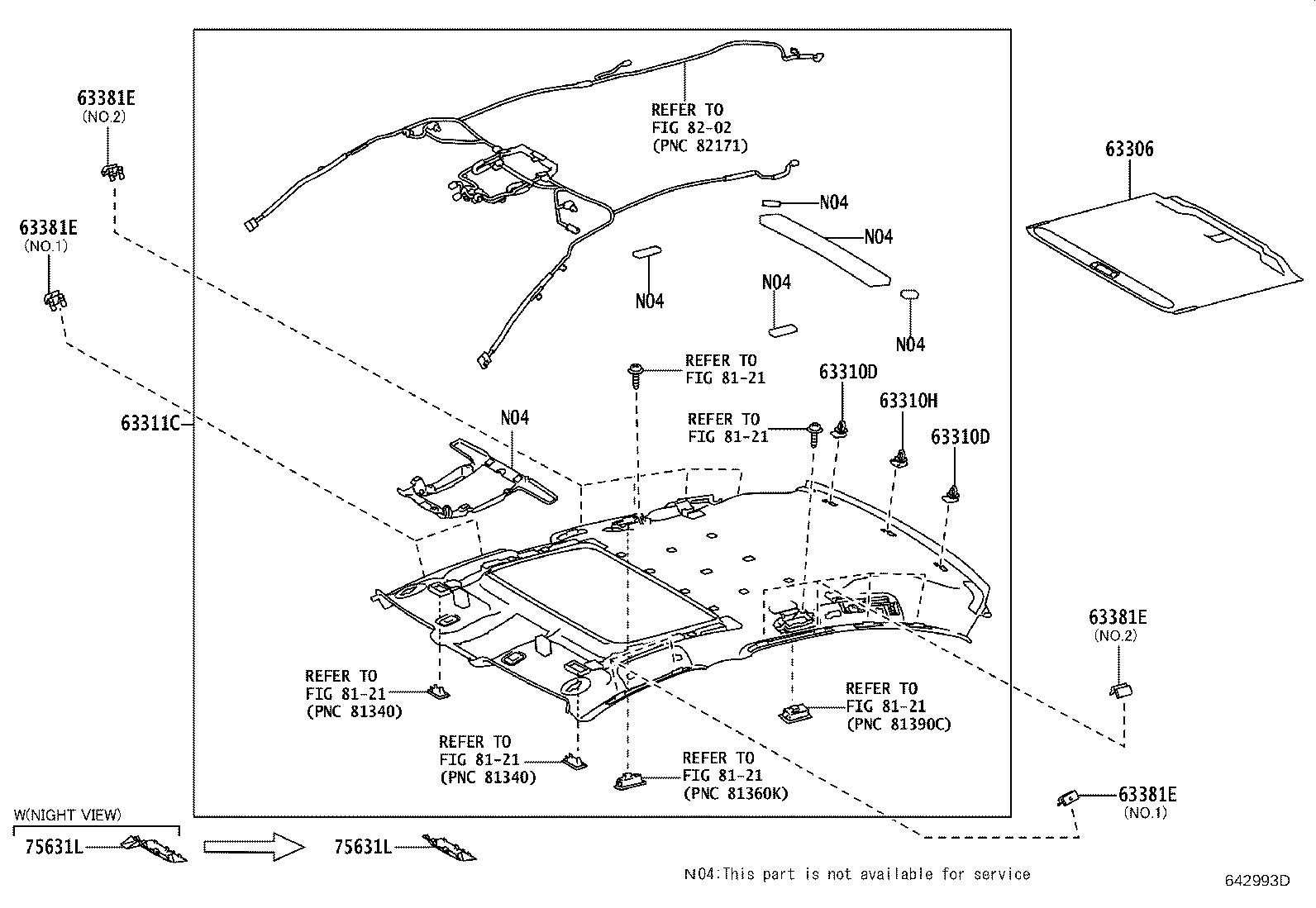

Figure 642992E 642992E 2011-12 → — Figure 642993D 642993D 2011-12 → 2014-09 Figure 643649B 643649B 2014-09 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63327E Fastener, Roof Headlining, NO.1
63381E Retainer, Roof Headlining Trim, Front
75631L Garnish, Roof Top, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
