Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

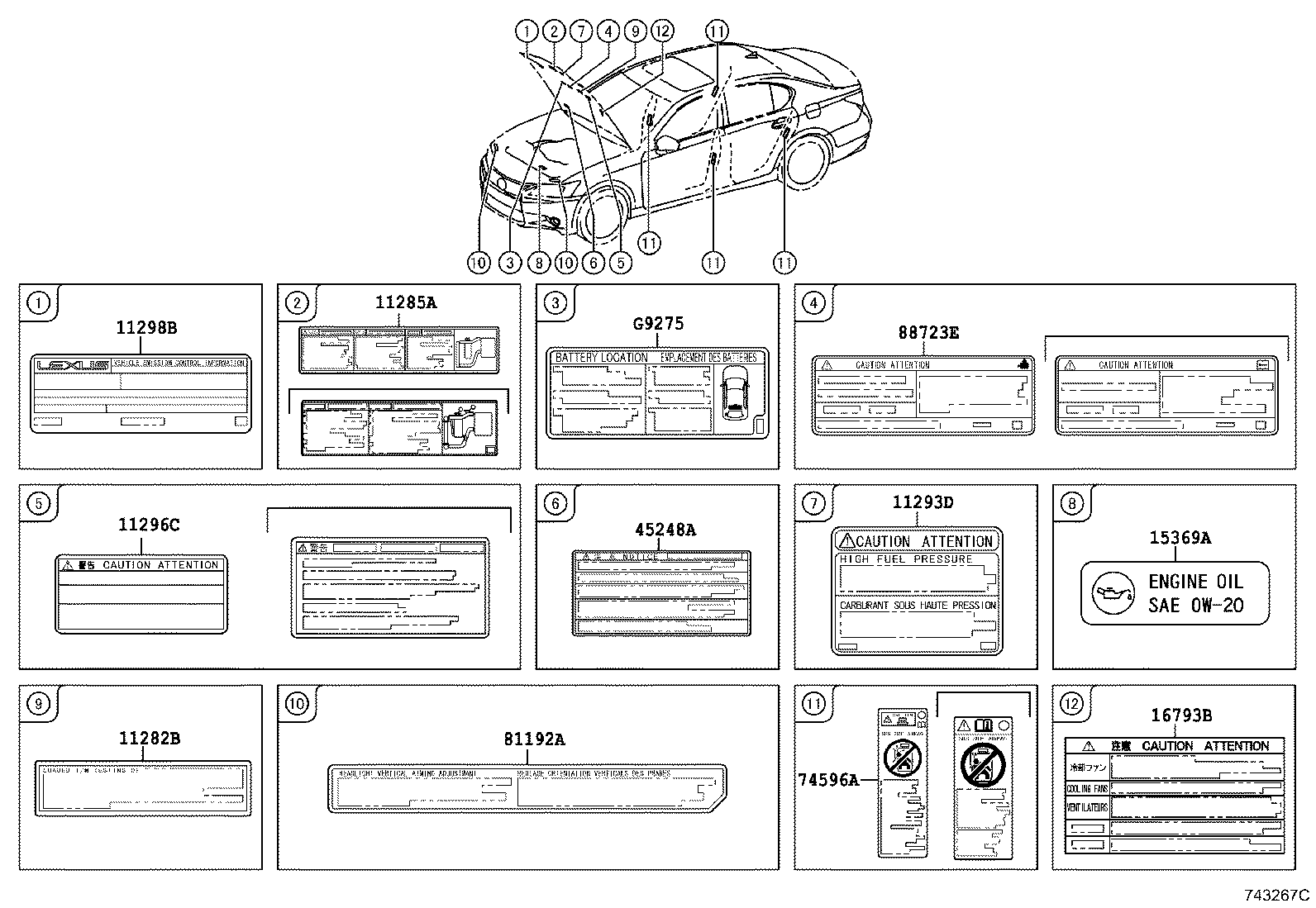

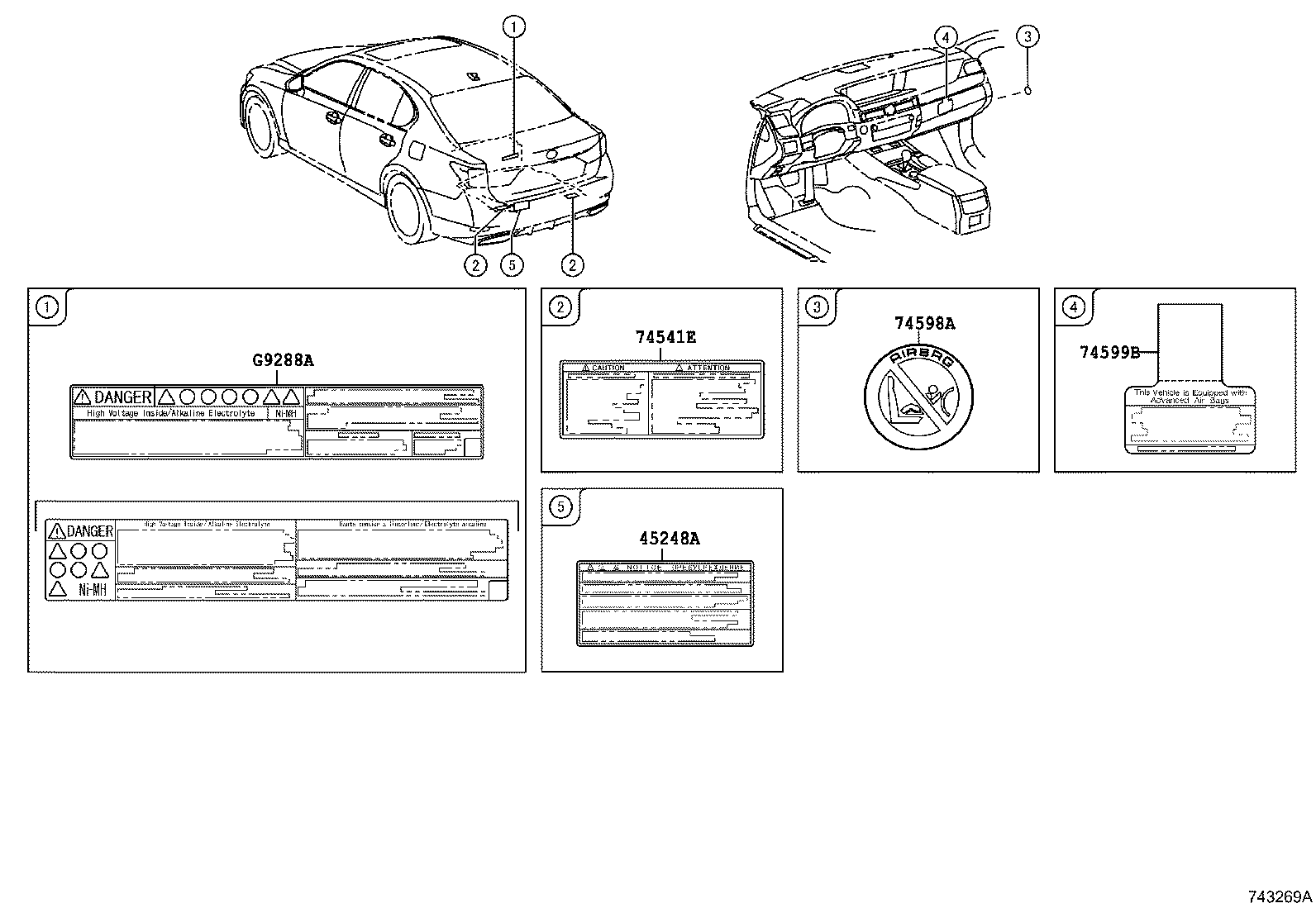

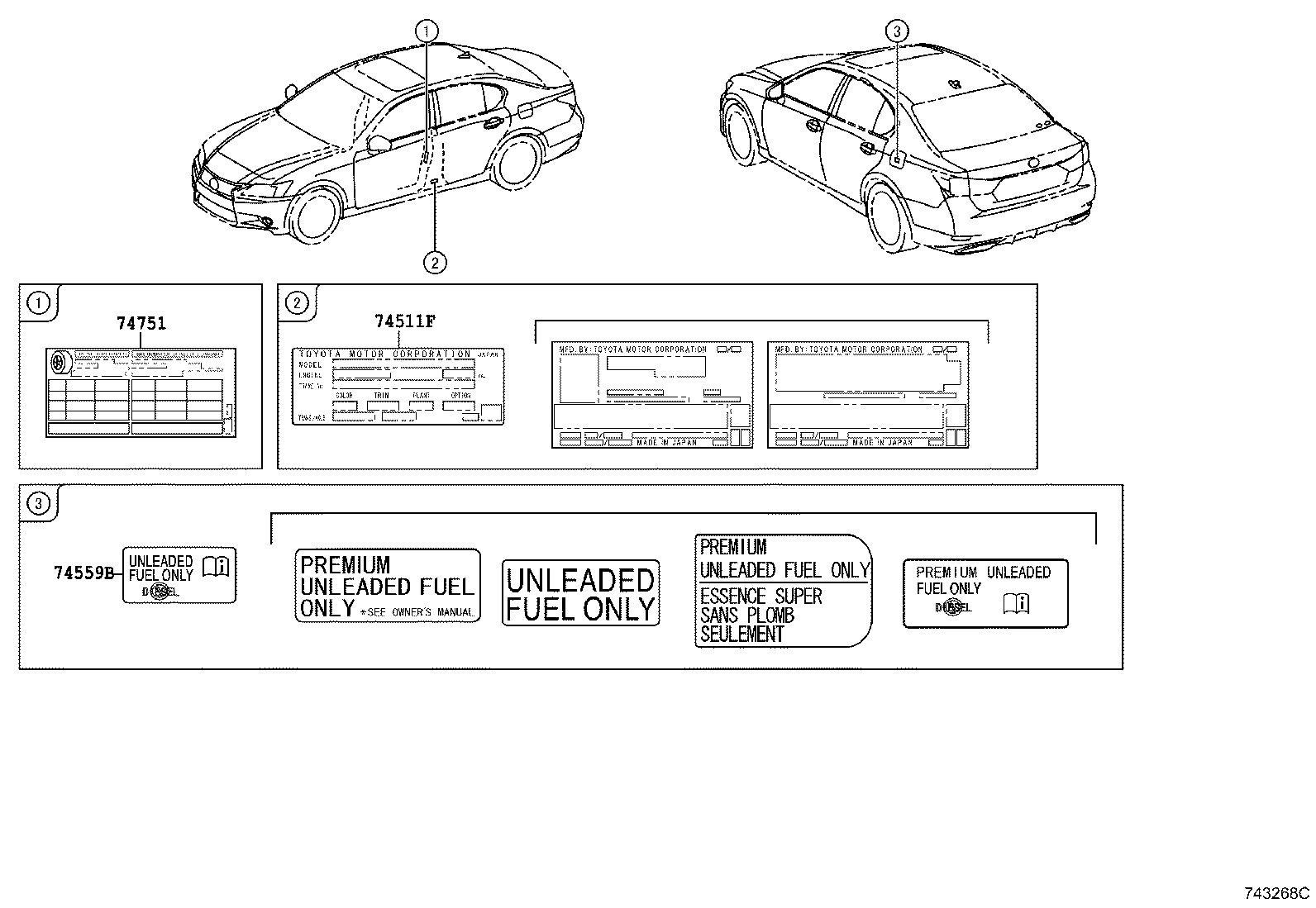

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 16793B | Label, Cooling Fan Information |
| 16793E | Label, Cooling Fan Caution |
| 45248A | Label, Steering Actuator Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 81192A | Seal, Headlamp |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
| G9288A | Label, Battery Carging Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
