Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03
Accelerator Link

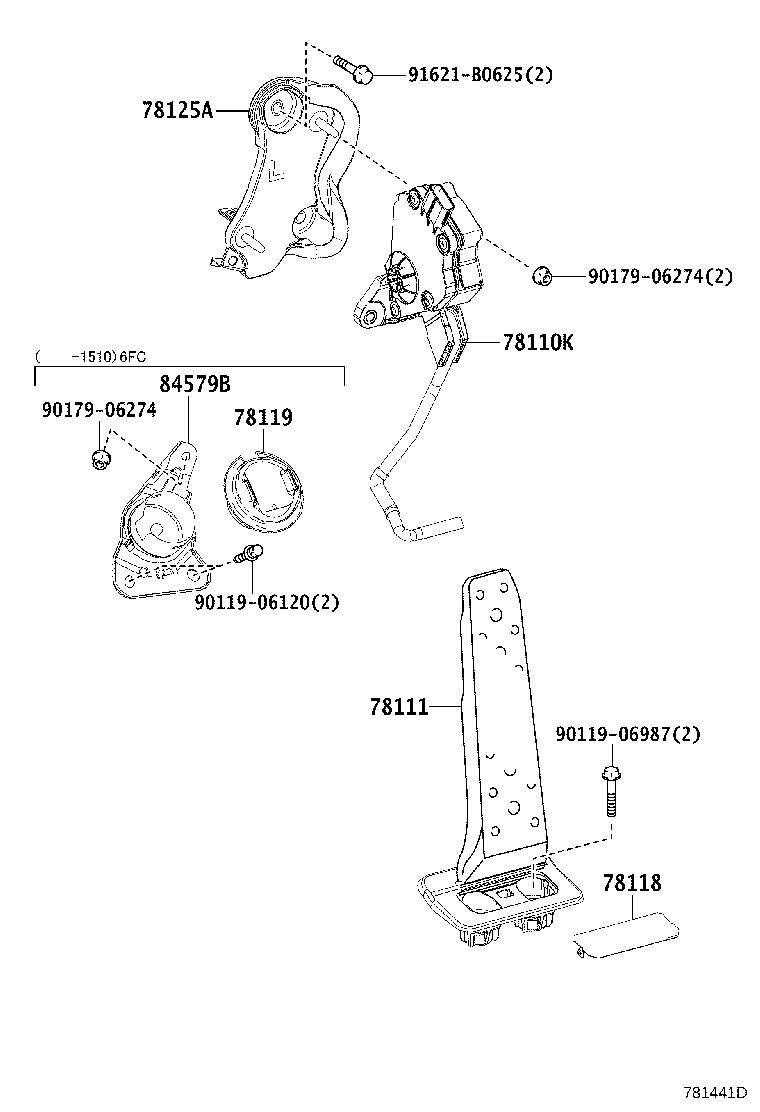

9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 78107 | Bracket Sub-assy, Accelerator Torque Rod |
| 78110K | Rod Assy, Accelerator Pedal(W/SENSOR) |
| 78111 | Pedal, Accelerator |
| 78111E | Pad, Accelerator Pedal |
| 78118 | Pad, Accelerator Pedal |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78125A | Bracket, Accelerator Pedal Rod, NO.2 |
| 78126 | Bracket, Accelerator Pedal Rod |
| 84579B | Bracket, Kick Down Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
