Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03

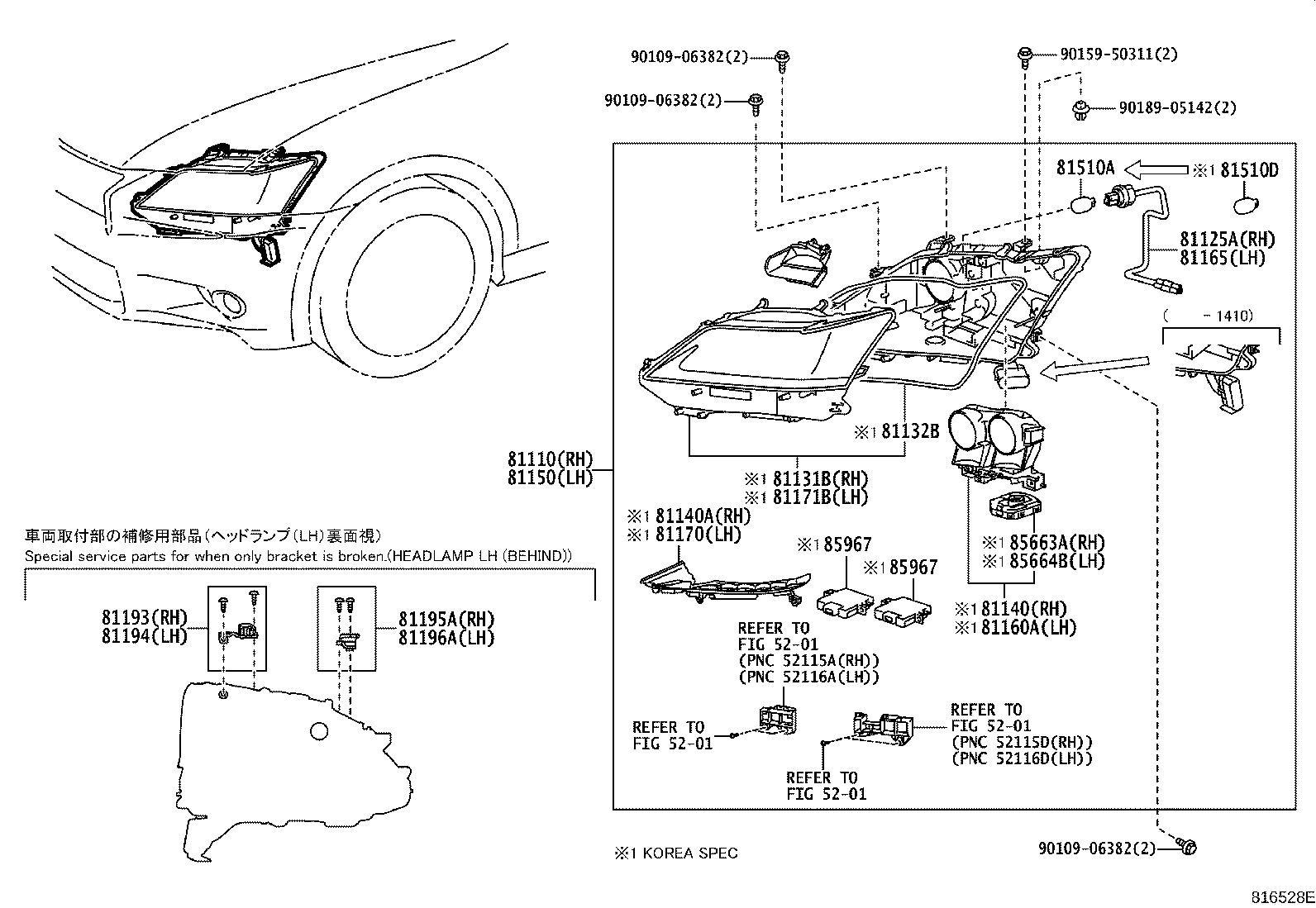

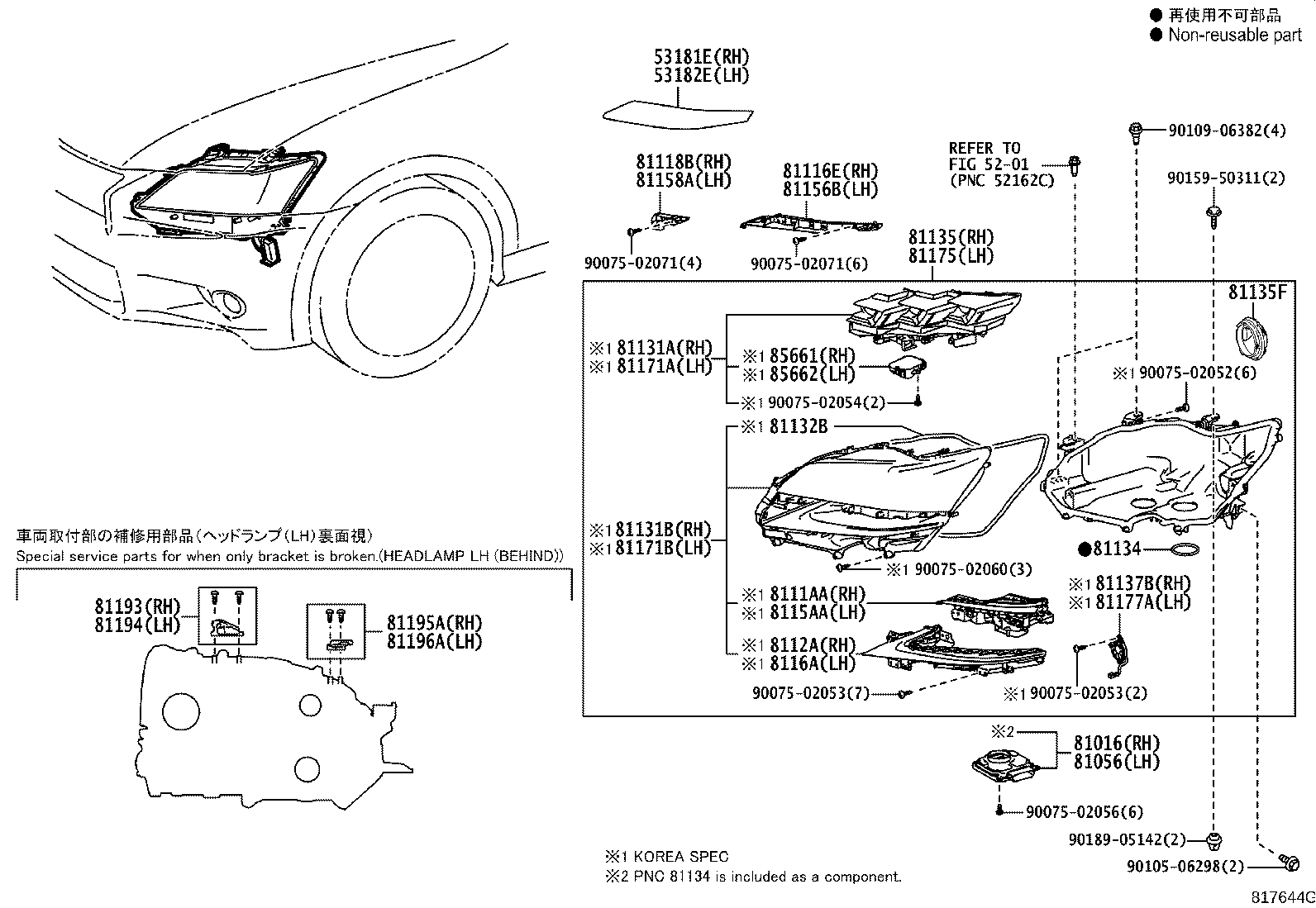

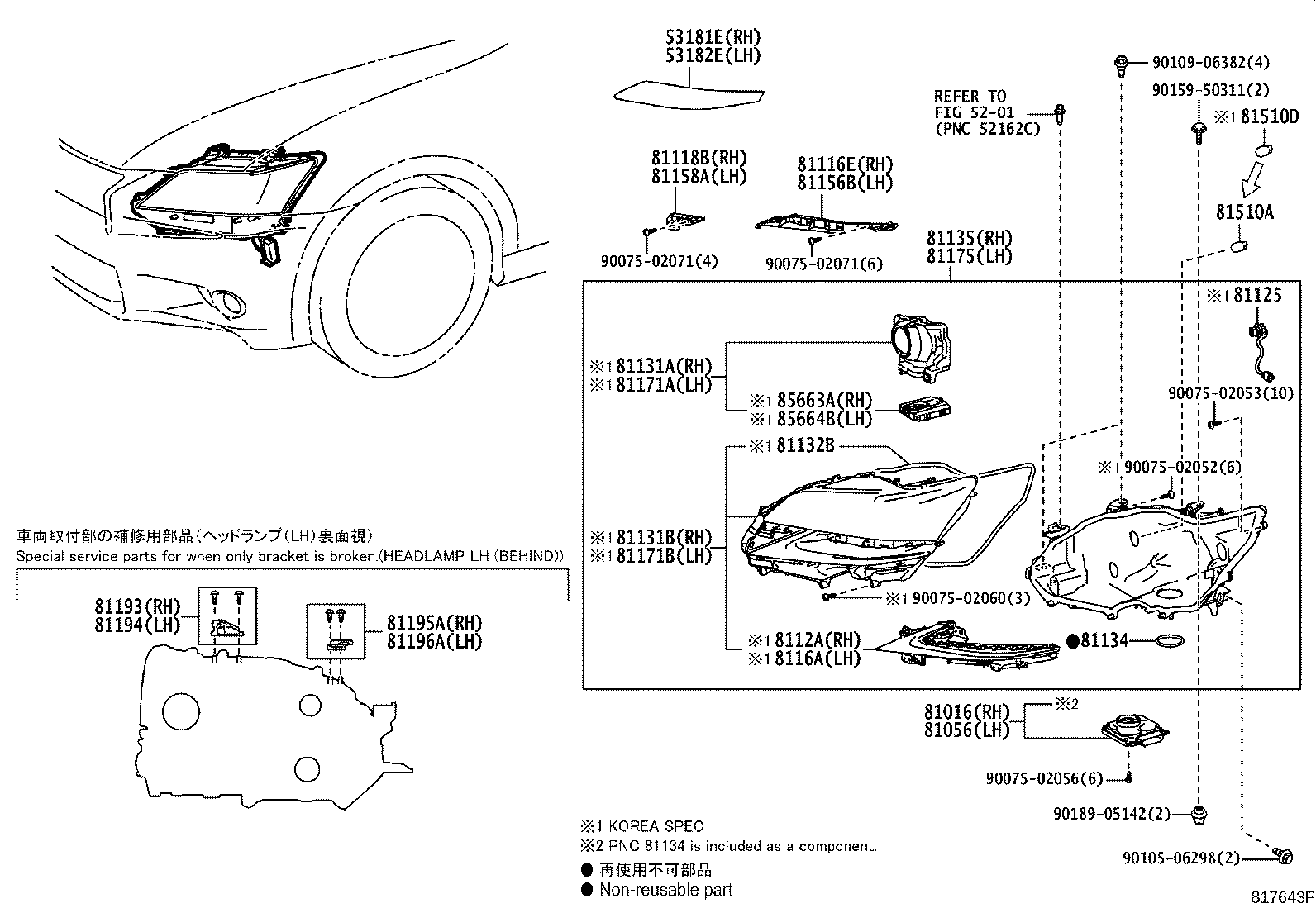

Headlamp
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53181E | Cover, Headlamp, RH |
| 53182E | Cover, Headlamp, LH |
| 81016 | Computer Sub-assy, Headlamp, RH NO.1 |
| 81056 | Computer Sub-assy, Headlamp, LH NO.1 |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110L | Bulb, Discharge Headlamp |
| 81116E | Bracket, Headlamp, RH NO.2 |
| 81118B | Bracket, Headlamp, RH NO.1 |
| 8111AA | Unit, Headlamp Turn Signal Led, RH |
| 81125 | Cord, Headlamp |
| 81125A | Cord, Headlamp, RH |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135F | Cover, Headlamp Back |
| 81137B | Fan, Headlamp, RH |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81140A | Unit Assy, Headlamp Daytime Running Light, RH |
| 81150 | Headlamp Assy, LH |
| 81156B | Bracket, Headlamp, LH NO.2 |
| 81158A | Bracket, Headlamp, LH NO.1 |
| 8115AA | Unit, Headlamp Turn Signal Led, LH |
| 81160A | Unit Assy, Headlamp Led, LH |
| 81165 | Cord, Headlamp, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 81170 | Unit Assy, Headlamp Daytime Running Light, LH |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81177A | Fan, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510A | Bulb, Front Turn Signal & Parking Lamp |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85663A | Motor, Headlamp Swivel, RH |
| 85664B | Motor, Headlamp Swivel, LH |
| 85967 | Computer, Light Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
