Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

136 part groups · 20 illustrations

Illustrations

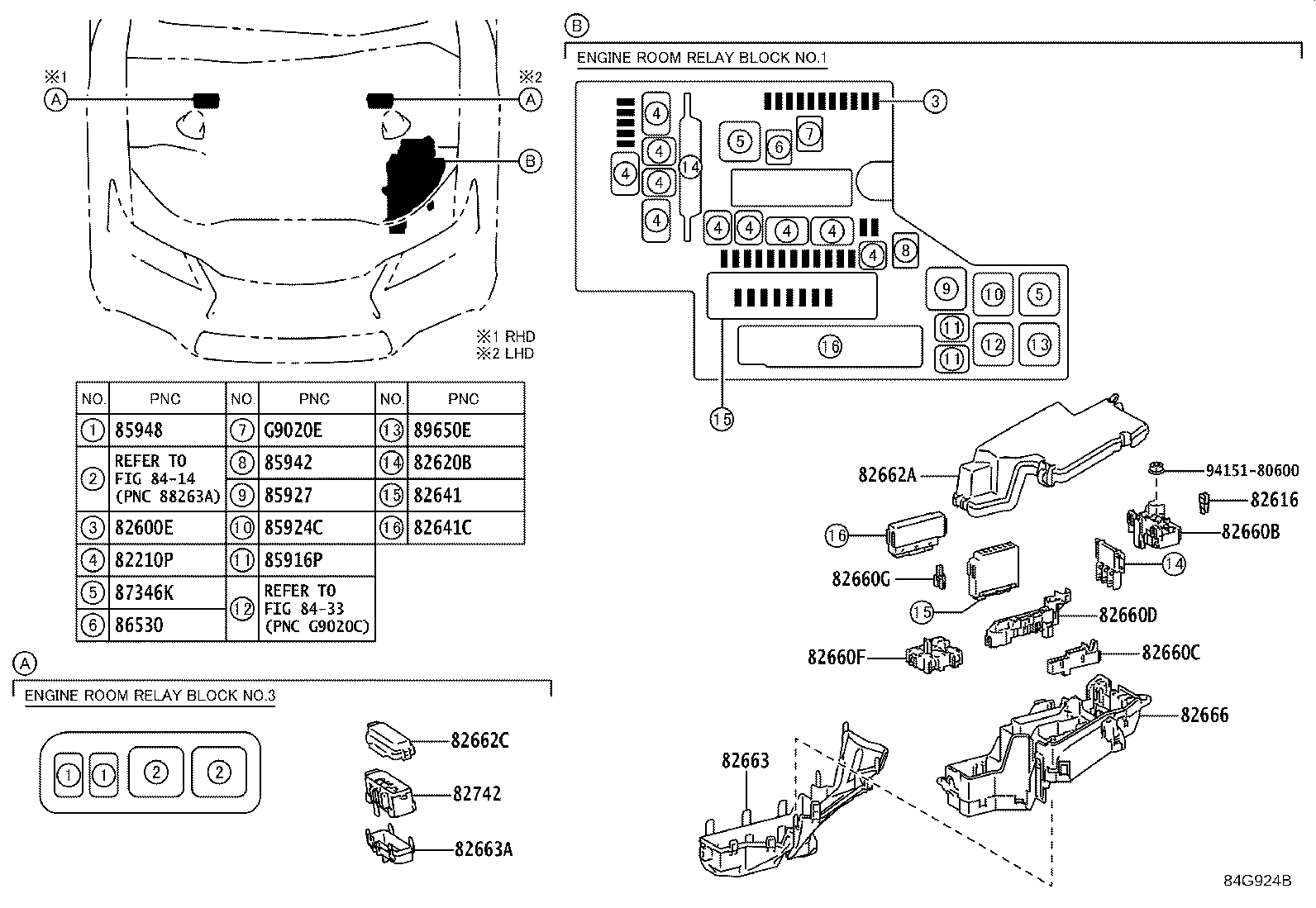

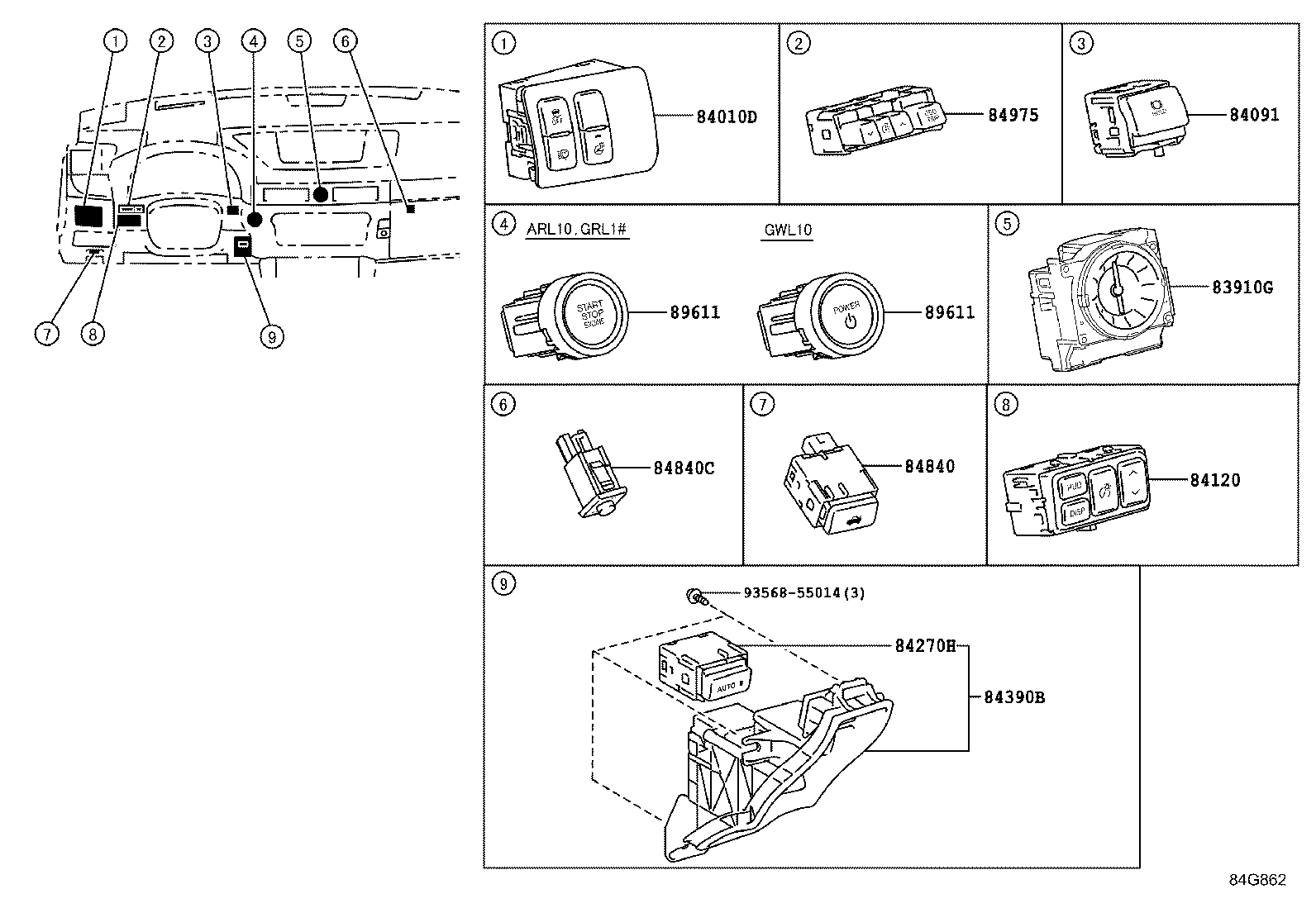

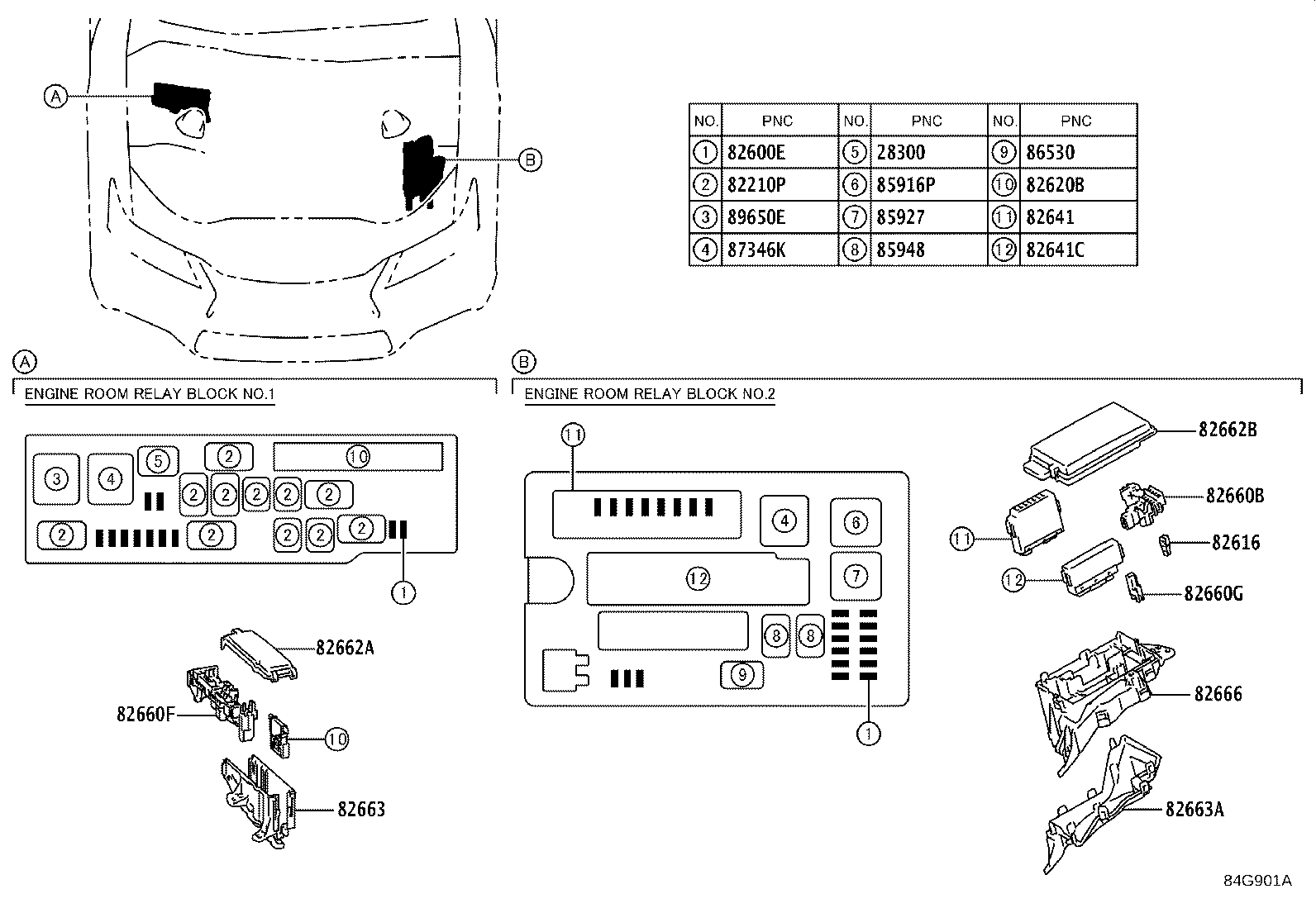

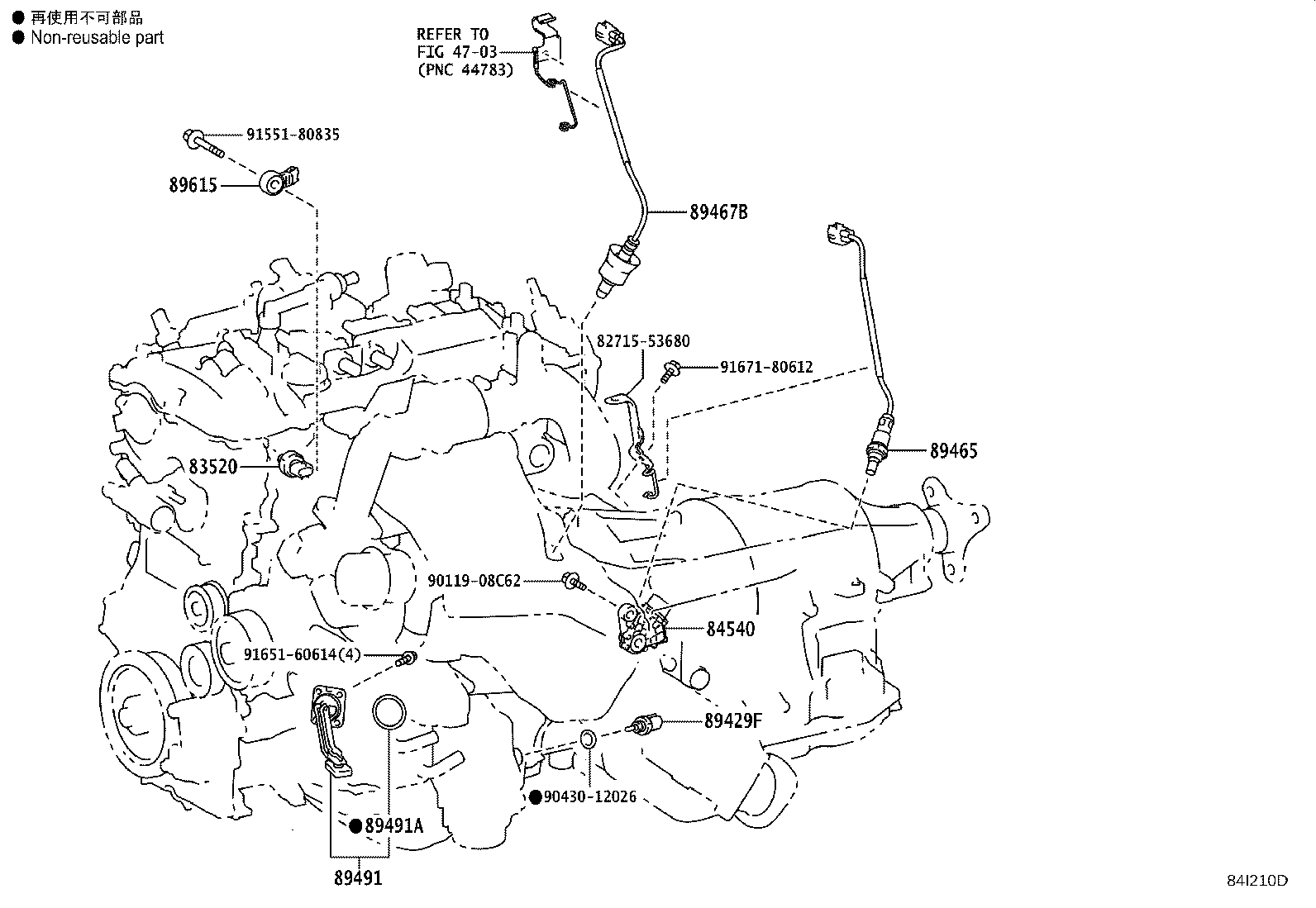

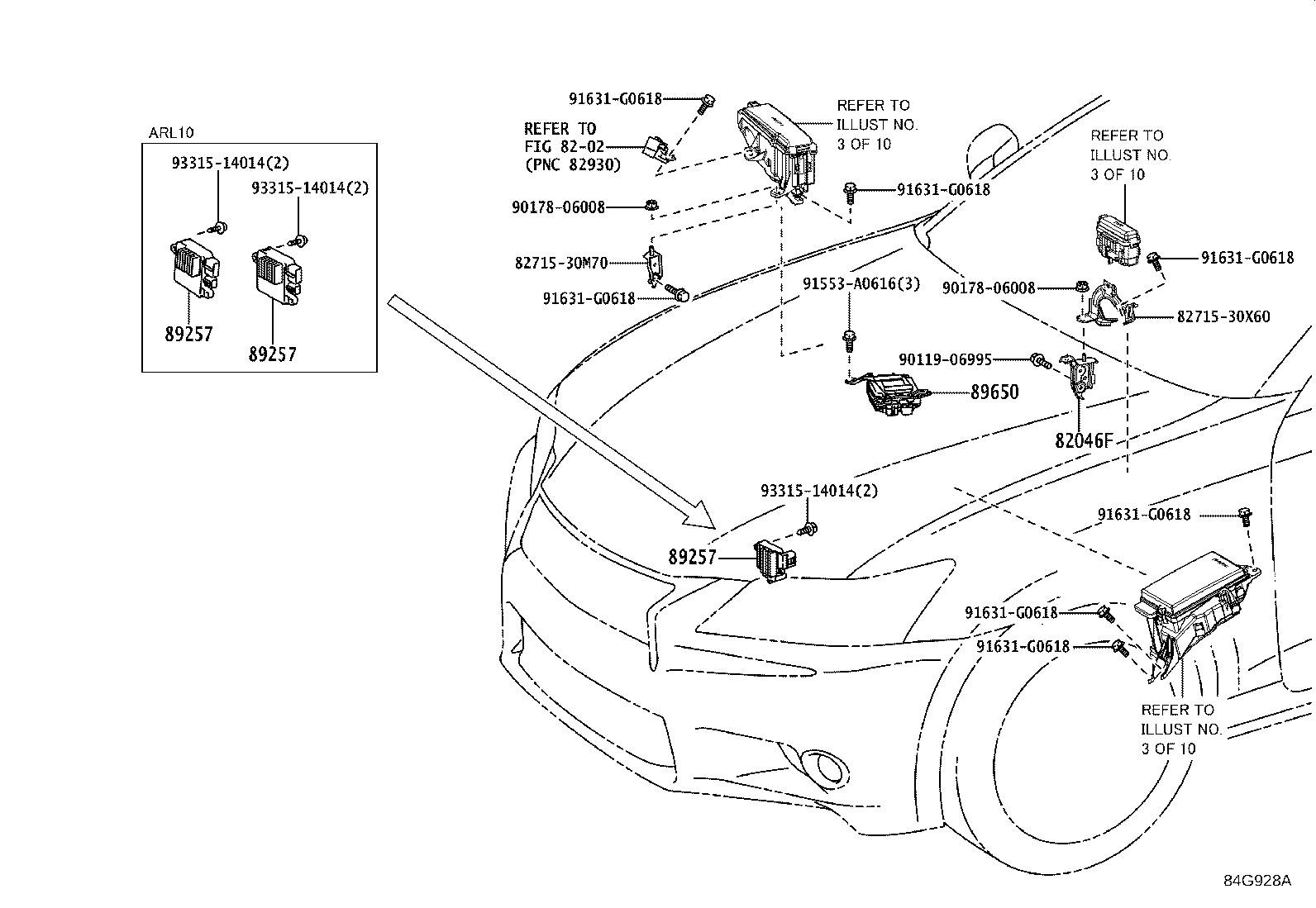

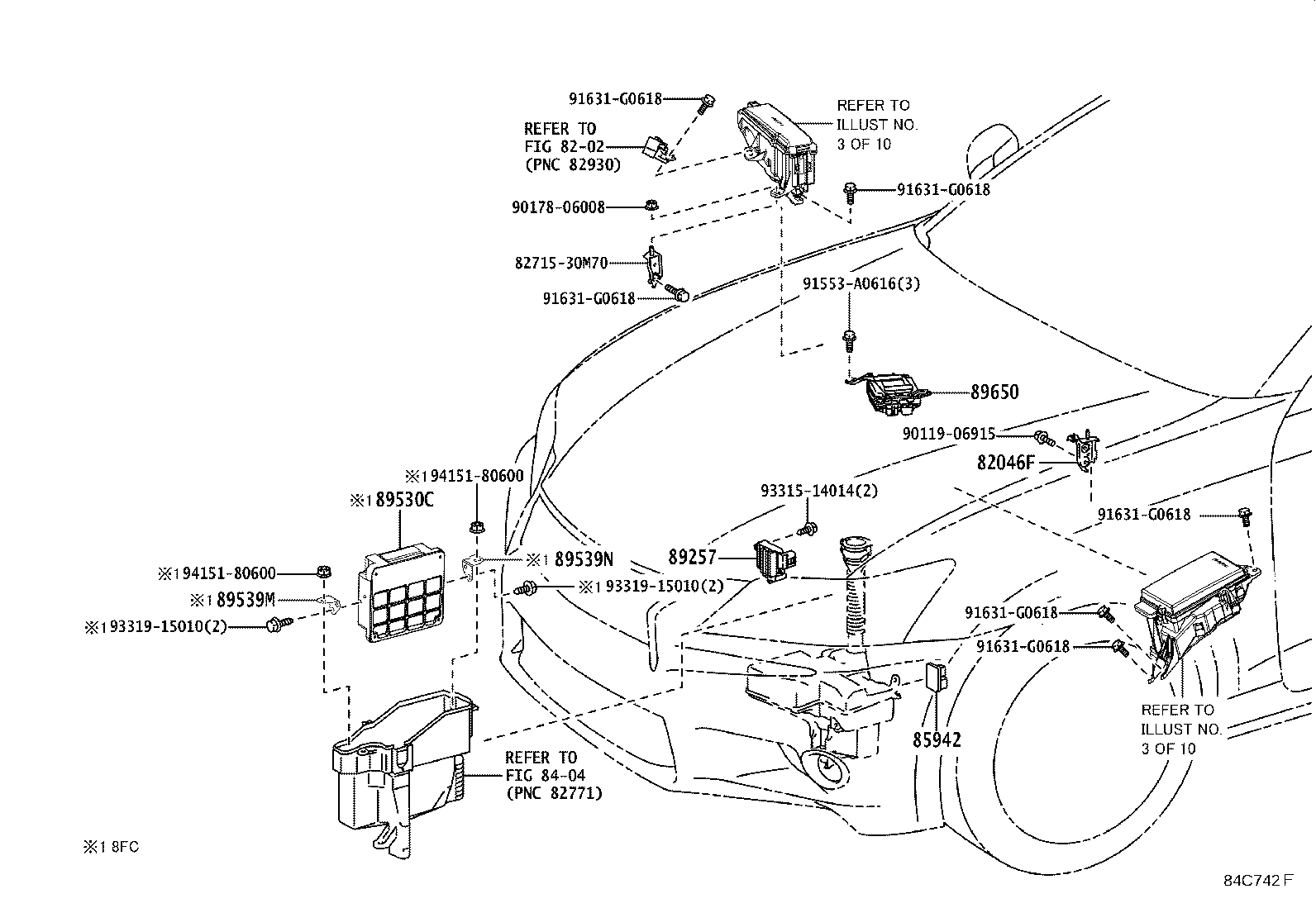

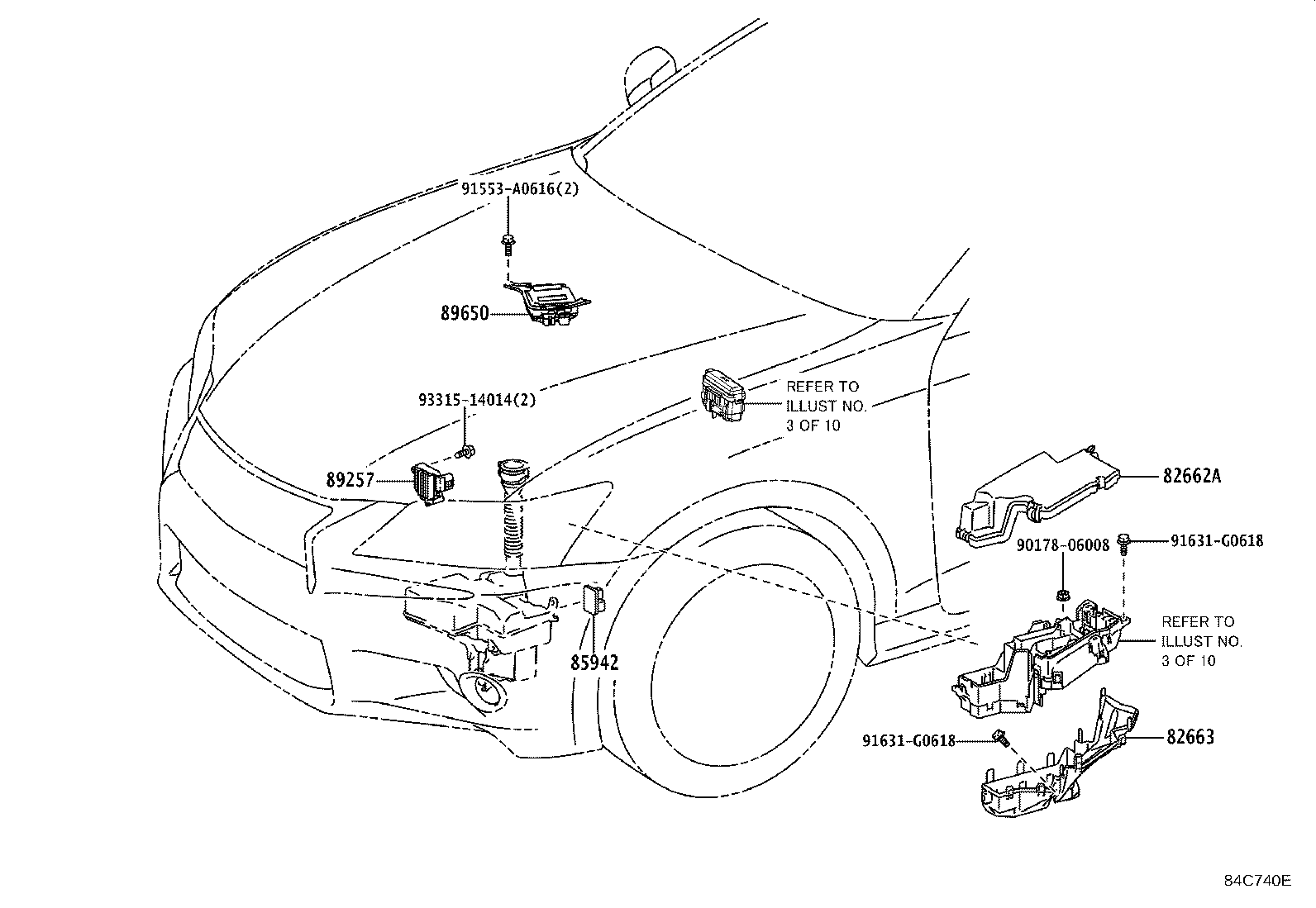

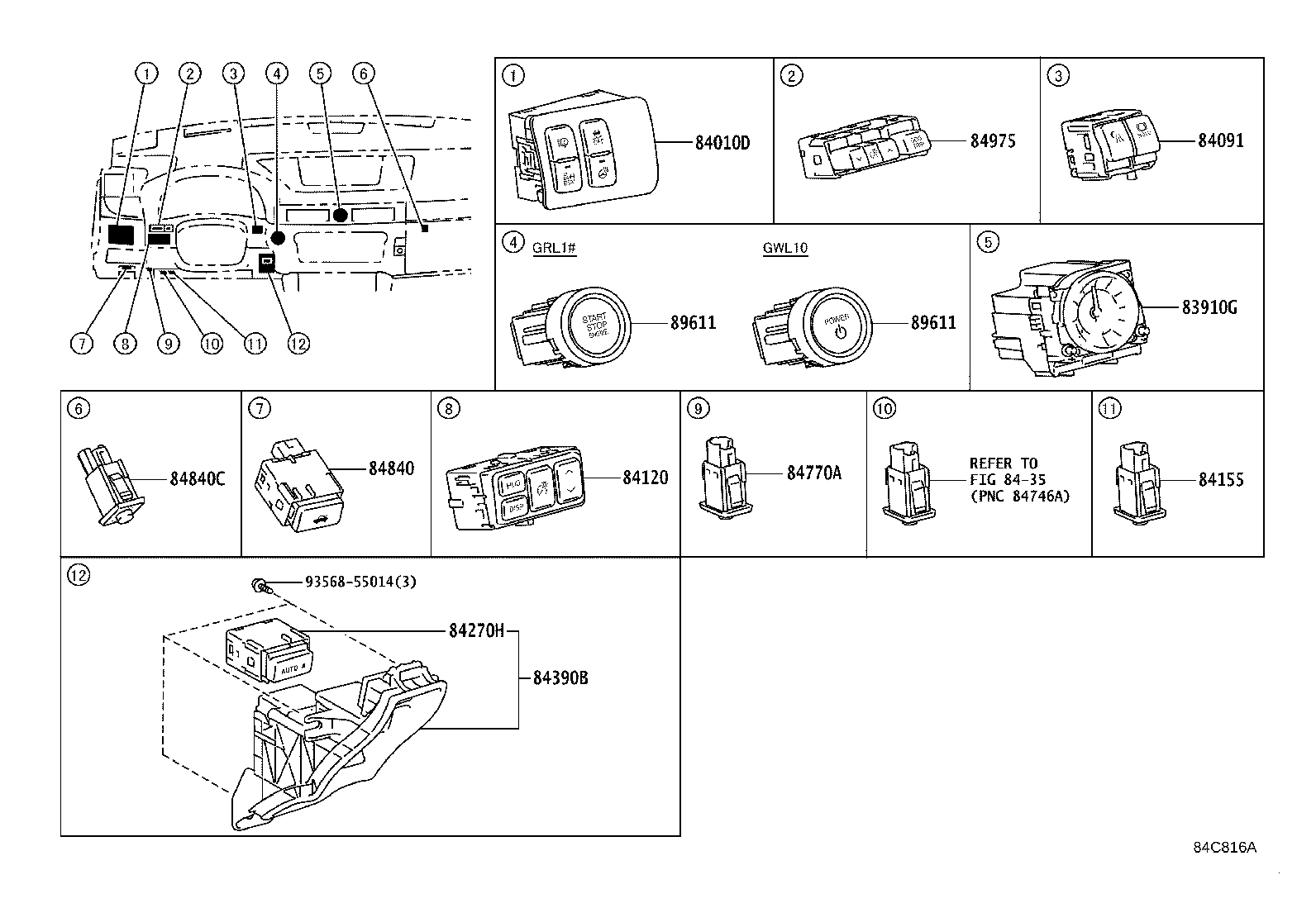

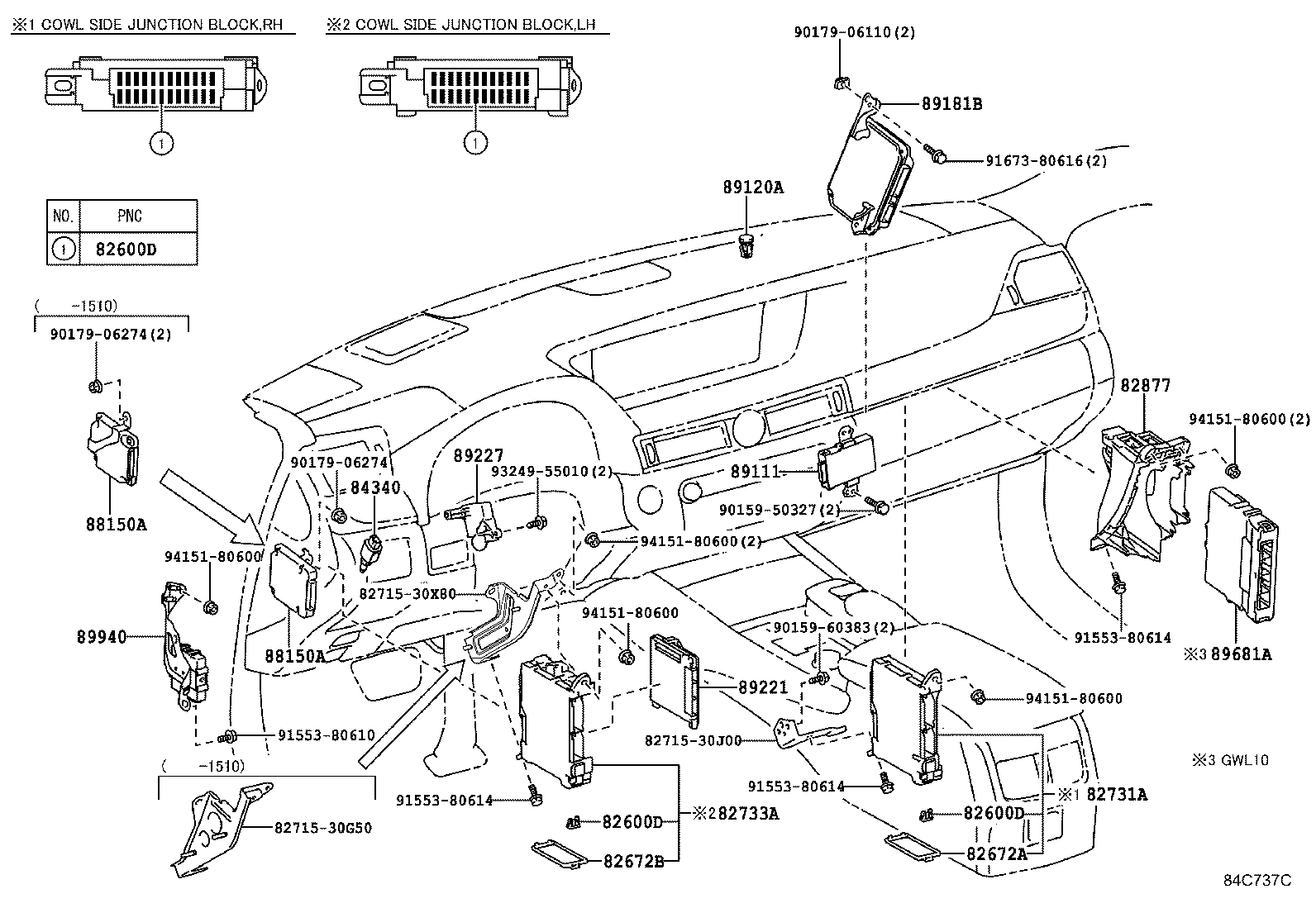

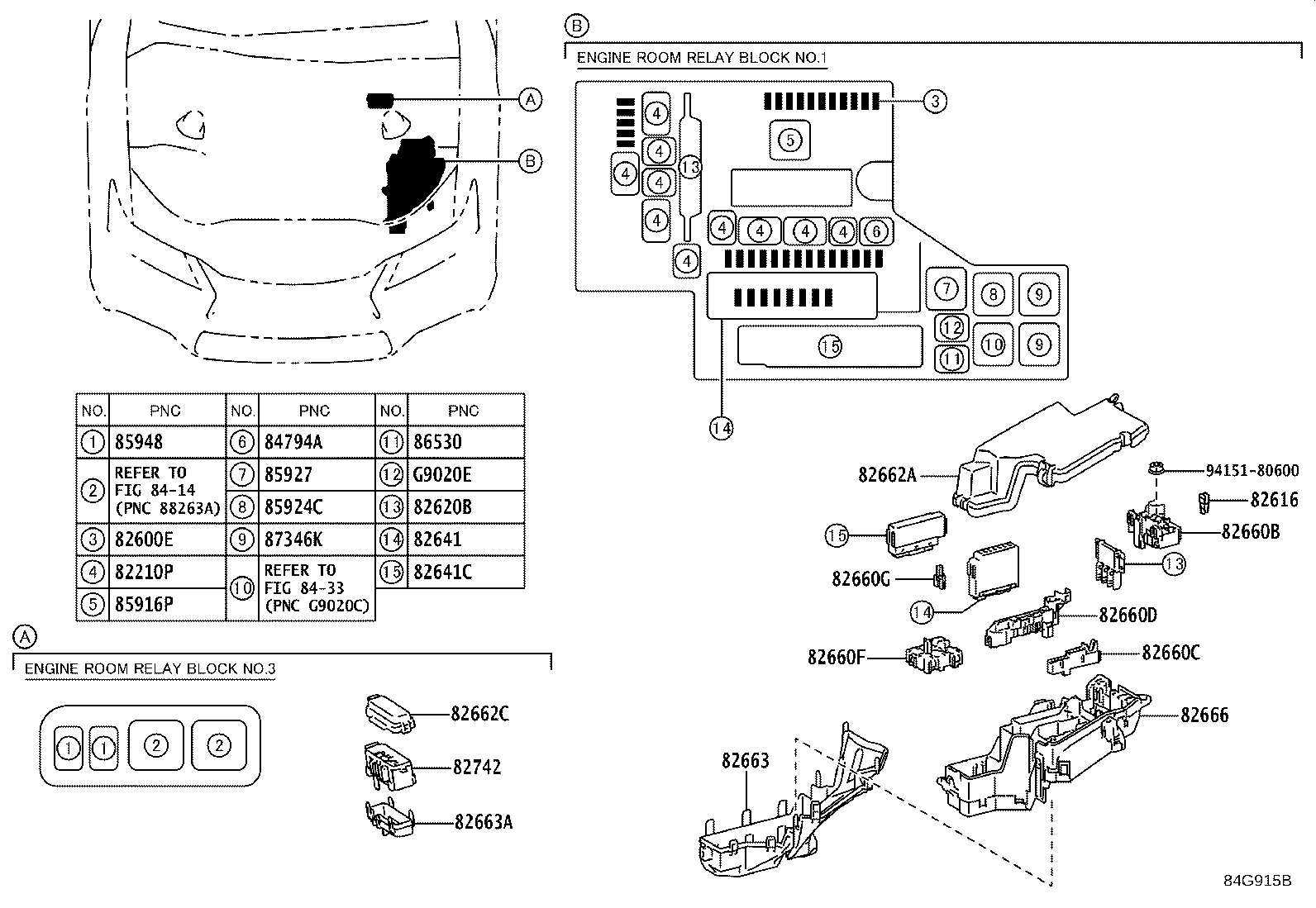

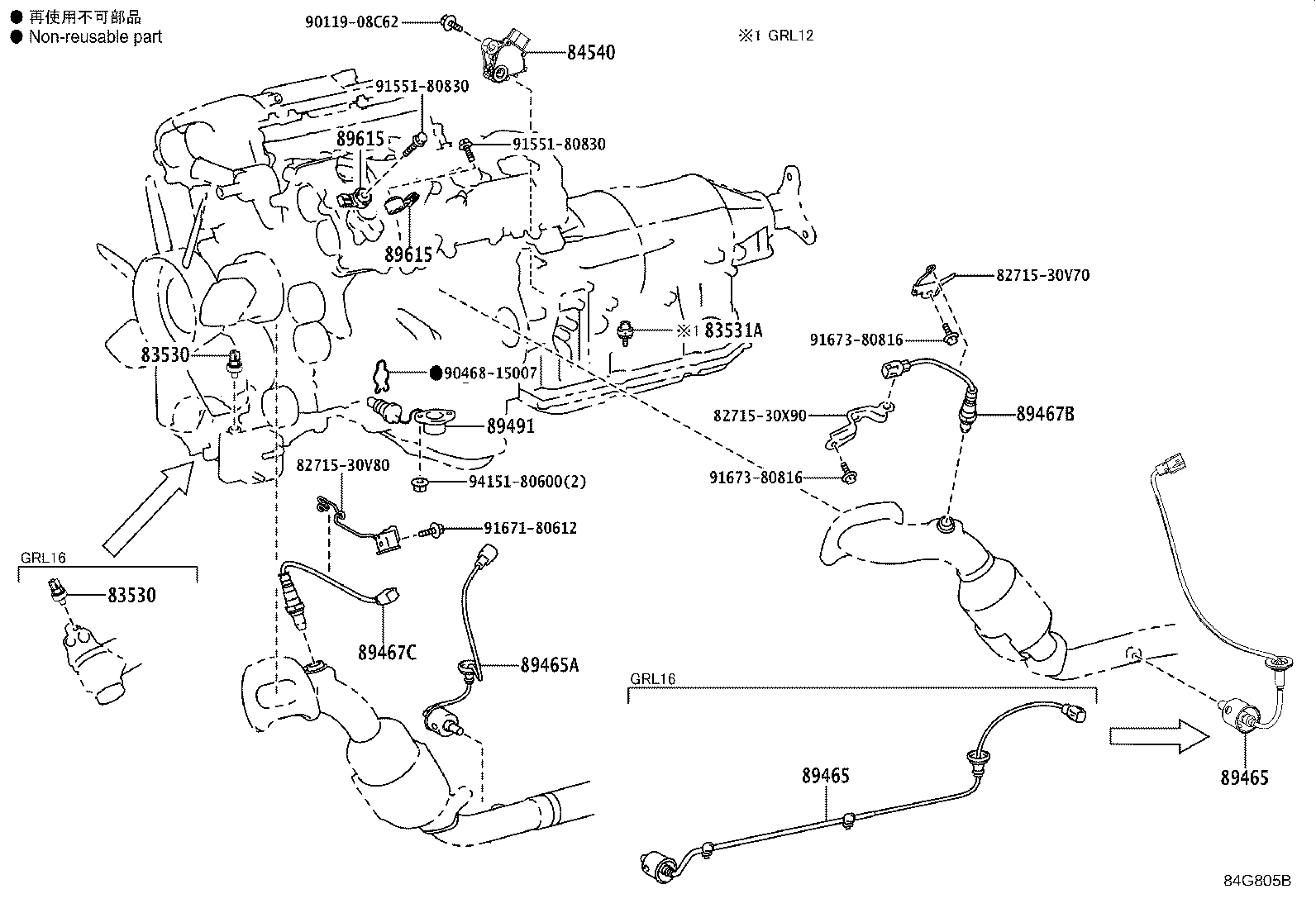

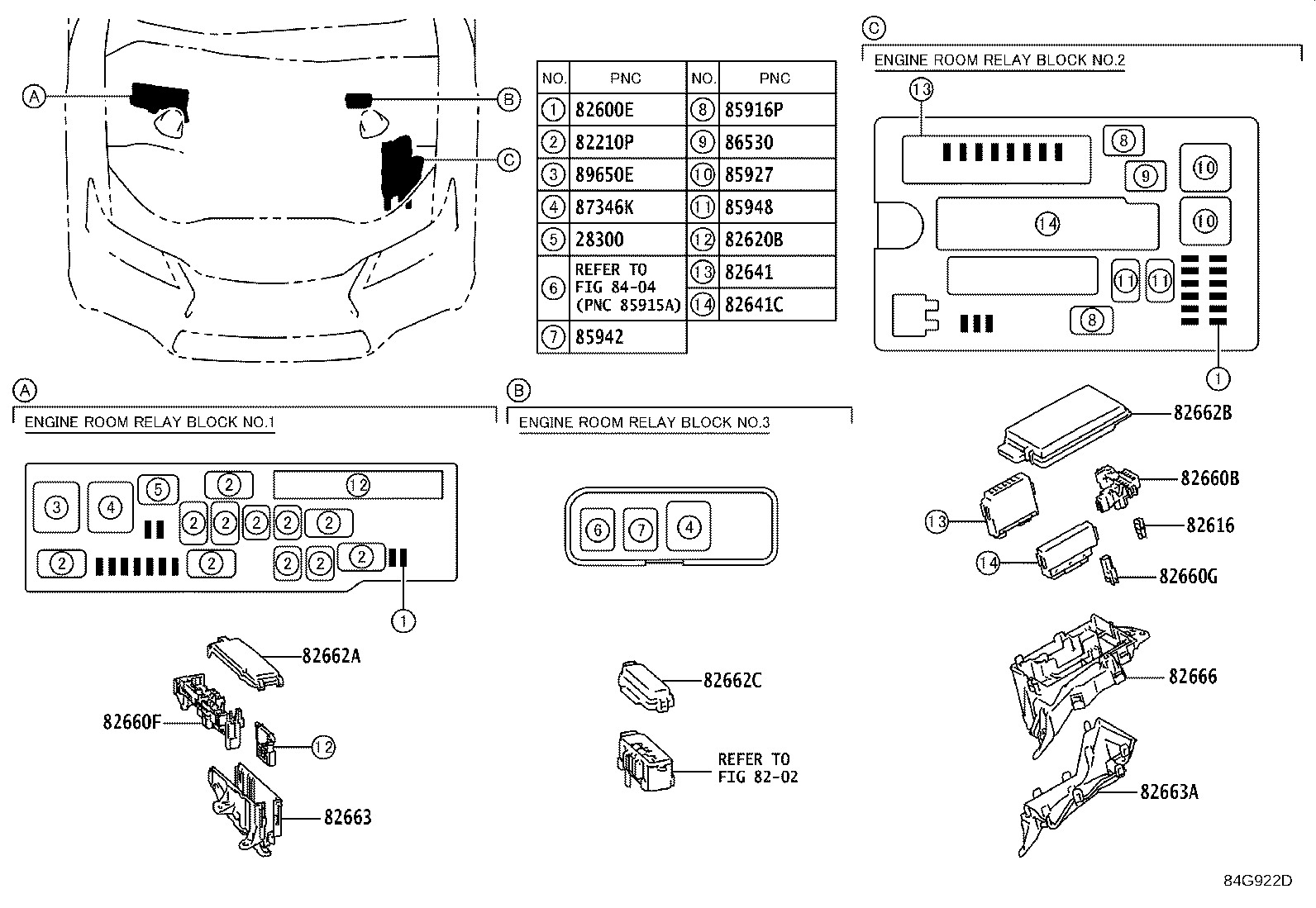

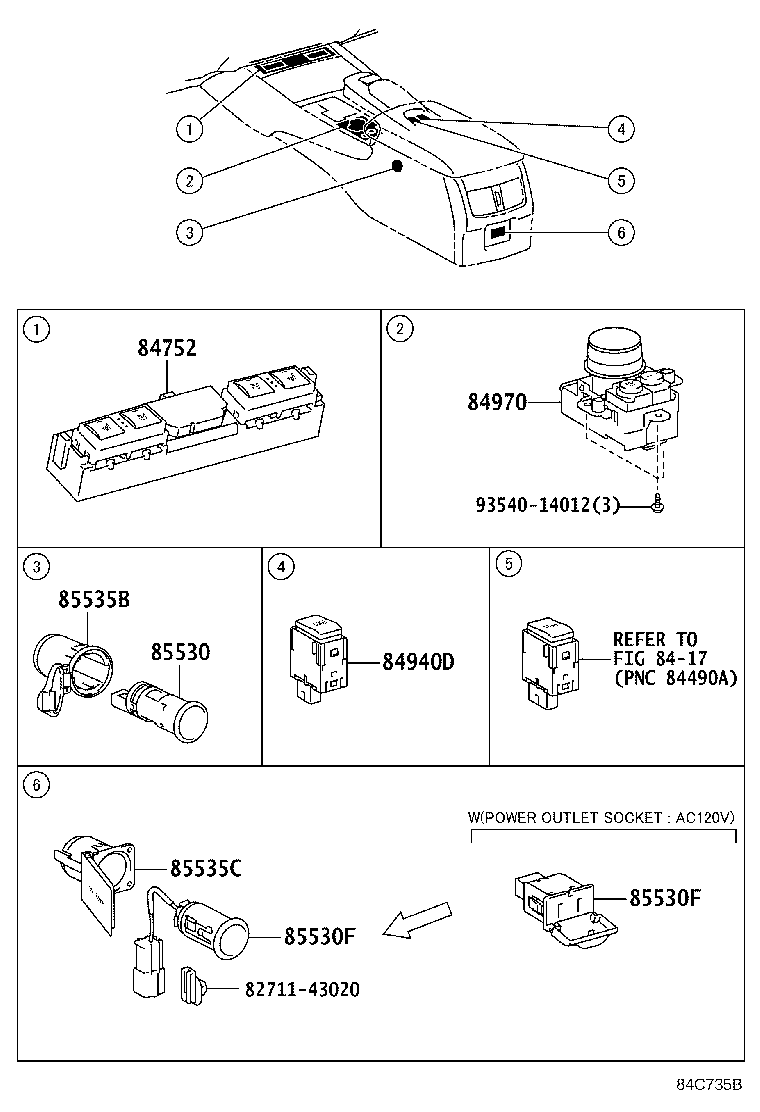

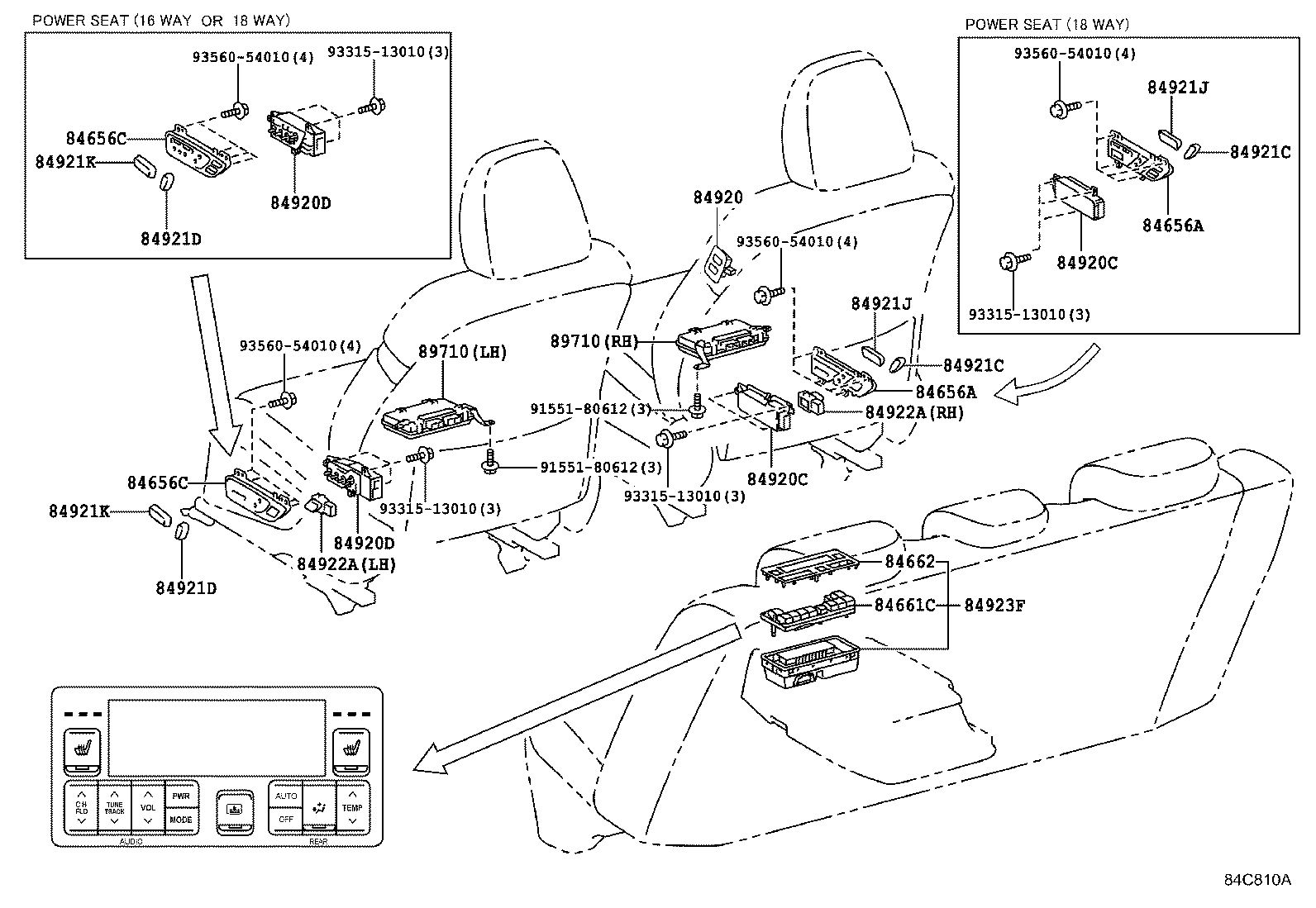

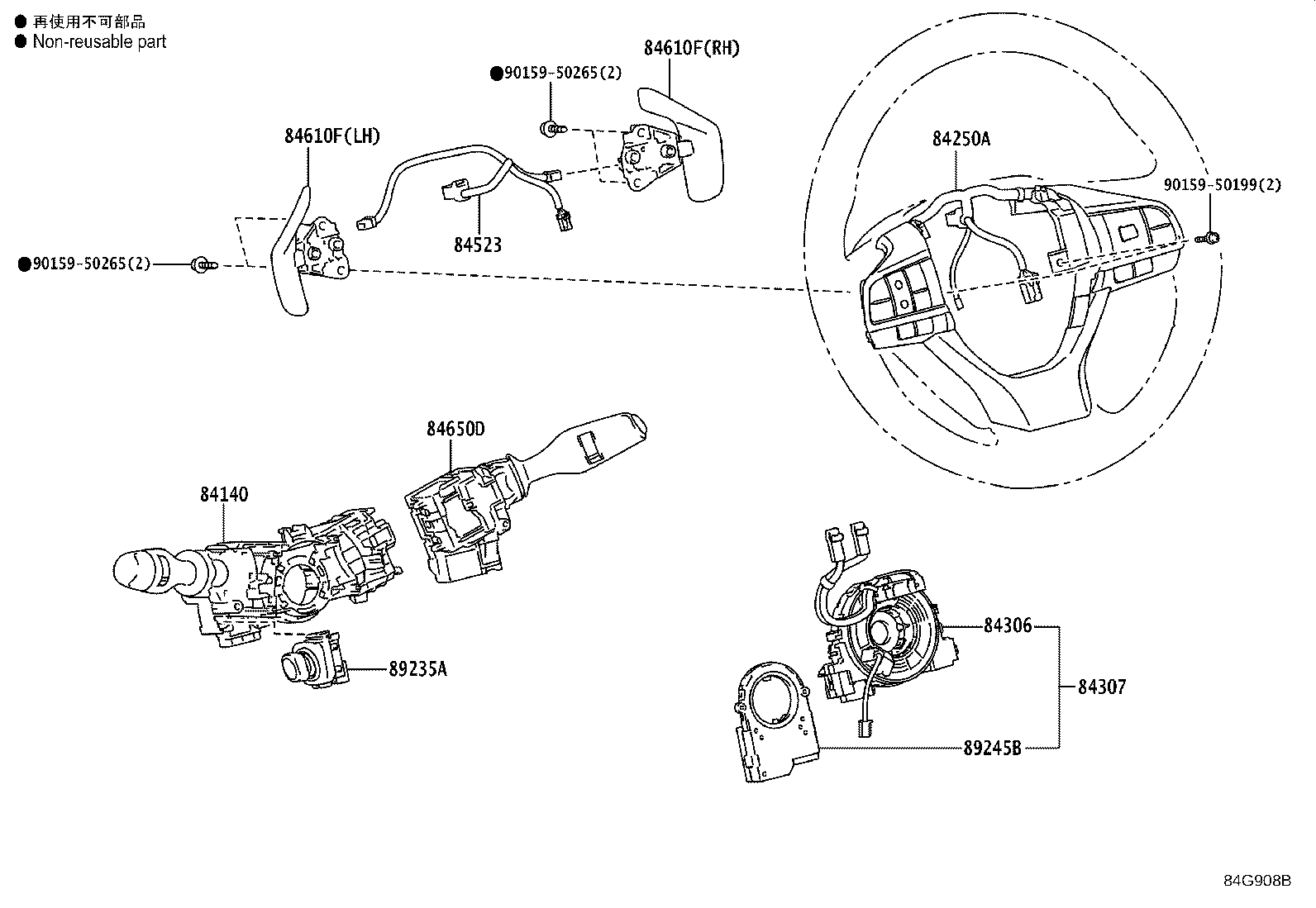

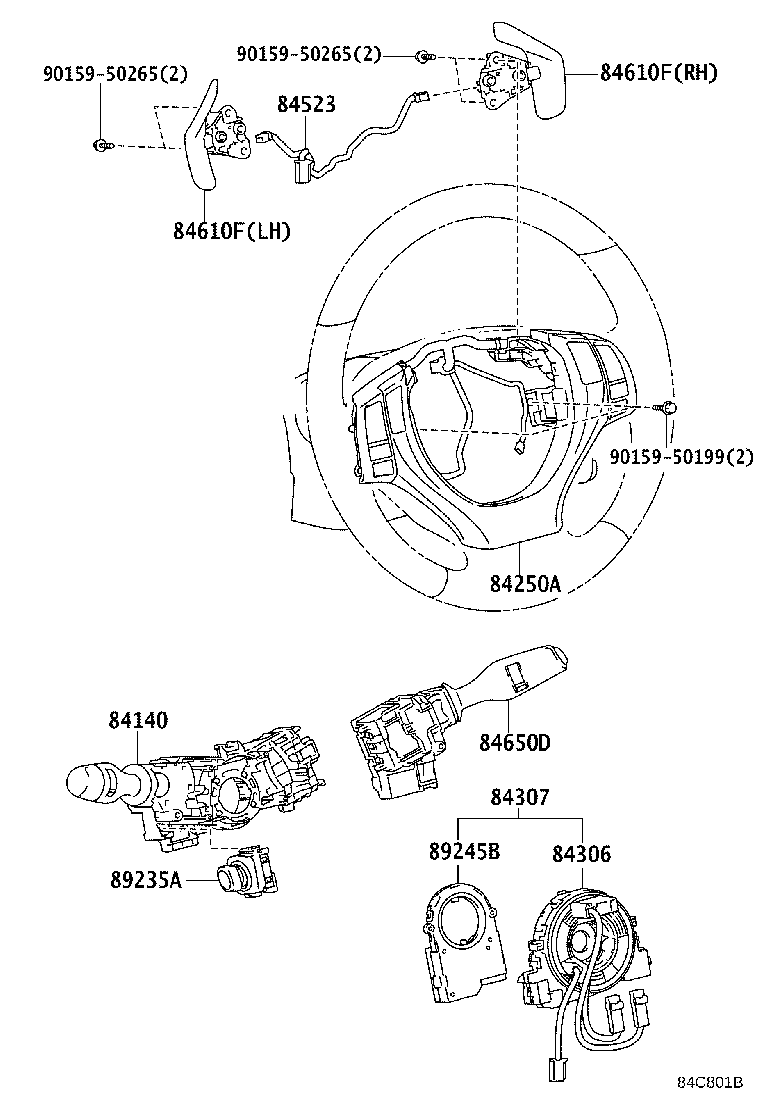

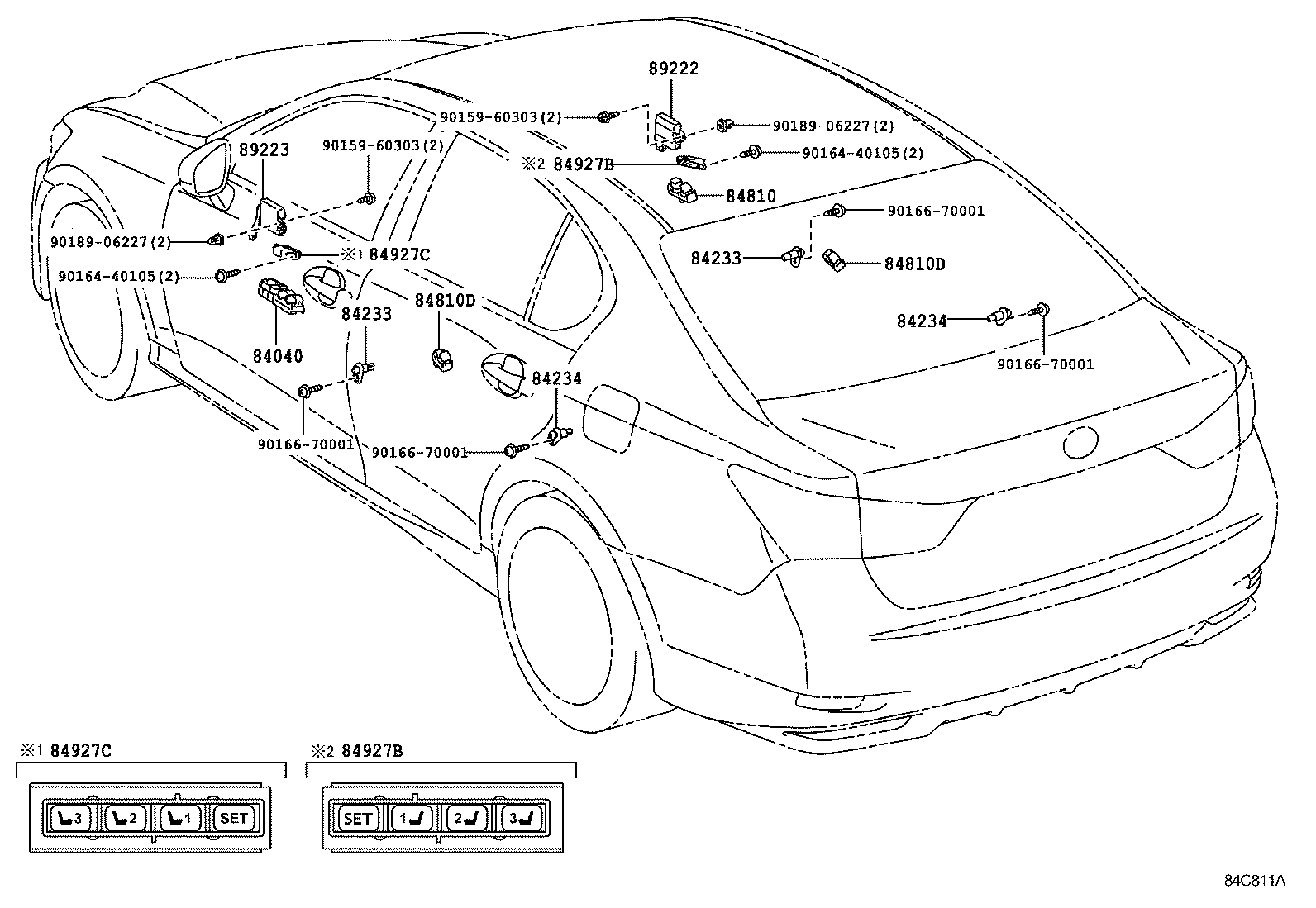

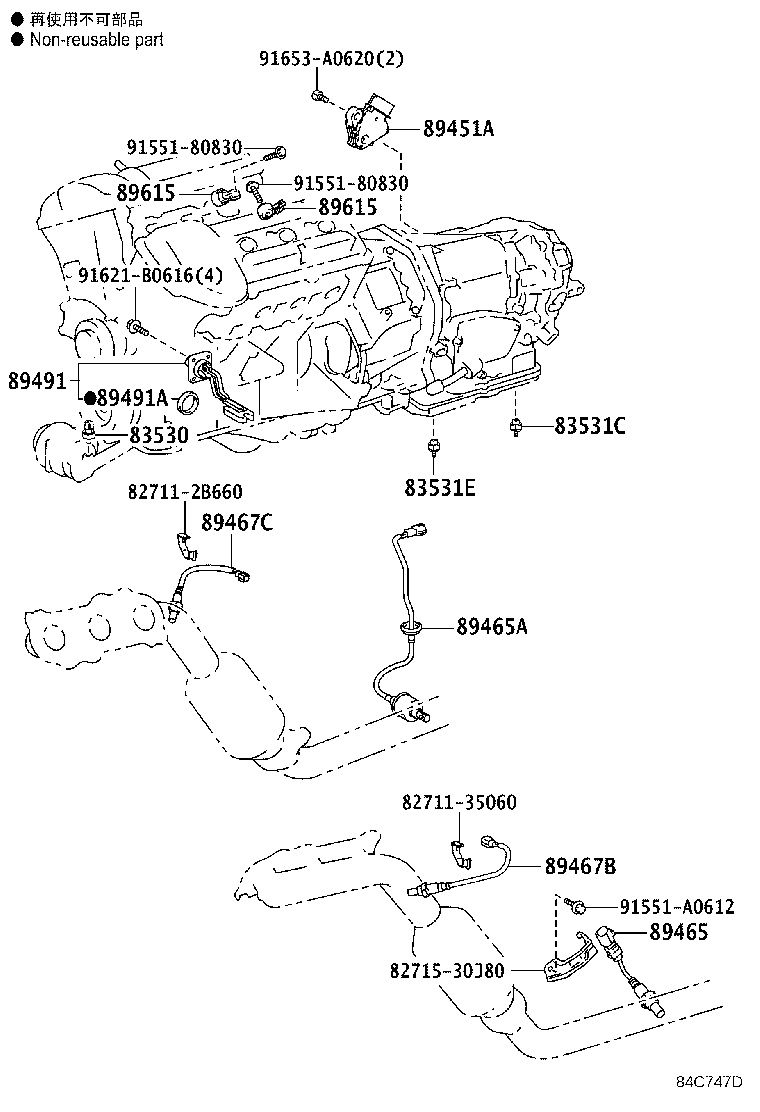

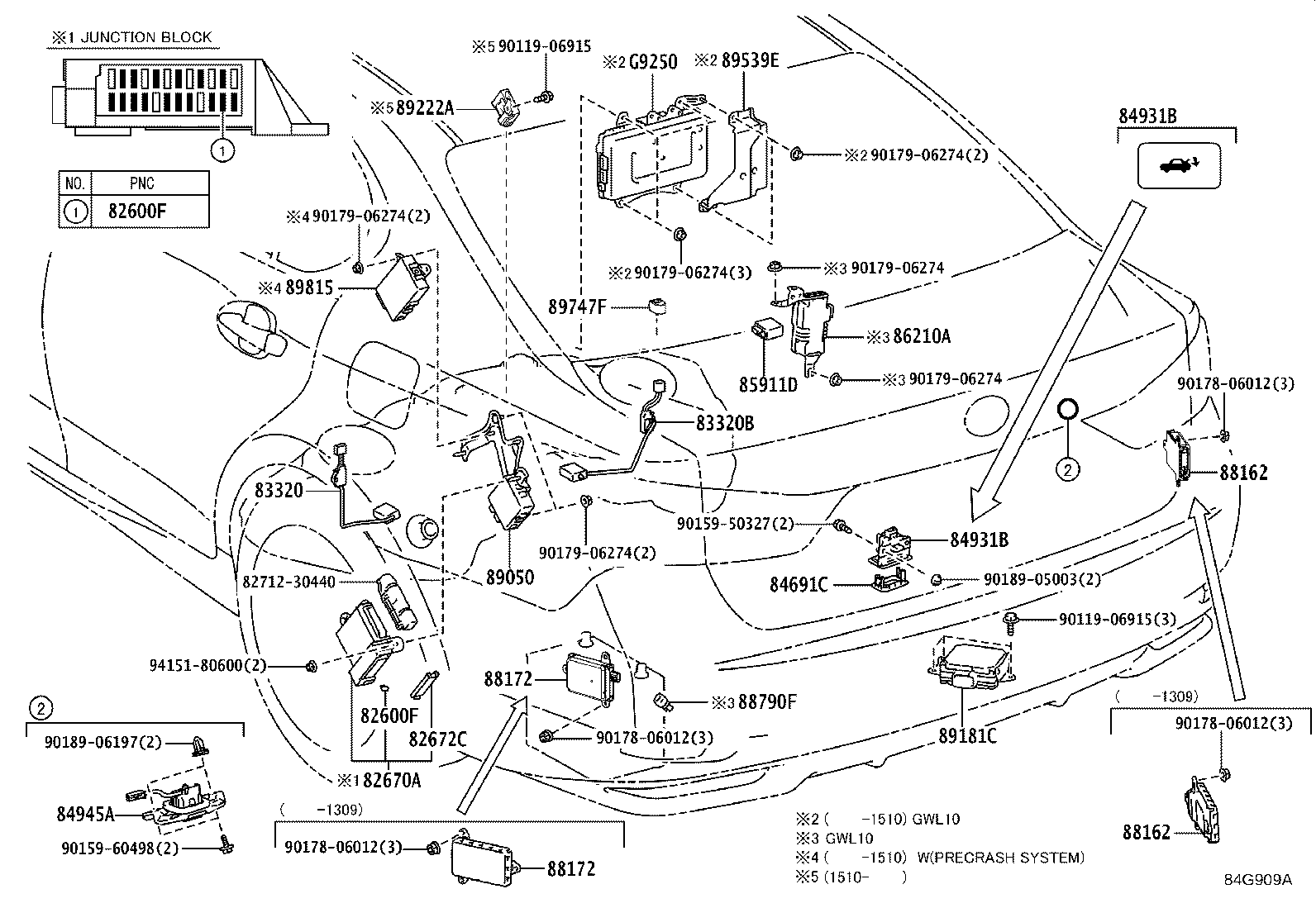

Figure 84C745F 84C745F 2011-12 → 2015-10 Figure 84C747E 84C747E 2012-03 → — Figure 84G805B 84G805B 2015-10 → — Figure 84I210D 84I210D 2015-10 → — Figure 84C742F 84C742F 2011-12 → 2015-10 Figure 84C740E 84C740E 2012-03 → — Figure 84G928A 84G928A 2015-10 → — Figure 84G901A 84G901A 2011-12 → 2015-10 Figure 84G915B 84G915B 2012-03 → 2015-10 Figure 84G922D 84G922D 2015-10 → — Figure 84G924B 84G924B 2015-10 → — Figure 84C737C 84C737C 2011-12 → — Figure 84C816A 84C816A 2011-12 → 2015-10 Figure 84G862 84G862 2015-10 → — Figure 84C735B 84C735B 2011-12 → — Figure 84C801B 84C801B 2011-12 → 2015-10 Figure 84G908B 84G908B 2015-10 → — Figure 84C810A 84C810A 2011-12 → — Figure 84C811A 84C811A 2011-12 → — Figure 84G909A 84G909A 2011-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
82046F Wire Sub-assy, Body Ground, NO.1
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620B Block Assy, Fusible Link
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82666 Holder, Connector
82670A Block Assy, Junction, NO.1
82672A Cover, Junction Block
82672B Cover, Junction Block
82672C Cover, Junction Block
82731A Block, Cowl Side Junction, RH
82733A Block, Cowl Side Junction, LH
82742 Block, Engine Room Relay, NO.2
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83531A Switch, Oil Pressure
83531C Switch, Oil Pressure, (PB1)
83531E Switch, Oil Pressure, (PB3)
83910G Clock Assy
84010D Control & Panel Assy, Integration
84040 Master Switch Assy,Multiplex Network
84091 Switch Set, Satellite
84120 Switch Assy, Head UP Display
84140 Switch Assy, Headlamp Dimmer
84155 Switch, Headlamp Swivel Main
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84270H Switch Assy, Parking Lamp
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84390B Switch Assy, Electric Parking Brake
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610F Switch Assy, Transmission Shift
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84656C Bezel, Switch NO.2
84661C Knob, Cooler Control Switch
84662 Panel, Cooler Control Switch
84691C Bezel, Switch
84752 Switch, Refreshing Seat
84770A Switch Assy, Pre-collision System Cancel
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840 Switch Assy, Luggage Compartment Door Opening
84840C Switch Assy, Luggage Door Opening, Cancel
84920 Switch Assy, Power Seat
84920C Switch Assy, Power Seat Front, RH
84920D Switch Assy, Power Seat Front, LH
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84923F Switch, Rear Control
84927B Switch, Seat Memory, RH
84927C Switch, Seat Memory, LH
84931B Switch, Door Control
84940D Switch Assy, Rear Sun Shade
84945A Switch, Luggage Electrical Key
84970 Switch Assy, Combination
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530F Socket Assy, Power Outlet, Rear NO.2
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85911D Relay, Rear Sunshade
85916P Relay, Headlamp
85924C Relay, Igct
85927 Relay, Cooling Fan
85942 Relay, Headlamp Cleaner Control
85948 Relay, Windshield Wiper
86210A Inverter Assy, Voltage
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88790F Thermistor Assy
89050 Computer Assy, Parking Brake
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89181B Computer, Steering Control, FR
89181C Computer, Steering Control, RR
89221 Computer, Multiplex Network Body
89222 Computer, Multiplex Network Door, Front RH
89222A Computer, Multiplex Network Door
89223 Computer, Multiplex Network Door, Front LH
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89429F Sensor, Temperature
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89539E Bracket, Computer
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89650E Relay, Electric Power Steering
89681A Computer, Power Management Control
89710 Computer Assy, Position Control
89747F Buzzer, Blind Spot Monitor
89815 Computer, Seat Belt Control
89940 Computer Assy, Headlamp Swivel
G9020E Relay, Hybrid Water Pump
G9250 Converter Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
