Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 6 illustrations

Illustrations

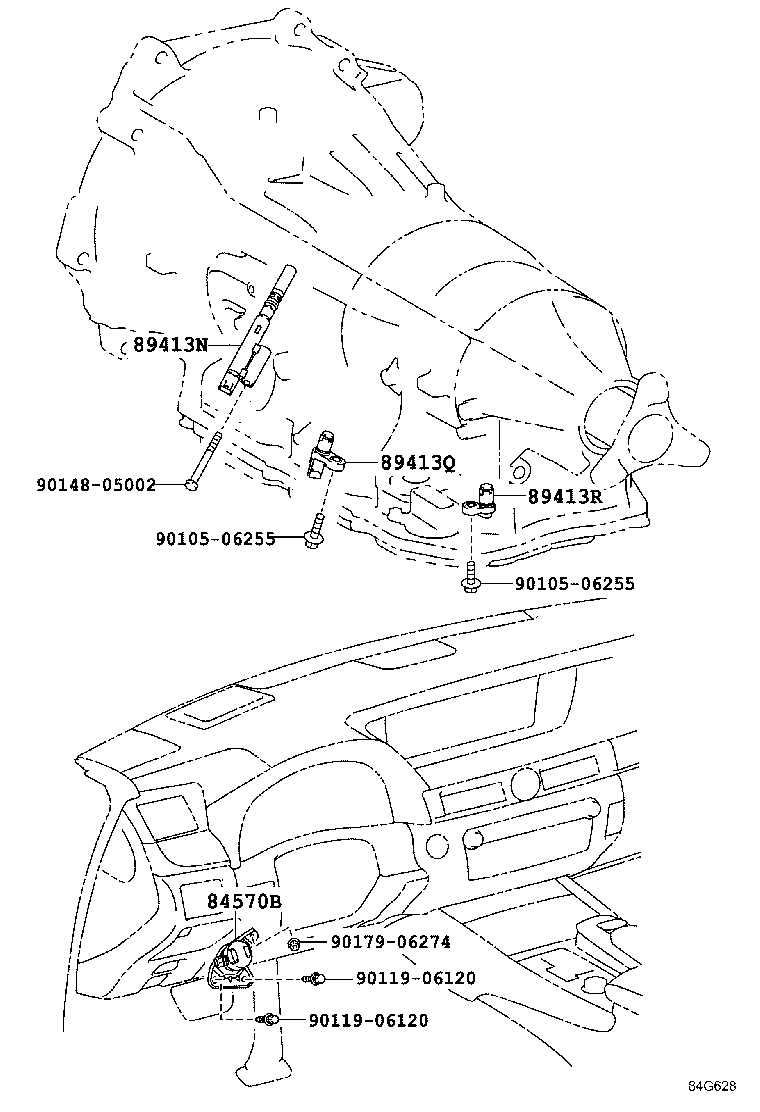

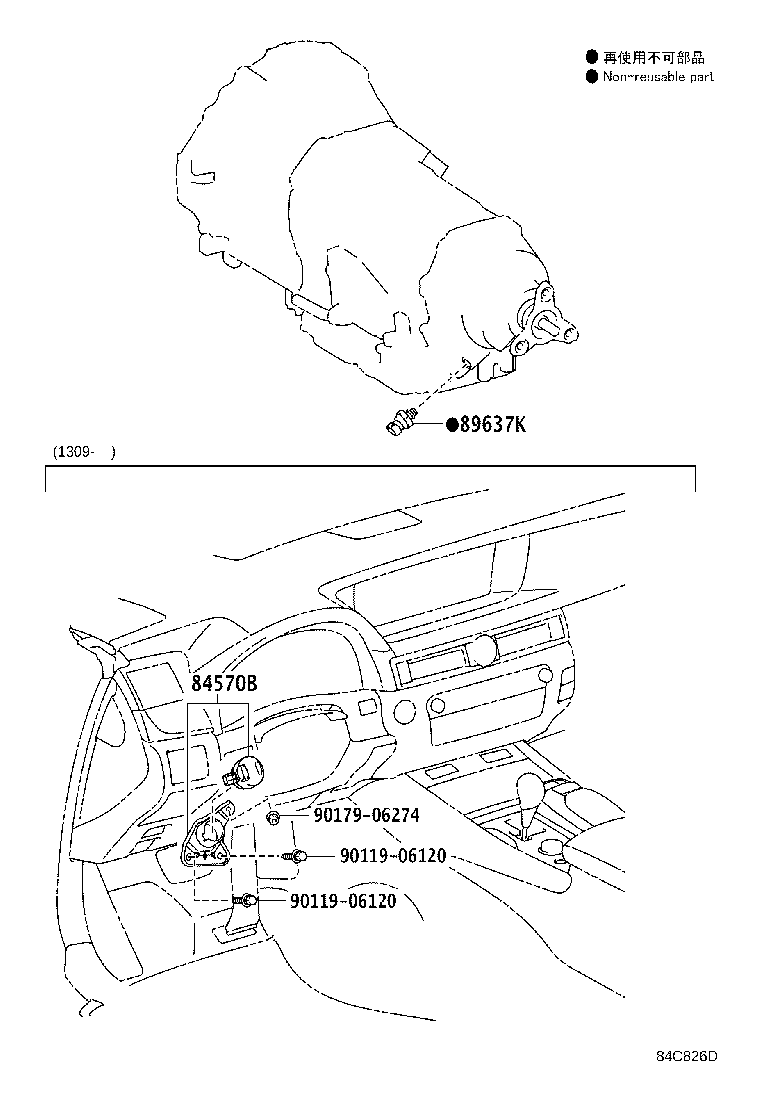

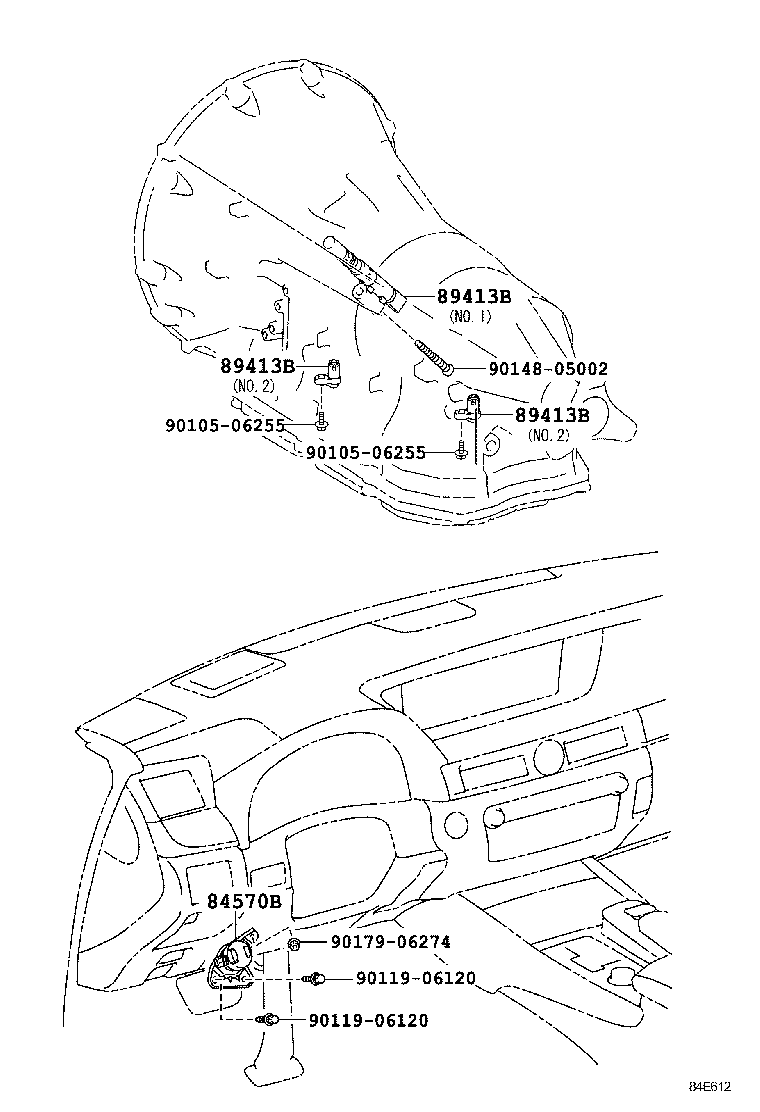

Figure 84C682B 84C682B 2011-12 → 2013-09 Figure 84C682B 84C682B 2011-12 → — Figure 84E612 84E612 2013-09 → — Figure 84C683B 84C683B 2011-12 → — Figure 84C826D 84C826D 2012-03 → — Figure 84G628 84G628 2015-10 → —

Part groups

PNCDescription
84570B Switch Assy, Kick Down
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413N Sensor, Transmission Revolution, (NT)
89413Q Sensor, Transmission Revolution (NC3)
89413R Sensor, Transmission Revolution (SP2)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
