Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

8 part groups · 4 illustrations

Illustrations

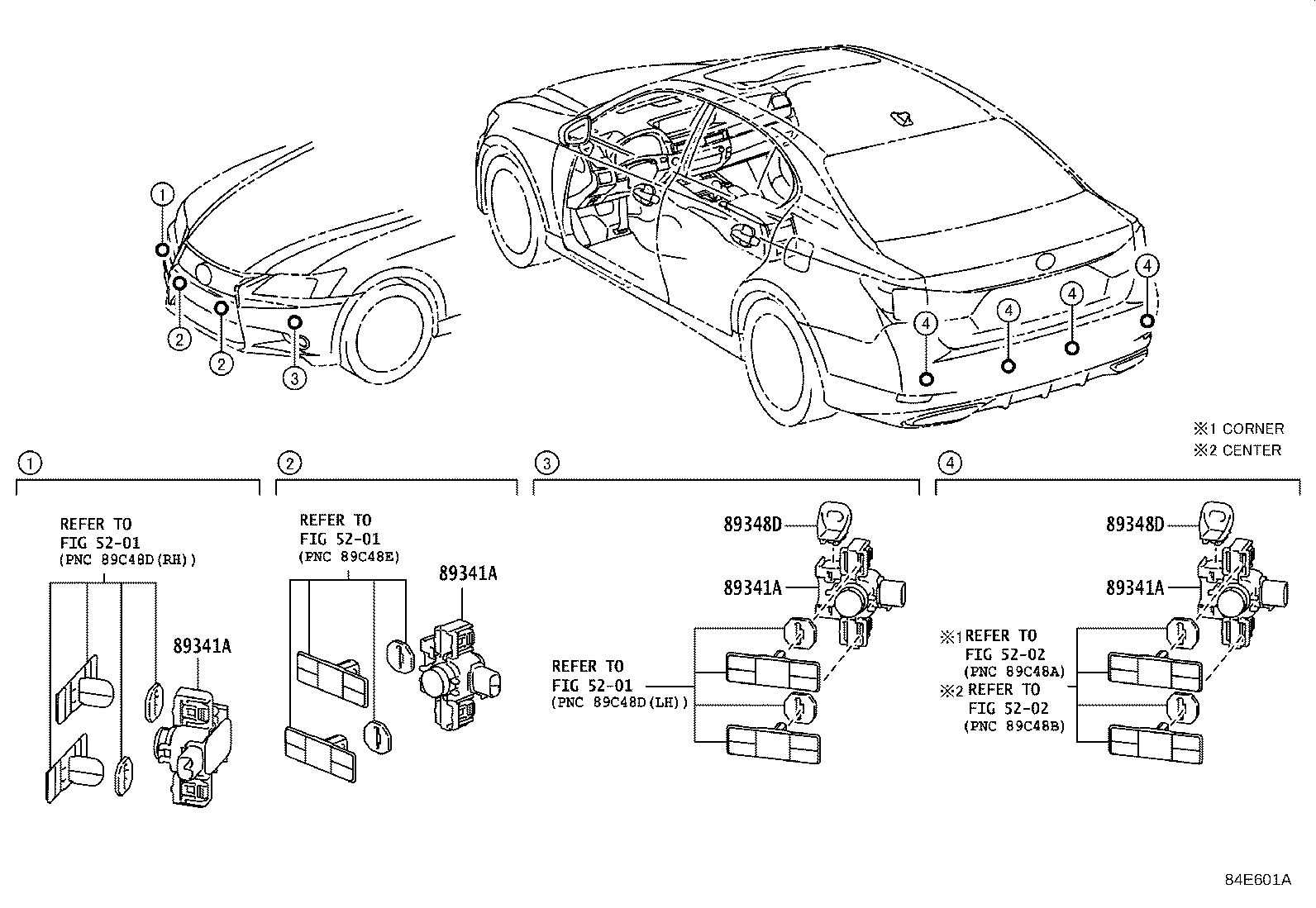

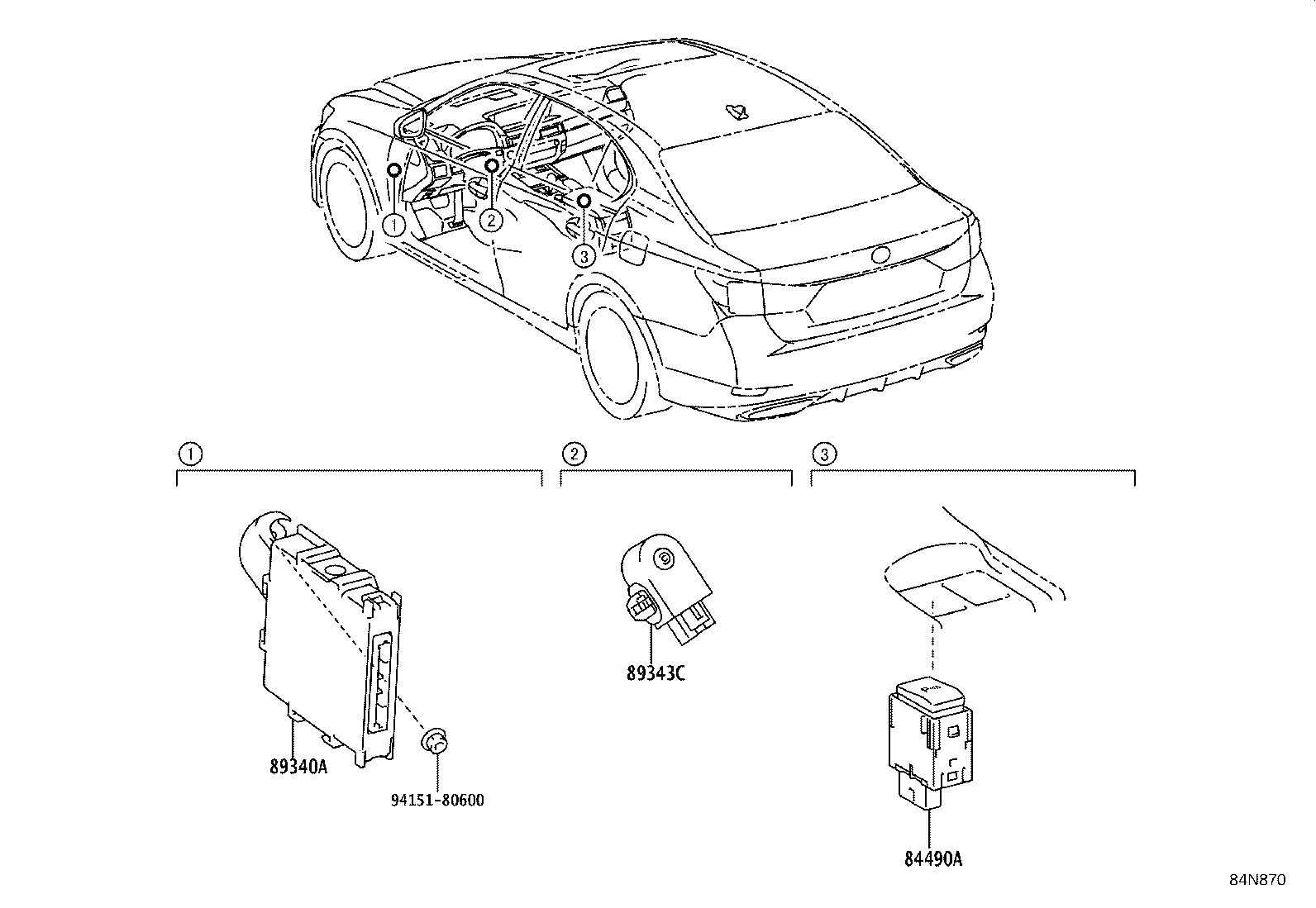

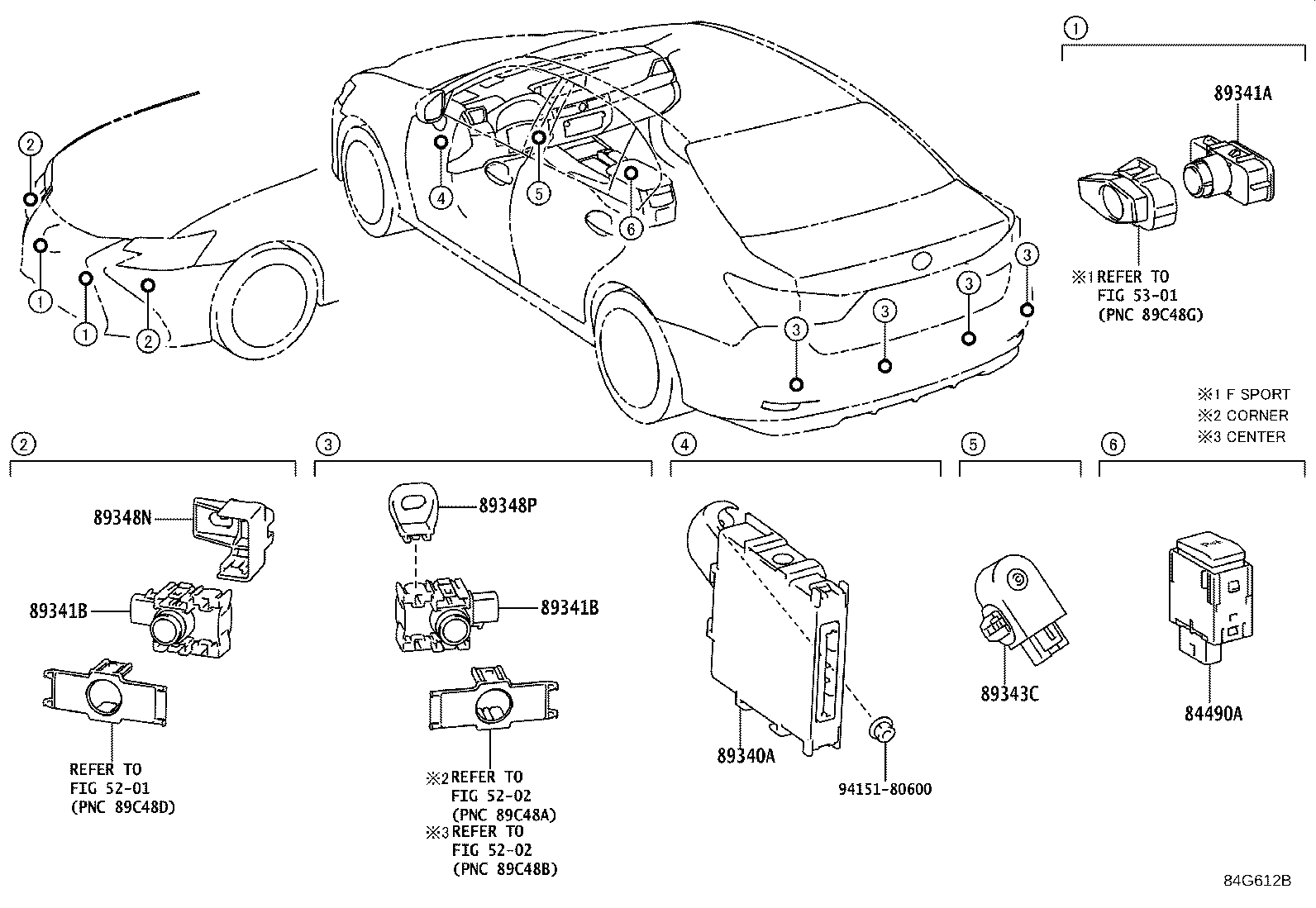

Figure 84C703A 84C703A 2011-12 → 2013-09 Figure 84E601A 84E601A 2013-09 → 2015-10 Figure 84N870 84N870 2013-09 → 2015-10 Figure 84G612B 84G612B 2015-10 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
89348N Clip, Ultrasonic Sensor, NO.1
89348P Clip, Ultrasonic Sensor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
