Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

21 part groups · 3 illustrations

Illustrations

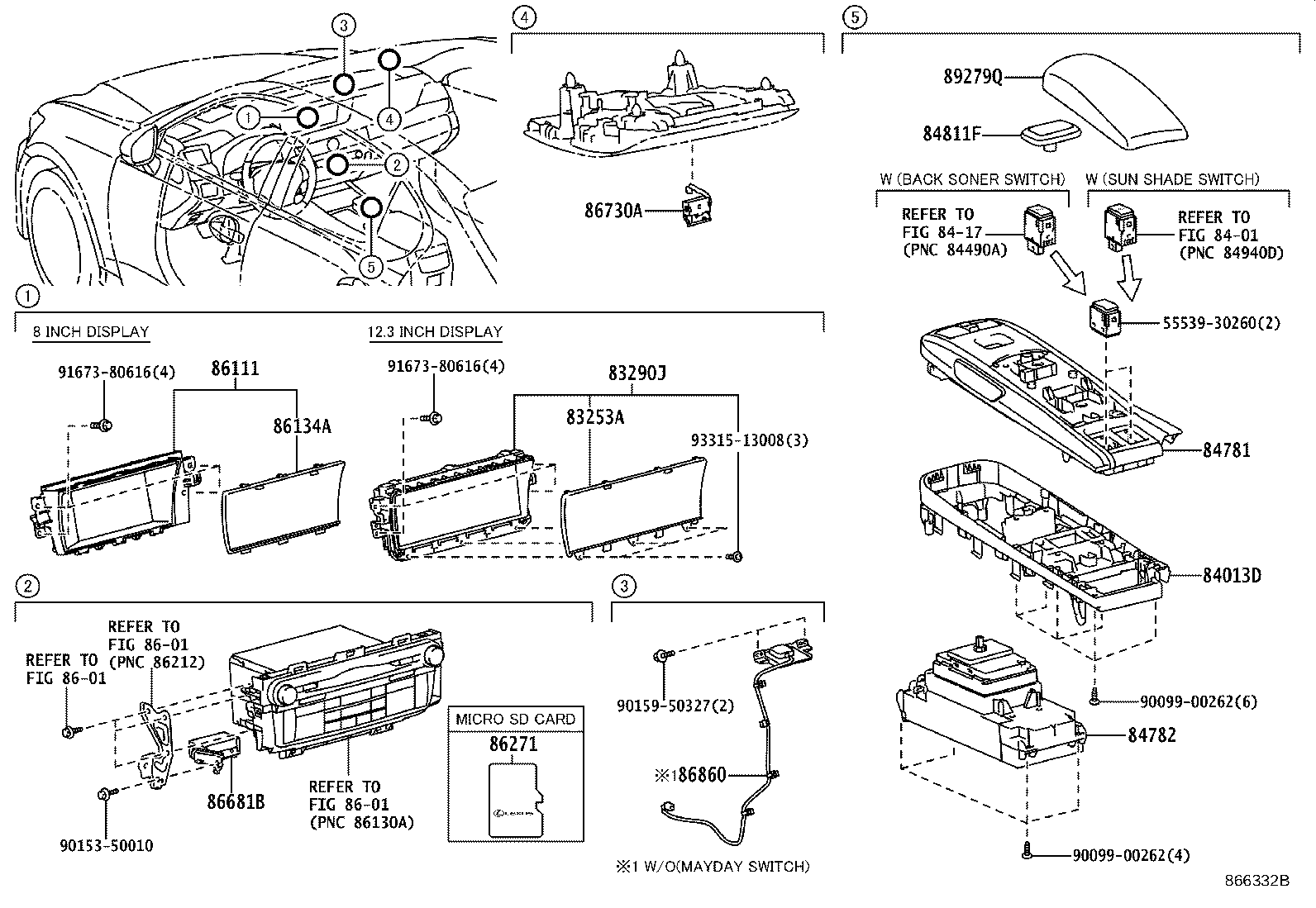

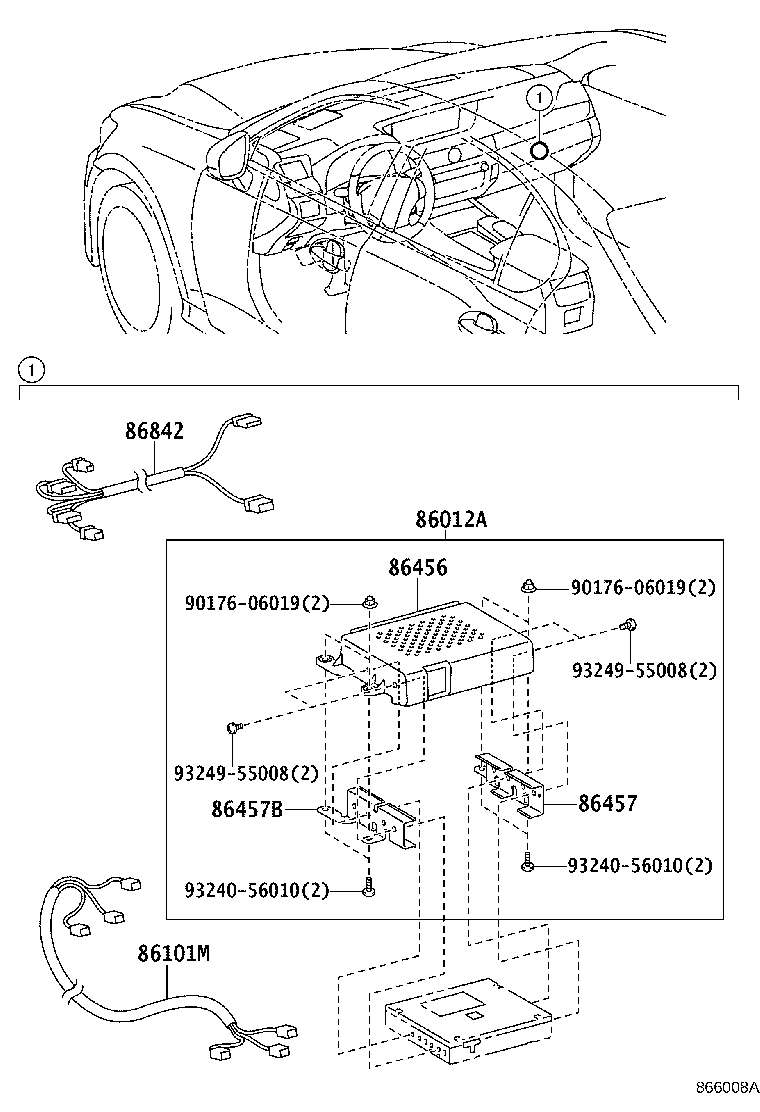

Figure 864753L 864753L 2011-12 → 2015-10 Figure 866332B 866332B 2015-10 → — Figure 866008A 866008A 2014-09 → —

Part groups

PNCDescription
81620B Cover Assy LH
83253A Glass, Accessory Meter
83290J Meter Assy, Accessory
84013D Panel Sub-assy, Integration
84781 Switch, Remote Operation
84782 Board, Remote Operation
84811F Knob, Switch
86012A Parts Set, Radio Setting
86101M Cord Sub-assy, Antenna
86111 Multi-display
86134A Parts, Multi-display
86271 Disc, Disc Player
86271L Hard Disc
86456 Cover, Multi-media Module
86457 Bracket, Multi-media Module NO.1
86457B Bracket, Multi-media Module NO.3
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
89279Q Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
