Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,GRL1#,GWL10 · catalogue 3324B0 · United States
Supported model
Data version 2021-03
Heating & Air Conditioning - Cooler Piping

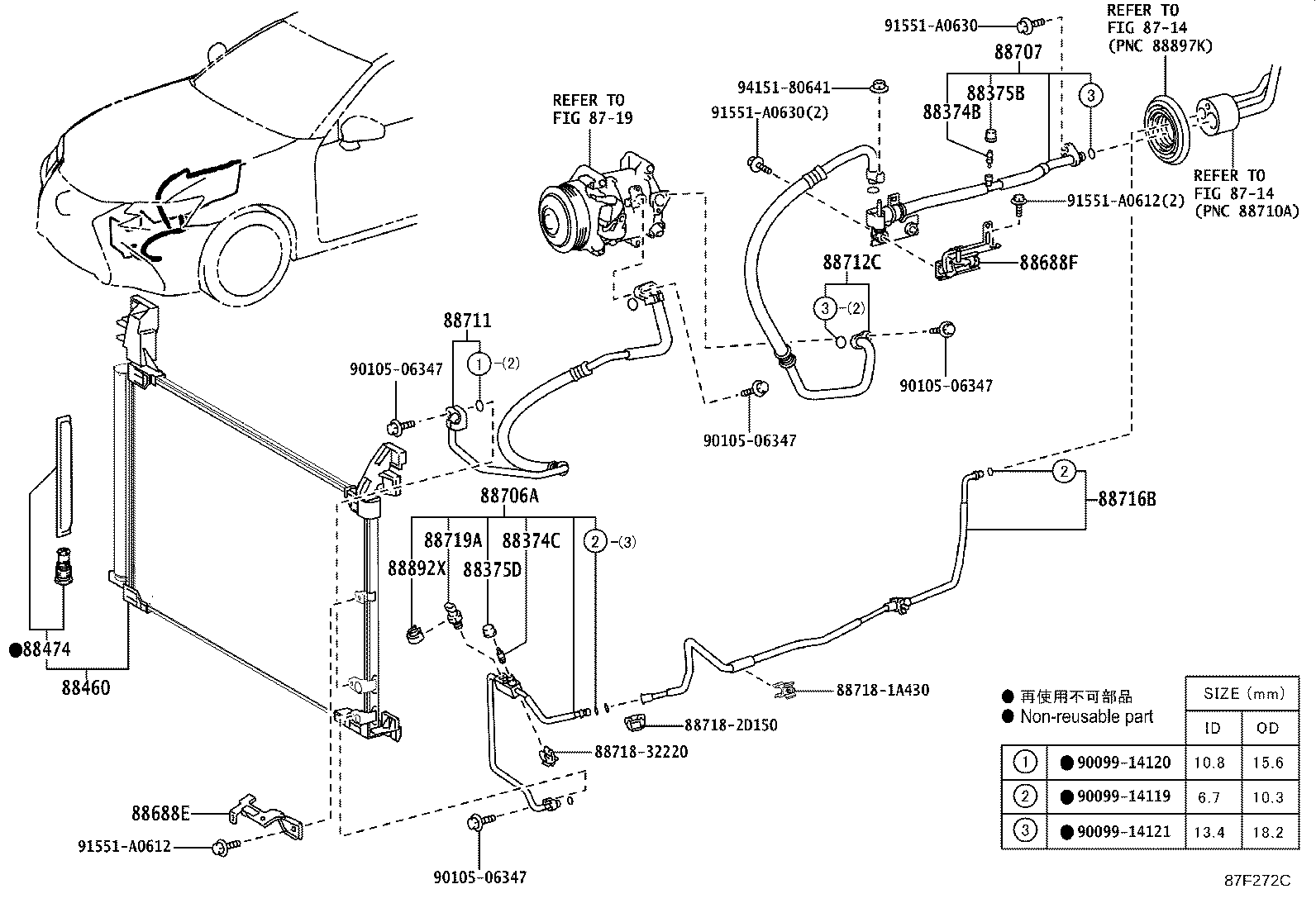

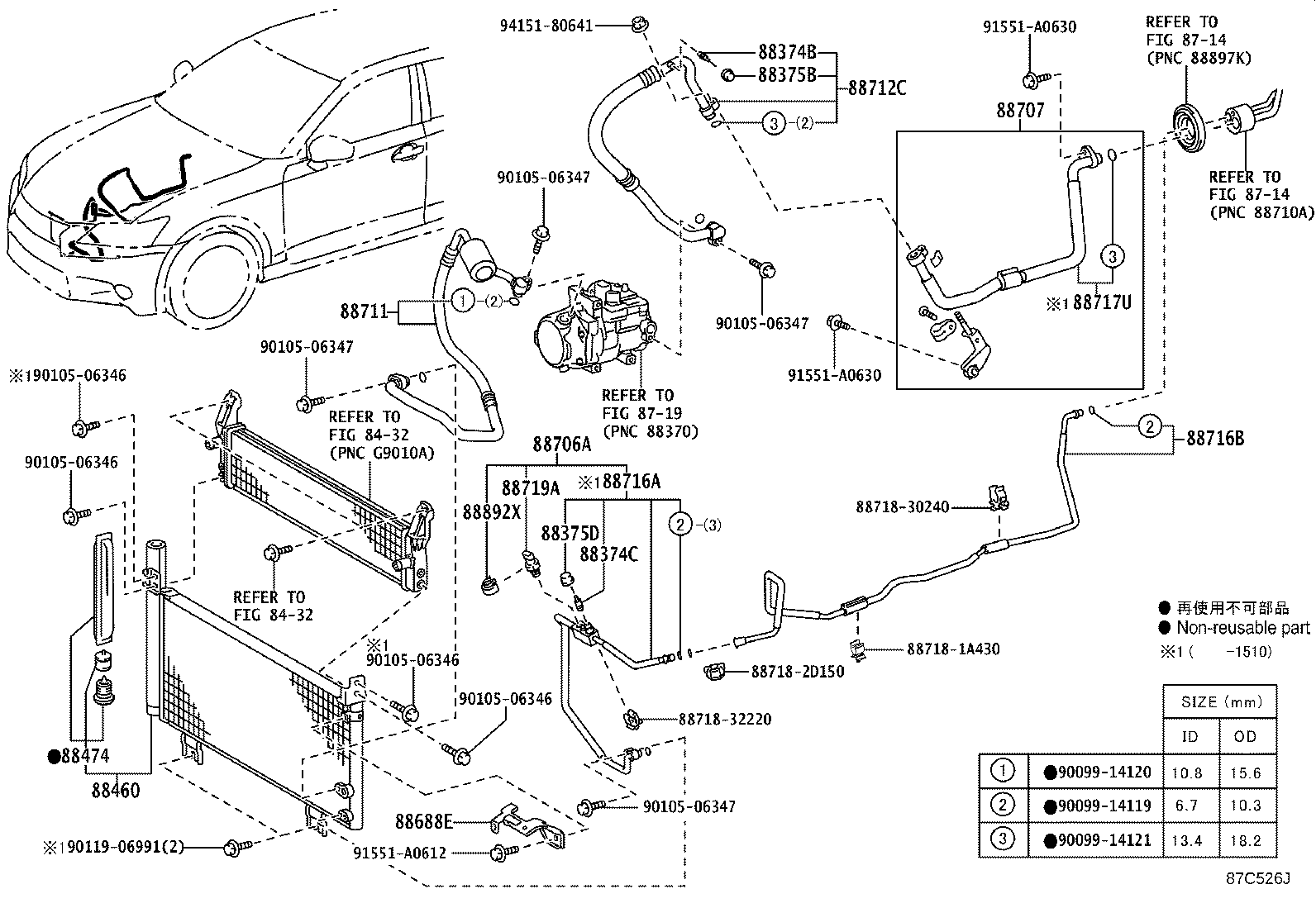

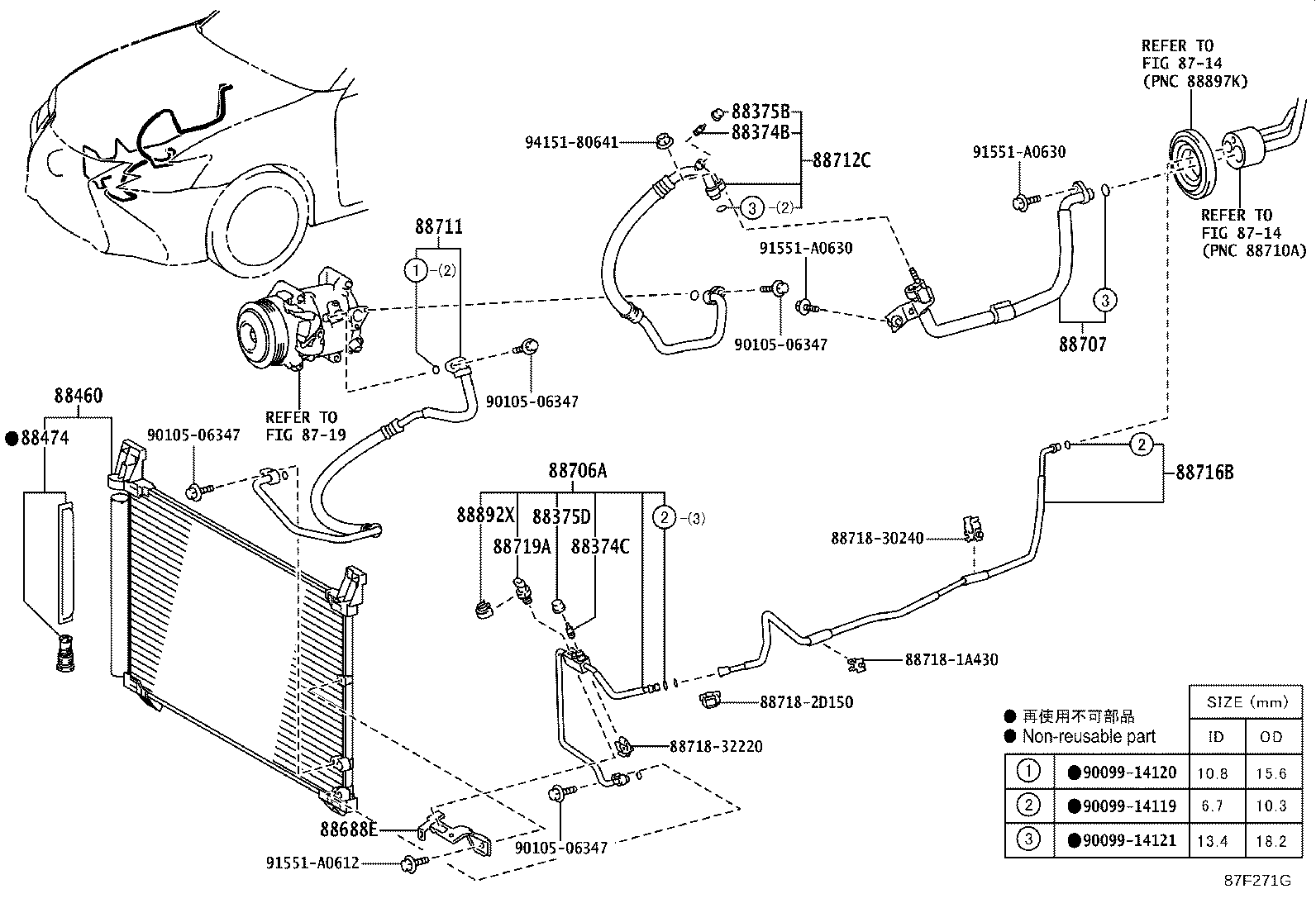

17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |
| 88688F | Bracket, Cooler Refrigerant Hose, NO.2 |
| 88706A | Tube Sub-assy, Liquid, A |
| 88707 | Pipe Sub-assy, Suction |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712C | Hose, Suction |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88717U | Tube, Suction, NO.1 |
| 88719A | Sensor, Air Conditioner Pressure |
| 88892X | Cover, Cooler, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
