Factory parts data · Europe

Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334410 · United States

Supported model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

Figure 532459B

532459B 2006-02 → 2007-09

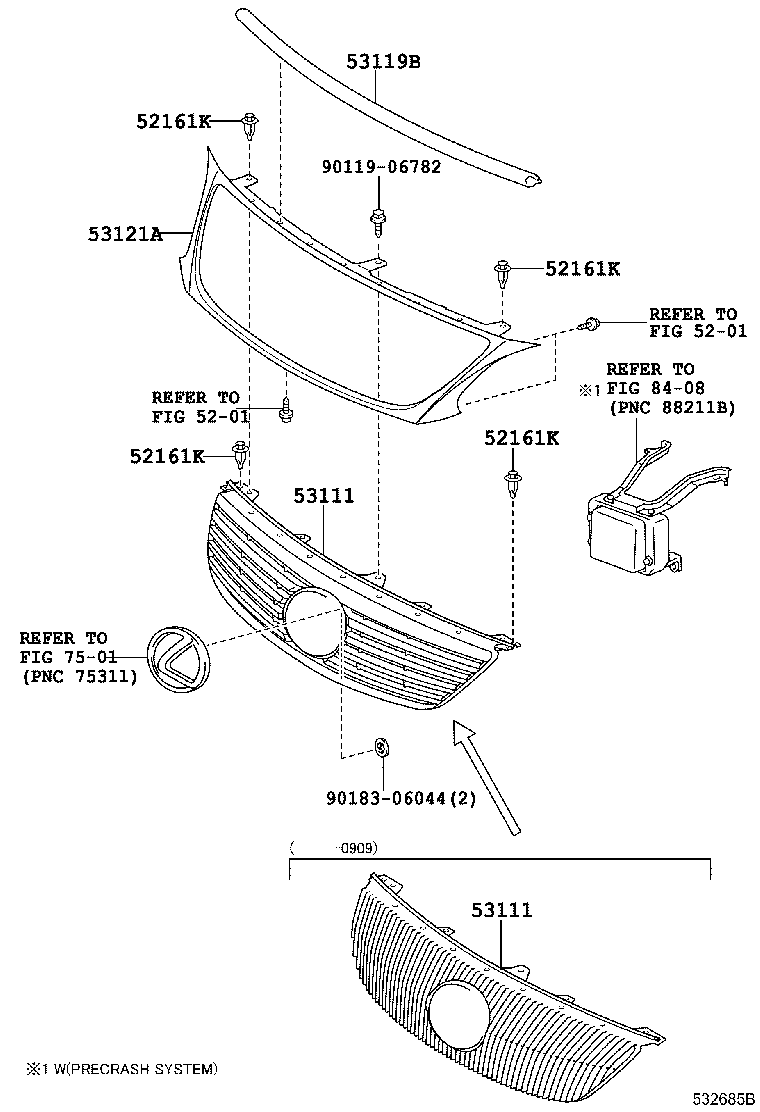

Figure 532685B

532685B 2007-09 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
53111	Grille, Radiator
53119B	Protector, Radiator Grille
53121A	Moulding, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
