Toyota Lexus GS450H
2006-02 → 2011-12 · chassis GWS191 · catalogue 334410 · United States
Supported model
Data version 2012-01
Switch & Relay & Computer
122 part groups · 11 illustrations

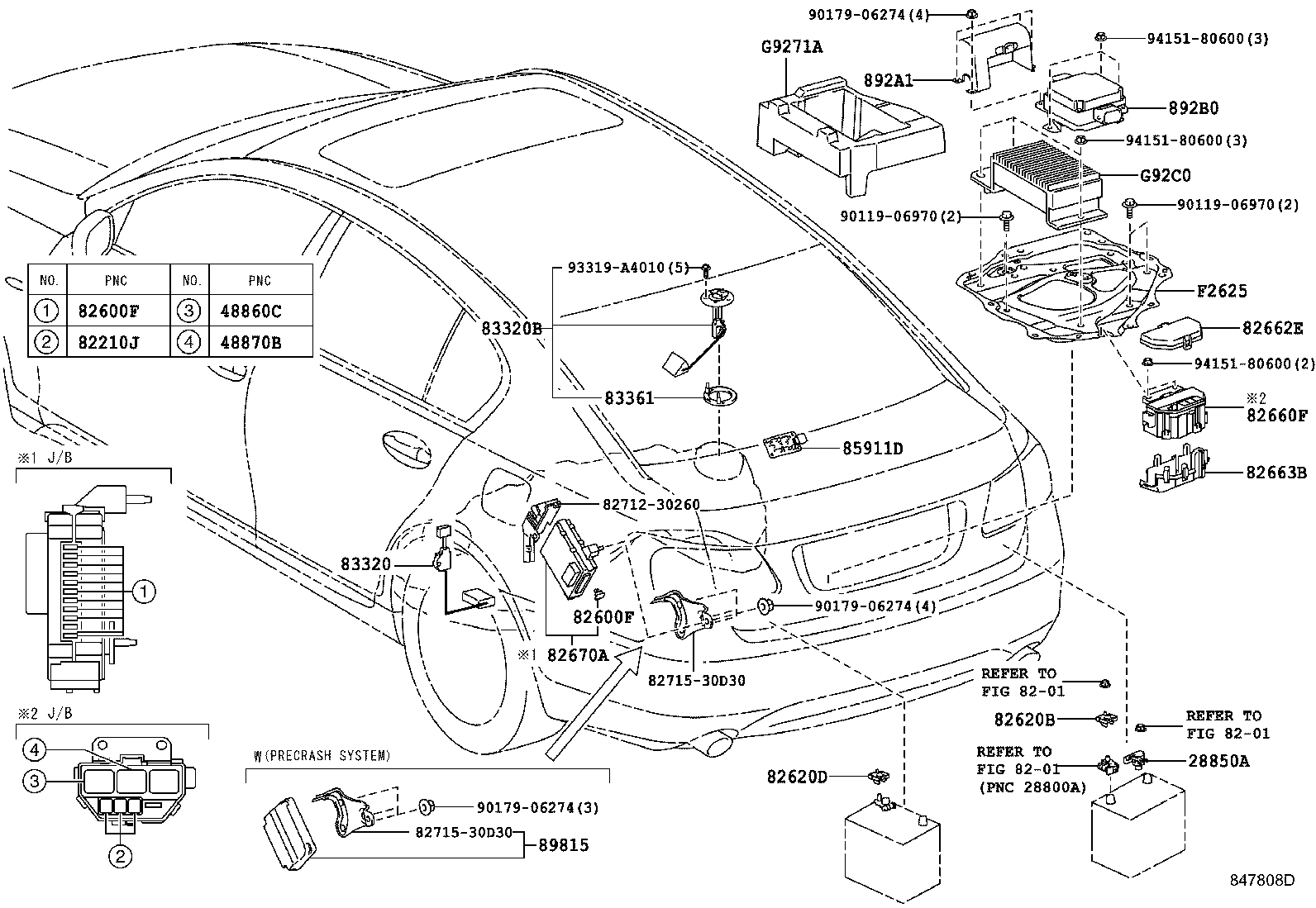

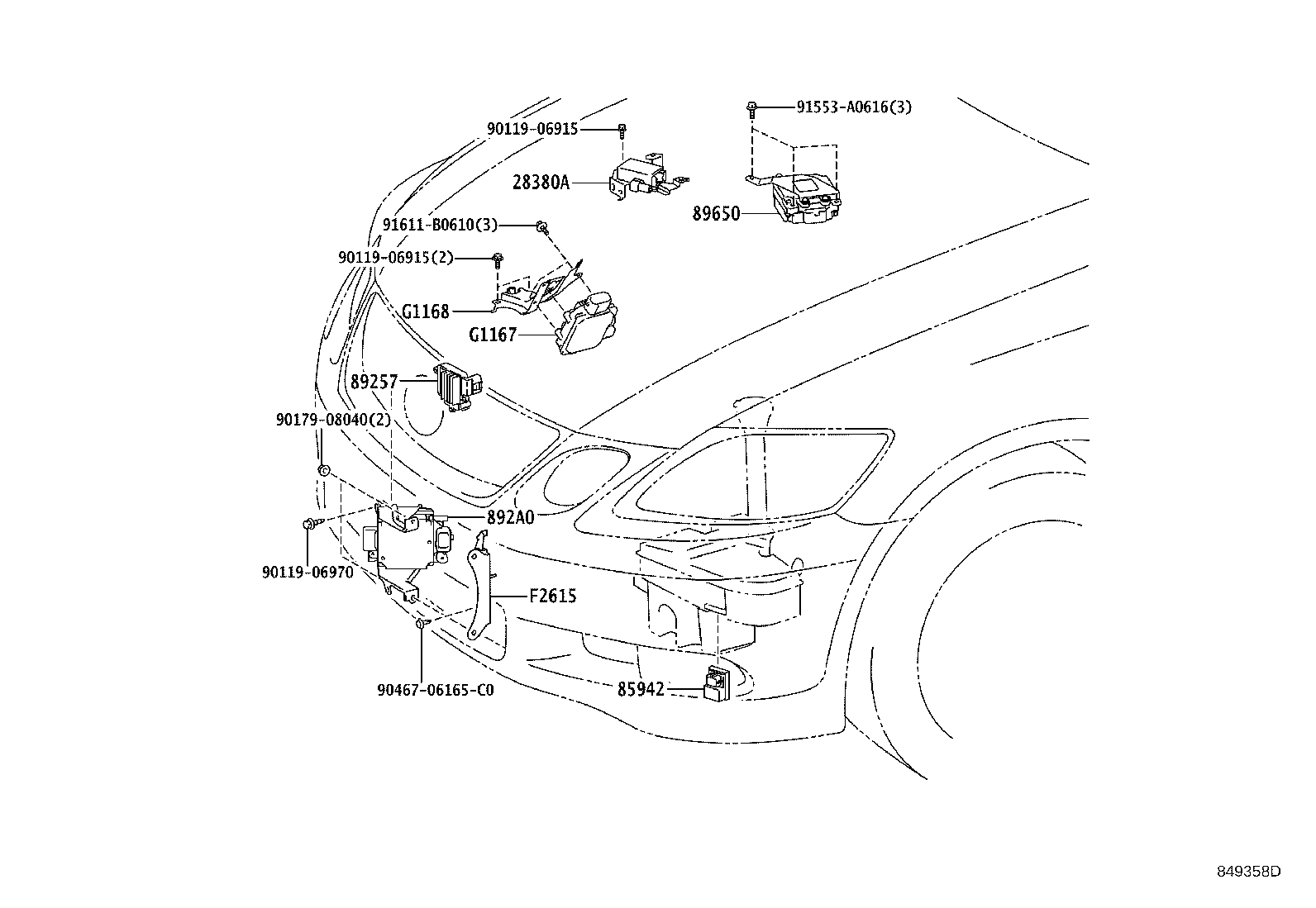

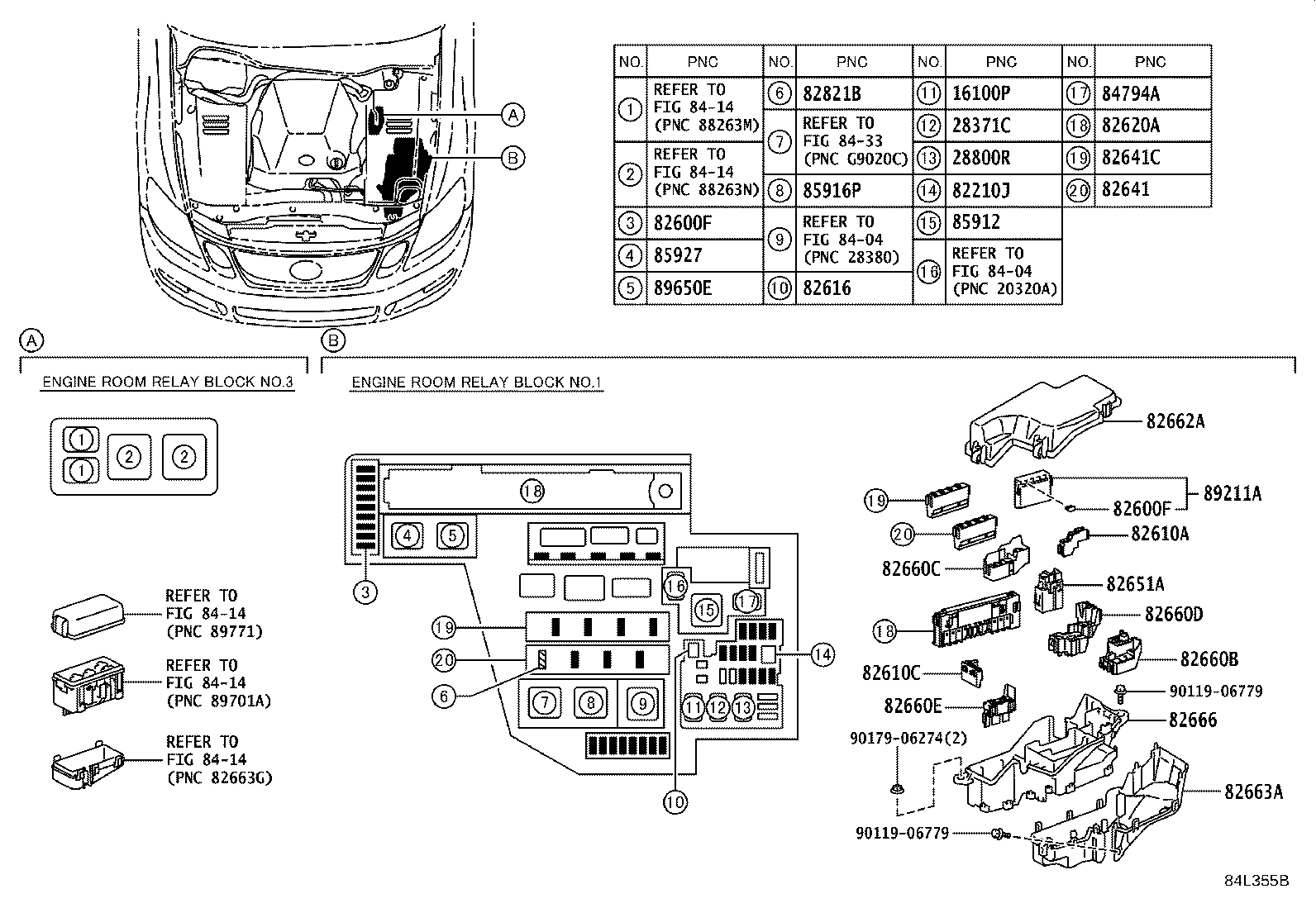

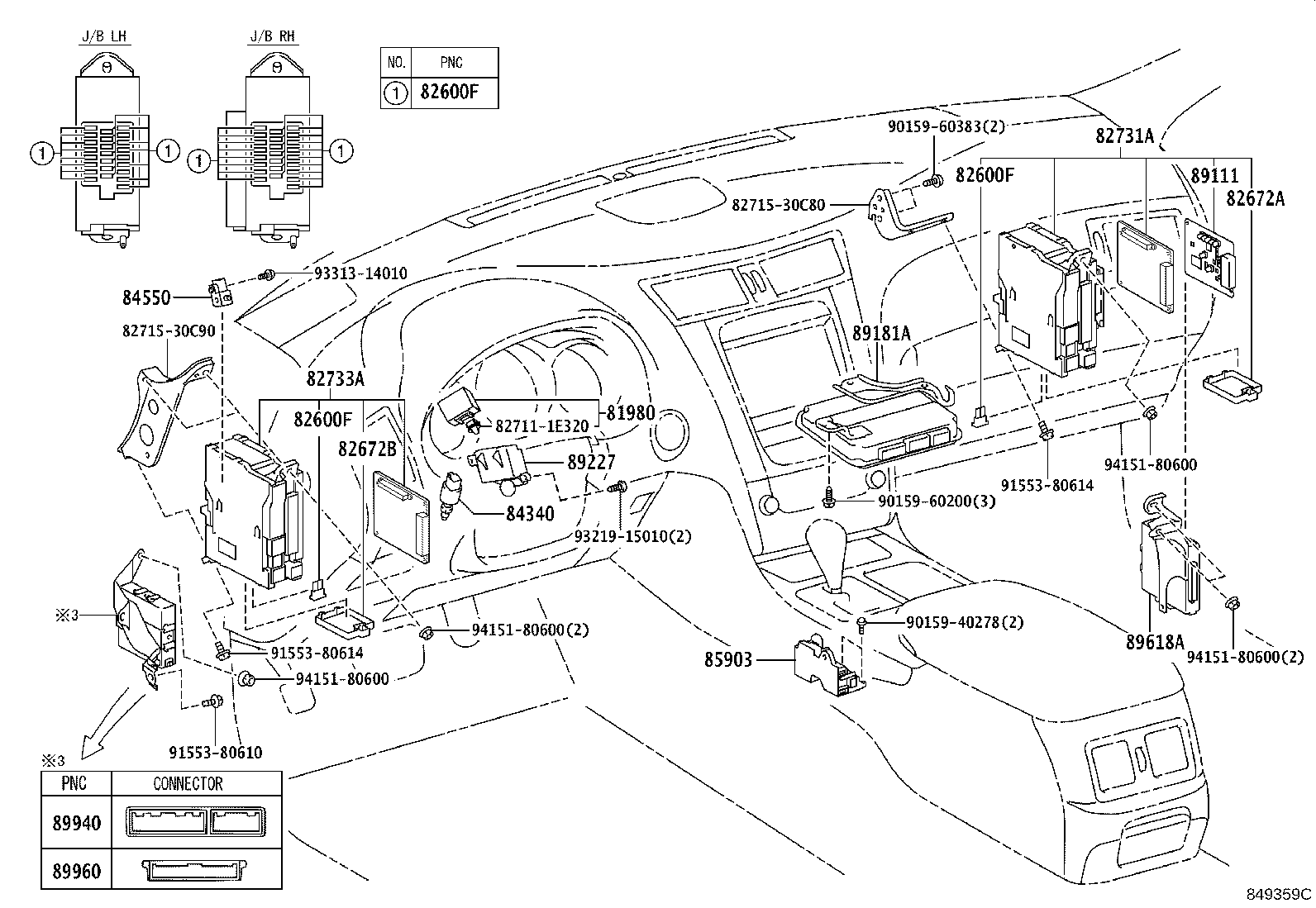

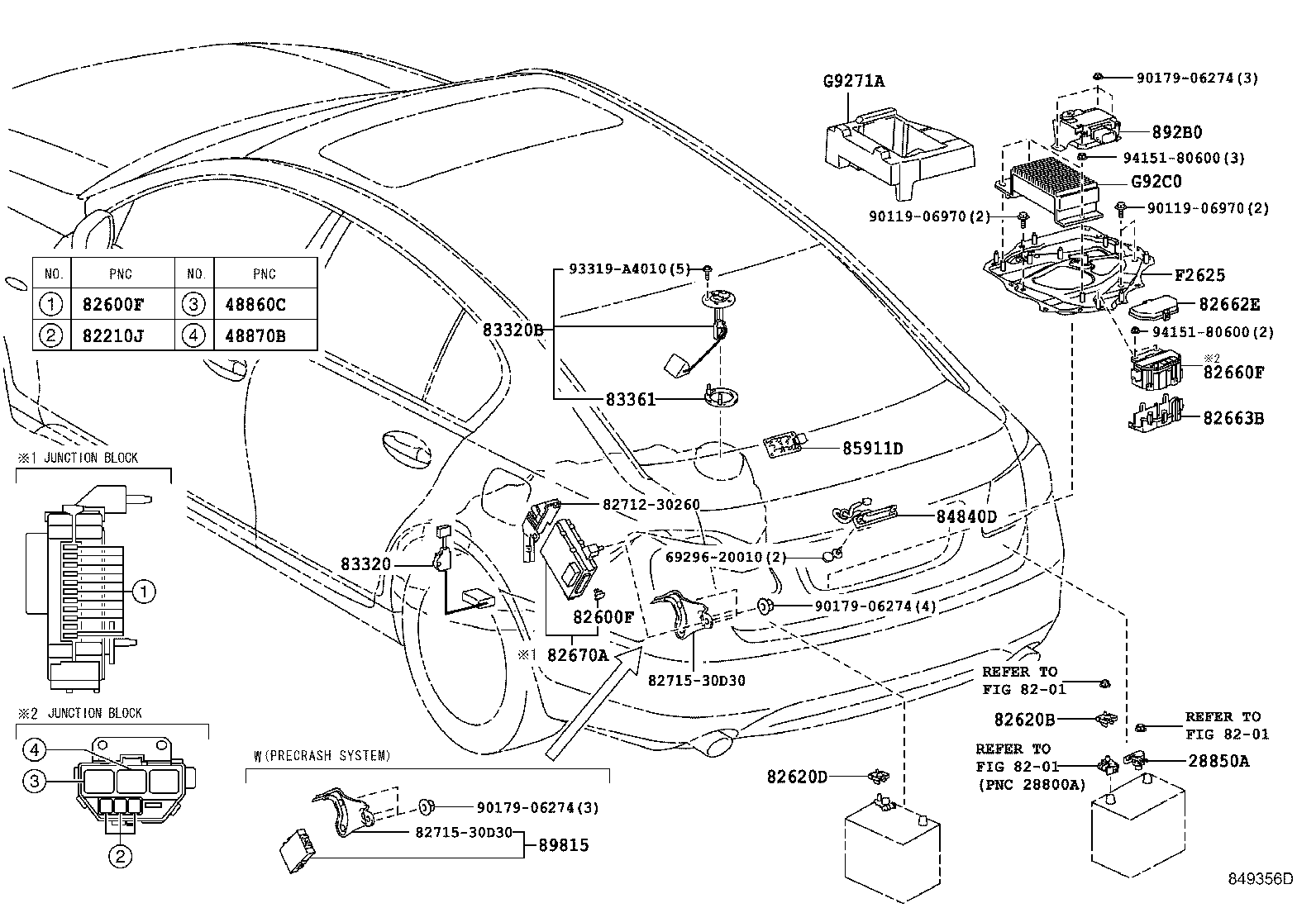

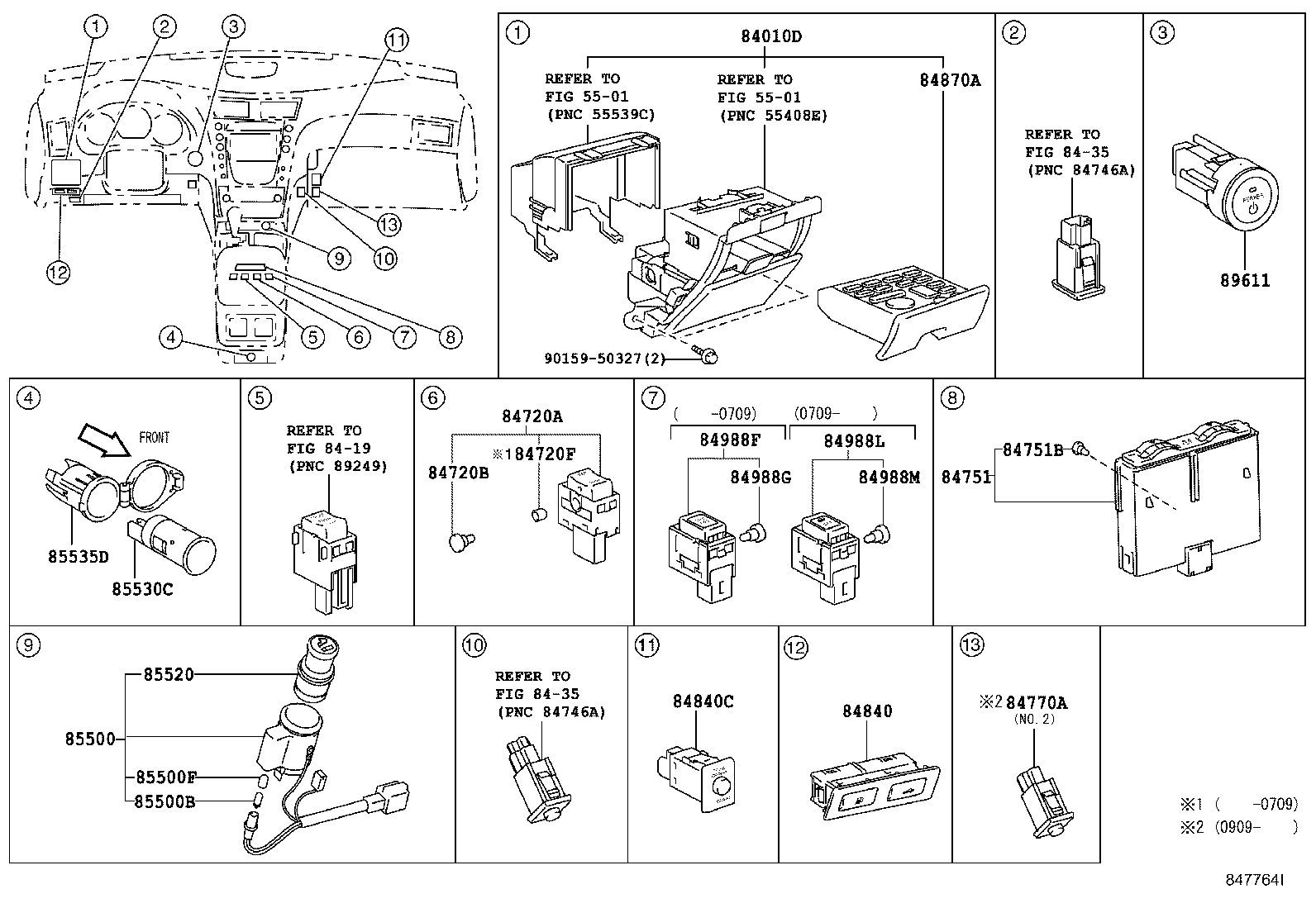

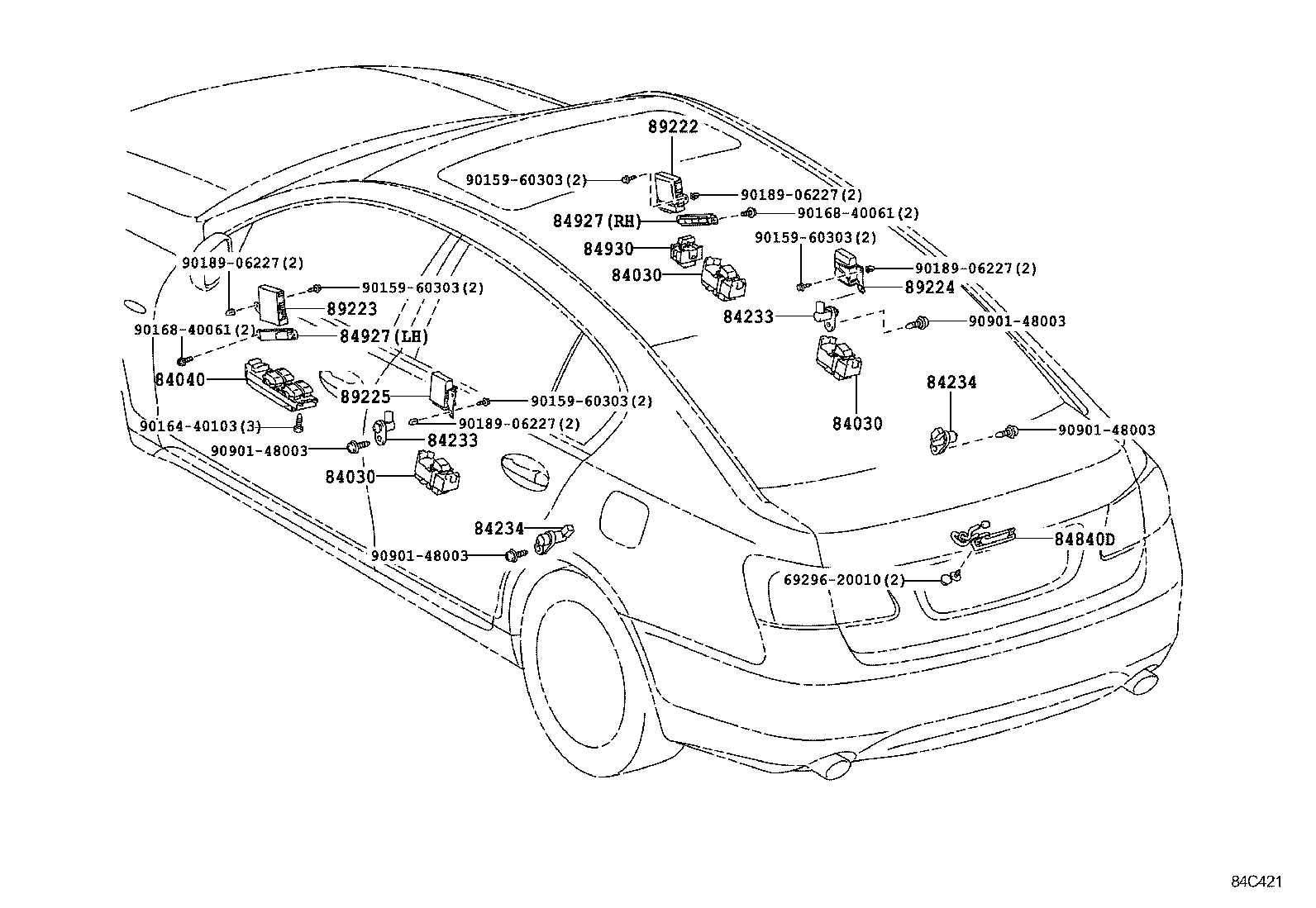

Illustrations
Part groups
| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 28371C | Relay, Ignition, NO.2 |
| 28380A | Resister, Fuel Pump |
| 28800R | Relay, Battery Fan |
| 28850A | Sensor Assy, Battery Current(FOR ACTIVE STABILIZER) |
| 48860C | Relay, Front Active Stabilizer |
| 48870B | Relay, Rear Active Stabilizer |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82610C | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82641C | Relay, Integration NO.2 |
| 82651A | Block, Terminal |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662E | Cover, Relay Block, Upper, NO.7 |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82666 | Holder, Connector |
| 82670A | Block Assy, Junction, NO.1 |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82731A | Block, Cowl Side Junction, RH |
| 82733A | Block, Cowl Side Junction, LH |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83361 | Gasket, Fuel Sender Gage |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83531C | Switch, Oil Pressure, (PB1) |
| 83531D | Switch, Oil Pressure, (PB2) |
| 83531E | Switch, Oil Pressure, (PB3) |
| 84010D | Control & Panel Assy, Integration |
| 84030 | Switch Assy,Multiplex Network |
| 84040 | Master Switch Assy,Multiplex Network |
| 84140 | Switch Assy, Headlamp Dimmer |

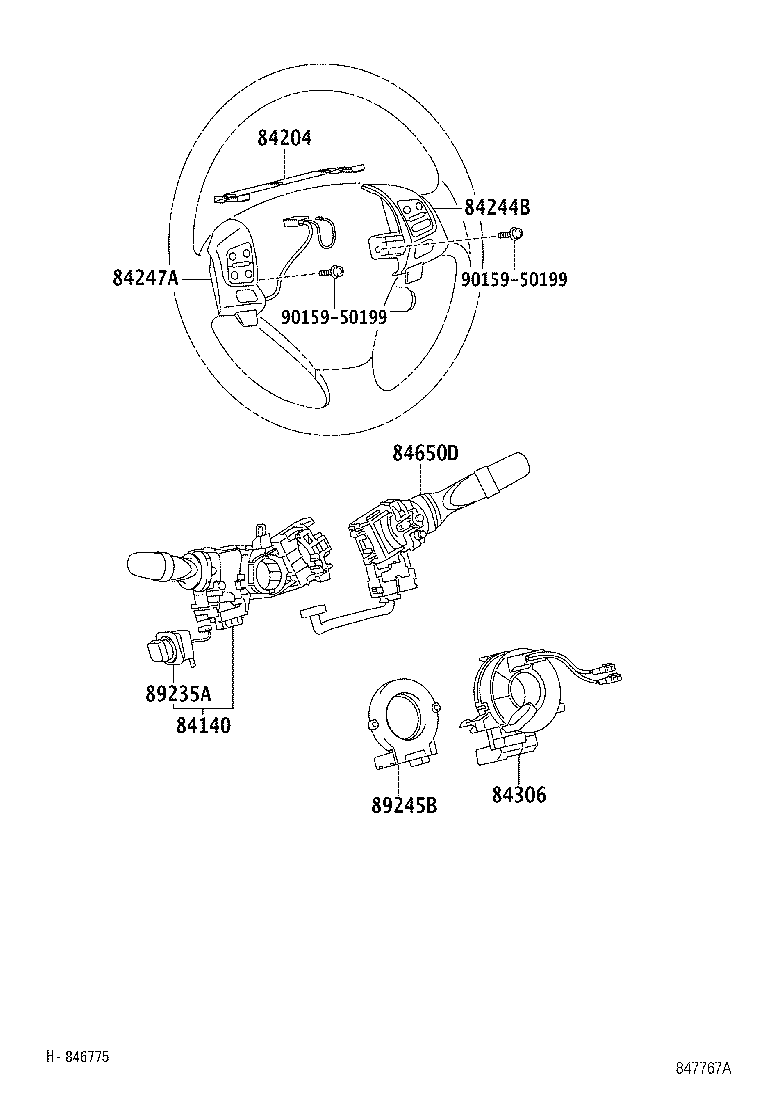

| 84204 | Cable Sub-assy, Steering Pad Switch |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84244B | Switch, Steering Pad, RH |
| 84247A | Switch, Steering Pad, LH |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84340 | Switch Assy, Stop Lamp |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84720A | Switch Assy, Pattern Select, NO.1 |
| 84720B | Bulb (FOR PATTERN SELECT SWITCH) |
| 84720F | Cap, Pattern Select Switch |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794A | Relay, FR Wiper Deicer |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840C | Switch Assy, Luggage Door Opening, Cancel |
| 84840D | Switch Assy, Luggage Door Opening |
| 84870A | Switch Assy, Outer Mirror |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84930 | Switch Assy, Door Control |
| 84988F | Switch, Traction Control |
| 84988G | Bulb, Traction Control Switch |
| 84988L | Switch, Vsc Off |
| 84988M | Bulb, Vsc Off Switch |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530C | Socket Assy, Power Outlet, Center |
| 85535D | Cover, Power Outlet Socket, Center |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85911D | Relay, Rear Sunshade |
| 85912 | Relay, Defogger |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85942 | Relay, Headlamp Cleaner Control |
| 89111 | Computer, Network Gateway |
| 89181A | Computer, Steering Control |
| 89211A | Computer, Multiplex Network Body |
| 89222 | Computer, Multiplex Network Door, Front RH |
| 89223 | Computer, Multiplex Network Door, Front LH |
| 89224 | Computer, Multiplex Network Door, Rear RH |
| 89225 | Computer, Multiplex Network Door, Rear LH |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 892A0 | Computer Assy, Front Active Stabilizer Control |
| 892A1 | Cover, Rear Active Stabilizer Control Computer |
| 892B0 | Computer Assy, Rear Active Stabilizer Control |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89618A | Computer, Power Source Control |
| 89650 | Computer Assy, Power Steering |
| 89650E | Relay, Electric Power Steering |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| 89960 | Computer Assy, Headlamp Leveling |
| F2615 | Bracket, Front Active Stabilizer Computer |
| F2625 | Bracket, Rear Active Stabilizer Computer |
| G1167 | Controller, Oil Pump Motor |
| G1168 | Bracket, Oil Pump Motor Controller |
| G9271A | Cover, Active Stabilizer Converter |
| G92C0 | Converter Assy, Active Stabilizer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
