Toyota Lexus GS F
2015-10 → 2020-07 · chassis URL10 · catalogue 336410 · United States
Supported model
Data version 2021-02
Wiring & Clamp
77 part groups · 9 illustrations
Part groups

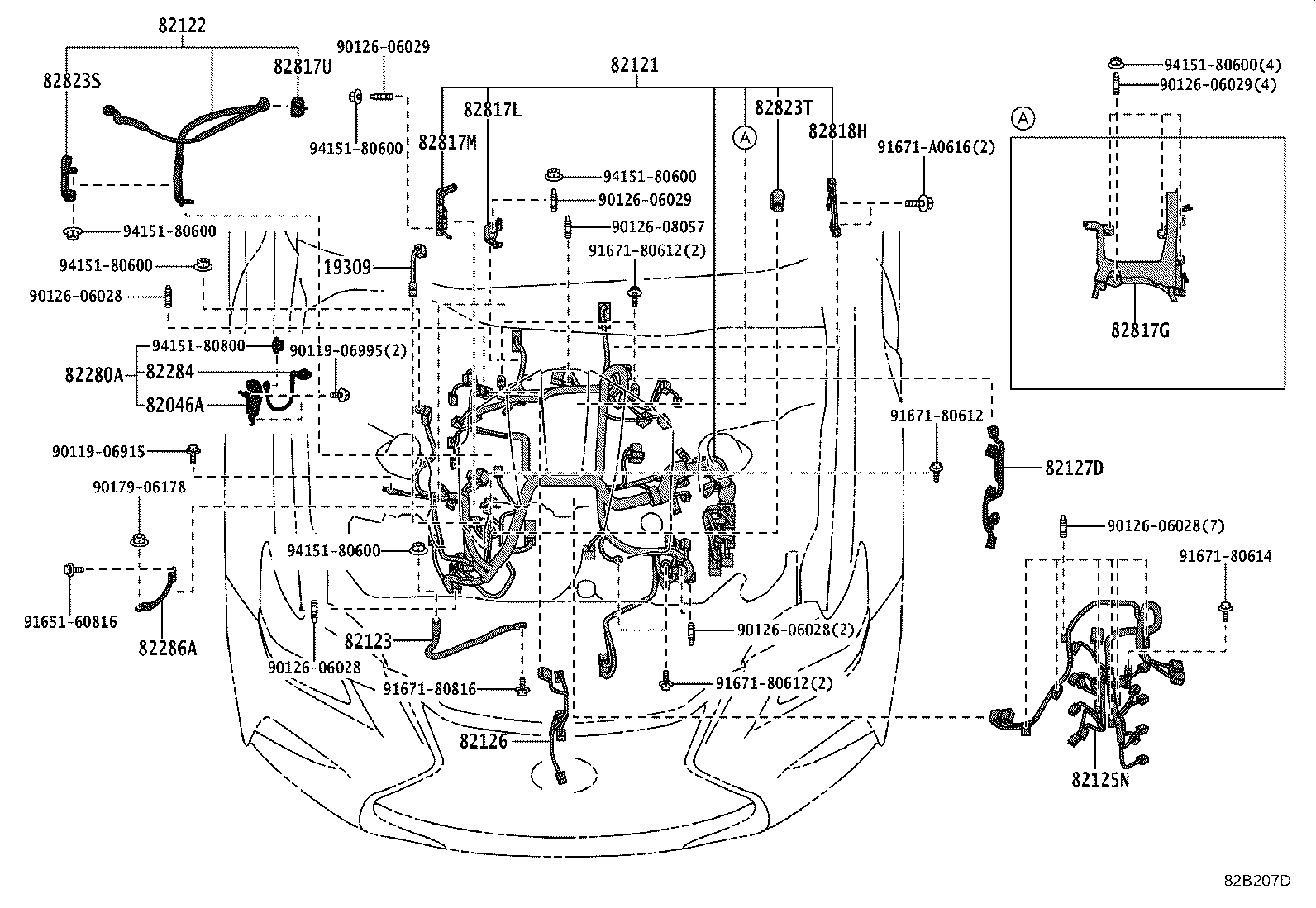

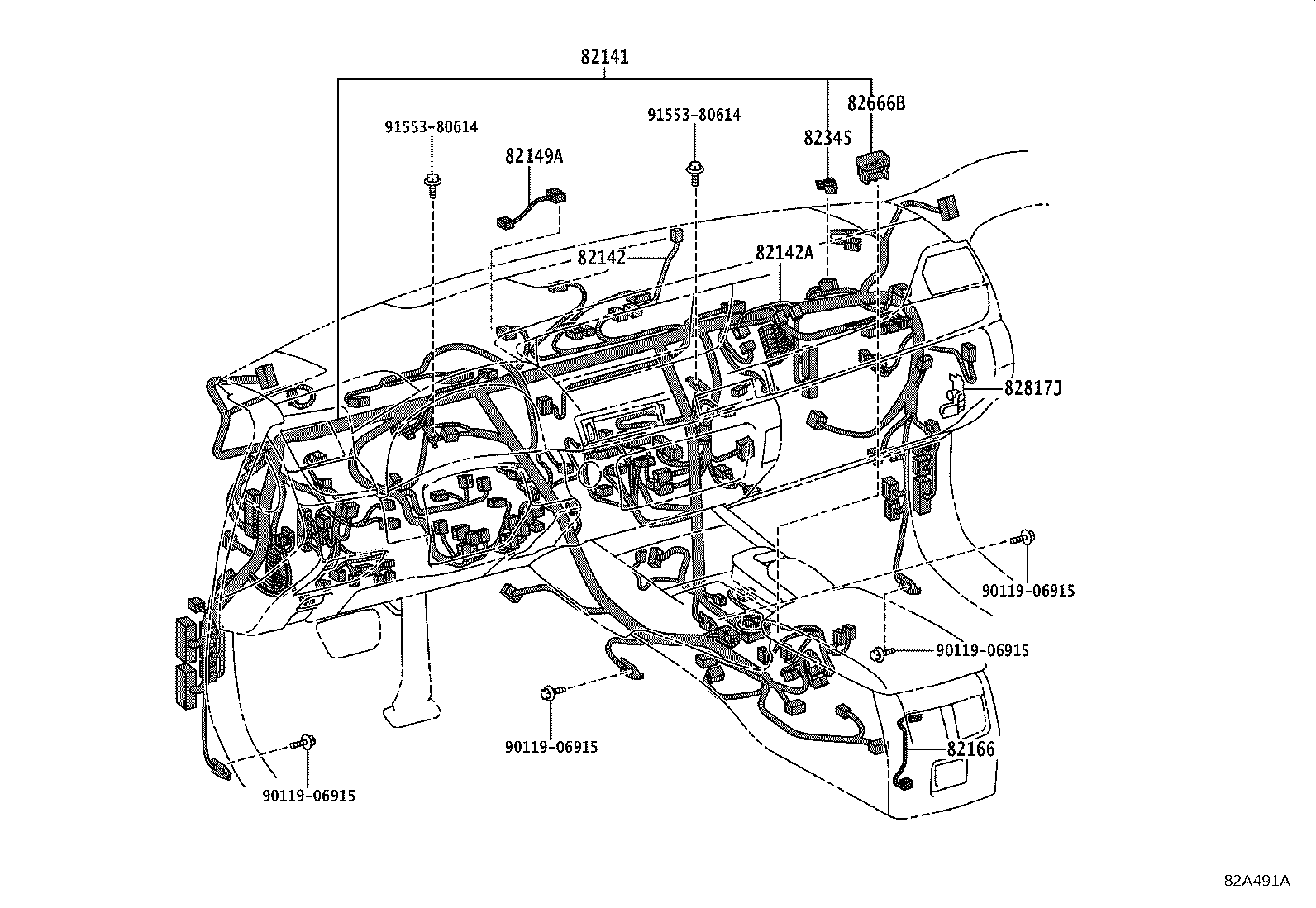

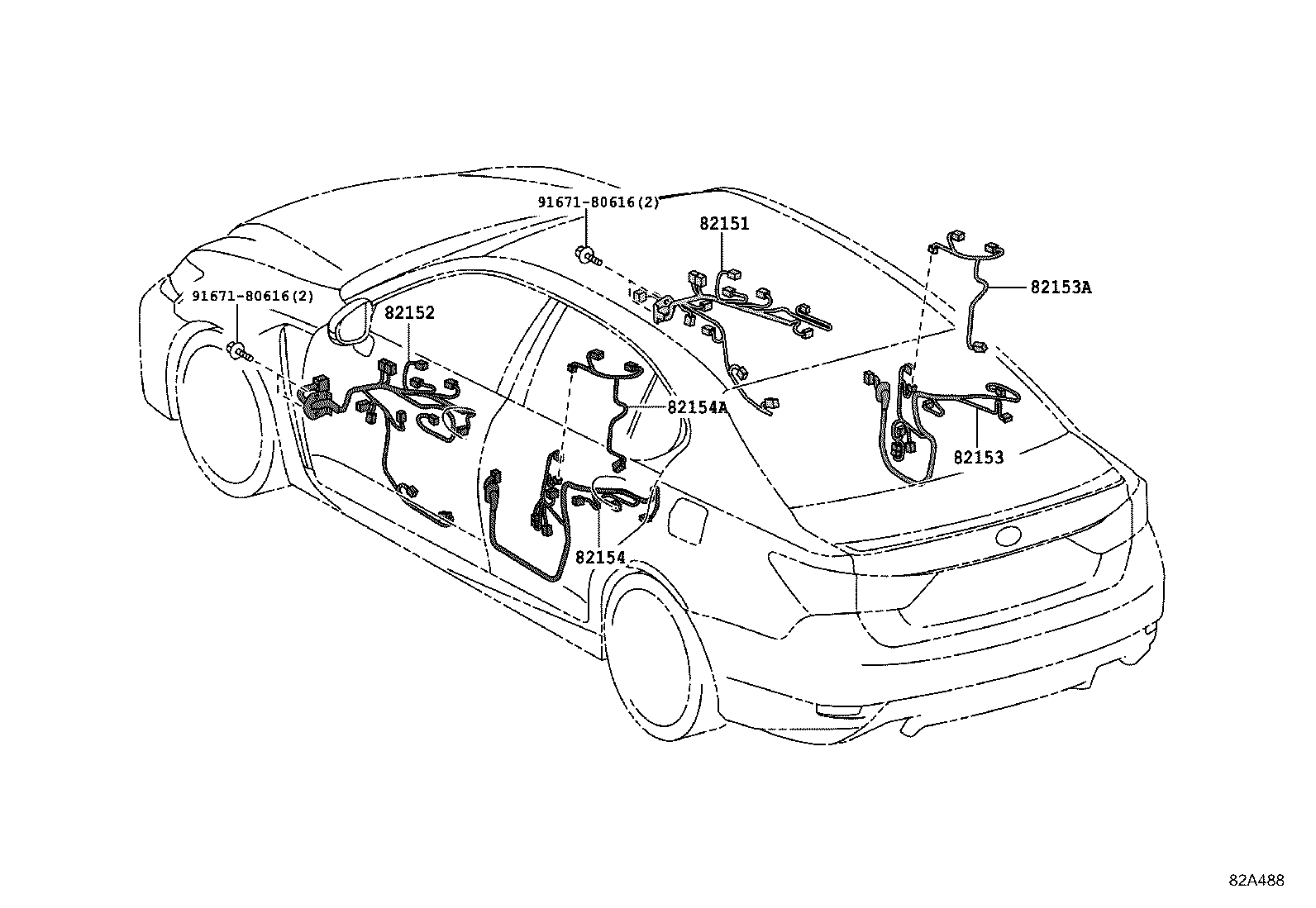

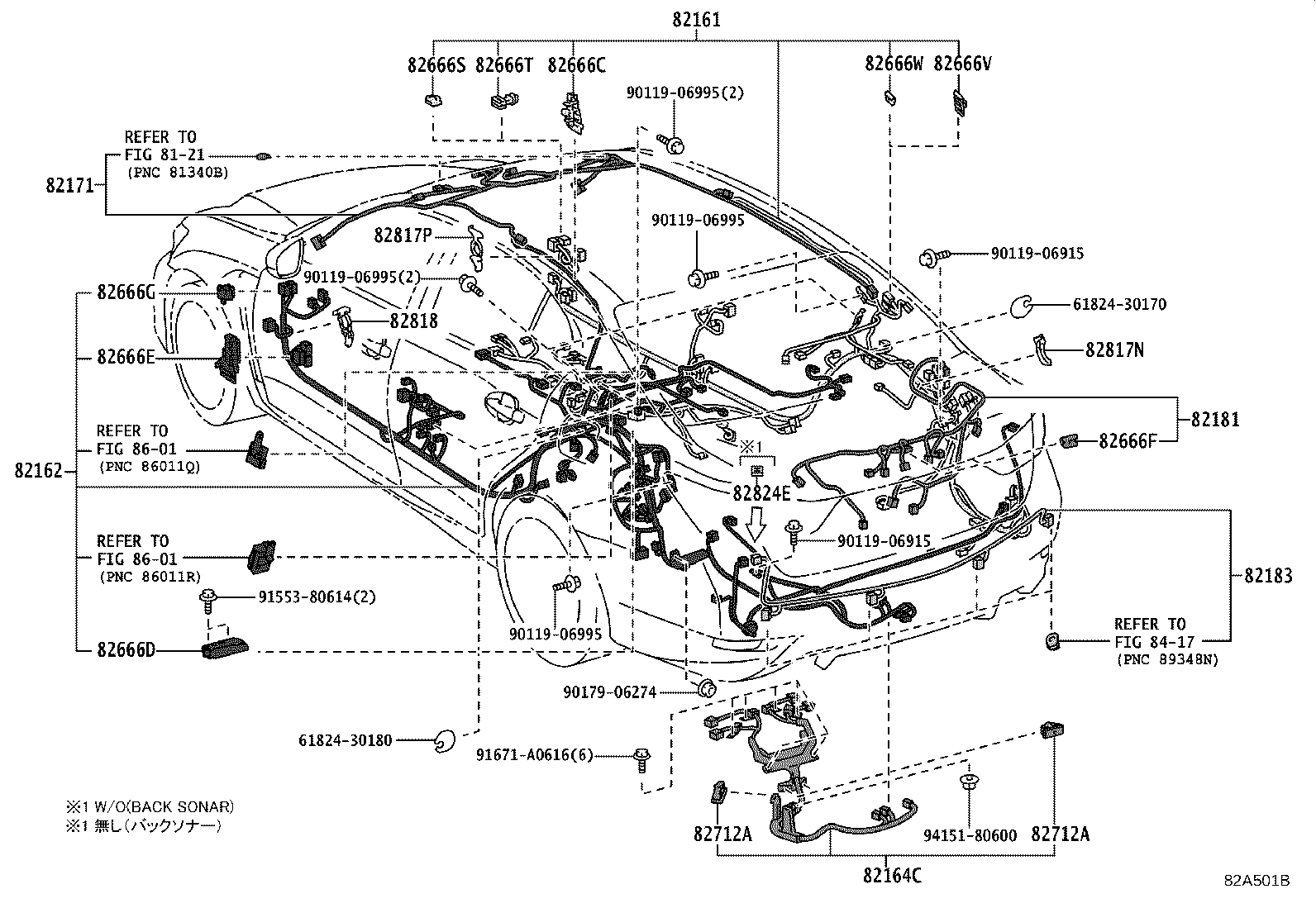

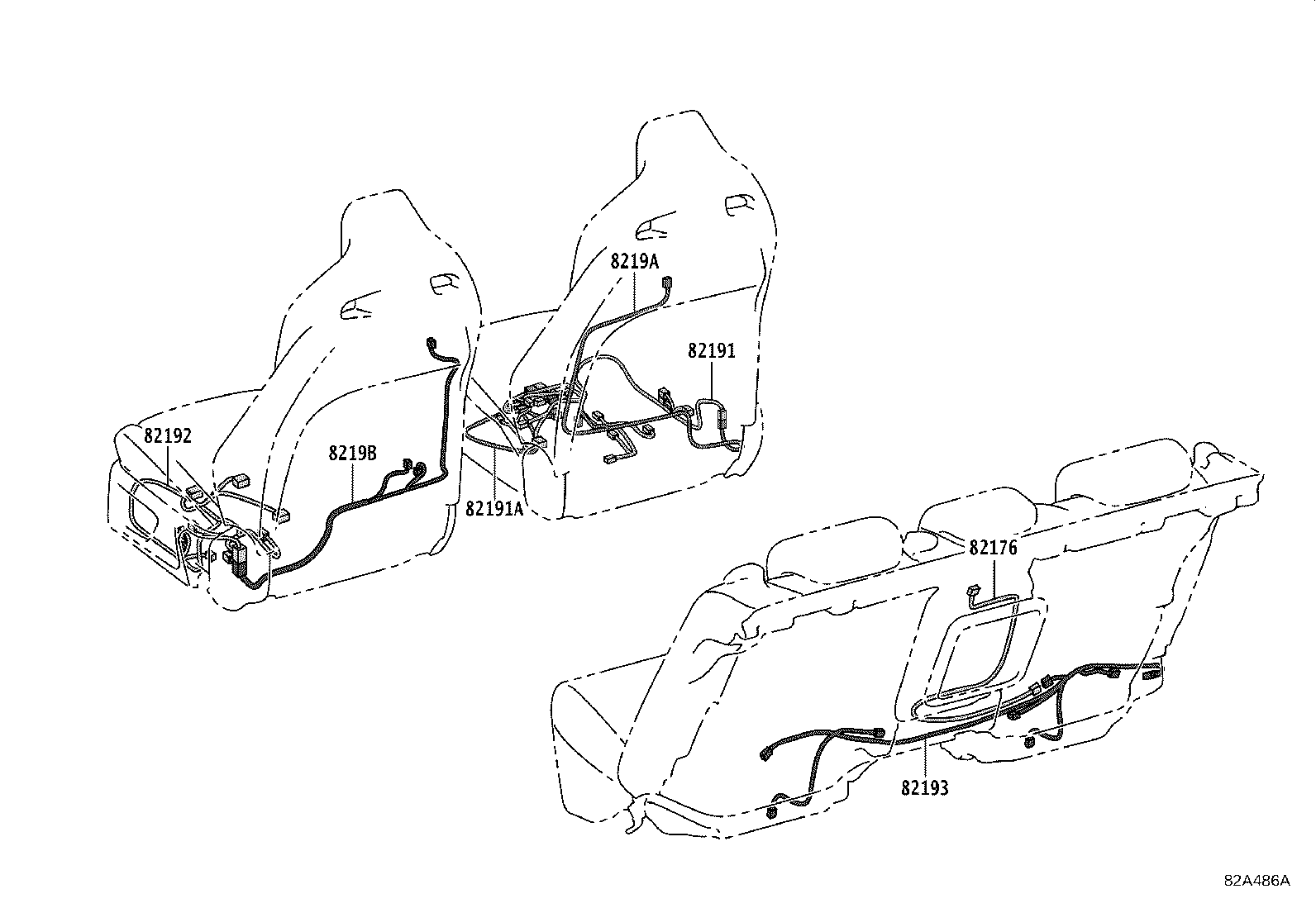

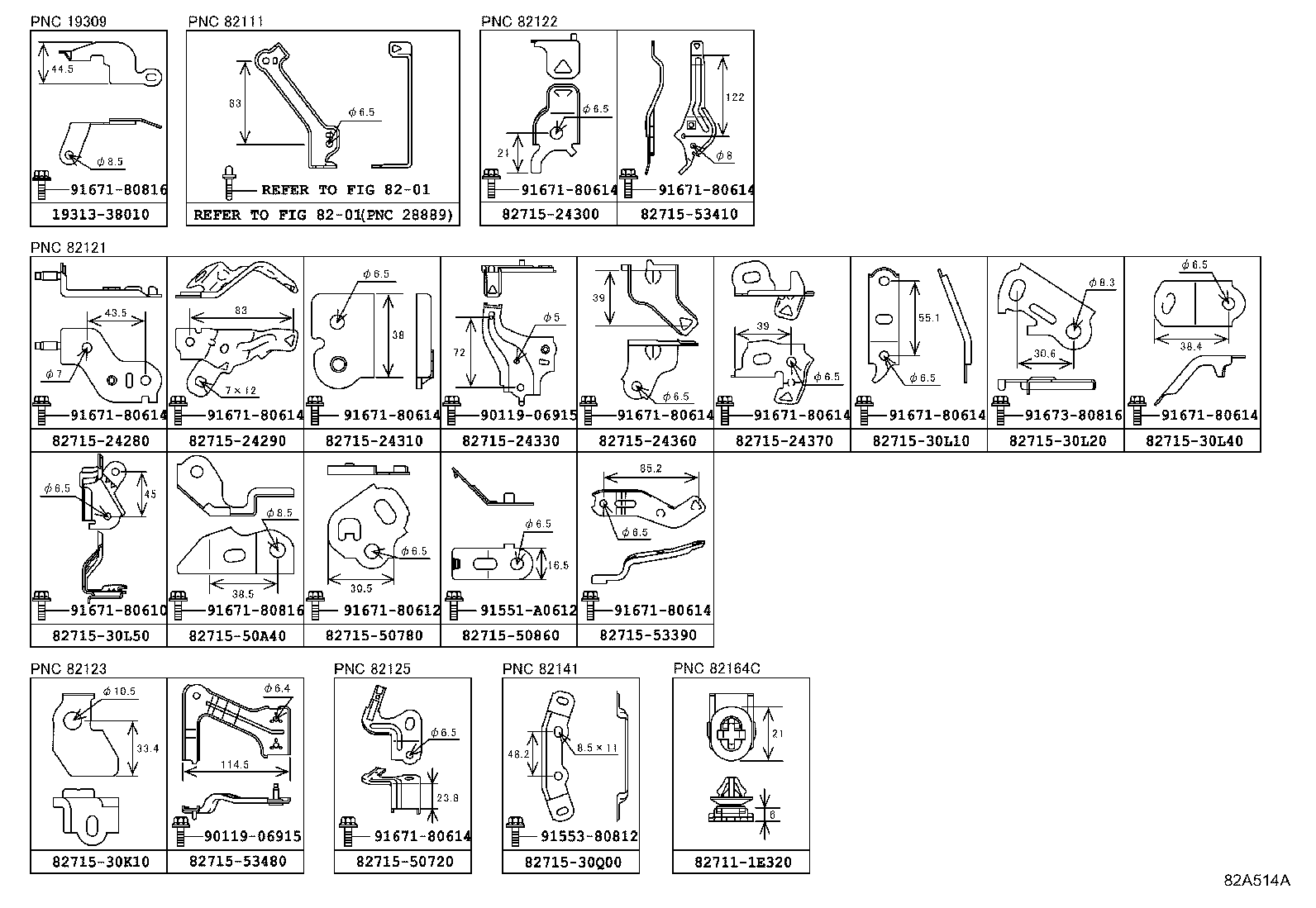

| PNC | Description |
|---|---|
| 16364A | Wire, Cooling Fan |
| 19309 | Harness Sub-assy, Cam Position Sensor |
| 82046A | Wire Sub-assy, Body Ground, NO.1 |
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |
| 82114 | Wire, Engine Room, NO.4 |
| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82125N | Wire, Engine, NO.5 |
| 82126 | Wire, Engine |
| 82127D | Wire, Engine, NO.7 |
| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82149A | Wire, Instrument Panel, NO.5 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82153A | Wire, Rear Door, RH |
| 82154 | Wire, Rear Door, NO.2 |
| 82154A | Wire, Rear Door, LH |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164C | Wire, Floor, NO.4 |
| 82166 | Wire, Console Box |
| 82171 | Wire, Roof, NO.1 |
| 82176 | Wire, Rear Console Box |
| 82181 | Wire, Luggage Room, NO.1 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82191 | Wire, Front Seat, RH |
| 82191A | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82193 | Wire, Rear Seat, RH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 82280A | Wire Assy, Battery TO Cowl Top Side |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82345 | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |
| 82712A | Support, Wiring Harness |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821U | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |

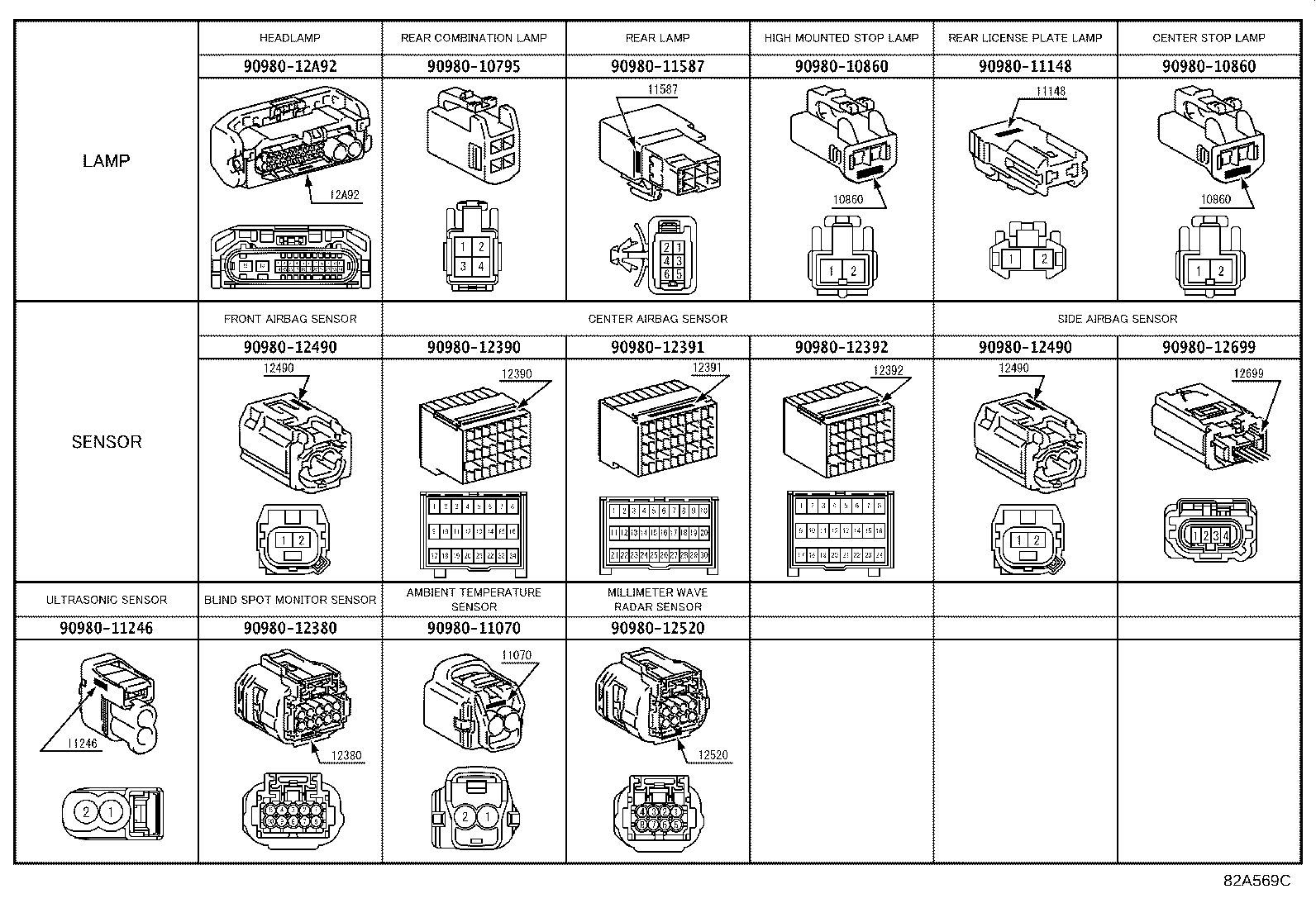

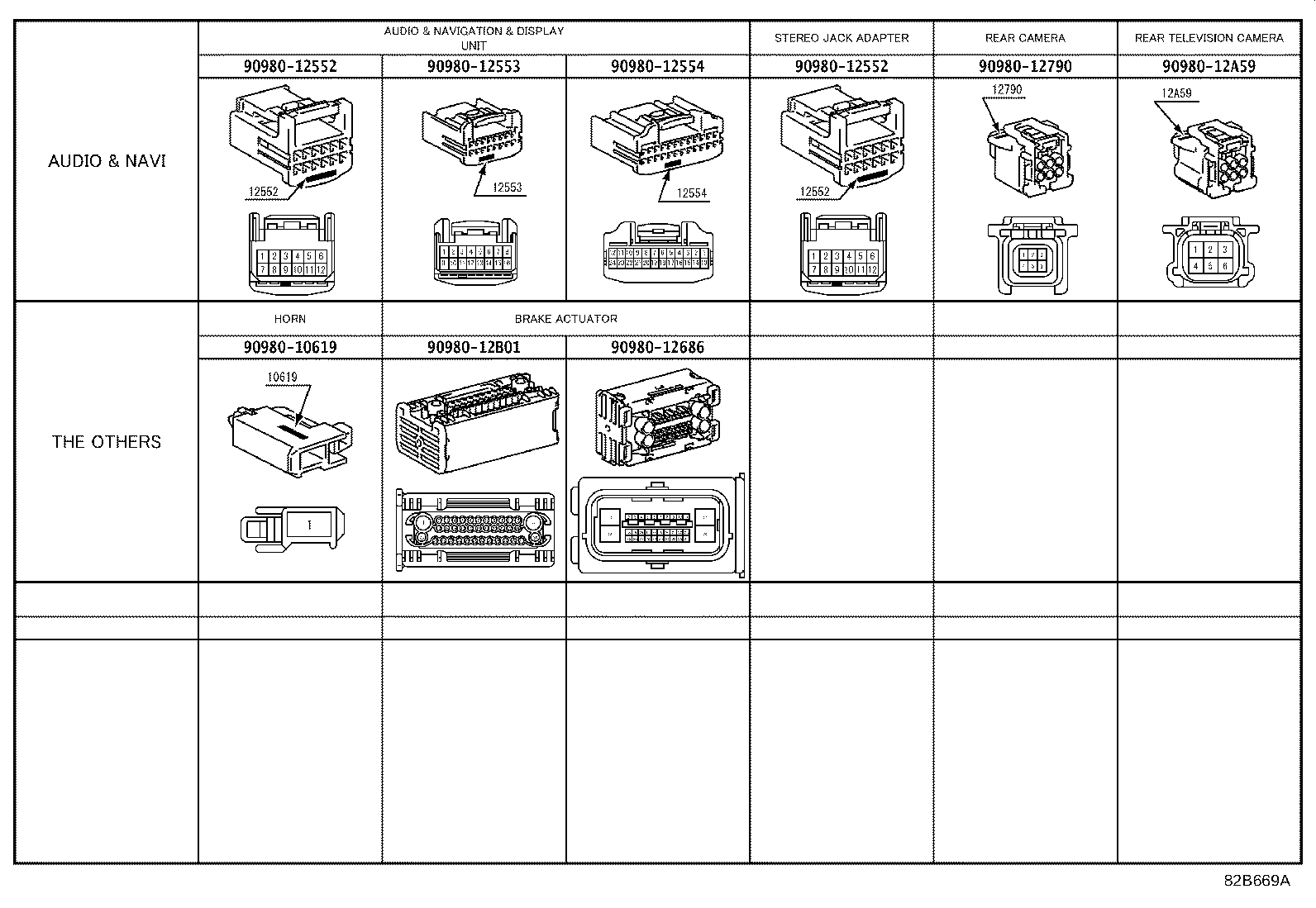

| 82824 | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82930 | Condenser Assy, Wiring Harness, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
