Toyota Crown
2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States
Supported model
Data version 2024-05

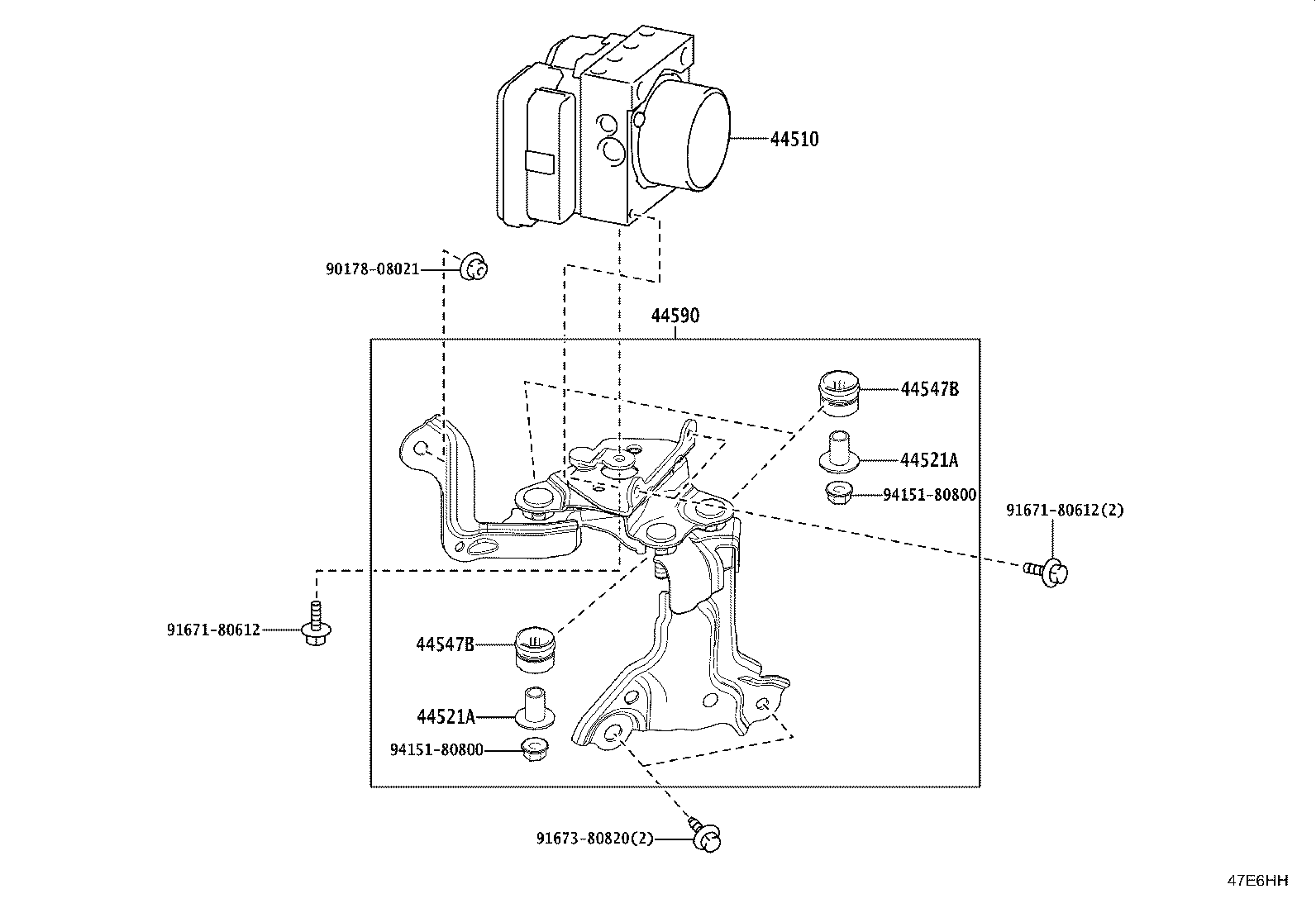

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-30M40 |
Actuator Assy, Brake
2024-06 → 2024-09
ended
|
AZSH38 | — | |
| 44050-30M41 |
Actuator Assy, Brake
2024-10 → —
|
AZSH38 | — | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-33020 |
Collar, Brake Actuator Case, NO.1
2024-06 → —
|
AZSH38 | — | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-62010 |
Cushion, Brake Actuator Bracket
2024-06 → —
|
AZSH38 | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-78050 |
Bracket Assy, Brake Actuator
2024-06 → —
|
AZSH38 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
