Toyota Crown
2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States
Supported model
Data version 2024-05

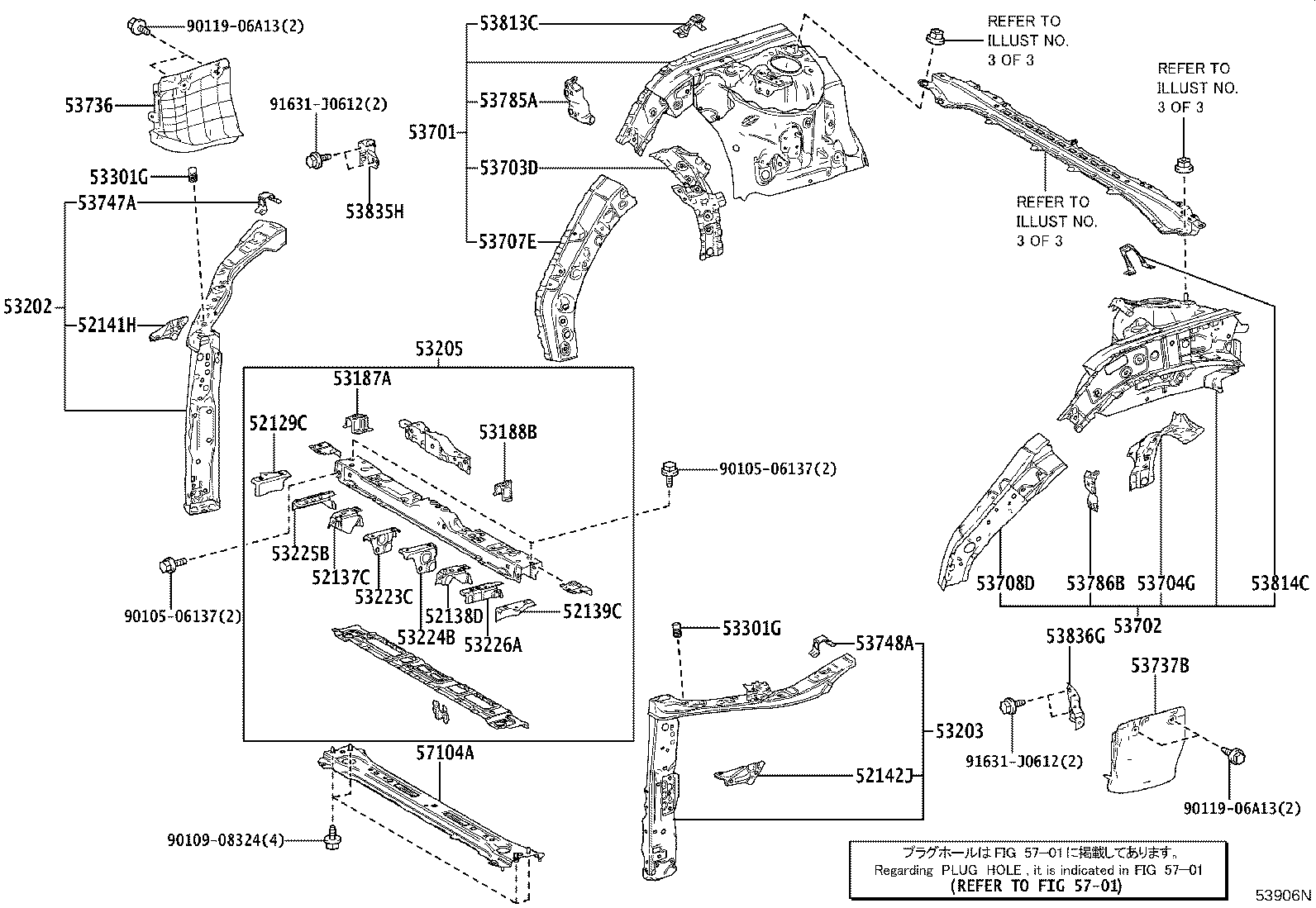

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52129C — Arm, Front Bumper, Upper NO.2 RH | ||||
| 52129-48030 |
Arm, Front Bumper, Upper NO.2 RH
2024-06 → —
|
AZSH38 | — | |
| 52137C — Bracket, Front Bumper Arm Mounting, NO.3 | ||||
| 52137-42030 |
Bracket, Front Bumper Arm Mounting, NO.3
2024-06 → —
|
AZSH38 | — | |
| 52138D — Bracket, Front Bumper Arm Mounting, NO.4 | ||||
| 52138-48010 |
Bracket, Front Bumper Arm Mounting, NO.4
2024-06 → —
|
AZSH38 | — | |
| 52139C — Arm, Front Bumper, Upper NO.2 LH | ||||
| 52139-48020 |
Arm, Front Bumper, Upper NO.2 LH
2024-06 → —
|
AZSH38 | — | |
| 52141H — Arm, Front Bumper, Upper RH | ||||
| 52141-30320 |
Arm, Front Bumper, Upper RH
2024-06 → —
|
AZSH38 | — | |
| 52142J — Arm, Front Bumper, Upper LH | ||||
| 52142-30280 |
Arm, Front Bumper, Upper LH
2024-06 → —
|
AZSH38 | — | |
| 53187A — Stay, Radiator Support, RH | ||||
| 53187-30030 |
Stay, Radiator Support, RH
2024-06 → —
|
AZSH38 | — | |
| 53188B — Stay, Radiator Support, LH | ||||
| 53188-30040 |
Stay, Radiator Support, LH
2024-06 → —
|
AZSH38 | — | |
| 53202 — Support Sub-assy, Radiator, RH | ||||
| 53202-30911 |
Support Sub-assy, Radiator, RH
2024-06 → —
|
AZSH38 | — | |
| 53203 — Support Sub-assy, Radiator, LH | ||||
| 53203-30911 |
Support Sub-assy, Radiator, LH
2024-06 → —
|
AZSH38 | — | |
| 53205 — Support Sub-assy, Radiator, Upper | ||||
| 53205-30902 |
Support Sub-assy, Radiator, Upper
2024-06 → —
|
AZSH38 | — | |
| 53223C — Bracket, Radiator Grille Mounting, RH | ||||
| 53223-48030 |
Bracket, Radiator Grille Mounting, RH
2024-06 → —
|
AZSH38 | — | |
| 53224B — Bracket, Radiator Grille Mounting, LH | ||||
| 53224-48030 |
Bracket, Radiator Grille Mounting, LH
2024-06 → —
|
AZSH38 | — | |
| 53225B — Bracket, Radiator Grille Mounting, NO.3 | ||||
| 53225-48010 |
Bracket, Radiator Grille Mounting, NO.3
2024-06 → —
|
AZSH38 | — | |
| 53226A — Bracket, Radiator Grille Mounting, NO.4 | ||||
| 53226-48010 |
Bracket, Radiator Grille Mounting, NO.4
2024-06 → —
|
AZSH38 | — | |
| 53301G — Cushion, Hood Bumper | ||||
| 90541-15033 |
Cushion, Hood Bumper
2024-06 → —
|
AZSH38 | — | |
| 53701 — Apron Sub-assy, Front Fender, RH | ||||
| 53701-30C70 |
Apron Sub-assy, Front Fender, RH
2024-06 → —
|
AZSH38 | — | |
| 53702 — Apron Sub-assy, Front Fender, LH | ||||
| 53702-30B30 |
Apron Sub-assy, Front Fender, LH
2024-06 → —
|
AZSH38 | — | |
| 53703D — Apron Sub-assy, Front Fender, NO.2 RH | ||||
| 53703-42030 |
Apron Sub-assy, Front Fender, NO.2 RH
2024-06 → —
|
AZSH38 | — | |
| 53704G — Apron Sub-assy, Front Fender, NO.2 LH | ||||
| 53704-42040 |
Apron Sub-assy, Front Fender, NO.2 LH
2024-06 → —
|
AZSH38 | — | |
| 53707E — Apron Sub-assy, Fender Side, RH | ||||
| 53707-30030 |
Apron Sub-assy, Fender Side, RH
2024-06 → —
|
AZSH38 | — | |
| 53708D — Apron Sub-assy, Fender Side, LH | ||||
| 53708-30030 |
Apron Sub-assy, Fender Side, LH
2024-06 → —
|
AZSH38 | — | |
| 53736 — Seal, Front Fender Apron, RH | ||||
| 53736-42050 |
Seal, Front Fender Apron, RH
2024-06 → —
|
AZSH38 | — | |
| 53737B — Seal, Front Fender Apron, LH | ||||
| 53737-42010 |
Seal, Front Fender Apron, LH
2024-06 → —
|
AZSH38 | — | |
| 53747A — Extension, Apron Fender Side, RH | ||||
| 53747-30130 |
Extension, Apron Fender Side, RH
2024-06 → —
|
AZSH38 | — | |
| 53748A — Extension, Apron Fender Side, LH | ||||
| 53748-30100 |
Extension, Apron Fender Side, LH
2024-06 → —
|
AZSH38 | — | |
| 53785A — Gusset, Front Fender Apron, Upper RH | ||||
| 53785-42010 |
Gusset, Front Fender Apron, Upper RH
2024-06 → —
|
AZSH38 | — | |
| 53786B — Gusset, Front Fender Apron, Upper LH | ||||
| 53786-42010 |
Gusset, Front Fender Apron, Upper LH
2024-06 → —
|
AZSH38 | — | |
| 53813C — Extension, Front Fender, RH | ||||
| 53813-30090 |
Extension, Front Fender, RH
2024-06 → —
|
AZSH38 | — | |
| 53814C — Extension, Front Fender, LH | ||||
| 53814-30080 |
Extension, Front Fender, LH
2024-06 → —
|
AZSH38 | — | |
| 53835H — Brace, Front Fender TO Extension, RH | ||||
| 53835-30170 |
Brace, Front Fender TO Extension, RH
2024-06 → —
|
AZSH38 | — | |
| 53836G — Brace, Front Fender TO Extension, LH | ||||
| 53836-30120 |
Brace, Front Fender TO Extension, LH
2024-06 → —
|
AZSH38 | — | |
| 57104A — Member Sub-assy, Front Cross | ||||
| 57104-42090 |
Member Sub-assy, Front Cross
2024-06 → —
|
AZSH38 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
