Toyota Crown
2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States
Supported model
Data version 2024-05

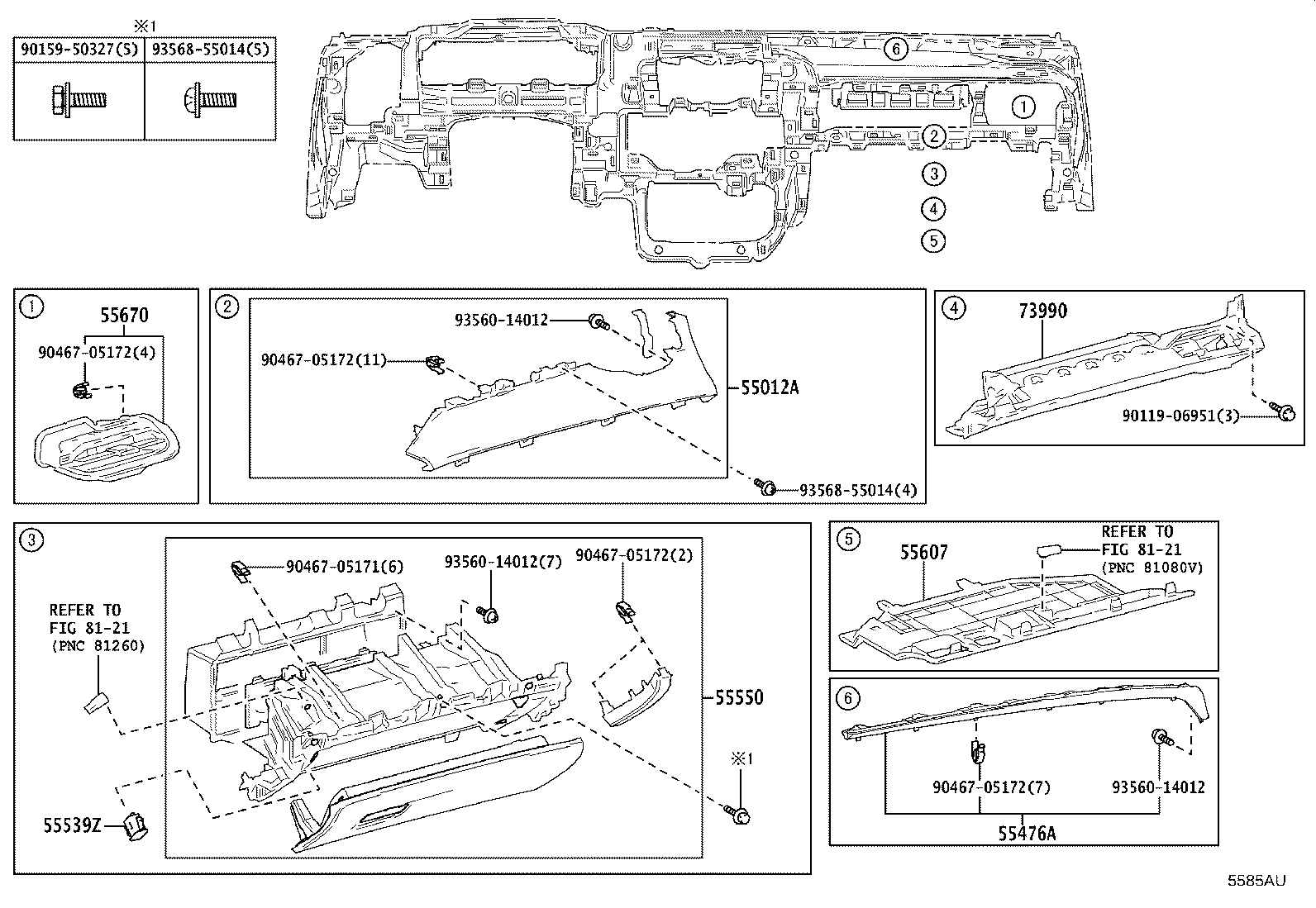

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55012A — Garnish Sub-assy, Instrument Panel, NO.2 | ||||
| 55012-30300-C0 note |
Garnish Sub-assy, Instrument Panel, NO.2
2024-06 → —
|
AZSH38 | — | |
| 55012-30300-E0 note |
Garnish Sub-assy, Instrument Panel, NO.2
2024-06 → —
|
AZSH38 | — | |
| 55476A — Garnish, Instrument Cluster Finish Panel, NO.3 | ||||
| 55476-30350-C0 note |
Garnish, Instrument Cluster Finish Panel, NO.3
2024-06 → —
|
AZSH38 | — | |
| 55476-30350-E2 note |
Garnish, Instrument Cluster Finish Panel, NO.3
2024-06 → —
|
AZSH38 | — | |
| 55539Z — Cover, Spare Switch Hole | ||||
| 55539-48020 |
Cover, Spare Switch Hole
2024-06 → —
|
AZSH38 | — | |
| 55550 — Door Assy, Glove Compartment | ||||
| 55550-30530-C0 note |
Door Assy, Glove Compartment
2024-06 → —
|
AZSH38 G | — | |
| 55550-30530-C0 note |
Door Assy, Glove Compartment
2024-06 → —
|
AZSH38 M | — | |
| 55607 — Cover Sub-assy, Instrument Panel Under, NO.2 | ||||
| 55607-30400 |
Cover Sub-assy, Instrument Panel Under, NO.2
2024-06 → —
|
AZSH38 | — | |
| 55670 — Register Assy, Instrument Panel, NO.3 | ||||
| 55670-30670-C0 note |
Register Assy, Instrument Panel, NO.3
2024-06 → —
|
AZSH38 G | — | |
| 55670-30670-C0 note |
Register Assy, Instrument Panel, NO.3
2024-06 → —
|
AZSH38 M | — | |
| 73990 — Airbag Assy, Instrument Panel, Lower NO.2 | ||||
| 73990-30070-C0 note |
Airbag Assy, Instrument Panel, Lower NO.2
2024-06 → —
|
AZSH38 G | — | |
| 73990-30070-C0 note |
Airbag Assy, Instrument Panel, Lower NO.2
2024-06 → —
|
AZSH38 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
