Toyota Crown

2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States

Supported model Data version 2024-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

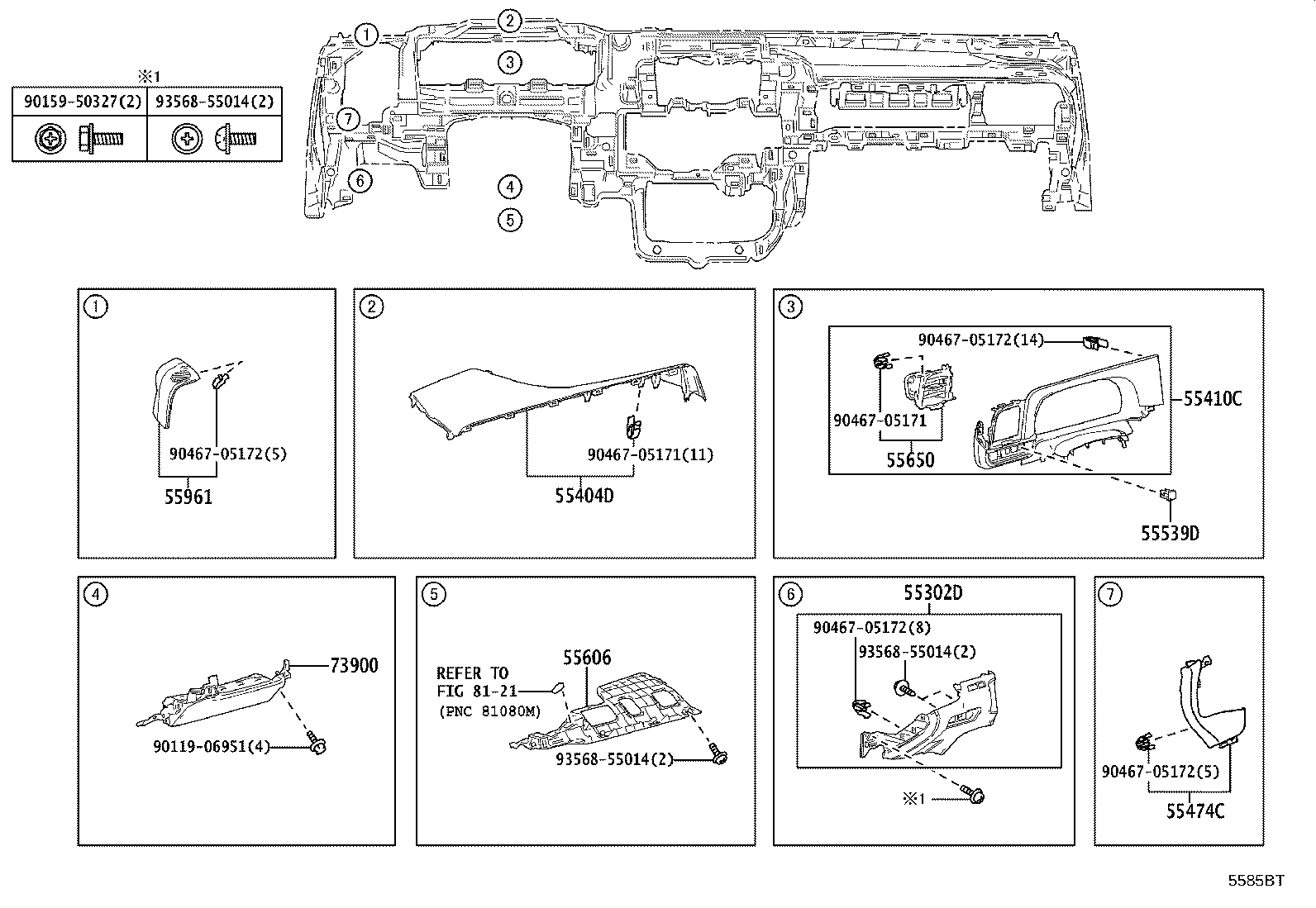

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

13 parts on this figure

Part number	Description	Fitment	Price
55302D — Panel Sub-assy, Instrument, Lower, NO.1
55302-30250-C0 note	Panel Sub-assy, Instrument, Lower, NO.1 2024-06 → —	AZSH38 G	—
55302-30250-C0 note	Panel Sub-assy, Instrument, Lower, NO.1 2024-06 → —	AZSH38 M	—
55404D — Panel Sub-assy, Instrument Cluster Finish
55404-30C50	Panel Sub-assy, Instrument Cluster Finish 2024-06 → —	AZSH38	—
55410C — Panel Assy, Instrument Cluster Finish
55410-30A90-C0 note	Panel Assy, Instrument Cluster Finish 2024-06 → —	AZSH38 G	—
55410-30A90-C0 note	Panel Assy, Instrument Cluster Finish 2024-06 → —	AZSH38 M	—
55474C — Garnish, Instrument Cluster Finish Panel, NO.1
55474-30640-C0 note	Garnish, Instrument Cluster Finish Panel, NO.1 2024-06 → —	AZSH38	—
55474-30640-E0 note	Garnish, Instrument Cluster Finish Panel, NO.1 2024-06 → —	AZSH38	—
55539D — Cover, Spare Switch Hole
55539-42070-C1 note	Cover, Spare Switch Hole 2024-06 → —	AZSH38 G	—
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-30300	Cover Sub-assy, Instrument Panel Under, NO.1 2024-06 → —	AZSH38	—
55650 — Register Assy, Instrument Panel, NO.1
55650-30540	Register Assy, Instrument Panel, NO.1 2024-06 → —	AZSH38	—
55961 — Nozzle, Side Defroster, NO.1
55961-30170	Nozzle, Side Defroster, NO.1 2024-06 → —	AZSH38	—
73900 — Airbag Assy, Instrument Panel, Lower NO.1
73900-30110-C0 note	Airbag Assy, Instrument Panel, Lower NO.1 2024-06 → —	AZSH38 G	—
73900-30110-C0 note	Airbag Assy, Instrument Panel, Lower NO.1 2024-06 → —	AZSH38 M	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
