Toyota Crown
2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States
Supported model
Data version 2024-05

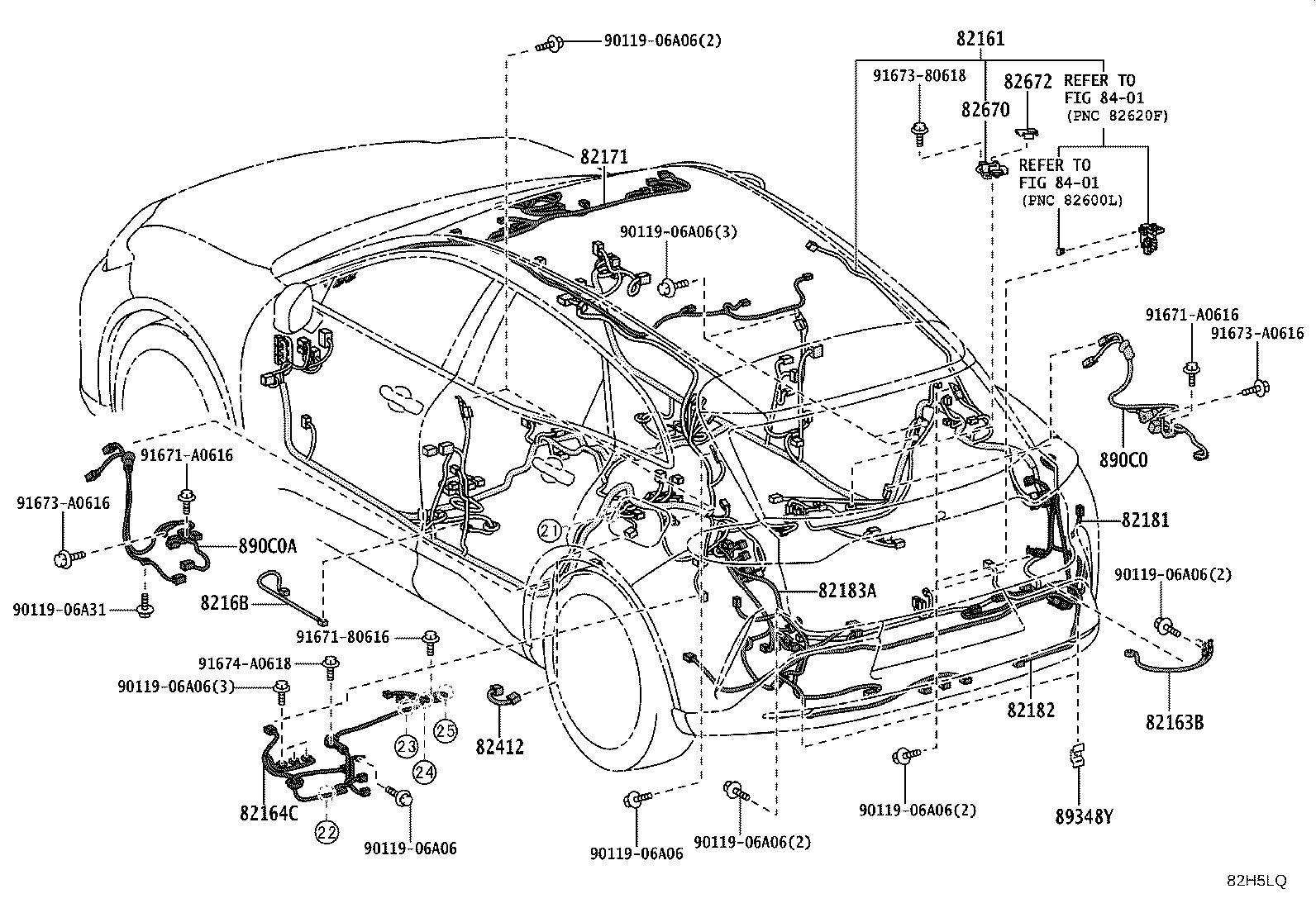

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82161 — Wire, Floor | ||||
| 82161-3FL70 |
Wire, Floor
2024-06 → —
|
AZSH38 | — | |
| 82161-3FN20 note |
Wire, Floor
2024-06 → —
|
AZSH38 G | — | |
| 82163B — Wire, Floor NO.5 | ||||
| 82165-30090 |
Wire, Floor NO.5
2024-06 → —
|
AZSH38 | — | |
| 82164C — Wire, Floor, NO.4 | ||||
| 82164-30370 |
Wire, Floor, NO.4
2024-06 → —
|
AZSH38 | — | |
| 8216B — Wire, Floor NO.8 | ||||
| 8216B-42010 |
Wire, Floor NO.8
2024-06 → —
|
AZSH38 | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-3A670 |
Wire, Roof, NO.1
2024-06 → —
|
AZSH38 M | — | |
| 82171-3A760 |
Wire, Roof, NO.1
2024-06 → —
|
AZSH38 G | — | |
| 82181 — Wire, Luggage Room, NO.1 | ||||
| 82181-30E20 |
Wire, Luggage Room, NO.1
2024-06 → —
|
AZSH38 | — | |
| 82182 — Wire, Luggage Room, NO.2 | ||||
| 82182-30740 |
Wire, Luggage Room, NO.2
2024-06 → —
|
AZSH38 | — | |
| 82182-30760 note |
Wire, Luggage Room, NO.2
2024-06 → —
|
AZSH38 G | — | |
| 82183A — Wire, Rear Bumper | ||||
| 82183-30520 |
Wire, Rear Bumper
2024-06 → —
|
AZSH38 M | — | |
| 82183-30540 |
Wire, Rear Bumper
2024-06 → —
|
AZSH38 G | — | |
| 82412 — Wire, Fuel Gage | ||||
| 82412-42180 |
Wire, Fuel Gage
2024-06 → —
|
AZSH38 | — | |
| 82670 — Block Assy, Junction, NO.1 | ||||
| 82670-30370 |
Block Assy, Junction, NO.1
2024-06 → —
|
AZSH38 | — | |
| 82672 — Cover, Junktion Block | ||||
| 82672-30560 |
Cover, Junktion Block
2024-06 → —
|
AZSH38 | — | |
| 890C0 — Wire Assy, Parking Brake, NO.1 | ||||
| 890C0-30070 |
Wire Assy, Parking Brake, NO.1
2024-06 → —
|
AZSH38 | — | |
| 890C0A — Wire Assy, Parking Brake, NO.2 | ||||
| 890C0-30080 |
Wire Assy, Parking Brake, NO.2
2024-06 → —
|
AZSH38 M | — | |
| 890C0-30120 |
Wire Assy, Parking Brake, NO.2
2024-06 → —
|
AZSH38 G | — | |
| 89348Y — Clip, Ultrasonic Sensor, Rear | ||||
| 89348-30A00 note |
Clip, Ultrasonic Sensor, Rear
2024-06 → —
|
AZSH38 G | — | |
| 89348-30A00 |
Clip, Ultrasonic Sensor, Rear
2024-06 → —
|
AZSH38 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
