Toyota Crown
2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States
Supported model
Data version 2024-05

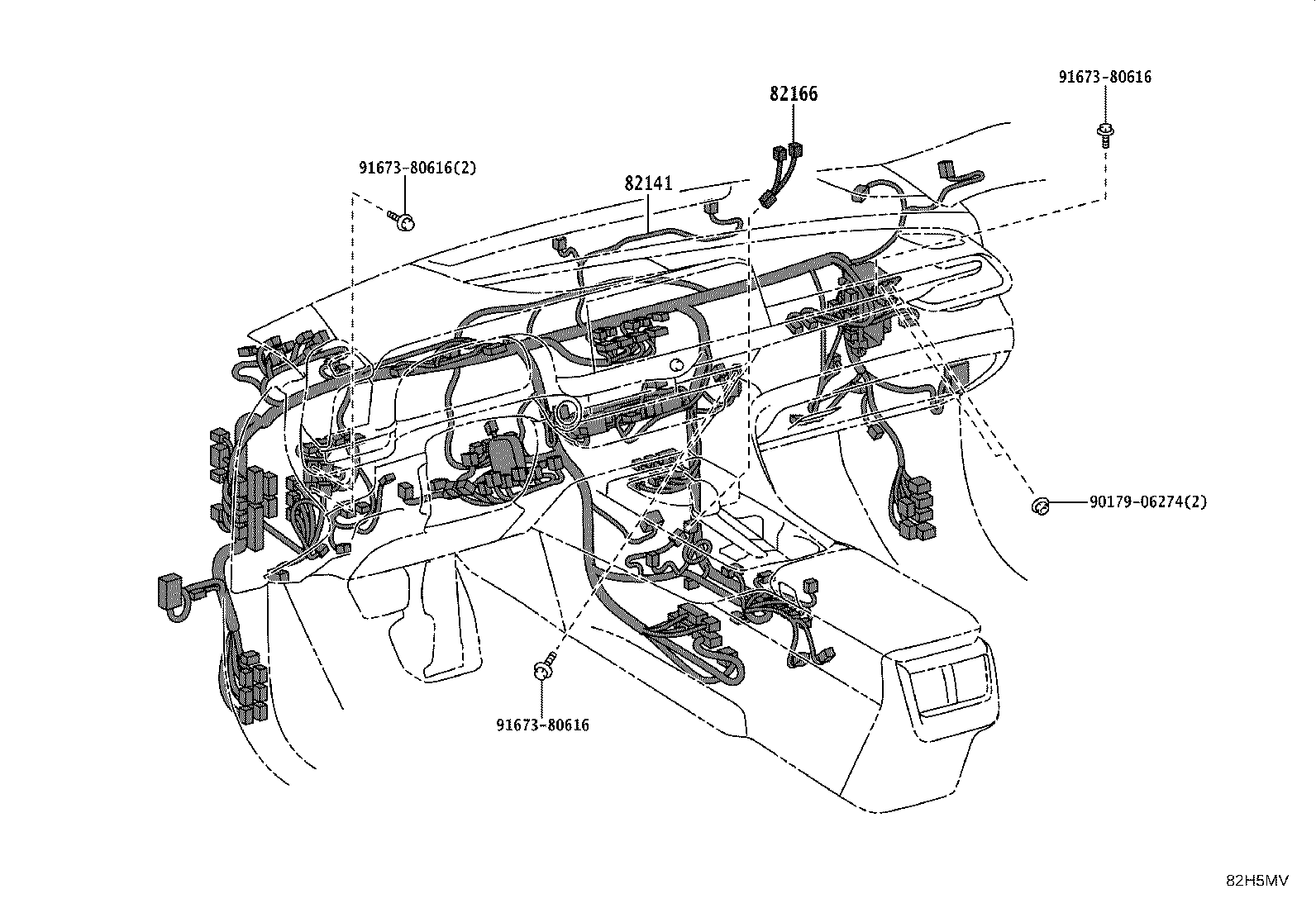

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-3KF20 |
Wire, Instrument Panel
2024-06 → —
|
AZSH38 G | — | |
| 82141-3KF30 note |
Wire, Instrument Panel
2024-06 → —
|
AZSH38 G | — | |
| 82141-3KG90 |
Wire, Instrument Panel
2024-06 → —
|
AZSH38 M | — | |
| 82141-3KG90 note |
Wire, Instrument Panel
2024-06 → —
|
AZSH38 G | — | |
| 82141-3KJ00 note |
Wire, Instrument Panel
2024-06 → —
|
AZSH38 G | — | |
| 82166 — Wire, Console Box | ||||
| 82166-30320 |
Wire, Console Box
2024-06 → —
|
AZSH38 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
