Toyota Crown
2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States
Supported model
Data version 2024-05

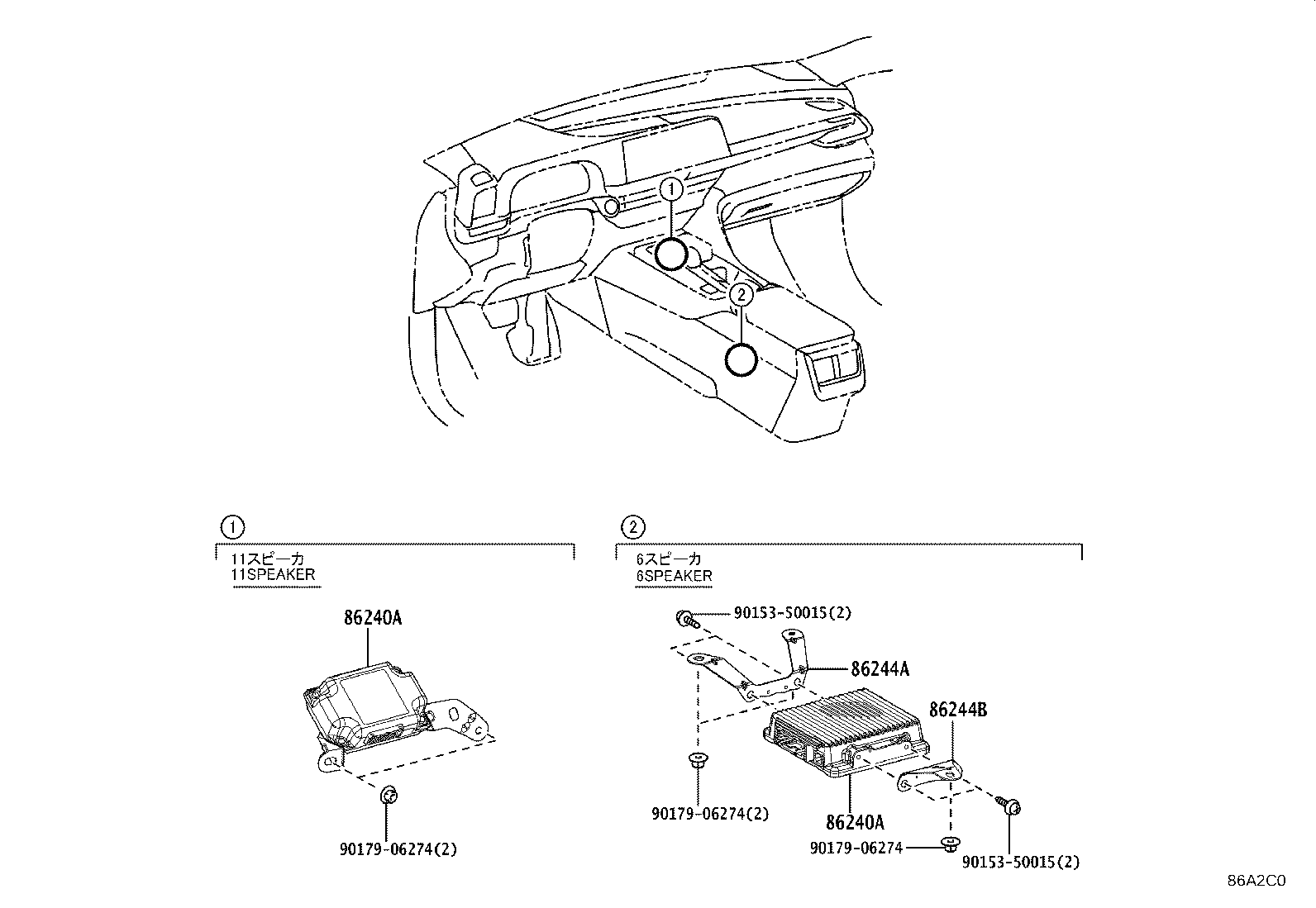

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86240A — Equalizer Assy,Stereo Component | ||||
| 86240-30140 |
Equalizer Assy,Stereo Component
2024-06 → —
|
AZSH38 M | — | |
| 86240-30140 note |
Equalizer Assy,Stereo Component
2024-06 → —
|
AZSH38 G | — | |
| 86240-30150 |
Equalizer Assy,Stereo Component
2024-06 → —
|
AZSH38 G | — | |
| 86244A — Bracket, Equalizer Stereo Component, NO.1 | ||||
| 86244-30070 |
Bracket, Equalizer Stereo Component, NO.1
2024-06 → —
|
AZSH38 M | — | |
| 86244-30070 note |
Bracket, Equalizer Stereo Component, NO.1
2024-06 → —
|
AZSH38 G | — | |
| 86244B — Bracket, Equalizer Stereo Component, NO.2 | ||||
| 86244-30080 |
Bracket, Equalizer Stereo Component, NO.2
2024-06 → —
|
AZSH38 M | — | |
| 86244-30080 note |
Bracket, Equalizer Stereo Component, NO.2
2024-06 → —
|
AZSH38 G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
