Toyota Crown

2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States

Supported model Data version 2024-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

81 part groups · 3 illustrations

Illustrations

61795O 2024-06 → —

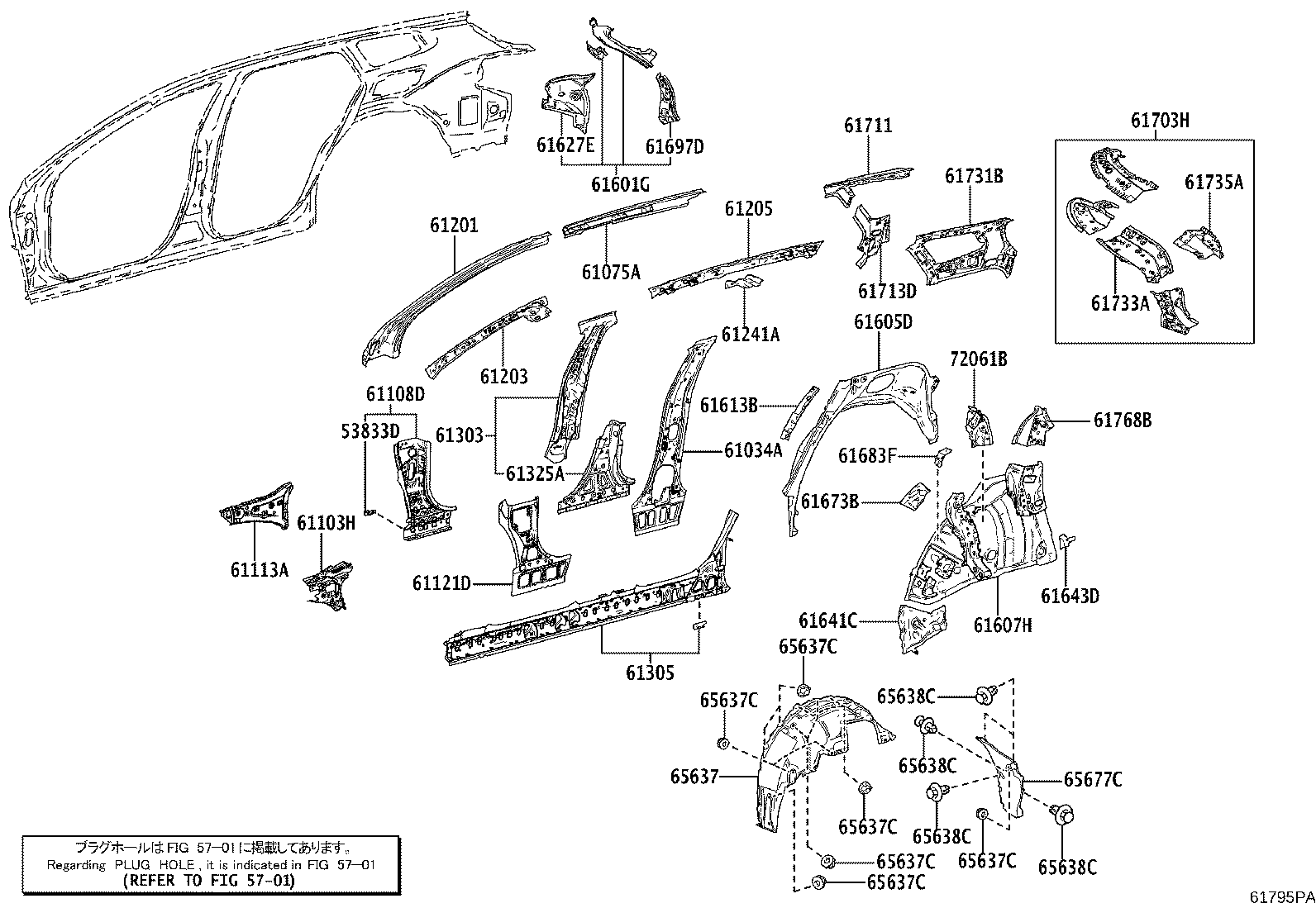

61795PA 2024-06 → —

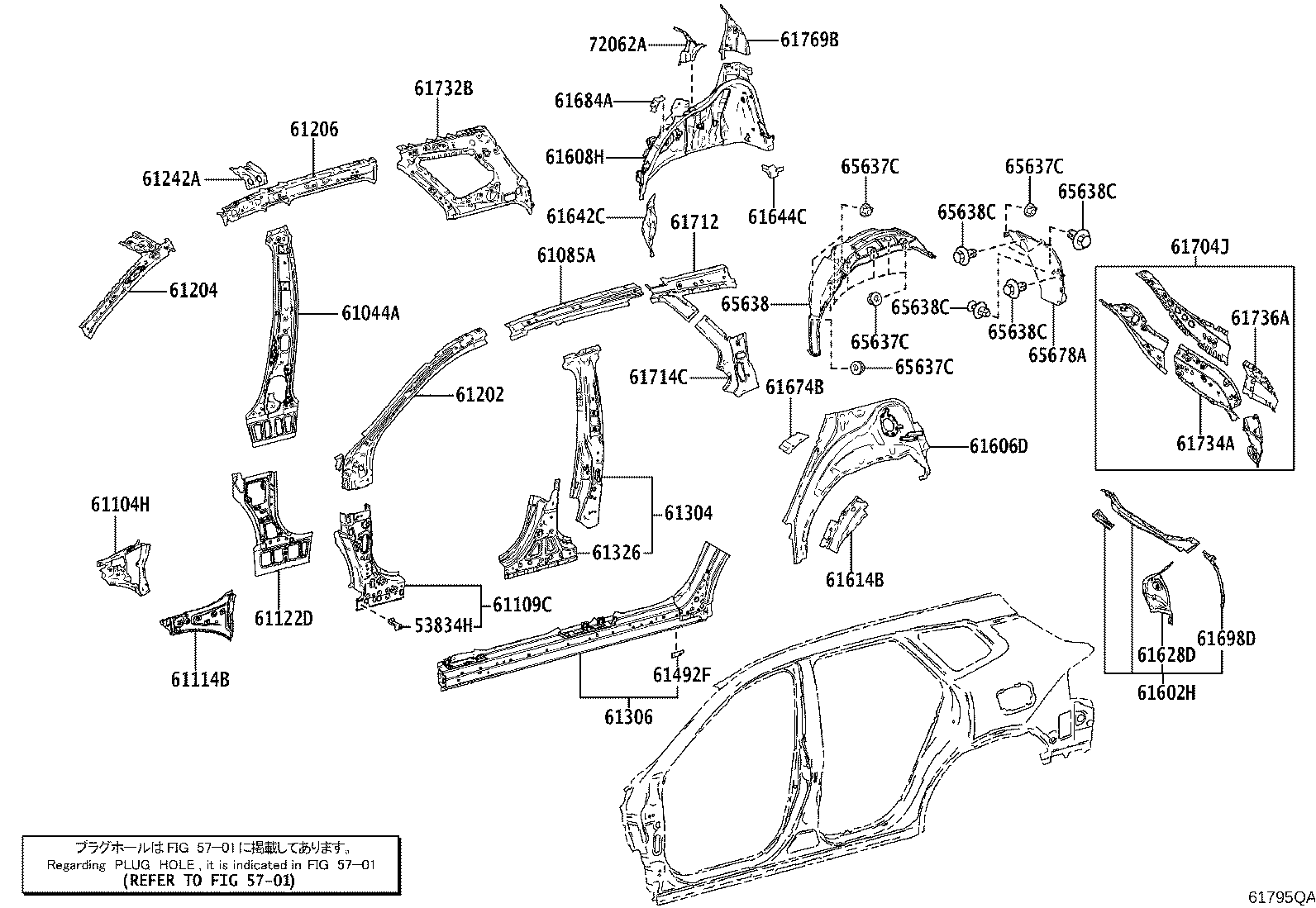

61795QA 2024-06 → —

Part groups

PNC	Description
53833D	Reinforcement, Front Fender, Lower RH
53834H	Reinforcement, Front Fender, Lower LH
61010	Member Assy, Side, RH
61020	Member Assy, Side, LH
61034A	Pillar Sub-assy, NO.3 Inner, RH
61044A	Pillar Sub-assy, NO.3 Inner, LH
61075A	Rail Sub-assy, NO.3 Upper Outer, RH
61085A	Rail Sub-assy, NO.3 Upper Outer, LH
61103H	Panel Sub-assy, Side, NO.2 RH
61104H	Panel Sub-assy, Side, NO.2 LH
61108D	Reinforcement Sub-assy, Front Pillar, Lower RH
61109C	Reinforcement Sub-assy, Front Pillar, Lower LH
61113A	Panel, Side, Outer NO.2 RH
61114B	Panel, Side, Outer NO.2 LH
61121D	Panel, Cowl Side, RH
61122D	Panel, Cowl Side, LH
61168C	Bracket, NO.6 Pillar Outer
61168E	Bracket, NO.6 Pillar Outer
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61205	Rail Sub-assy, Roof Side, Inner Rear RH
61206	Rail Sub-assy, Roof Side, Inner Rear LH
61210A	Rail Assy, Roof Side, RH
61220A	Rail Assy, Roof Side, LH
61241A	Gusset, Roof Side Rail, Rear RH
61242A	Gusset, Roof Side Rail, Rear LH
61303	Reinforce Sub-assy, Center Body Pillar, Upper RH
61304	Reinforce Sub-assy, Center Body Pillar, Upper LH
61305	Reinforce Sub-assy, Center Body Pillar, Lower RH
61306	Reinforce Sub-assy, Center Body Pillar, Lower LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61325A	Reinforcement, Center Body Pillar, Center RH
61326	Reinforcement, Center Body Piller, Center LH
61492F	Bracket, Side Panel Strength, NO.2
61601B	Panel Sub-assy, Quarter, RH
61601G	Panel Sub-assy, Rear Body Rear Side, RH
61602C	Panel Sub-assy, Quarter, LH
61602H	Panel Sub-assy, Rear Body Rear Side, LH
61605D	Panel Sub-assy, Quarter Wheel House, Outer RH
61606D	Panel Sub-assy, Quarter Wheel House, Outer LH
61607H	Panel Sub-assy, Quarter Wheel House, Inner RH
61608H	Panel Sub-assy, Quarter Wheel House, Inner LH
61613B	Panel, Quarter, Inner Front RH
61614B	Panel, Quarter, Inner Front LH
61627E	Extension, Quarter Panel, Rear Lower RH
61628D	Extension, Quarter Panel, Rear Lower LH
61641C	Gusset, Quarter Wheel House, Front RH
61642C	Gusset, Quarter Wheel House, Front LH
61643D	Patch, Quarter Wheel House, NO.1 RH
61644C	Patch, Quarter Wheel House, NO.1 LH
61673B	Reinforcement, Quarter Wheel House, Inner RH
61674B	Reinforcement, Quarter Wheel House, Inner LH
61683F	Bracket, Rear Wheel Opening, RH
61684A	Bracket, Rear Wheel Opening, LH
61697D	Housing, Quarter Panel End, RH
61698D	Housing, Quarter Panel End, LH
61703H	Reinforcement Sub-assy, Roof Side, Inner RH
61704J	Reinforcement Sub-assy, Roof Side, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713D	Reinforce, Roof Side Outer, RH
61714C	Reinforce, Roof Side Outer, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61768B	Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
61769B	Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
65637	Liner, Rear Wheel House, RH
65637C	Clip, Rear Wheel House Liner
65638	Liner, Rear Wheel House, LH
65638C	Clip, Rear Wheel House Liner
65677C	Seal, Wheel House, Rear RH
65678A	Seal, Wheel House, Rear LH
72061B	Base Sub-assy, Rear Seatback Lock, RH
72062A	Base Sub-assy, Rear Seatback Lock, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
