Toyota Crown

2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 3 illustrations

Illustrations

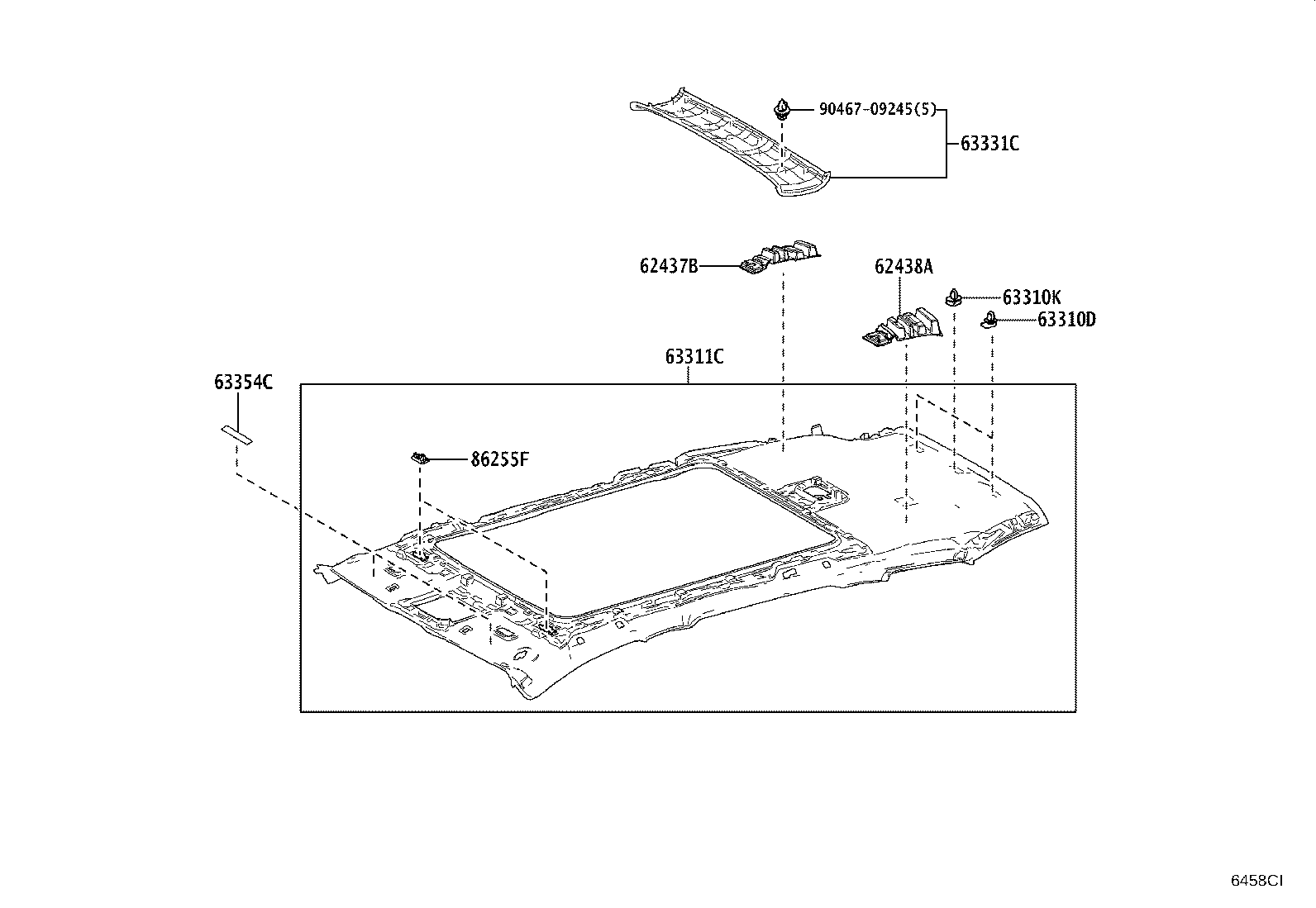

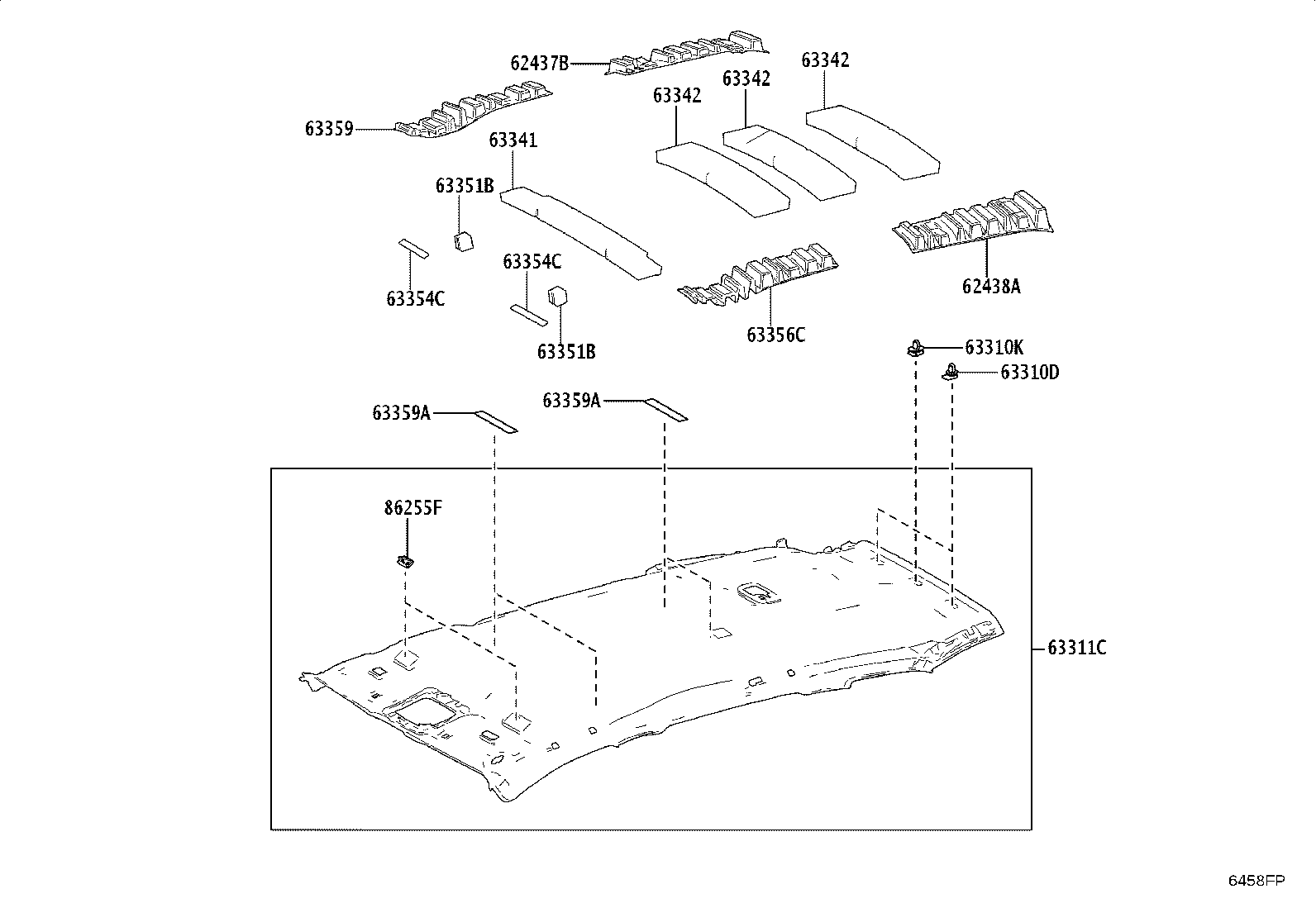

Figure 6458CH 6458CH 2024-06 → 2024-09 Figure 6458FP 6458FP 2024-09 → — Figure 6458CI 6458CI 2024-06 → —

Part groups

PNCDescription
62437B Pad, Roof Side Rail, Rear RH
62438A Pad, Roof Side Rail, Rear LH
63310D Clip, Roof Headlining
63310K Clip
63311C Headlining, Roof
63331C Protector, Roof Center Reinforcement
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351B Pad, Roof Headlining
63354C Pad, Roof Headlining Front Side
63356C Holder, Sunshade Trim
63359 Pad, Roof Headlining End
63359A Pad, Roof Silencer, NO.18
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
