Toyota Crown
2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States
Supported model
Data version 2024-05
Fuel Tank & Tube
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23070A | Ring, O, NO.1(FOR FUEL MAIN VALVE) |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 77001A | Tank Sub-assy, Fuel |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77070B | Valve Sub-assy, Close Tank |
| 77103 | Sub-tank Sub-assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169B | Gasket, Fuel Suction Tube Set, NO.1 |
| 77173 | Bracket, Fuel Gage |
| 77175 | Support, Fuel Suction, NO.2 |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77210 | Pipe Assy, Fuel Tank Filler |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77227B | Tube, Fuel Tank Breather, NO.7 |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77285L | Clamp, Fuel Tube, NO.1 |
| 77285R | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |

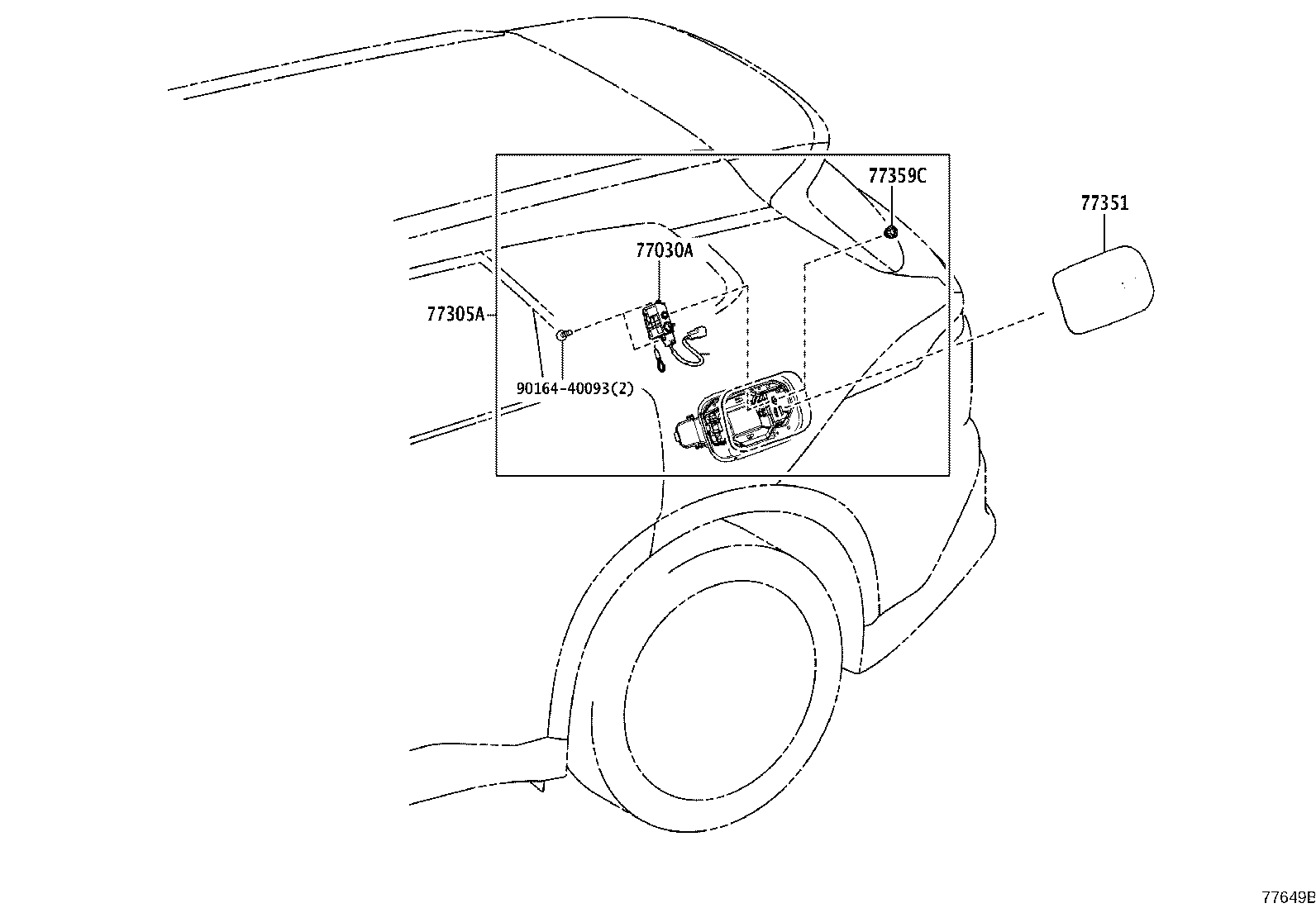

| 77305A | Lid Sub-assy, Fuel Filler Opening |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77351 | Lid, Fuel Filler Opening, Outer |
| 77359C | Seal, Fuel Filler Opening Lid Lock |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77404C | Hose Sub-assy, Fuel Tank Vent, NO.3 |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77607C | Protector Sub-assy, Fuel Tank, NO.2 |
| 77613D | Bolt, Fuel Tank Band Set, NO.2 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77643 | Retainer, Fuel Tank Protector |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77656A | Cushion, Fuel Tank, NO.4 |
| 77656B | Cushion, Fuel Tank, NO.6 |
| 77681A | Seat, Fuel Tank Band |
| 77682A | Seat, Fuel Tank Band, NO.2 |

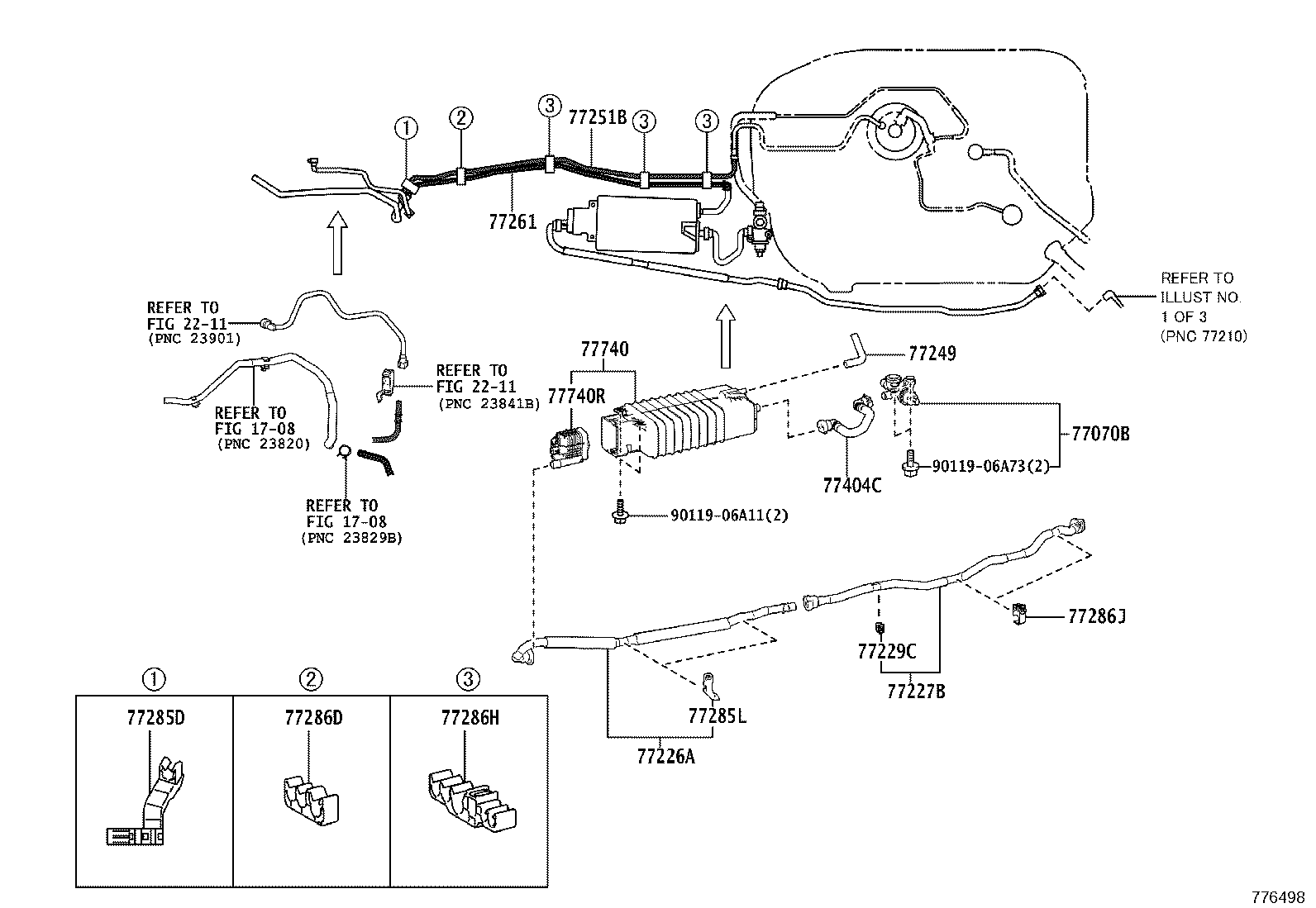

| 77740 | Canister Assy, Charcoal |
| 77740R | Pump Sub-assy, Leak Detection |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
