Toyota Crown

2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 2 illustrations

Illustrations

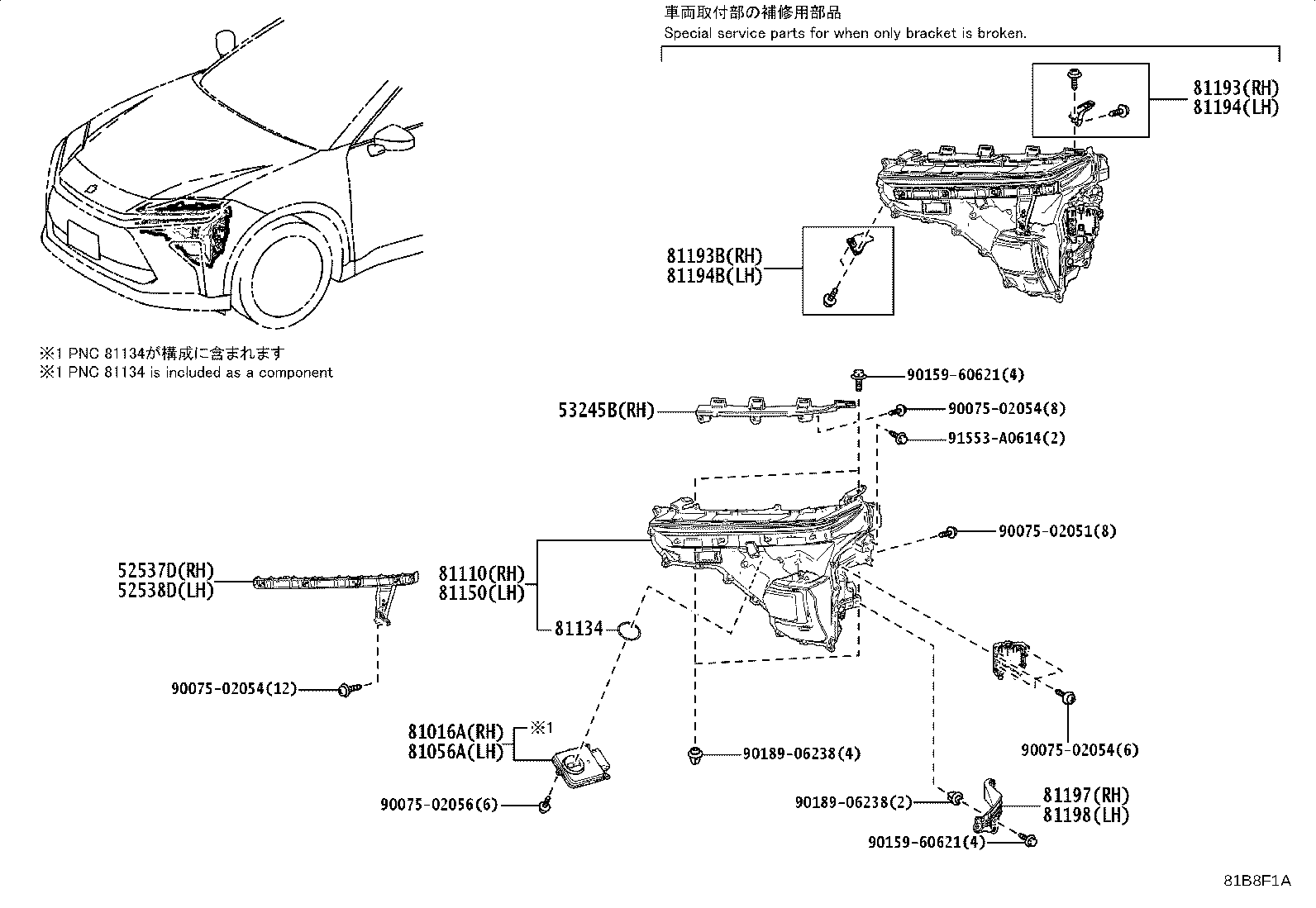

Figure 81B8F0A 81B8F0A 2024-06 → — Figure 81B8F1A 81B8F1A 2024-06 → —

Part groups

PNCDescription
52537D Retainer, Front Bumper End, RH
52538D Retainer, Front Bumper End, LH
53245B Bracket, Headlamp, RH
53246B Bracket, Headlamp, LH
81016A Computer Sub-assy, Headlamp, RH
81056A Computer Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81134 Gasket, Headlamp
81150 Headlamp Assy, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
