Toyota Crown

2024-05 → present · chassis AZSH38 · catalogue 33C410 · United States

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

22 part groups · 2 illustrations

Illustrations

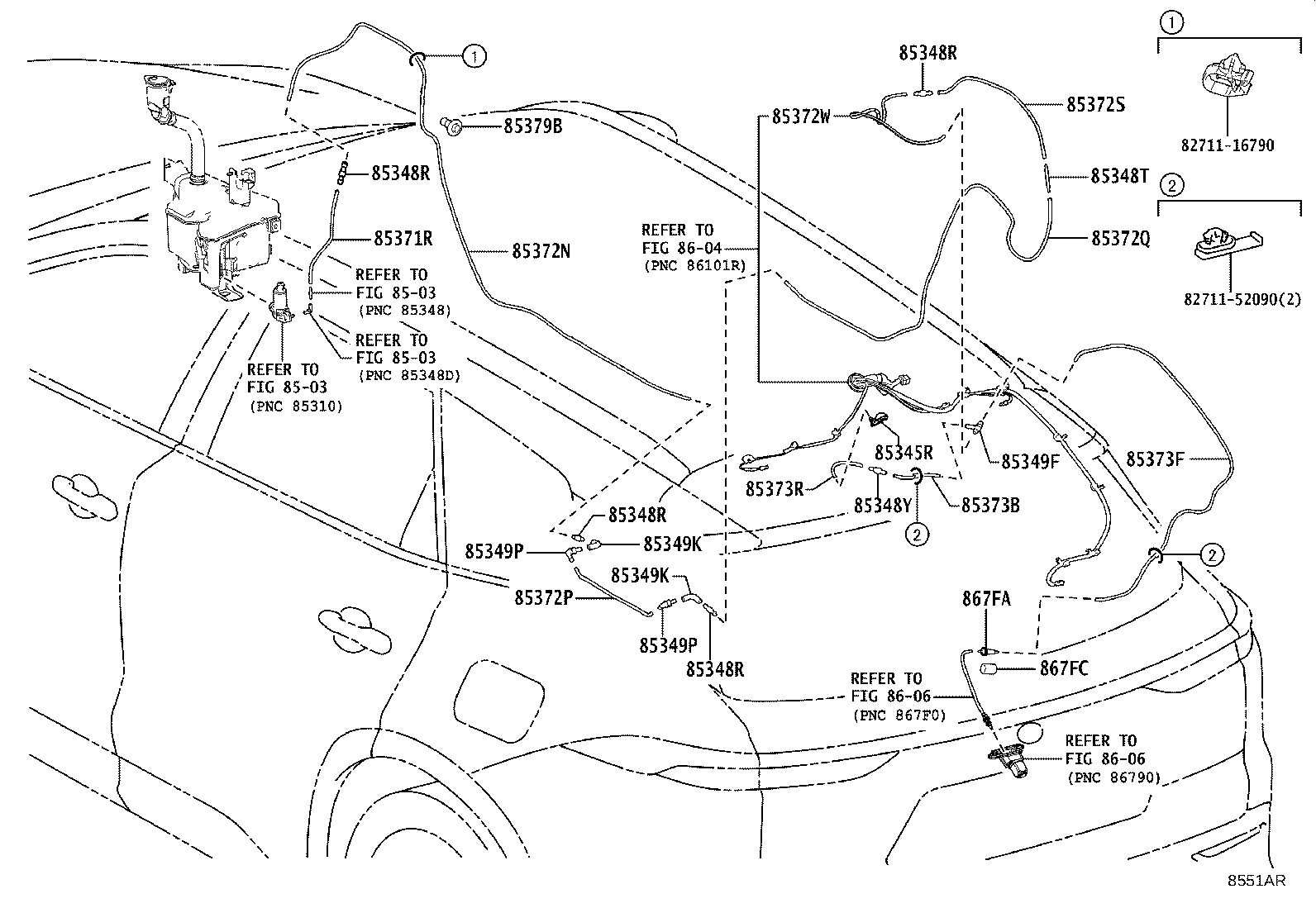

Figure 8551AQ 8551AQ 2024-06 → — Figure 8551AR 8551AR 2024-06 → —

Part groups

PNCDescription
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348V Joint, Rear Washer Hose, NO.4
85348Y Joint, Rear Washer Hose, NO.5
85349F Joint, Rear Washer Hose, NO.1
85349K Joint, Rear Washer Elbow, NO.2
85349P Joint, Rear Washer Elbow, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85372S Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
85372W Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
85372X Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
85373B Hose, Rear Washer(FROM JOINT TO JOINT), NO.7
85373F Hose, Rear Washer(FROM JOINT TO JOINT), NO.8
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85379B Grommet, Washer, A
867FA Filter, Cleaner Hose
867FC Cushion, Cleaner Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
