Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

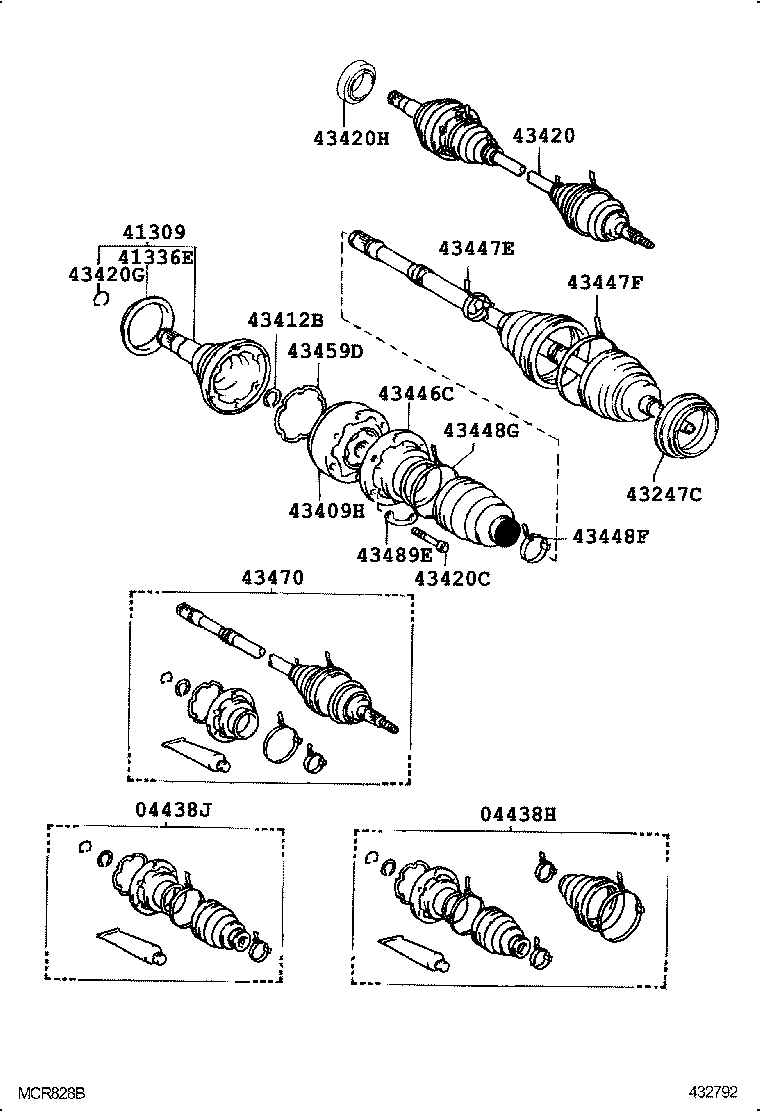

Exploded illustration 432792 43420 — SHAFT ASSY, FRONT DRIVE, LH (6 parts) 41309 — SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH (1 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (1 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (1 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (1 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (4 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (1 parts) 43459D — GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH (1 parts) 43446C — COVER, FRONT AXLE INBOARD JOINT, LH (1 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (1 parts) 43247C — DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 (4 parts) 43409H — JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, LH (1 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (5 parts) 43489E — WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH (1 parts) 43420C — BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH) (1 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (6 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (4 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (4 parts)
432792 · 19 callouts Full size ↗
46 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438-06060 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
1996-08 → 1996-10 ended
MCX10 —
04438-06060 Boot Kit, Front Drive Shaft, IN & Outboard, LH
1994-09 → 1996-08 ended
MCX10 —
04438-06100 Boot Kit, Front Drive Shaft, IN & Outboard, LH
1996-10 → —
MCX10 —
04438-06100 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
1996-08 → 1996-10 ended
MCX10 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-06050 Boot Kit, Front Drive Shaft Inboard Joint, LH
1994-09 → 1996-08 ended
MCX10 —
04438-06050 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1996-08 → 1996-10 ended
MCX10 —
04438-06090 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1996-08 → 1996-10 ended
MCX10 —
04438-06090 Boot Kit, Front Drive Shaft Inboard Joint, LH
1996-10 → —
MCX10 —
41309 — Shaft Sub-assy, Differential Side Gear, LH
41309-06020 Shaft Sub-assy, Differential Side Gear, LH
1994-09 → 1996-10 ended
MCX10 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-06040 Cover, Front Drive Shaft Dust, LH
1994-09 → —
MCX10 —
43247C — Deflector, Front Wheel Bearing Dust, LH NO.2
43247-06010 Deflector, Front Wheel Bearing Dust, LH NO.2
1996-08 → —
MCX10 —
43247-06010 note Deflector, Front Wheel Bearing Dust, LH NO.2
1994-09 → 1996-08 ended
MCX10 USA;MCX10 XL CND —
43247-06010 Deflector, Front Wheel Bearing Dust, LH NO.2
1994-09 → 1996-08 ended
MCX10 XLS CND —
43247-06020 Deflector, Front Wheel Bearing Dust, LH NO.2
1994-09 → 1996-08 ended
MCX10 USA;MCX10 XL CND —
43409H — Joint Sub-assy, Front Drive Shaft Cross Groove, LH
43409-06010 Joint Sub-assy, Front Drive Shaft Cross Groove, LH
1994-09 → 1996-10 ended
MCX10 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
90080-52036 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1994-09 → 1996-10 ended
MCX10 —
43420 — Shaft Assy, Front Drive, LH
43420-06070 Shaft Assy, Front Drive, LH
1994-09 → 1996-08 ended
MCX10 USA;MCX10 XL CND —
43420-06080 Shaft Assy, Front Drive, LH
1994-09 → 1996-08 ended
MCX10 XLS CND —
43420-06080 note Shaft Assy, Front Drive, LH
1994-09 → 1996-08 ended
MCX10 USA;MCX10 XL CND —
43420-06080 note Shaft Assy, Front Drive, LH
1996-08 → 1996-10 ended
MCX10 —
43420-06170 note Shaft Assy, Front Drive, LH
1996-08 → 1996-10 ended
MCX10 —
43420-06170 Shaft Assy, Front Drive, LH
1996-10 → —
MCX10 —
43420C — Bolt (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH)
90080-11034 Bolt (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH)
1994-09 → 1996-10 ended
MCX10 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
1994-09 → —
MCX10 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-50011 Oil Seal, Front Drive Shaft, LH
1994-09 → —
MCX10 —
43446C — Cover, Front Axle Inboard Joint, LH
43446-03020 Cover, Front Axle Inboard Joint, LH
1994-09 → 1996-10 ended
MCX10 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-06060 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1996-08 → —
MCX10 —
90080-46084 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1994-09 → 1996-08 ended
MCX10 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-06070 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1996-08 → 1996-10 ended
MCX10 —
42345-06070 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1996-10 → —
MCX10 —
90080-46109 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1994-09 → 1996-08 ended
MCX10 —
90080-46109 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1996-08 → 1996-10 ended
MCX10 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90080-46084 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1996-10 → 1997-05 ended
MCX10 —
90080-46084 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1996-08 → 1996-10 ended
MCX10 —
90080-46106 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1996-08 → 1996-10 ended
MCX10 —
90080-46106 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1994-09 → 1996-08 ended
MCX10 —
90080-46238 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-05 → —
MCX10 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90080-46173 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1994-09 → —
MCX10 —
43459D — Gasket, Front Drive Shaft Cross Groove Joint, LH
43459-06010 Gasket, Front Drive Shaft Cross Groove Joint, LH
1994-09 → 1996-10 ended
MCX10 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-09170 Shaft Assy, Front Drive Outboard Joint, LH
1994-09 → 1996-08 ended
MCX10 USA;MCX10 XL CND —
43470-09180 Shaft Assy, Front Drive Outboard Joint, LH
1994-09 → 1996-08 ended
MCX10 XLS CND —
43470-09180 note Shaft Assy, Front Drive Outboard Joint, LH
1994-09 → 1996-08 ended
MCX10 USA;MCX10 XL CND —
43470-09180 note Shaft Assy, Front Drive Outboard Joint, LH
1996-08 → 1996-10 ended
MCX10 —
43470-09340 note Shaft Assy, Front Drive Outboard Joint, LH
1996-08 → 1996-10 ended
MCX10 —
43470-09340 Shaft Assy, Front Drive Outboard Joint, LH
1996-10 → —
MCX10 —
43489E — Washer, Front Drive Shaft Cross Groove Joint, LH
43489-03010 Washer, Front Drive Shaft Cross Groove Joint, LH
1994-09 → 1996-10 ended
MCX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
