Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

22 part groups · 2 illustrations

Illustrations

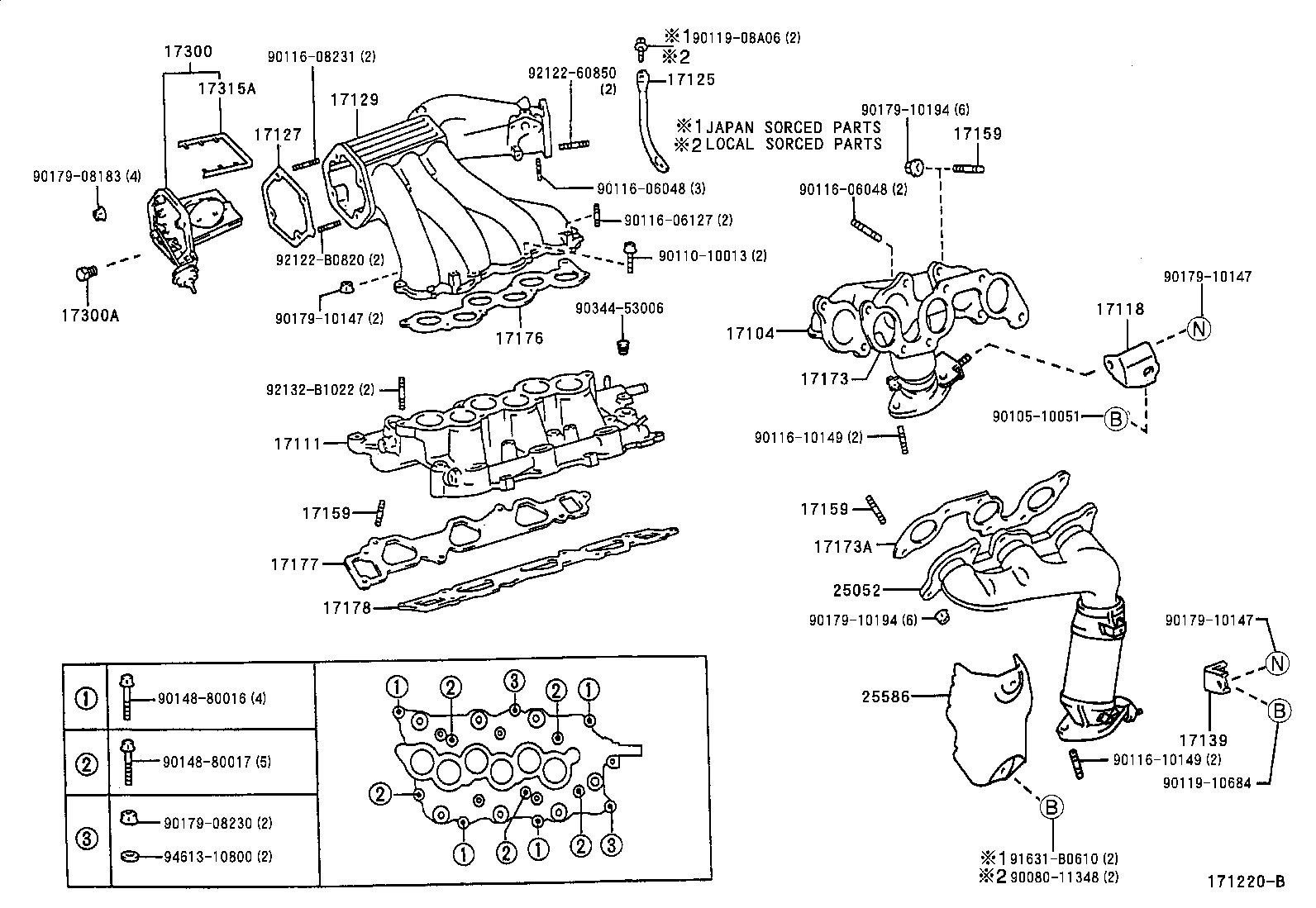

Figure 170518A 170518A 1994-09 → — Figure 171220B 171220B 1997-09 → —

Part groups

PNCDescription
17104 Manifold Sub-assy, Exhaust, RH
17104A Bolt(FOR FRONT PIPE & STAY)
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17127 Gasket, Surge Tank Cover
17129 Tank, Intake Air Surge
17139 Stay, Manifold, NO.2
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17300 Valve Assy, Intake Air Control
17300A Plug, W/Head Taper Screw(FOR AIR CONTROL VALVE)
17300B Union(FOR INTAKE AIR CONTROL VALVE)
17315A Gasket, Intake Air Control Valve
25052 Converter Sub-assy, Exhaust Manifold, NO.2
25586 Insulator, Manifold Converter, NO.1
