Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 2 illustrations

Illustrations

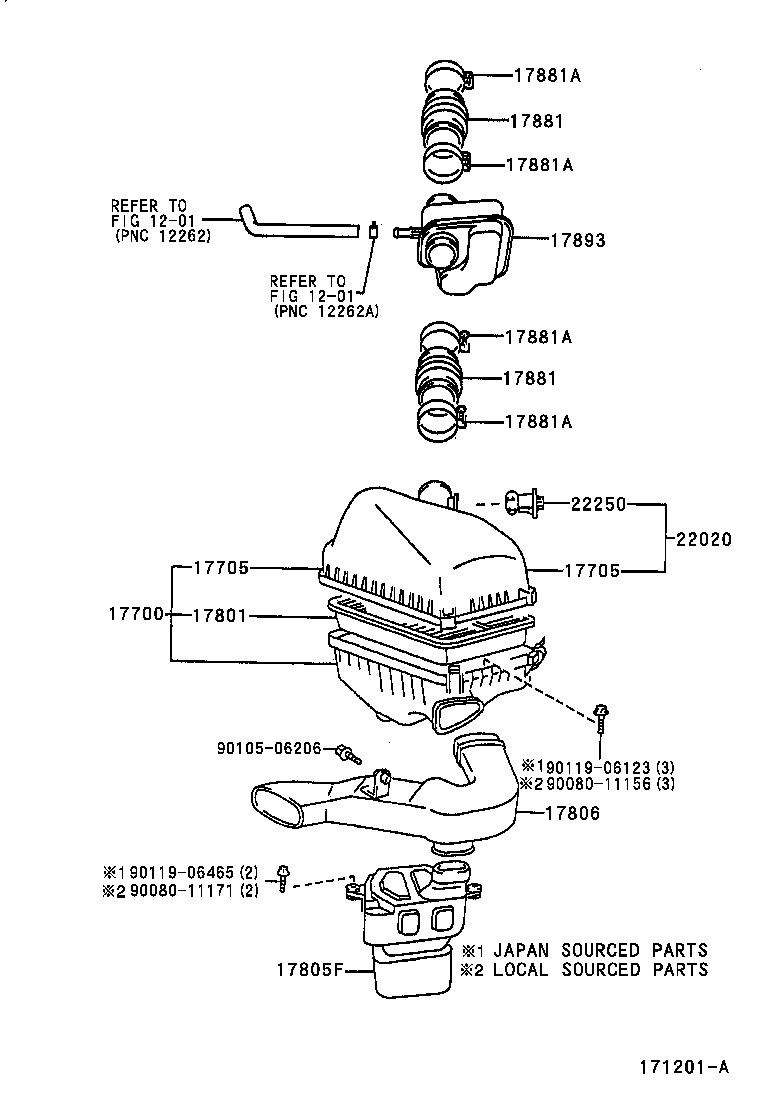

Figure MAH247B MAH247B 1994-09 → 1997-09 Figure 171201A 171201A 1997-09 → —

Part groups

PNCDescription
17343D Hose, Air, NO.3
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17893 Resonator, Intake Air
22020 Meter Assy, Air Flow W/Air Cleaner
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
